Modular Stairs, Ramps, and Canopies

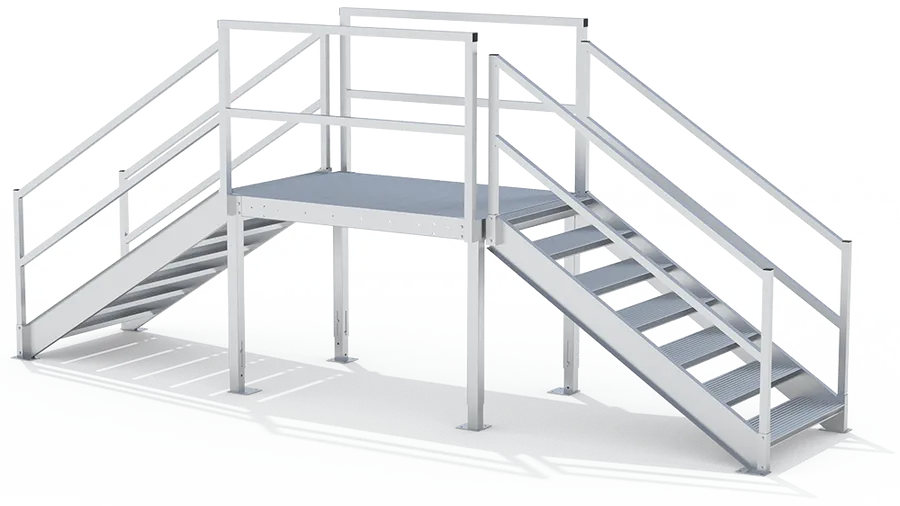

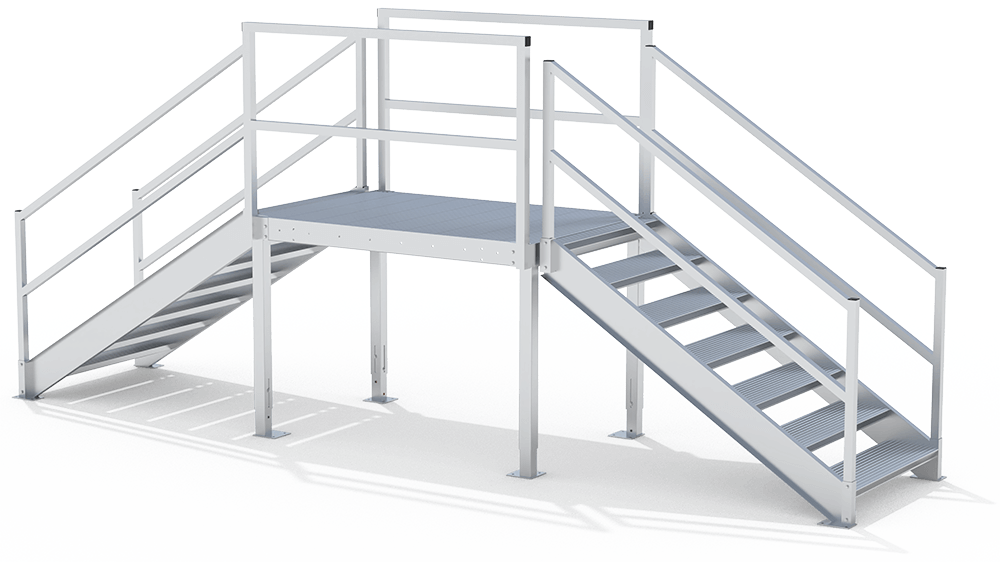

PREFABRICATED CROSSOVER STAIRS
Our APEX Crossover Stair System is made from 100% industrial-grade aluminum components that bolt together. They are prefabricated and ready to install, with no need for custom fabrication, welding, or time-consuming engineering.
Reduce your costs, installation time, and complexity today.
FEATURES
EASY INSTALLATION
Our crossover stairs are modular and bolt together.
CODE COMPLIANT
Our crossover stairs comply with the Americans with Disabilities Act (ADA) and International Building Code (IBC) and can meet local building codes.
RECONFIGURABLE
Because the system is modular, ramps, stairs and railings can be reused or reconfigured as your needs change.
MODULAR DESIGN
Modular crossover stairs, platform landings, legs, and handrails bolt together without any on-site welding.
CUSTOM LAYOUTS
Our team of engineers will design a stair configuration layout just for you, and professional engineer stamps are available.
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
HPD/LEED/ESG
Prefabricated systems are typically made with 6061 and 6063 aluminum alloys containing ≥99% and ≥50% recycled content. Some prefabricated systems can help contribute to several LEED v4.1 credits and other green building rating systems.
100% ALUMINUM – LONG LASTING
The entire line of APEX products will never rust, warp, or rot. All components are low maintenance and will last much longer than wood or steel.
SLIP-RESISTANT DECKING
APEX stairs are standard with an aggressive, heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance. Other decking options are also available.
INFORMATION
INFINITE CONFIGURATIONS
Our modular design and experienced engineers can configure solutions for the most difficult projects.
BRAND
Upside Innovations
PRODUCT TYPE
Stair
REACH ANY HEIGHT
Our team can design modular stairs to reach any height that you need
WE INSTALL
Our professional installation team ensures that your project goes smoothly.
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
OSHA-COMPLIANT
All stairs and crossover solutions meet OSHA standards with IBC-compliant options also available.
GUARDRAIL (STEPS > 30″)
36″ high
GUARDRAIL (STEPS ≤ 30″)
36″ high
WEIGHT CAPACITY
100 lbs/sqft live load, 300 lbs point load over a sqft area

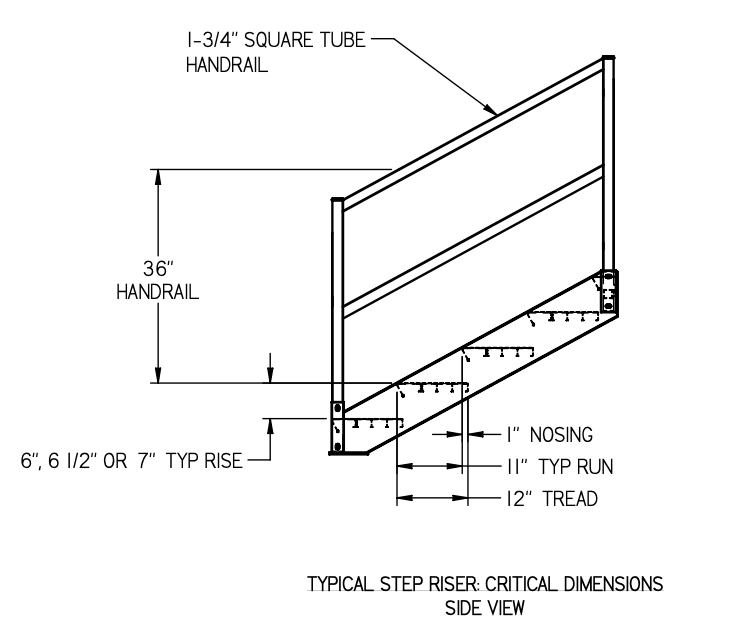

DIMENSION
- Handrail : 36″ high
- Tread Depth : 12″ (11″ + 1″ nosing)
- Height : We use 6″, 6.5″, or 7″ rises between the treads to reach any height
PLATFORM SIZES
- 48″ x 48″
- 48″ x 64″
- 64″ x 64″ (other sizes available)
WIDTH (STEPS > 30″)
40″ between the handrails, 48″ out-to-out
WIDTH (STEPS ≤ 30″)
40″ between the handrails, 48″ out-to-out
POWDER COATING (OPTIONAL)
Ask a solutions advisor for available color options
GRIP STRUT DECKING
- Step risers are open between treads.
- All step treads are designed to have a uniform depth of 9-1⁄2” per step with a typical rise of 7″, 7 1/2″, 8″.
EXTRUDED TREAD DECKING
- Step risers are open between treads.
- All step nosings have a uniform radius of 1⁄4” and an underside angle of 60 degrees from the horizontal.
- All step treads are designed to have a uniform depth of 12” with a 1” nosing for an effective run of 11” minimum per step, INCLUDING THE TOP STEP ONTO THE PLATFORM / LANDING.
COLLECTION
Crossover
MATERIAL
Mill finish aluminum extrusions and sheet
DECKING OPTIONS
