Contech CHS® – Culvert Headwall System
CHS® – CULVERT HEADWALL SYSTEM
CHS® – CULVERT HEADWALL SYSTEM

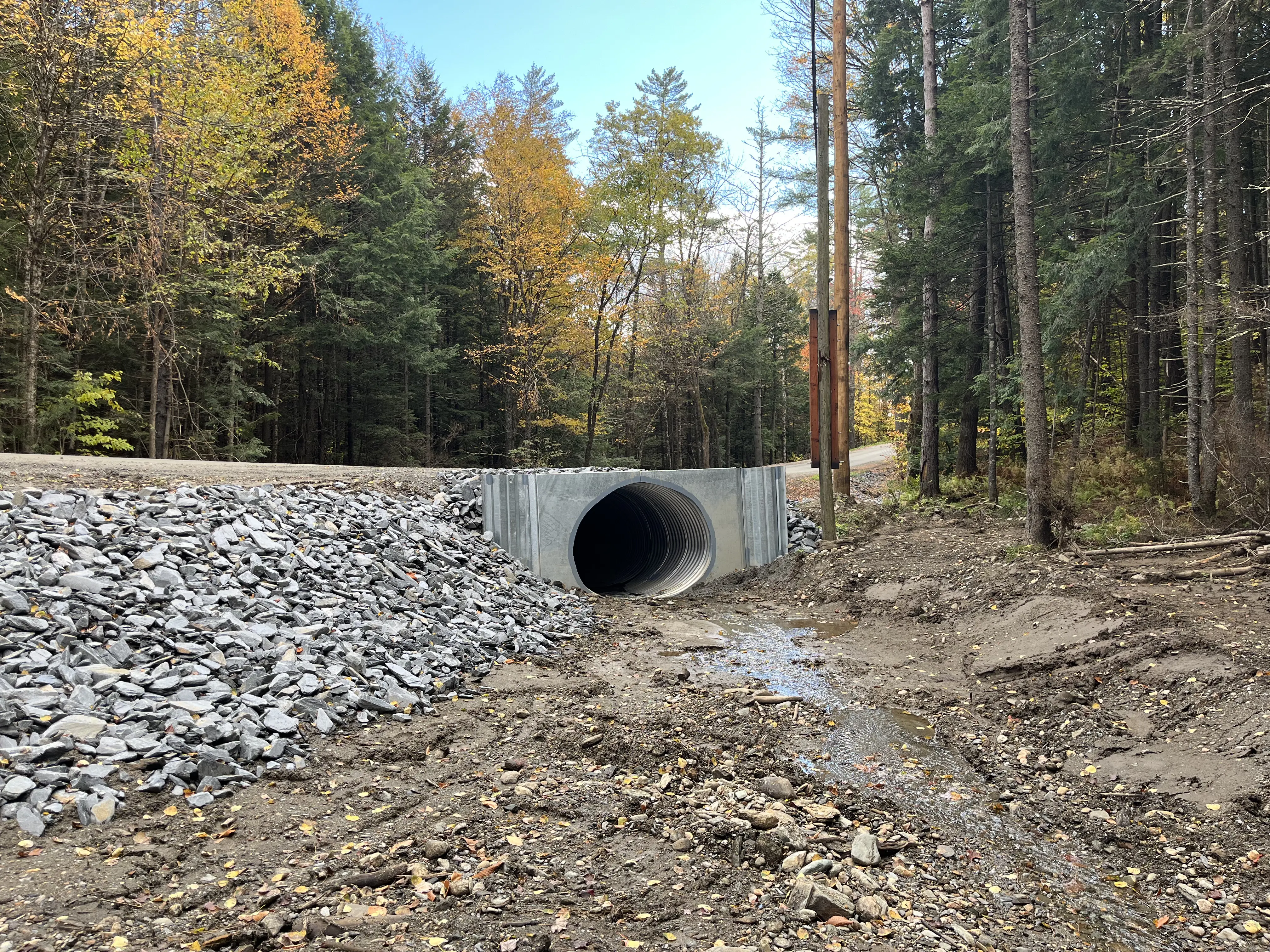

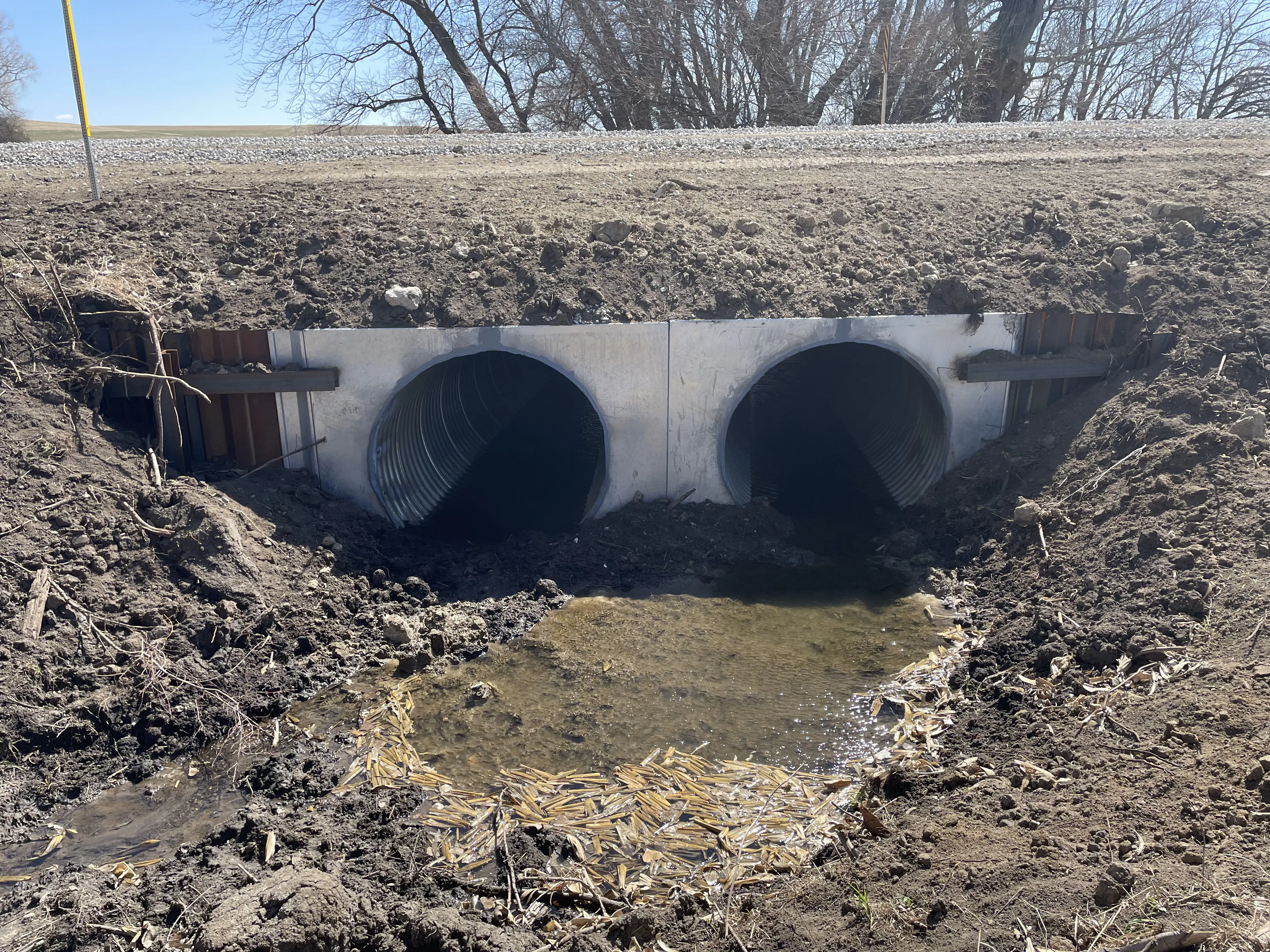

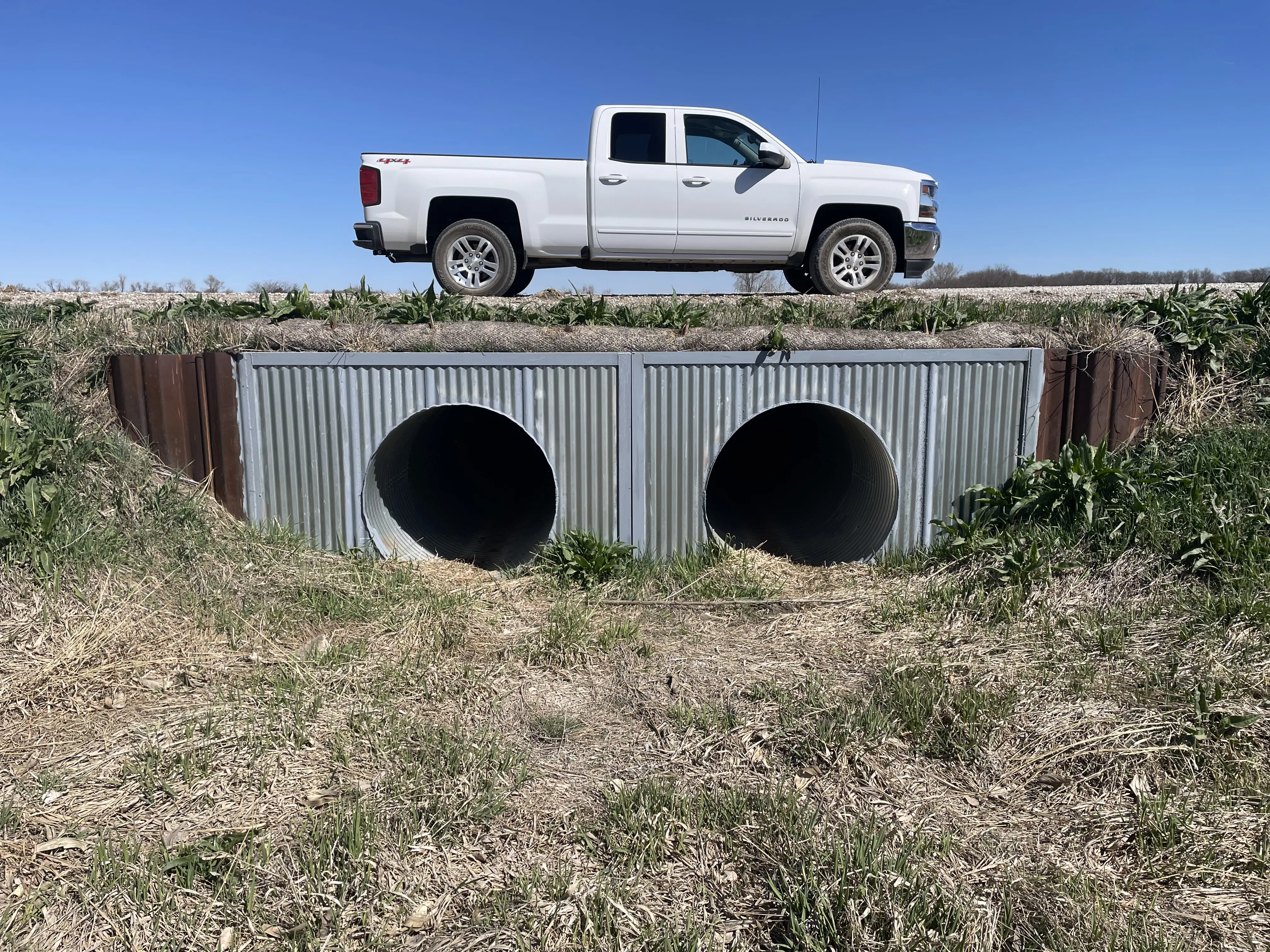

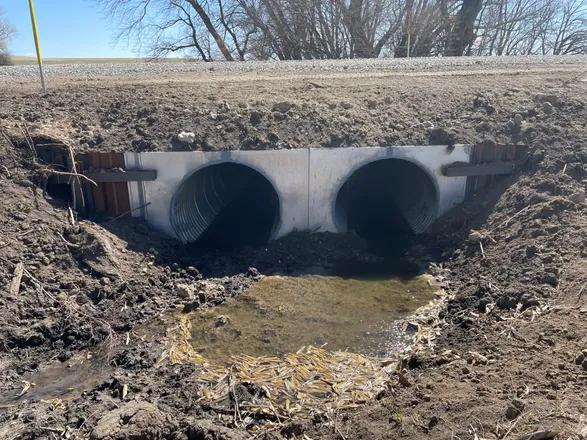

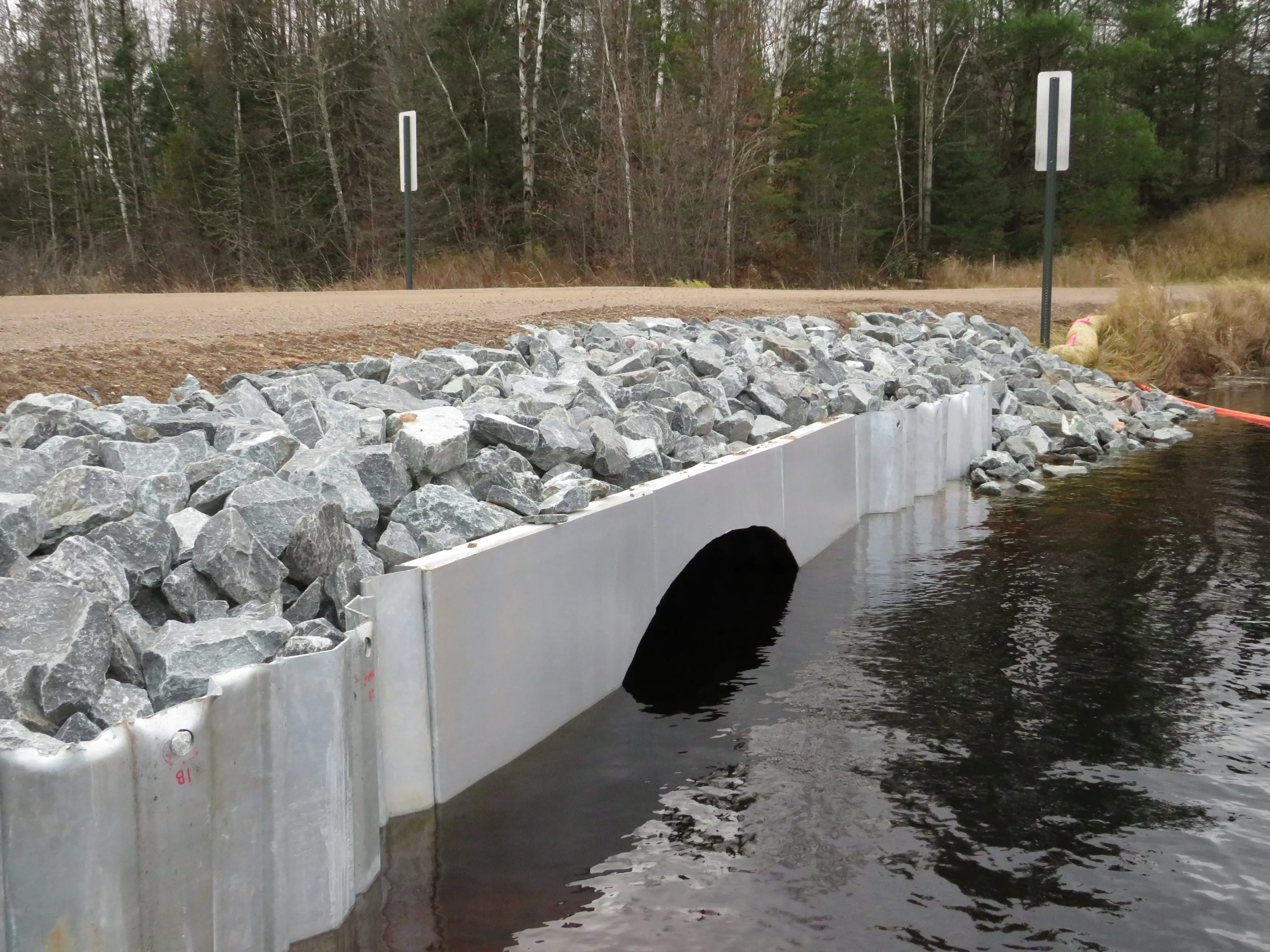

CHS® is composed of a corrugated metal pipe (CMP) culvert, prefabricated flat panel headwall and metric sheeting wingwalls to create a single or multi-barrel culvert system for all types and sizes.
Designing with steel headwalls can save thousands of dollars versus conventional concrete headwalls.
INFORMATION
BRAND
Contech
PRODUCT TYPE
Pipes
DURABILITY
Steel headwalls are available in hot-dip galvanized (HDG) heavy gage steel. HDG headwalls are compatible with galvanized steel, aluminized steel, and polymer coated steel pipe culverts.
CHS® – ENHANCED END TREATMENT PROTECTION
Contech has over 100 years of experience manufacturing corrugated metal pipe (CMP) for culverts and other drainage structures. Steel headwalls reduce the potential for scour and the undermining of a culvert during flow events, including a major storm for all types of basins. CHS® is composed of a CMP culvert, prefabricated flat panel headwall and metric sheeting wingwalls to create a single or multi-barrel culvert system for all types and sizes. Designing with steel headwalls can save thousands of dollars versus conventional concrete headwalls.
MANUFACTURING
Factory
HEADWALLS
Steel
USE
Construction
COLLECTION
CHS
ENVIRONMENT
Indoor
EFFICIENT INLET FLOW DESIGN
Steel headwalls can more efficiently direct flows into culvert, decreasing entrance losses when compared to other entrance conditions.
PROJECT COST & TIME SAVINGS

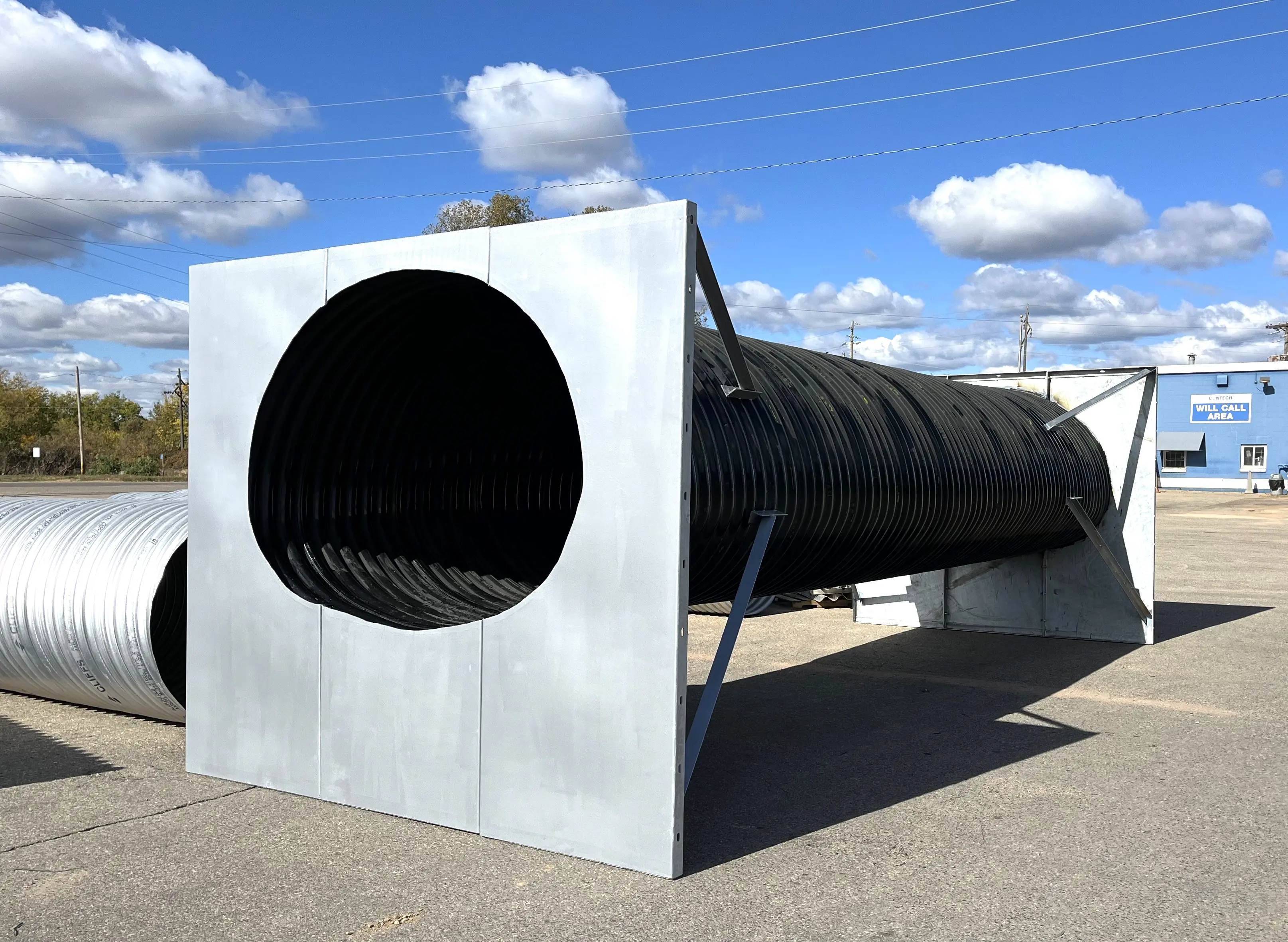

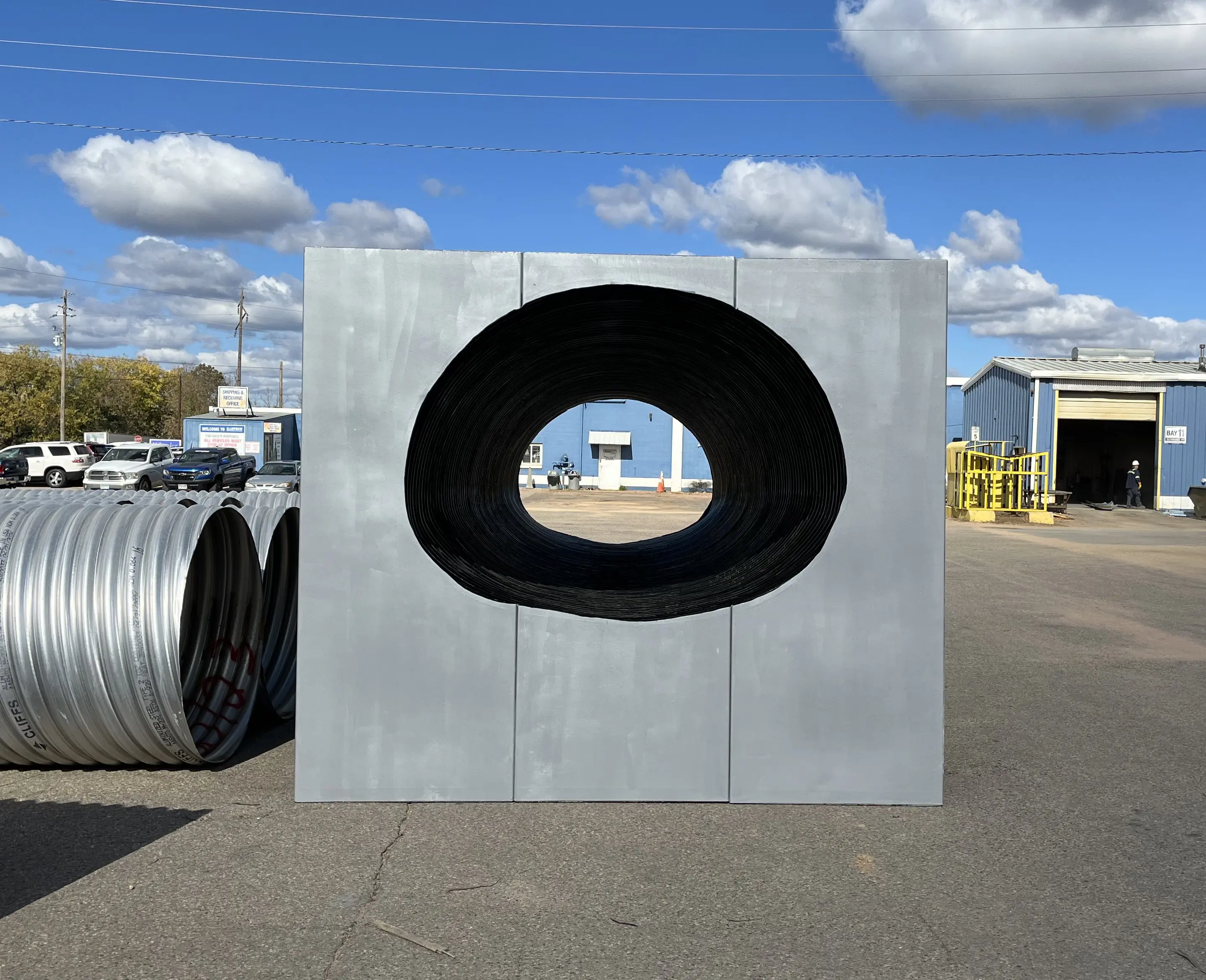

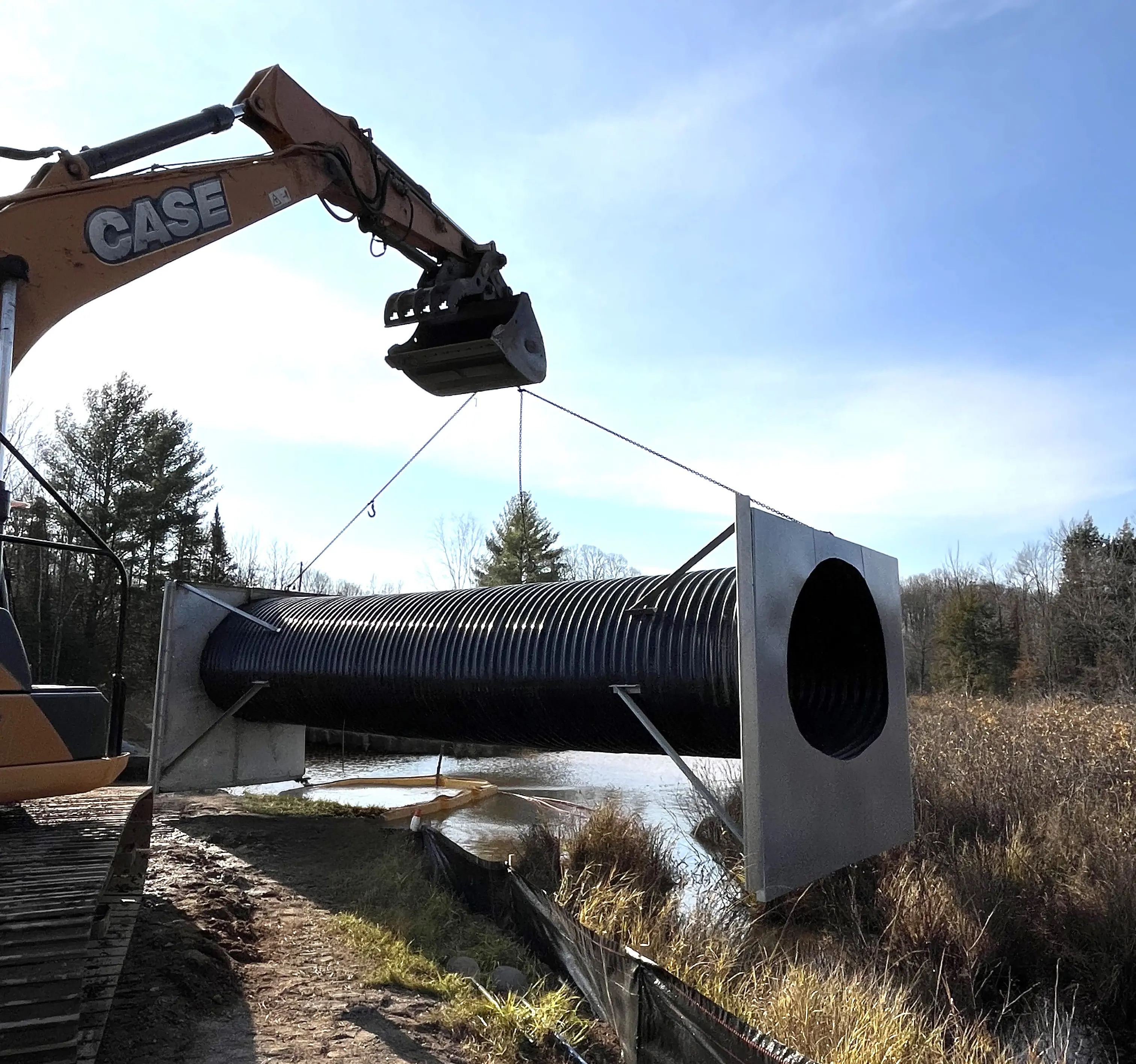

CHS® provides immediate material savings and construction savings. Crane rental is typically not required when installing steel headwalls versus heavy concrete sections. CHS® allows for installation in standing water. Factory made pre-fabricated steel headwalls can save weeks of installation time versus poured in place concrete headwalls.
PANEL
Flat
STRUCTURE
Drainage
MANUFACTURING AMERICA'S INFRASTRUCTURE™
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution selection process.
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
