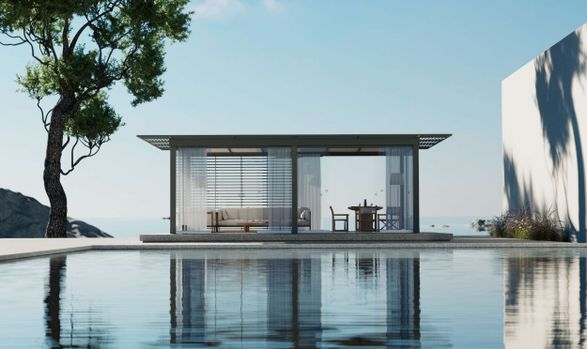

Unosider Lodge Aluminium Pergola
LODGE ALUMINIUM PERGOLA
LODGE ALUMINIUM PERGOLA
Self-supporting aluminium pergola and fixed waterproof covering and perimeter locking systems

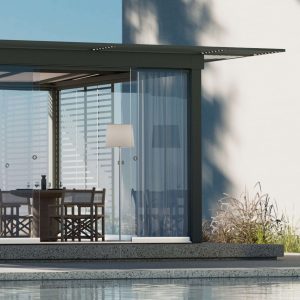

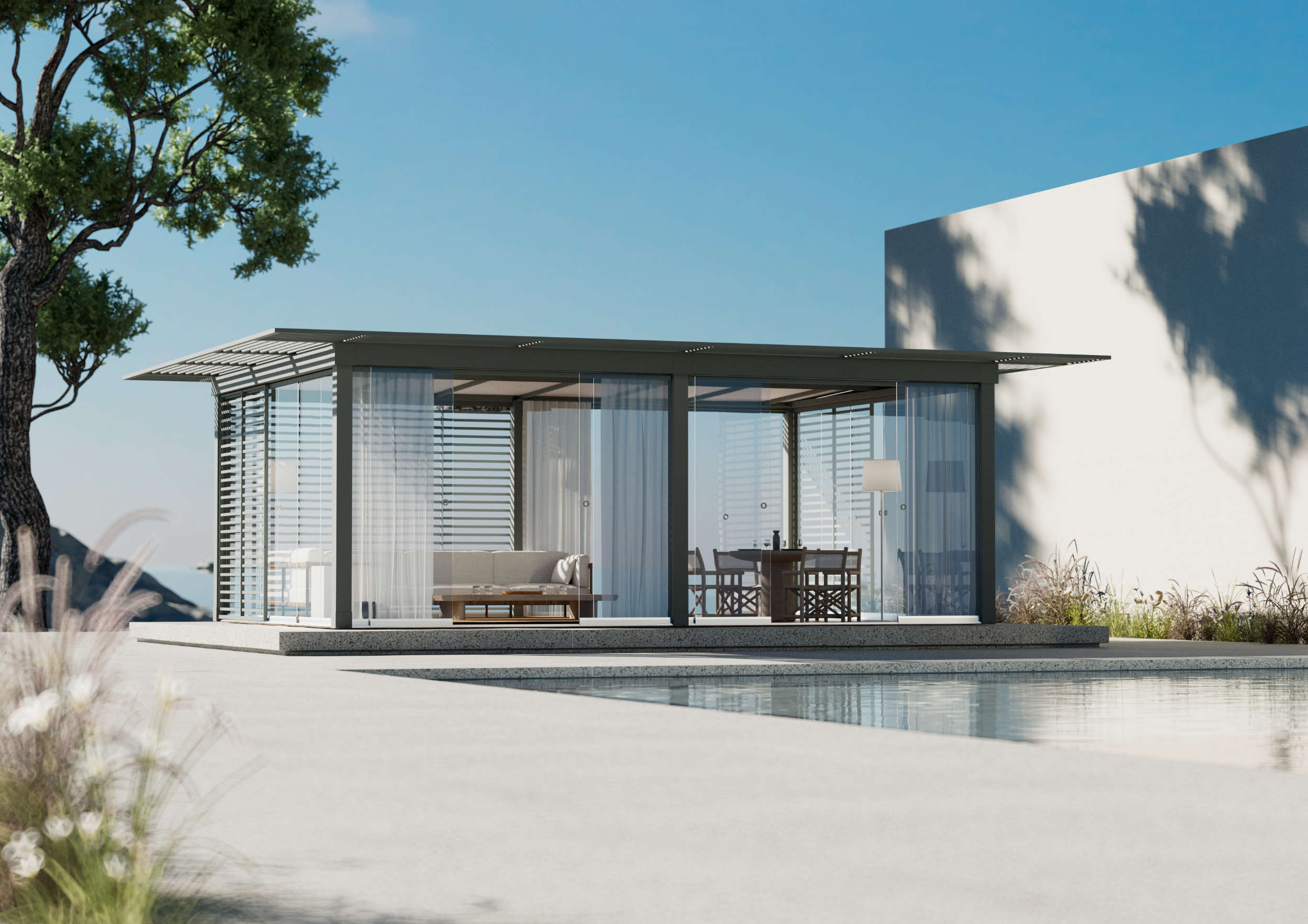

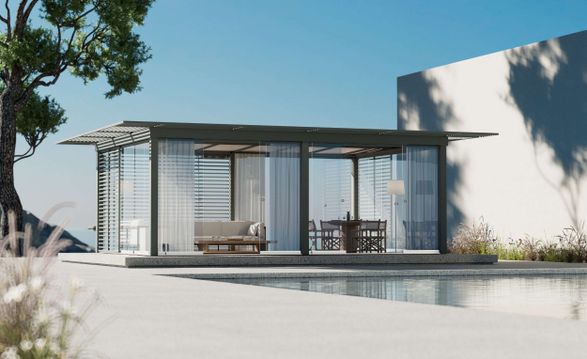

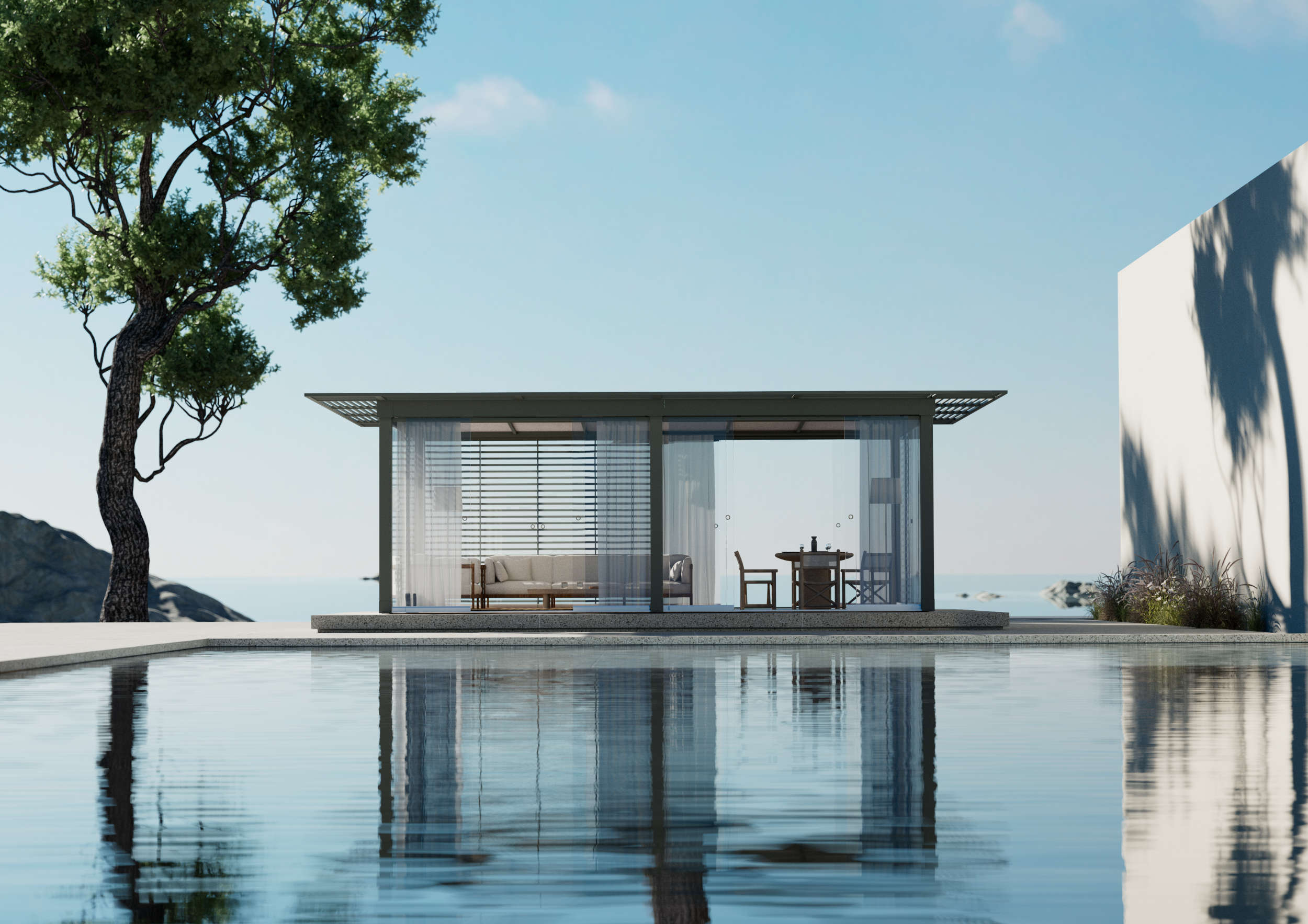

Lodge is a structure technically designed to create shelter from the sun from wind and rain and is functionally thought of as a micro-architecture: an environment to live in, a space to inhabit.
INFORMATION
USE
The solid profiles and clean lines of the structure allow Lodge to be integrated into any setting, residential or contract, whether it is a quiet place to work, a place for daily moments of relaxation, or a cozy space for guests, Lodge can adapt to the needs of the moment.
BRAND
Unosider
PRODUCT TYPE
Pergola
PRODUCTION
Made in Italy
ENVIRONMENT
Outdoor Living
COMFORT
Lodge offers the opportunity to experience the same comfort perceivable in an exterior as in an interior.
AVAILABLE COLORS
12 Standard colors
MICROARCHITECTURE
A microarchitecture for living & inhabiting
STRUCTURE
The structure can be made to measure, up to a maximum of 500 x 1200 cm in the version with 6 pillars and sandwich roof (450 x 1200 cm in the version with PVC roof).
CUSTOMIZE
The wealth of available accessories makes it possible to customize Lodge for any context, ensuring a solution perfectly in line with any design requirement.
OUTDOOR ROOM

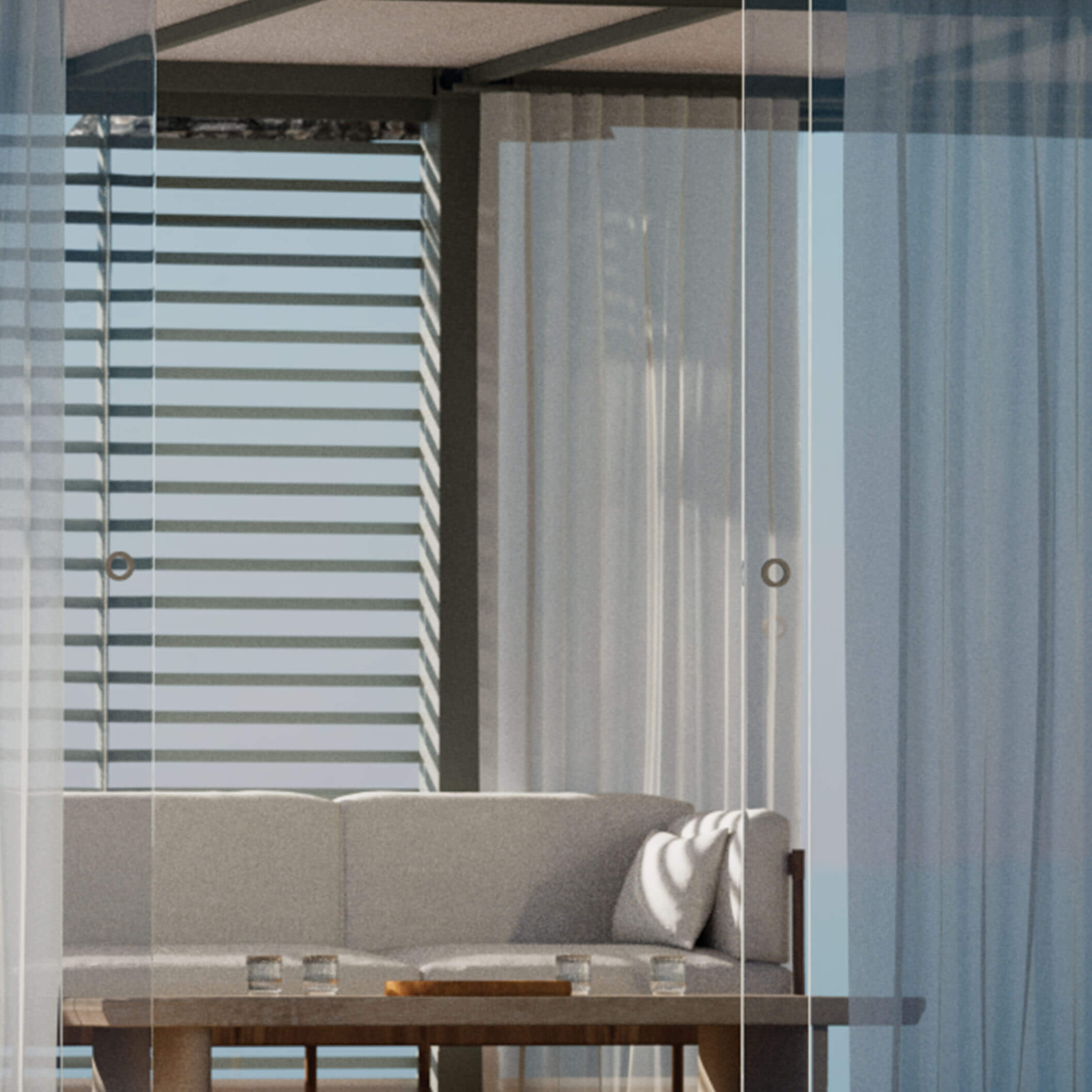

We have created a large outdoor room, protected by our best sealing and shading systems, sliding glass, sunshade panels and high-quality curtains, which not only protect against various climatic elements, but also offer the possibility of experiencing the same comfort outside that can be felt indoors.
DESIGN
Lodge is a sophisticated microarchitecture designed to extend the comfort of indoor outdoor living
STROMWATER MANAGEMENT
Stormwater management is ensured by the slope of the roof, the presence of perimeter gutters and internal channelization to the pillars.
MULTIFUNCTIONAL
Designed as a multifunctional shelter, this structure provides protection against sun, wind and rain, thus creating a comfortable environment to live and inhabit in all seasons.
WATERPROOF
Lodge’s cover is waterproof and fixed, made of a PVC Flexlight Lodge 6002 sheet available in 9 standard colors, or 40 mm thick sandwich panel, available in neutral color or painted like the structure.
MAIN STRUCTURE (LODGE PVC & LODGE SANDWICH)
- Beam section 200 x 200 mm
- Abutment section 155 x 155 mm
- Flexlight Lodge 6002 PVC fixed waterproof cover sheet available in 9 standard colors
- UV-resistant, polyester resin-based epoxy powder coating, available in 12 standard colors
- Waterproof, fixed cover made of 40 mm thick sandwich panel, available in neutral color or painted like the structure
- Self-supporting structure made of extruded aluminium profiles, primary alloy UNI6060 and stainless steel accessories
- Stormwater runoff and channelization ensured by the slope of the roof, the presence of perimeter gutters, and channelization inside the pillars
- Possibility of custom fabrication, up to a maximum of 450 x 600 cm in the version with 4 pillars and up to a maximum of 450 x 1200 in the version with 6 pillars
ACCESSORIES (LODGE PVC & LODGE SANDWICH)
- Snow kit to secure the structure in the winter months
- Additional columns required for mounting some accessories
- All-glass system, screen, consisting of sliding glass, without vertical profiles, with weight relief on the bottom rail
- Acrylic fabric side curtains with closing zipper, sliding rods, and curtain retainer profiles for attaching curtains to columns
- Screening panels with horizontal slats, 40×20 mm stainless steel perimeter profile and 30×20 mm aluminium transoms, also available in sliding version
- Lighting systems such as dimmable LED strip, integrated into the ridge beam or pendant, single and bi-emission wall sconce, pendant chandelier or floor lamp
- Vertical shade roller blind, complete with manual winch and running cables, in Soltis Lounge 96 or recycled acrylic Raytent Shade, also available motorized
- Decorative canopy to be installed on the perimeter beams, individual panels made of 40×20 mm stainless steel perimeter profile and 30×20 mm aluminium stringers
- Cristal PVC vertical roller blind, complete with vertical profiles with windproof zipper system, 114 mm cassette, winch for manual handling and painted aluminium finial. Also available motorized
COLORS
COVERAGE (PVC FLEXLIGHT LODGE 6002)
-6002-20183 White -6002-20165 Taupe -6002-10387 Vanilla -6002-20001 Light Grey -6002-20024 Grey -6002-20205 Anthracite -6002-20329 Dark Beige -6002-20331 Brown Clay -6002-20330 Green
PAINTING (EPOXY POLYESTER POWDER COATING TREATMENT)
