BIO CLEAN® CATCH BASIN INLET FILTERS
BIO CLEAN® CATCH BASIN INLET FILTERS
Bio Clean Catch Basin Inlet Filters provide the first defense against trash and other pollutants entering your stormwater system by providing 100% trash capture at the source.
INFORMATION
ADVANTAGES
- Maintained in minutes
- Long-lasting, stainless steel construction
- Designed for a wide range of sizes to fit most curb and grate inlets
- High-flow bypass prevents scouring of previously captured trash and debris
BRAND
Contech
PRODUCT TYPE
Basin Inlet Filters
INSTALLATION

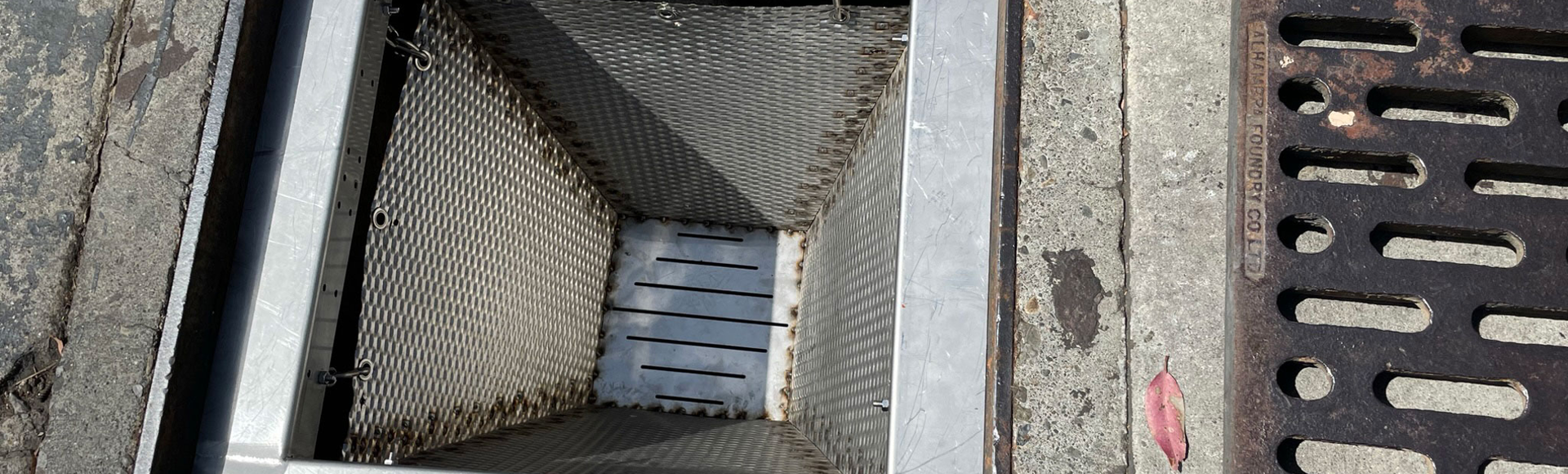

- Bio Clean's Curb Inlet Filters are easily installed under catch basin access for ease of maintenance.

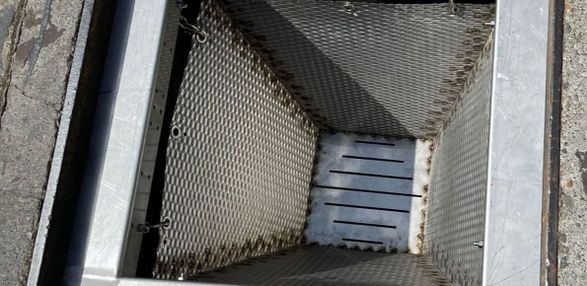

- Grate Inlet Filters can be quickly installed directly under grated inlets with no special equipment.
CONFIGURATIONS

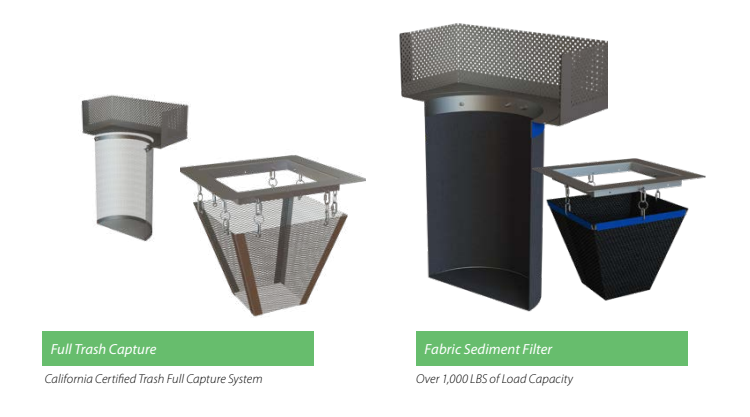

All Bio Clean Catch Basin Inlet Filters are available in grate inlet and curb inlet configurations.
FULL TRASH CAPTURE FILTER
- Easy and efficient to clean
- High flow rates
- Certified by the California State Water Resources Control Board
STANDARD SEDIMENT FILTER
Over 1,000 LBS of load capacity
MAINTENANCE

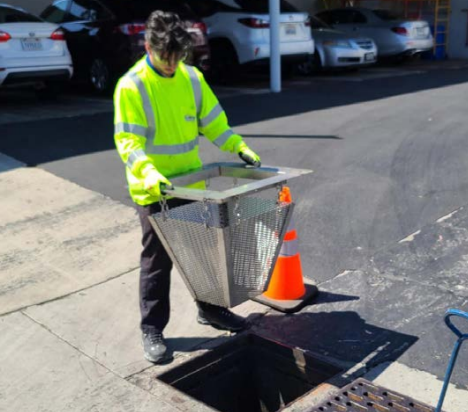

Filters can be easily accessed from the surface without entering the catch basin and can be maintained by a vac truck or by hand.
WARRANTY
1-year warranty
COLLECTION
Bio Clean
TRASH REMOVAL
Many municipalities have enacted specific trash control strategies in response to TMDLs or municipal stormwater permit requirements.
To address these issues, stormwater managers, municipal officials, and other stakeholders need solutions like Contech's Catch Basin Inlet Filters, Debris Separating Baffle Box, and CDS hydrodynamic separators that can remove trash and TSS, which are easy to maintain, and can easily be implemented in a retrofit scenario.
FEATURES
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution
selection process.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
TECHNICAL DATA

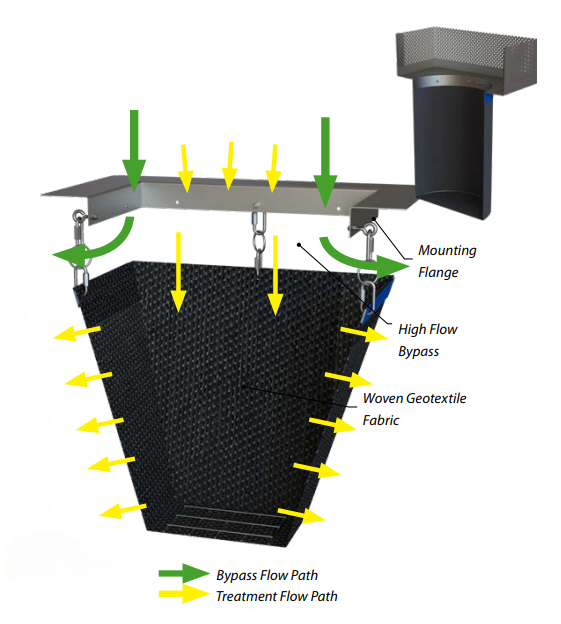

FABRIC SEDIMENT FILTER
The Fabric Sediment Filter offers an affordable solution to capture total suspended solids (TSS) from stormwater before it enters the conveyance system. With a stainless-steel frame, the Standard Sediment Filter provided over 1000 lbs. of load capacity based in full scale load testing.
APPLICATIONS INCLUDE
Reusable Filter Captures Sediment and Trash, Over 1,000 LBS of Load Capacity Based in Full Scale Load Testing
STANDARD SEDIMENT FILTER SIZING
| MODEL # | TREATMENT FLOW RATE (CFS) | BYPASS FLOW RATE (CFS) | STORAGE CAPACITY (CU FT) |
|---|---|---|---|
| BIO-CURB-FABRIC-12 | 1.29 | Unlimited | 0.70 |
| BIO-CURB-FABRIC-24 | 2.26 | Unlimited | 1.40 |
| BIO-GRATE-FABRIC-12-12-12 | 0.47 | 1.24 | 0.15 |
| BIO-GRATE-FABRIC-18-18-12 | 0.79 | 2.79 | 0.33 |
| BIO-GRATE-FABRIC-24-24-12 | 1.18 | 4.97 | 0.59 |
| BIO-GRATE-FABRIC-24-40-12 | 1.61 | 6.35 | 0.88 |
| BIO-GRATE-FABRIC-24-24-24 | 2.01 | 4.96 | 1.22 |
| BIO-GRATE-FABRIC-24-40-24 | 2.58 | 6.35 | 1.82 |
| BIO-GRATE-FABRIC-36-36-24 | 3.18 | 7.74 | 2.73 |

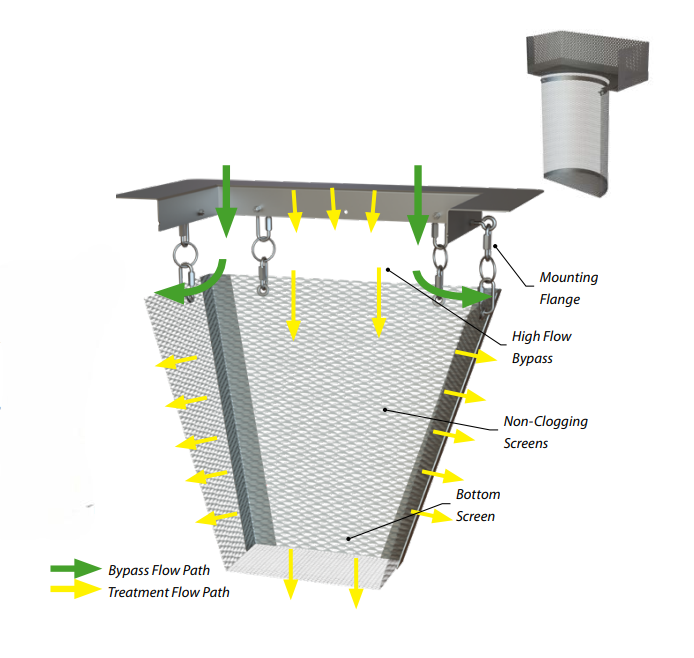

FULL TRASH CAPTURE
Full Capture Removes 100% of Trash ...
- The Full Trash Capture line of inlet filters are listed as Certified Trash Full Capture Systems by the California State Water Resources Control Board in both grate inlet and curb inlet configurations.
- The filters allow for higher flow rates and cleaning is easy and efficient, making them a great choice for demanding applications.
- Available with optional BioSorb oil absorbent hydrocarbon boom.
FULL CAPTURE SIZING
| MODEL # | TREATMENT FLOW RATE (CFS) | BYPASS FLOW RATE (CFS) | STORAGE CAPACITY (CU FT) |
|---|---|---|---|
| BIO-CURB-FABRIC-12 | 2.85 | Unlimited | 0.70 |
| BIO-CURB-FABRIC-24 | 2.85 | Unlimited | 1.40 |
| BIO-GRATE-FABRIC-12-12-12 | 1.04 | 1.24 | 0.15 |
| BIO-GRATE-FABRIC-18-18-12 | 1.78 | 2.79 | 0.33 |
| BIO-GRATE-FABRIC-24-24-12 | 2.70 | 4.96 | 0.59 |
| BIO-GRATE-FABRIC-24-40-12 | 3.70 | 6.35 | 0.88 |
| BIO-GRATE-FABRIC-24-24-24 | 7.31 | 4.96 | 1.22 |
| BIO-GRATE-FABRIC-24-40-24 | 9.53 | 6.35 | 1.82 |
| BIO-GRATE-FABRIC-36-36-24 | 11.93 | 7.74 | 2.73 |
DETAIL
BIO CLEAN® CATCH BASIN INLET FILTER CONFIGURATIONS
Removing trash and sediment to protect our waterways ...
Our nation has some of the world’s most beautiful beaches and waterways. Unfortunately, trash such as cigarette butts, food packaging, cans and bottles, and plastic waste makes its way into streams, creeks, rivers, and the ocean, as rain events wash them into gutters and storm drains.
Our nation has some of the world’s most beautiful beaches and waterways. Unfortunately, trash such as cigarette butts, food packaging, cans and bottles, and plastic waste makes its way into streams, creeks, rivers, and the ocean, as rain events wash them into gutters and storm drains.
BIO CLEAN® CATCH BASIN INLET FILTER APPLICATIONS
Bio Clean Catch Basin Inlet Filters have been successfully used on numerous new construction and retrofit projects. The system’s superior durability and customization make it ideal for a wide range of stormwater applications. Each filter fits within a catch basin, giving them the ability to integrate with versatile curb inlet trough systems.
APPLICATIONS INCLUDE
- Parking Lot Curb Inlets
- Parking Lot Grate Inlets
- Roadway Curb Inlets
- Roadway Grate Inlets
- Bioswale Bypass Structures
- Stormwater Pretreatment

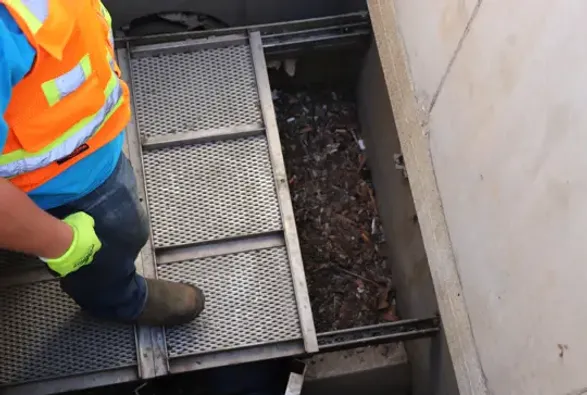

- Our filters provide easy access for maintenance from the surface without having to enter the catch basin. Maintenance service takes about 15 minutes and requires no confined space entry.

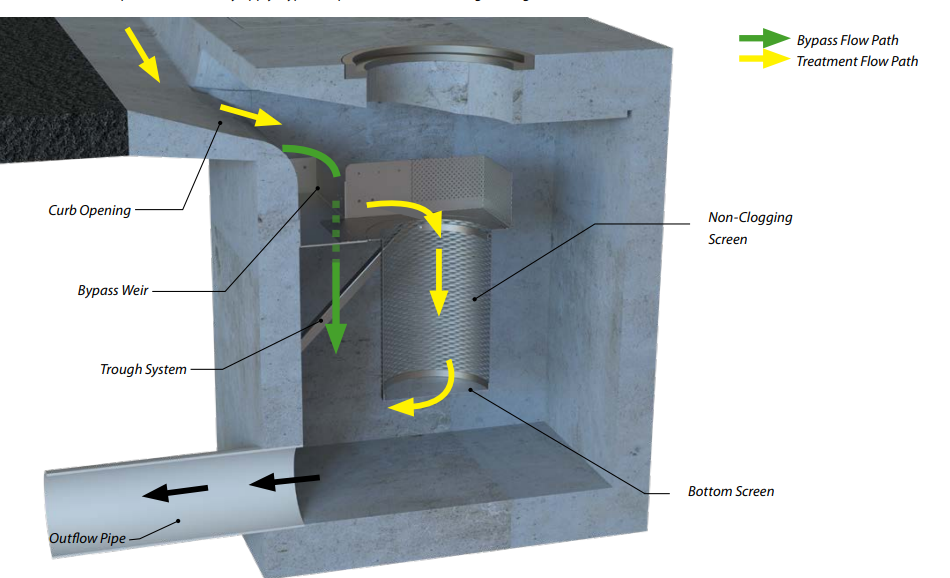

- Each Bio Clean Catch Basin Inlet Filter is designed to be insertable and the expandable trough system is designed to convey water quality design flows through the filter basket while allowing peak flows to bypass over the trough without resuspending captured pollutants. The modular design of the trough system makes it ideal for retrofit applications.
