CUBE 0.8L ELECTRONIC URINAL SERIES II NZ FIT OUT
CUBE 0.8L ELECTRONIC URINAL SERIES II NZ FIT OUT

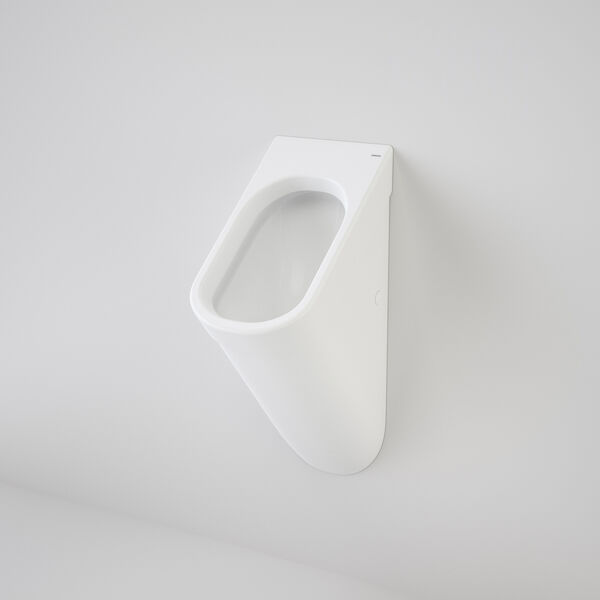

Ideal for general purpose applications where water conservation is a priority, the Cube 0.8L Electronic Urinal boasts the maximum WELS 6 star rating.
With superior hydraulic design and performance, and embracing the modern look of softened angles and clean lines, this vitreous china urinal can enhance the appearance of any contemporary bathroom.
INFORMATION
BRAND
Caroma
PRODUCT TYPE
Toilet Suites
TECHNOLOGY
Smart Demand technology detects usage and activates the flush mode accordingly
HIGH USAGE
Stadium mode adjusts flush automatically in high usage periods, and NEW Smartflush mode minimises water usage
FLUSHES
Urine sensing technology is only activated by the user and prevents accidental or unnecessary flushes
RATED URINAL
WELS 6 star rated urinal
ITEM CODE
678799W
FEATURES
In addition, GermGard® is integrated into the glaze of the bowl and a unique antimicrobial formula that kills a minimum of 99% bacteria it comes into contact with.
RANGE
Cube
COLOUR
White
INLET TYPE
Back Entry
ITEM MATERIAL
Vitreous China
NZS 4121 COMPLIANT
No
TRAP TYPE
P Trap
HYGIENE
Automatic hygiene flush every 24 hours

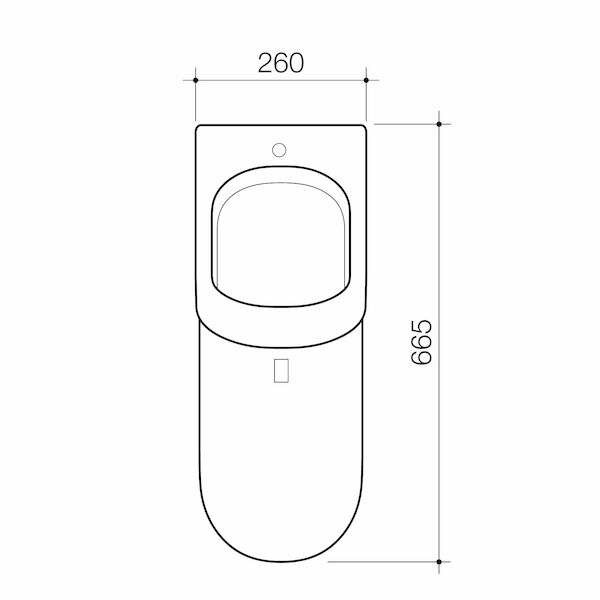

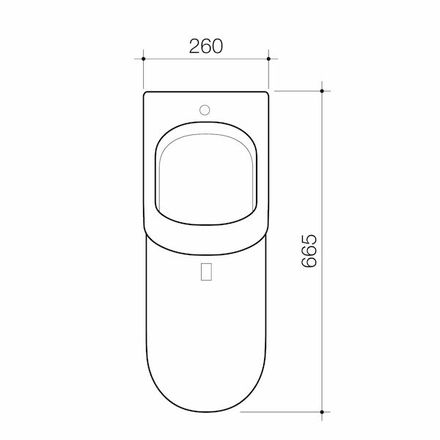

DIMENSION
- Height : 665 mm
- Width : 260 mm
PERFORMANCE
Matched Performance and trade engineering delivers water-savings without sacrificing performance
INSTALLATION

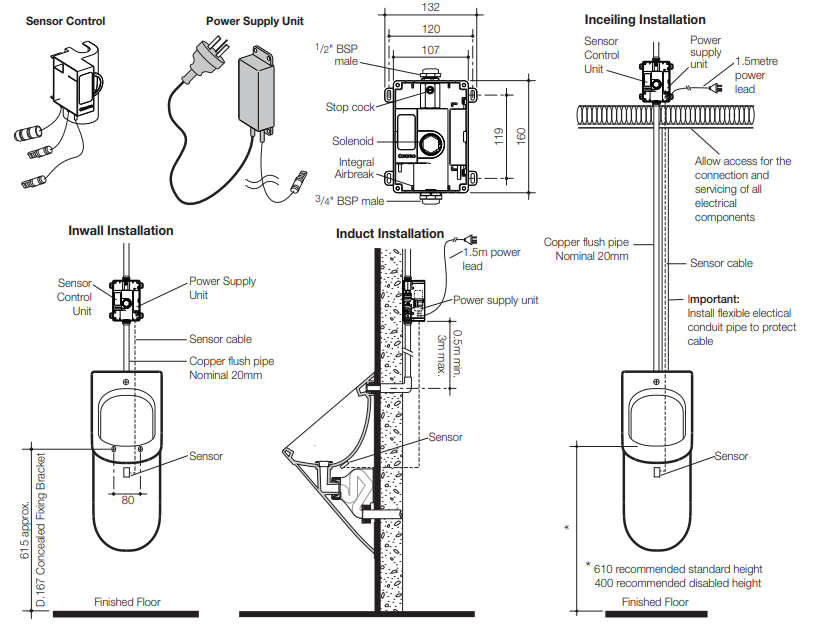

For general connection install a plug socket 240V AC adjacent to the control box to local code requirements. Provide conduit without kinks to connect the sensor cable to the control box. 3.5m of sensor cable supplied as standard. Minimum supply diameter of nominal 20mm is required to the valve. The urinal must be installed in accordance with the AS/NZS 3500 Plumbing requirements. Local Authorities have varying requirements.
CLEANFLUSH
No
INDEPENDENT LIVING COMPLIANT
No
ROUGH
Needs to be paired with Rough in Kit 678803
MOUNTING
Wall-Hung
NOTE
Rough in Kit & Fit out Kit sold separately
PER FLUSH
0.8L per flush
DOWNLOADS
↓ Technical image
↓ Technical manual

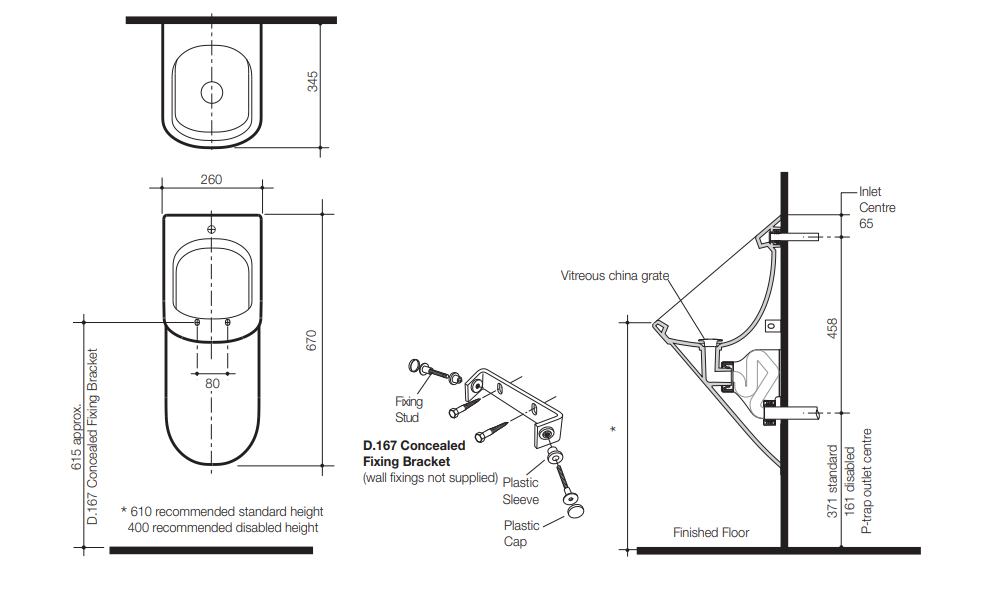

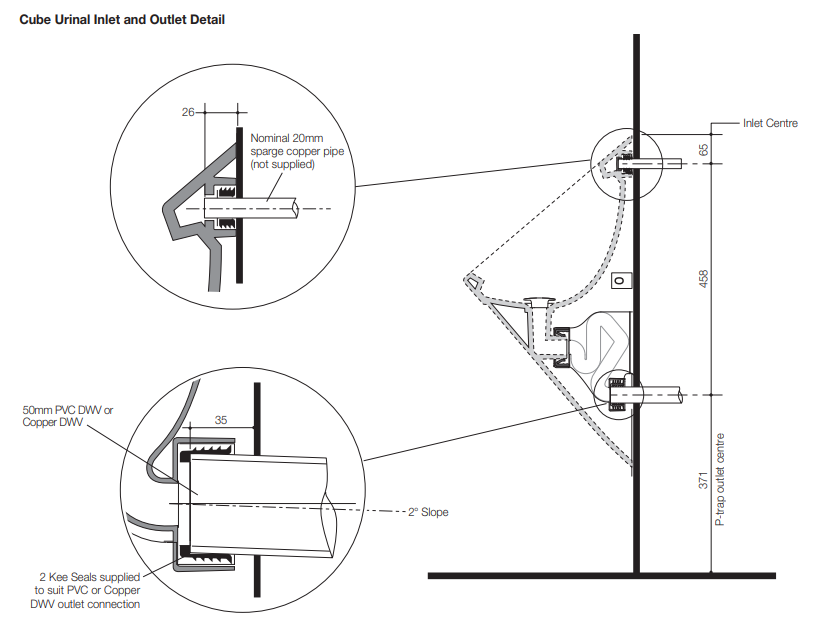

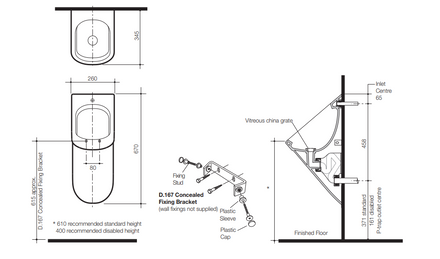

TECHNICAL DROWING
TECHNICAL DROWING
