ROOF ACCESS STAIRS
ROOF ACCESS STAIRS

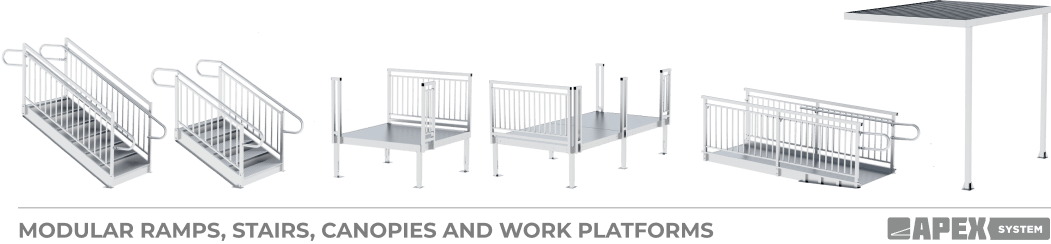

Modular Stairs, Ramps, and Canopies

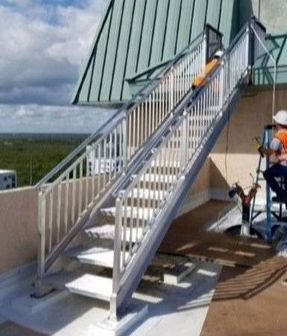

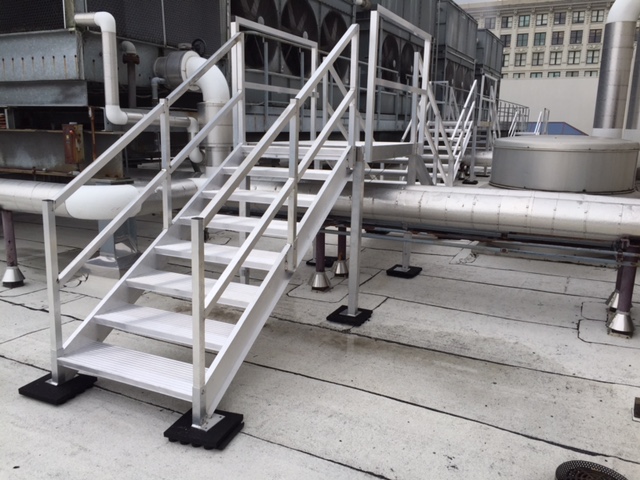

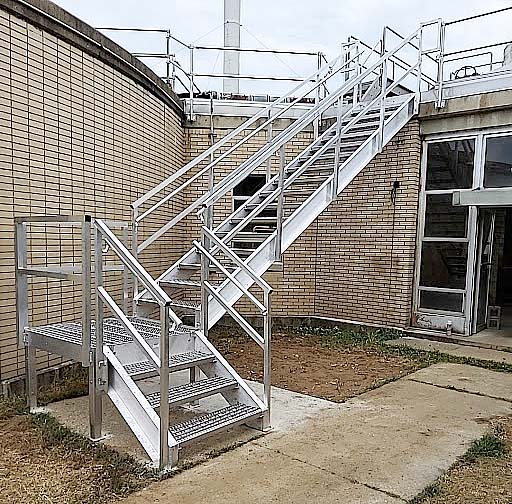

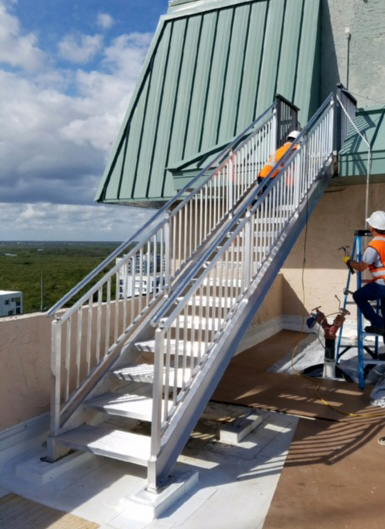

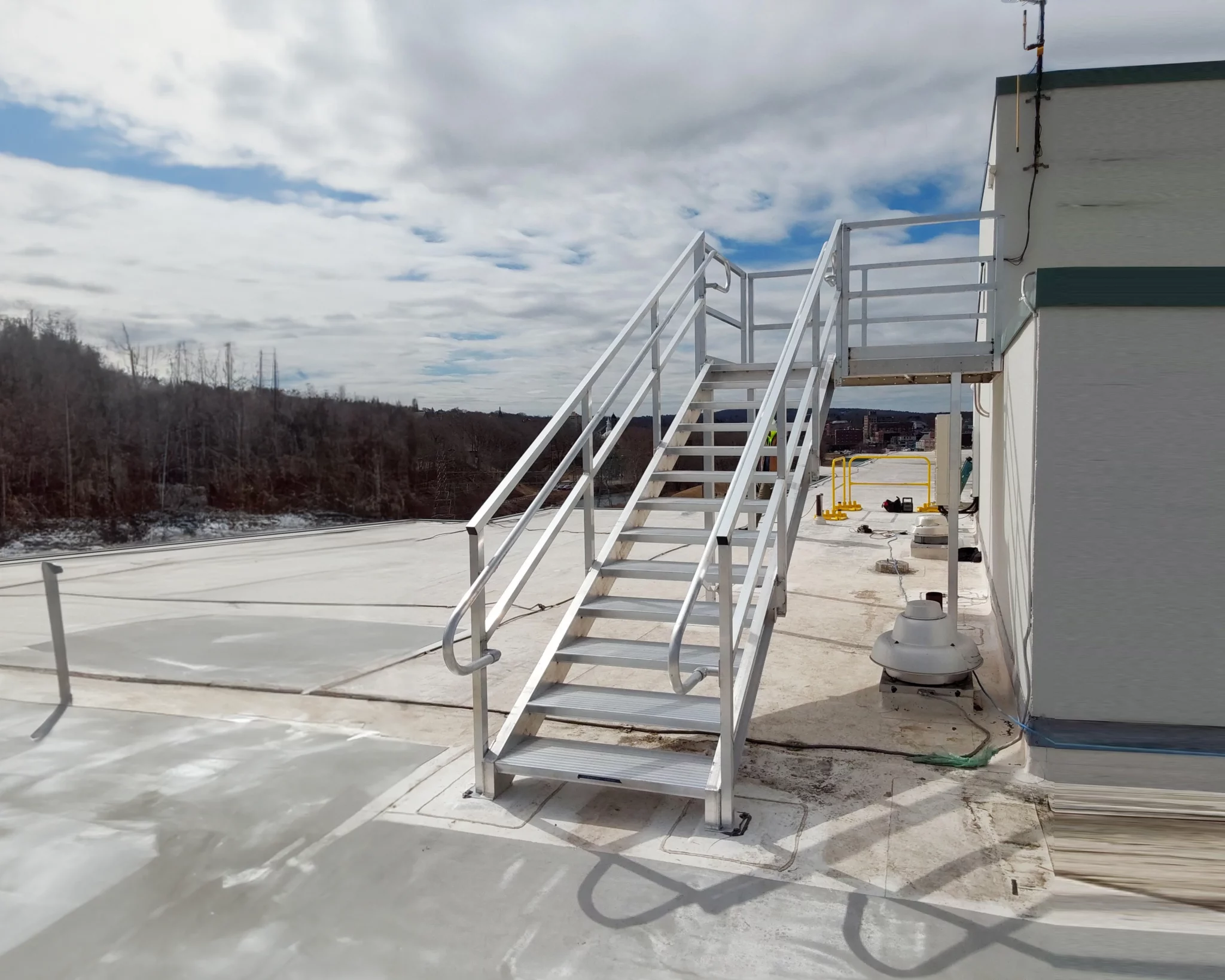

Prefabricated Roof Access Stairs : The modular design of our roof access stairs allows for many customizable configurations.
Whether you require ADA, IBC, or local building code-compliant stairs, we can design and configure fully compliant roof access stairs to be any height that you need. Ensure your project goes to plan with our professional crew of installers.
FEATURES
EASY INSTALLATION
Our roof access stairs are modular and bolt together seamlessly.
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
CUSTOM LAYOUTS
Our team of engineers will design a stair configuration layout just for you. Professional engineer stamps are available.
MODULAR DESIGN
Modular access stairs, platform landings, legs, and handrails bolt together without any need for on-site welding.
MADE FROM ALUMINUM
The entire line of APEX products will never rust, warp, or rot. All components are low maintenance and will last much longer than wood or steel.
CODE COMPLIANT
Our roof access stairs are always OSHA- compliant, but can also be configured to comply with the Americans with Disabilities Act (ADA) and International Building Code (IBC) and can meet local building codes.
RECONFIGURABLE
Because the APEX System is modular, ramps, stairs and railings can be reused, added to, and reconfigured as your needs change.
SLIP-RESISTANT DECKING
APEX access stairs come standard with an aggressive, heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance. Other decking options are also available.
HPD/LEED/ESG
Because our products are modular, repurposable, and contain 32.5% to 75% recycled content, including 50% to 65% pre-consumer and up to 20% post-consumer recycled scrap, they can help contribute to several LEED v4.1 credits and other green building rating systems.
INFORMATION
MATERIAL
Mill finish aluminum extrusions and sheet
BRAND
Upside Innovations
PRODUCT TYPE
Stair
WE INSTALL
Our professional installation crew ensures that your project goes smoothly.
GUARDRAIL
36″ high
TREAD DEPTH
12″ (11″ + 1″ nosing)
HEIGHT
We use 6″, 6.5″, or 7″ rises between the treads to reach any height
WIDTH
40″ between the handrails, 48″ out-to-out
PLATFORM SIZES
- 48″ x 48″
- 48″ x 64″
- 64″ x 64″ (other sizes available)
INFINITE CONFIGURATIONS
Our modular design and experienced engineers can configure solutions for the most challenging projects.

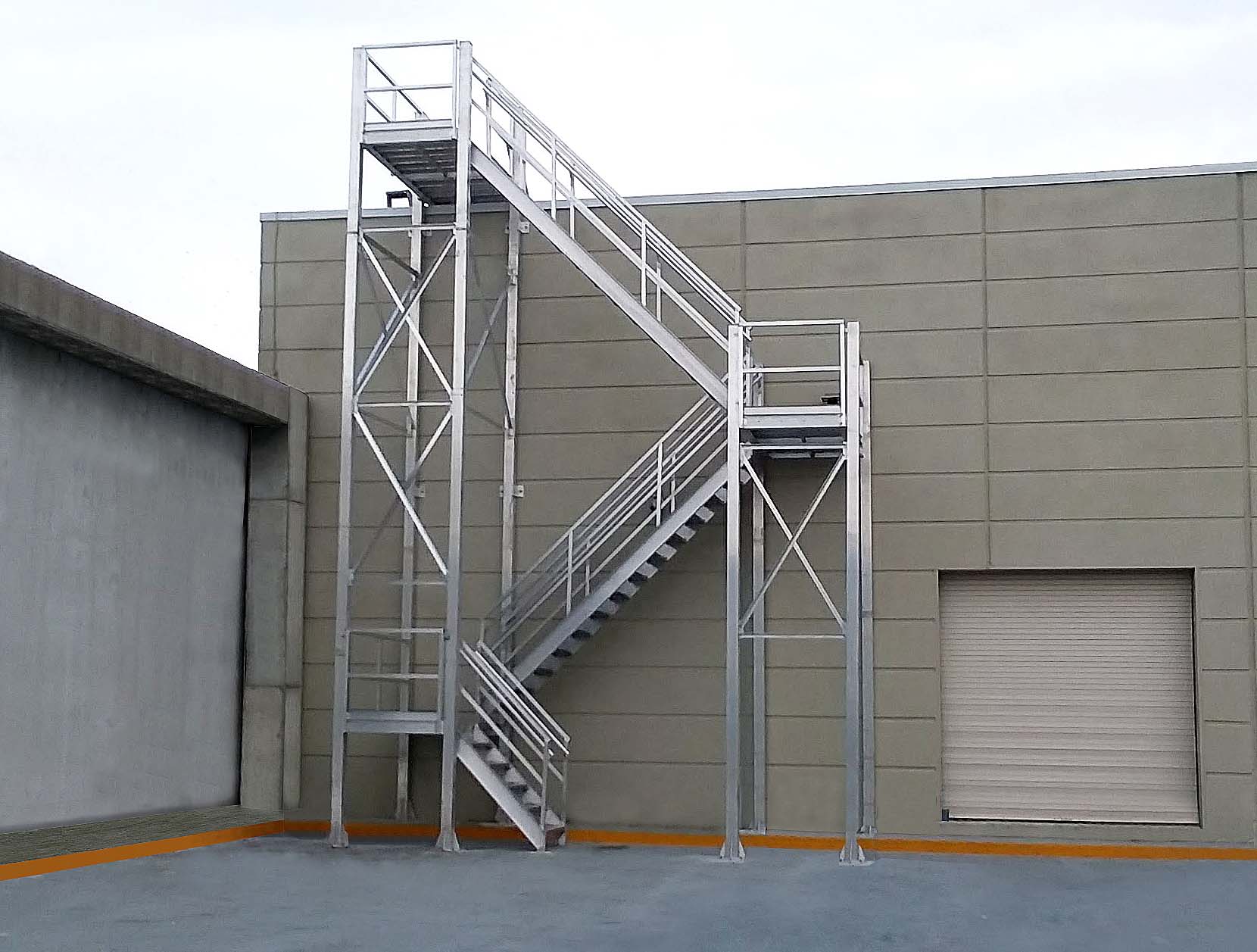

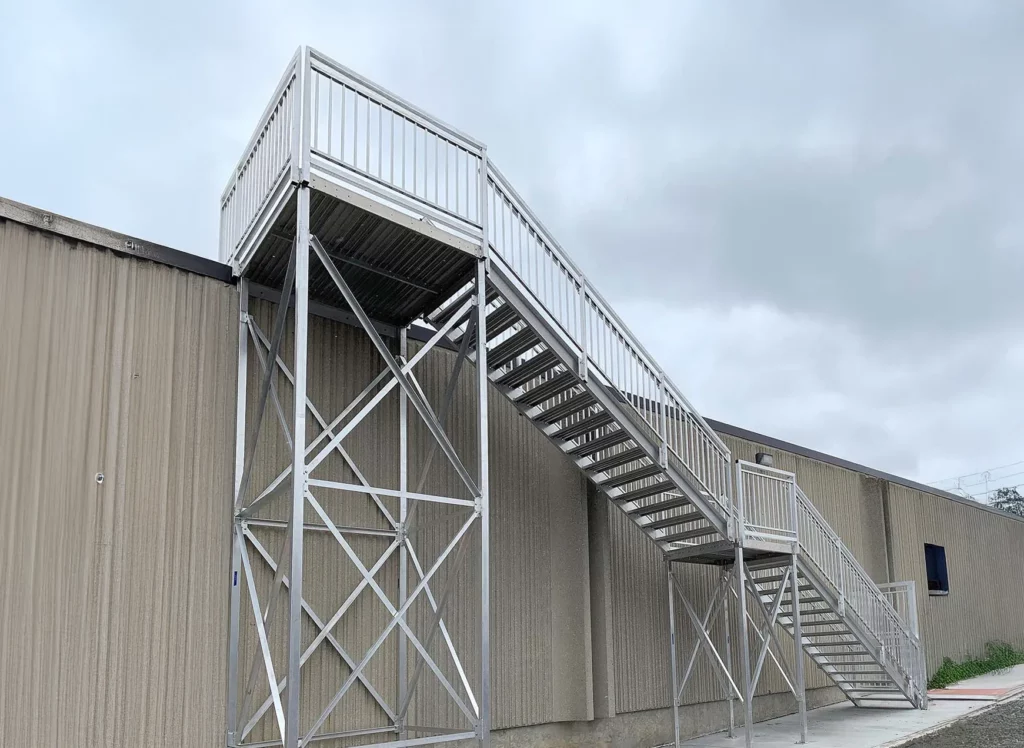

REACH ANY HEIGHT
Our team can design and configure stairs to access rooftops at any height that you need.
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot, critical for any exterior stair, especially when accessing rooftops.
WEIGHT CAPACITY
- 100 lbs/sqft live load,
- 300 lbs point load over a sqft area
OSHA-COMPLIANT
Designed to your needs which includes compliance. ADA, IBC, and other local building code options are available.
POWDER COATING (OPTIONAL)
Ask a solutions advisor for available color options
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
DECKING OPTIONS
