Dibi 883 Double Leaf Security Door
883 DOUBLE LEAF SECURITY DOOR
883 DOUBLE LEAF SECURITY DOOR
The security door to customize
883 is the anti-intrusion class 3 security door which can be totally customized according to the customer need and style.

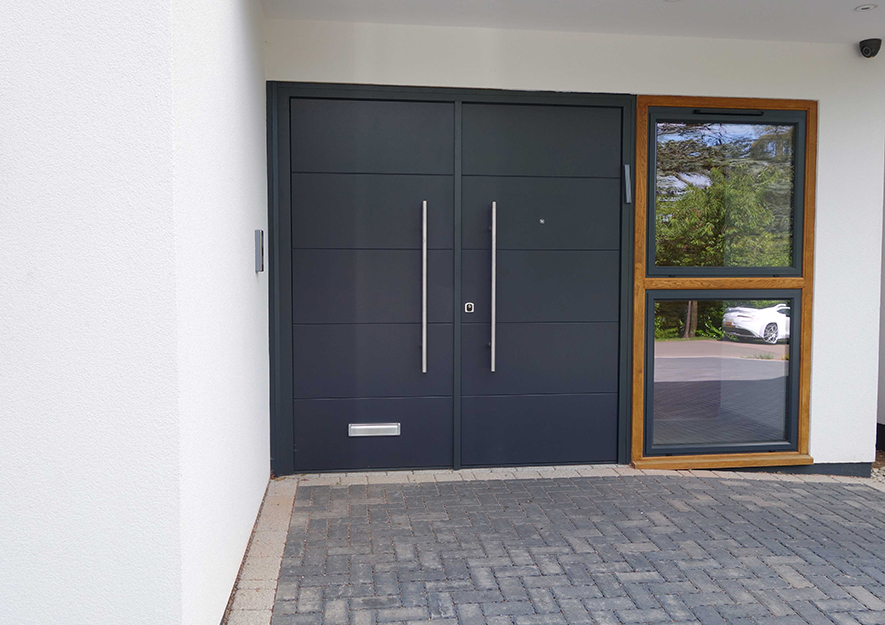

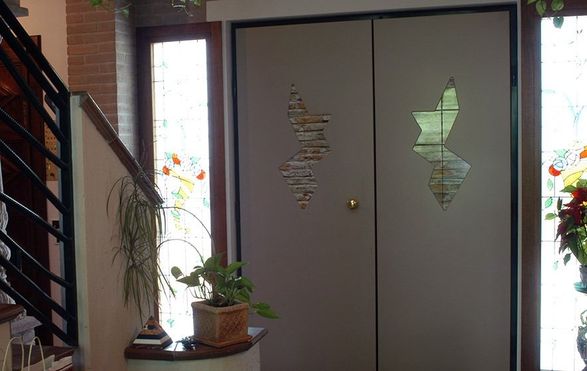

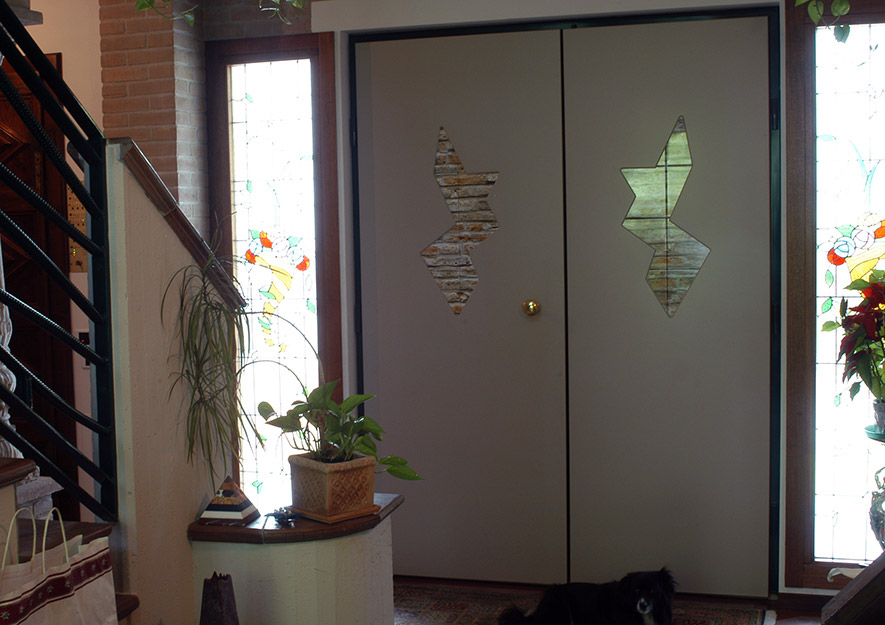

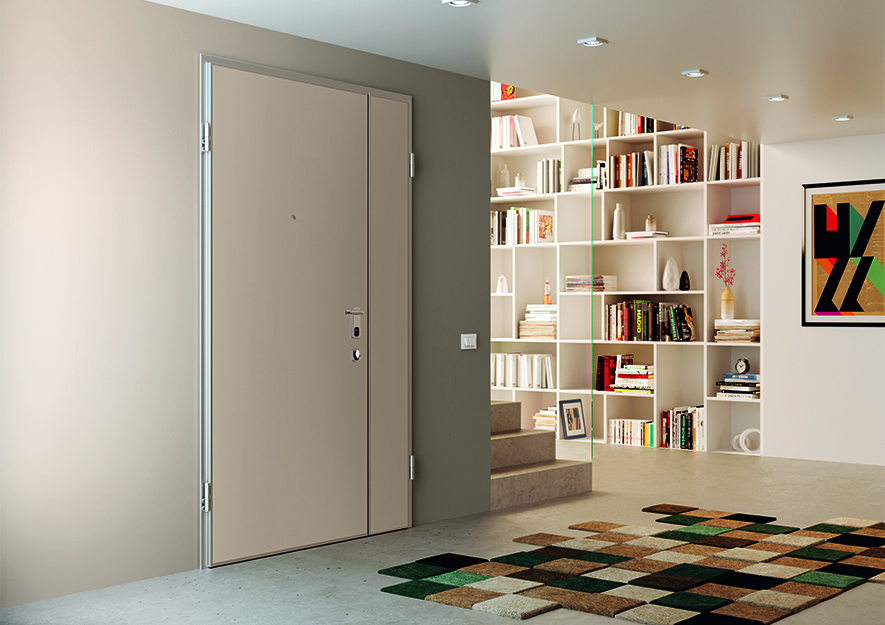

The double leaf door has the same technical features and performances of the single leaf 883 model, and the same flexibility in dimensions: this model can have symmetric leaves or asymmetric leaves – push and pull opening.
INFORMATION
BRAND
Dibi
PRODUCT TYPE
Door
THERMAL TRANSMITTANCE
1,5 W/m²K with external panel 10mm thick
INSTALLATION
Security doors for external installation
DIMENSIONS - OUT OF STANDARD (DOUBLE LEAF WITH ASYMMETRIC LEAVES)
- Width : 100 to 140 cm
- Height : 190 to 245 cm
- Fixed leaf width : 30 - 40 cm
- Semi-fixed leaf width : max 100 cm
DIMENSIONS - STANDARD (DOUBLE LEAF WITH ASYMMETRIC LEAVES)
- Height : 200-210 cm
- Width : 80-85-90 + 30 / 80 + 40 cm
DIMENSIONS (DOUBLE LEAF WITH ASYMMETRIC LEAVES)
- Height : 190 to 245 cm
- Width : 100 to 200 cm
- Semi-fixed leaf width : max 100 (steps of cm 1)
PRODUCTION
Made in Italy
OPENING
Push & Pull
ANTI-INTRUSION
Class 3
AIR PERMEABILITY
Class 3
WATERTIGHTNESS
Class 9
RESISTANCE TO WIND LOAD
Class 5
ACOUSTIC INSULATION
- 30 dB with external panel 4mm thick
- 31 dB with external panel 10mm thick
INSTALLATION SOLUTIONS
DOWNLOADS
↓ Price list - Alu frames
↓ Price list - Steel Frames
↓ Form Installation Check
↓ Steel Frames price list 2020
↓ Guarantee for Di.Bi. products
↓ 883 double leaf price list 2020
↓ Aluminium Frames price list 2014
↓ Technical drawings for double leaf doors
↓ Instruction manual for security door handle kit
↓ Checklist for taking dimensions of Drago security door
↓ Installation instructions for aluminium frame (in Italian)
↓ Assembly instructions for frame sol. B (with top window)
↓ Certification double leaf security door - Acoustic insulation
↓ Installation Instruction for Subframe without Angle Stiffeners
↓ Installation instructions for Electric device for remote opening
↓ Certification double leaf security door - resistance to wind load
↓ Instruction manual for the installation of frames on 1 leaf security doors
↓ Instruction manual for the frame installation of security door with concealed hinges
↓ Certification for double leaf security door - Thermal insulation. Frame with top window - 1,4
↓ Certification for double leaf security door - Thermal insulation. Frame with top window - 1,2
↓ Certification for double leaf security door - Thermal insulation. Frame with top window - 1,7
↓ Certification for double leaf security door - Thermal insulation. Frame with top window - 1,5
↓ Installation instructions for aluminium frame without subframe and without glass (in Italian)
↓ Instruction manual for the installation and adjustment of security doors with concealed hinges
↓ Instruction manual for the installation and adjustment of double leaf security doors with regular hinges

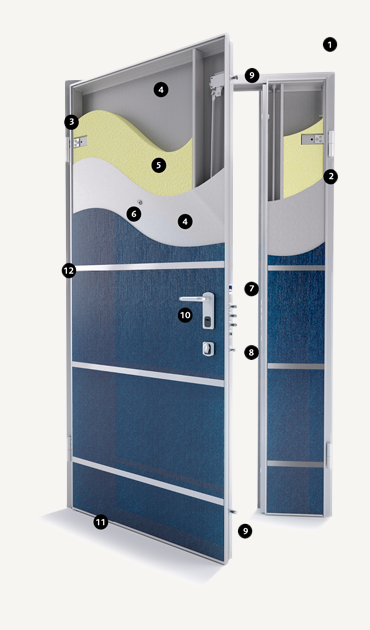

TECHNICAL FEATURES
-1. Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
-2. Frame made with 20/10 thick galvanized steel, painted grey Ral 9006 and complete with plastic covers, gasket and footers. Standard colour brown Ral 8017
-3. Adjustable hinges on 3 axes with hinge covers of the frame colour
-4. Doorleaf made of two galvanized steel sheets16/10 thick. Gasket in the perimeter of the leaf
-5. Thermal insulation with high density polyurethane
-6. Wide-angle peephole
-7. Security locking system with master core + core with double bitted key with 5 user keys equipped with drill-proof manganese cover
-8. Opening limiter and inside service lock
-9. Lateral deadbolts

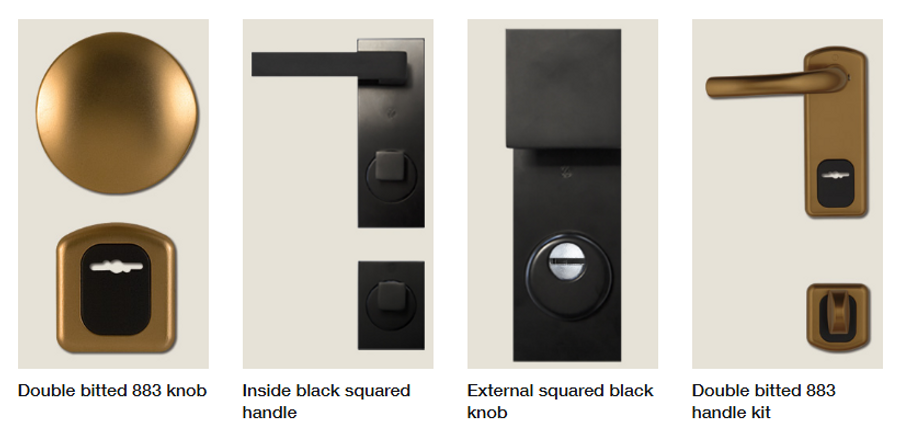

-10. Handle set in aluminium silver colour (inside handle + outside fixed knob. Upon request outside turning knob or inside+outside handle). Standard version: 883 bronzed
-11. Weatherstrip bar or standard bottom rebate of the door threshold
-12. 5 fixed deadbolts on the hinge side
LOCKING SYSTEM
EUROPEAN CYLINDER YALE
European locking system with a set of 5 user keys. (outside: cylinder, inside: service lock with little knob).
DOUBLE BITTED KEY
Locking system with double bitted key complete with core with master double bitten key and changeable core with 5 keys. Drill-proof manganese cover to protect internal mechanism of the locking system.
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5
European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
OMEGA PLUS LOCKING SYSTEM
Triple bitted 3 points locking system with 5 folding keys with a green insert + card; 1 folding key with yellow insert + card with a code to create another change key with red insert. The master key is included and upon request it is possible to have keyed alike configuration. Opening limiter and inside service lock is included. The triple bitted locking system has reversible function, with 4 bolts 18 mm diameter and 1 latch 20 mm diameter.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.
It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
ACCESSORIES
ALL ACCESSORIES

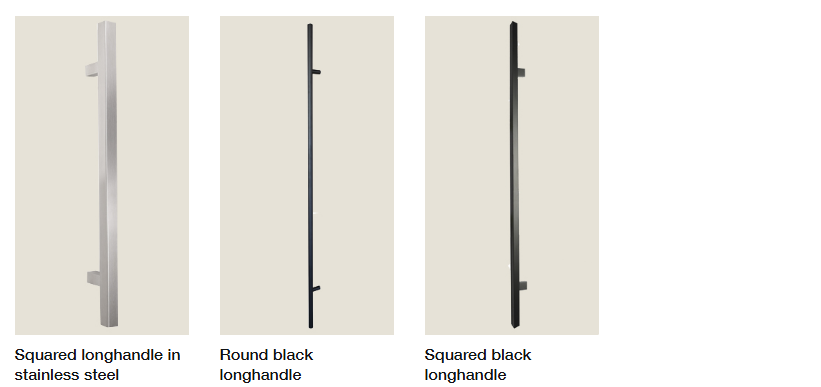

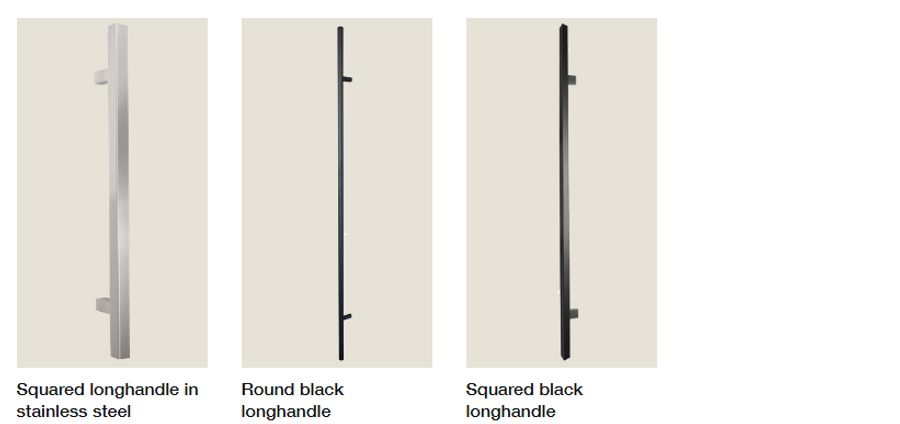

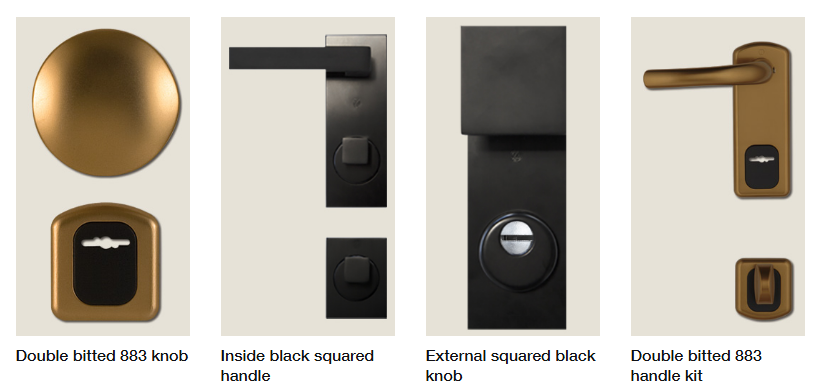

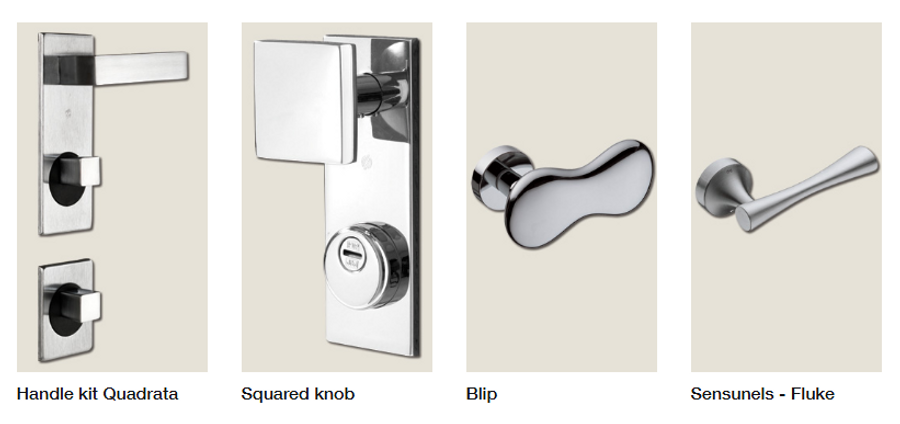

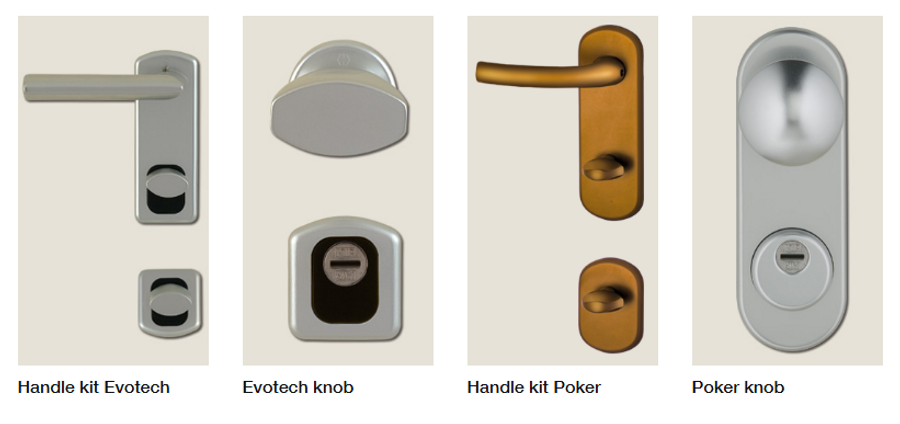

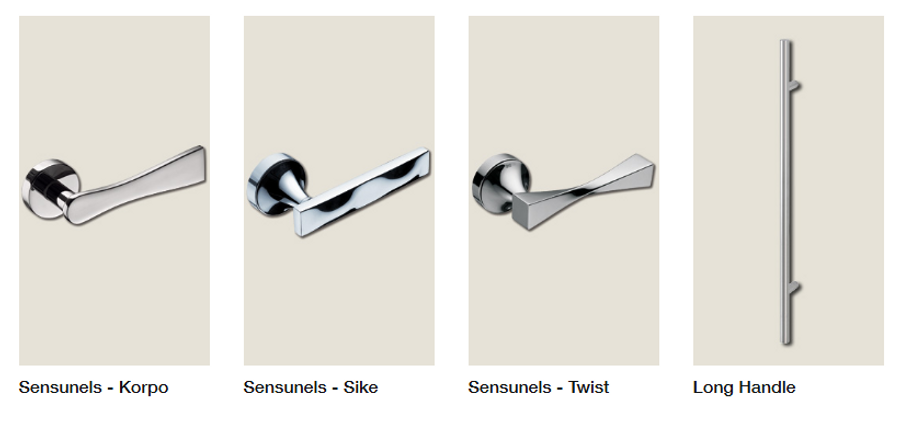

HANDLES
ALL HANDLES
