GLIDE II BASIN TAP
GLIDE II BASIN TAP
The MPRO basin tap embodies modern minimalist design, combining smooth, flowing curves with refined detailing to create a sophisticated and contemporary look.
Its elegant form makes a subtle statement at the basin, perfect for bathrooms that value clean lines and understated style. Optional delicate knurled accents add texture and visual interest, enhancing aesthetic appeal.
A beautifully curved spout completes the design, delivering a balanced blend of form and function. The easy-to-use handle allows precise control of hot and cold water flow and temperature, ensuring effortless everyday use.
information
BRAND
Crosswater
PRODUCT TYPE
Basin Tap
PRODUCTION
Made in United Kingdom
WATER SAVING
Water Saving Flow Regulator
WASTE INCLUDED
No
PRODUCT WEIGHT
0.9 kg
DIMENSIONS
- Product Width : 46 mm
- Product Height : 166 m
- Product Length : 151 mm
DETAIL
Available in our six core finishes, the MPRO basin tap integrates seamlessly with the wider MPRO collection, including showering solutions and accessories, for a fully coordinated bathroom finish.
STANDARDS
BS EN 817:2008
FLOW REGULATOR
NEOPERL 44325101000
BARCODE
5055833680931
SPOUT PROJECTION
115
OUTLET CONNECTIONS THREAD
M16.5x1
INLET CONNECTIONS THREAD
G1/2”
FEATURES
- Easy Installation
- Durable PVD Finish
- Durable Brass Construction
INSTALL TYPE
Deck Mounted
PRIMARY MATERIAL
Brass
MINIMUM PRESSURE (BAR)
0.2
APPROVAL NUMBER
2401903
WARRANTY DETAILS
15 Years
MAX WORKING PRESSURE (BAR)
5
ENERGY SAVING
No
NUMBER OF OUTLETS
1
HEADWORK
35mm Single lever ceramic cartridge.
DOWNLOADS
↓ Product Sheet
↓ Installation Guide

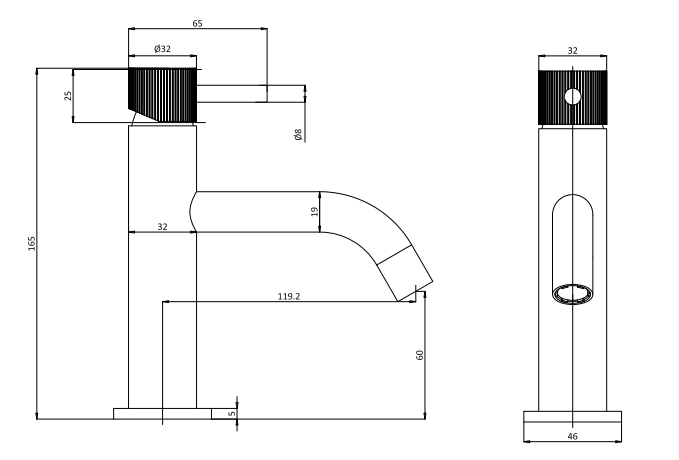

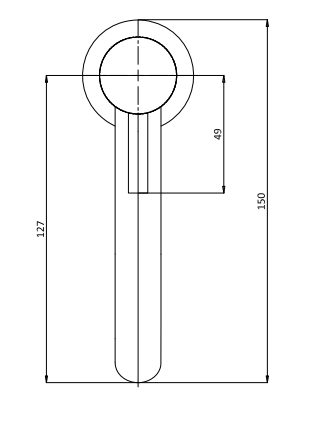

TECHNICAL DRAWINGS
FINISHES
FINISHES
CARE & MAINTANCE
CLEANING THE AERATOR
Before use: Unscrew the aerator and allow the water to run freely until all debris is removed. Screw the aerator back into the spout once all impurities have been flushed from the water supply.
PERIODICALLY
Using the key provided in the box, unscrew the aerator from the spout and rinse with clean running water. Once all loose debris and dirt has been cleared, replace the aerator into the spout and tighten with the key provided.
CLEANING THE PRODUCT
The material we use in our taps is very durable, nevertheless care should be taken when cleaning them. They should be cleaned only with warm soapy water followed by rinsing with clean water and drying with a soft cloth.
All finishes are vulnerable to acid attack and some strong substances such as household cleaners, disinfectants, denture cleaners, hair dyes, wine making, and photographic chemicals can cause the surface to go black or peel.
Never use abrasive detergents or disinfectants or those containing alcohol, hydrochloric acid or phosphoric acid.
CLEANING THE CARTRIDGE
The concealed cartridge should give trouble free service, but in the event of any problems, servicing is straight forward.
TO REMOVE THE CARTRIDGE:
Pull off the cover cap and with an hexagonal key loosen the screw,but do not remove it. Pull off the handle and unscrew the cover. Using the correct size spanner unscrew and remove the retaining nut. Pull out the cartridge taking note of its orientation. Wash the cartridge with clean running water and make sure that any trapped debris has been removed. Dry and lightly grease the seal (only use silicone grease) and replace the cartridge followed by the nut, cover and handle.
