MULTIFENCE PAS 68 FENCE AND BARRIER SYSTEM
MULTIFENCE PAS 68 FENCE AND BARRIER SYSTEM

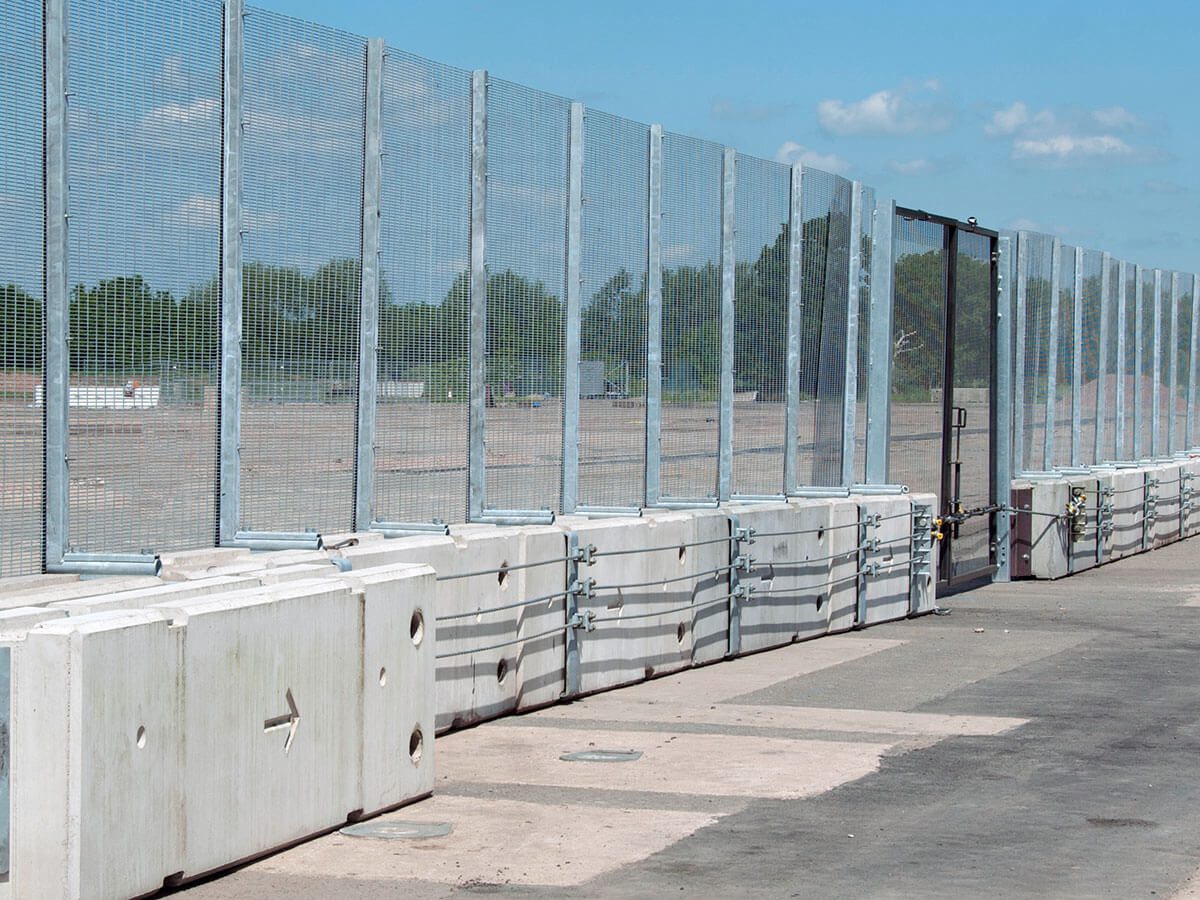

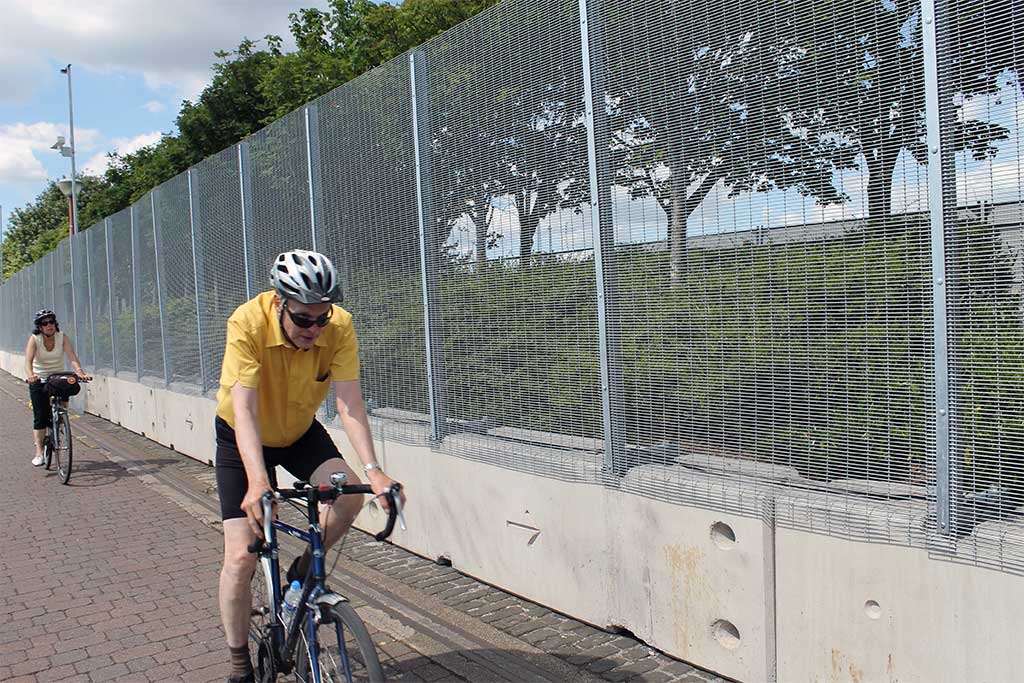

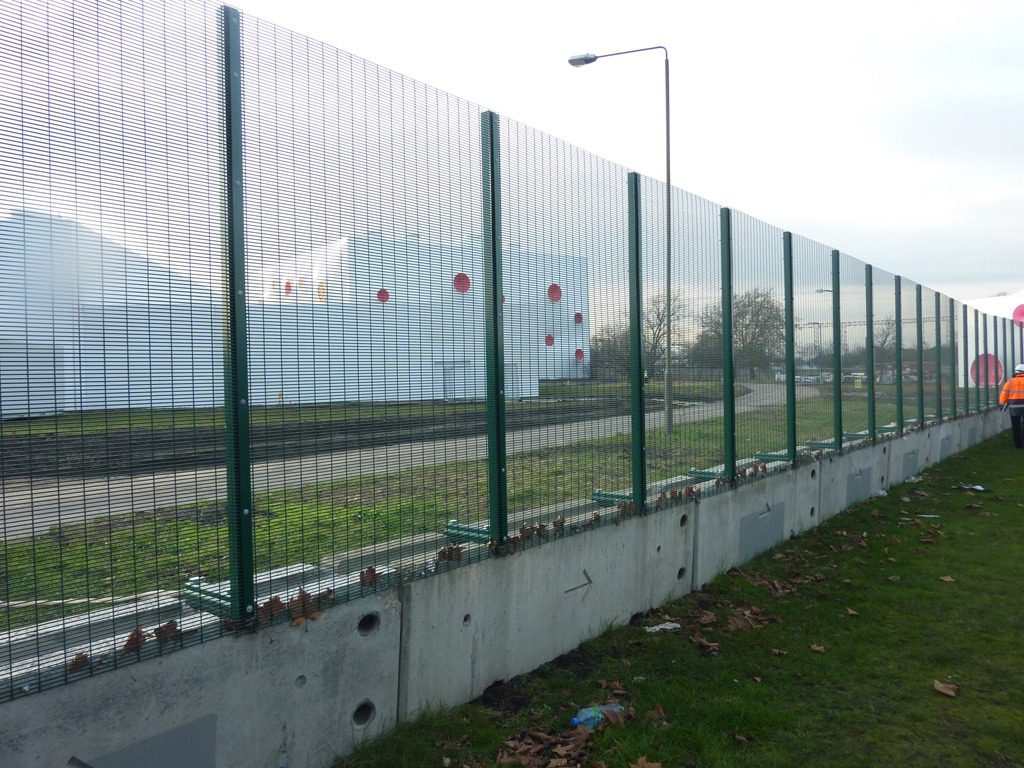

Multifence pas 68 hvm fence and barrier system are one of the first fully integrated hostile vehicle mitigation fence solutions on the market.
Multifence pas 68 is a patented design that achieves pas 68 2010:v/7500(n2)/64/90:5.0/0.0 and pas 68 2010:v/7500(n2)/48/90:3.0/0.0. This means that multifence pas can stop a 7.5t truck at both 30mph and 40mph.
This hvm fencing system is designed to mitigate the ever-increasing security risk on sites of critical importance. With a zero penetration solution, this system uses leading industry technologies to nullify an attack by vehicles.
INFORMATION
BRAND
Zaun
PRODUCT TYPE
Fence And Barrier System
DIMENSIONS
- Panel Width : 1600mm
- Height : 2000mm – 2700mm
WIRE DIAMETER
4mm Verticals & 4mm Horizontals as standard
POST CENTRES
1500mm
FIXING CENTRES
400mm
MESH SIZE
12.7mm x 76.2mm (358 style mesh) as standard.
APPLICATIONS
- Utilities
- Security
- Transport
- Emergency Services
CLAMP BAR SIZE
40mm x 5mm
VCB SIZE
800 x 450 x 3000mm
VCB WEIGHT
2.5tn
VCB TYPE

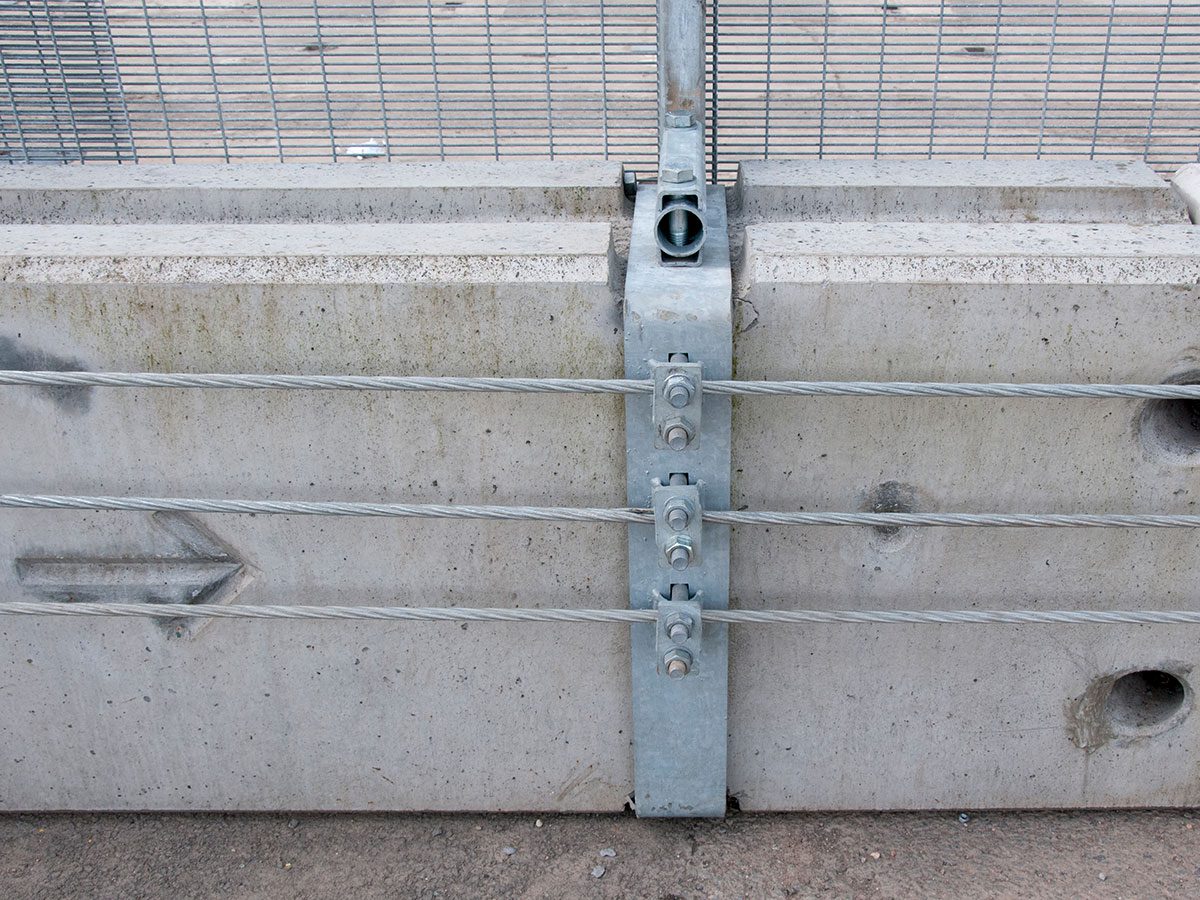

TVCB with HVM Cable System
FEATURES
- Patent No : 001807926-0001
- No in-ground pinning or foundations required
- Suitable for permanent or temporary installations
- Can be fully integrated with PIDs, CCTV and topping enhancements

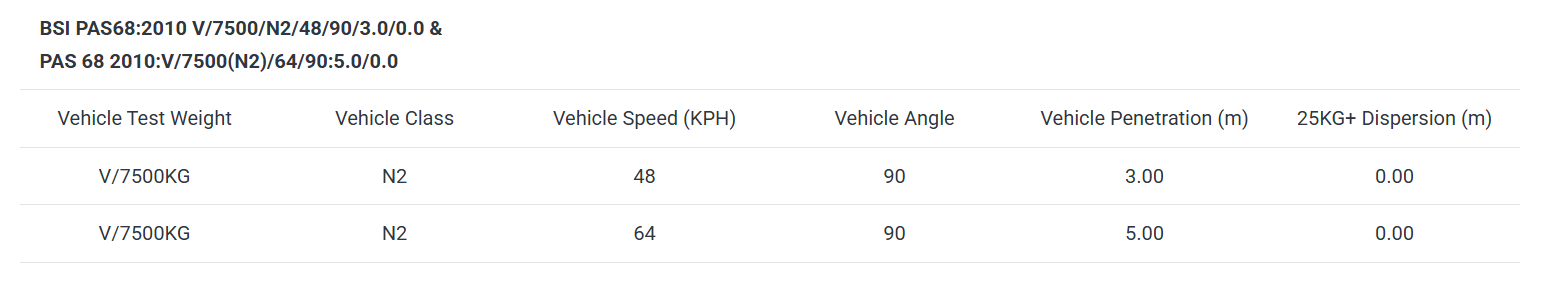

- HVM crash test rated to PAS 68 specifications (PAS 68 2010: V/7500[N2]/64/90:5.0/0.0 & PAS 68 2010: V/7500[N2]/48/90:3.0/0.0)
TOP EDGE PROJECTION
100mm minimal spikes
FIXING
Anti Tamper Security Fixings
POST SIZES
60 x 60mm
PRODUCTION
Made in Britain
FOUNDATION SIZE
700mm Diameter x 1000mm Deep
CERTIFICATES
ALL CERTIFICATES
DETAIL
POSTS & FIXINGS

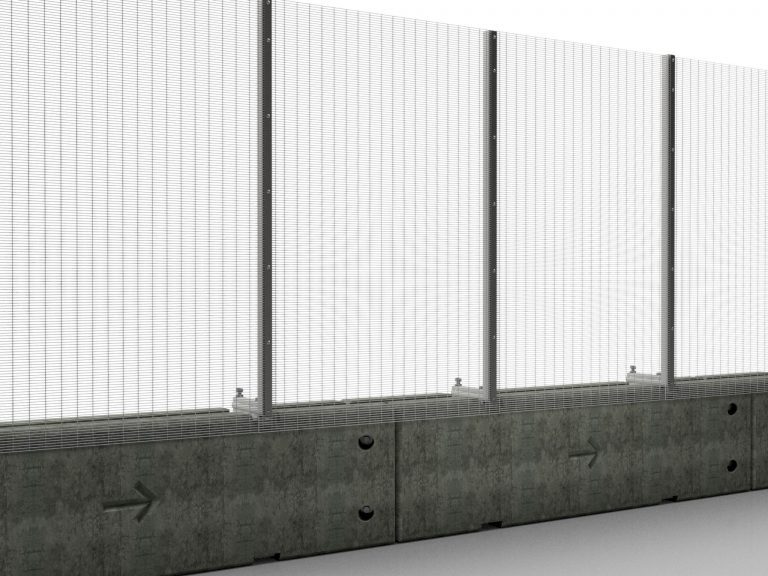

The multifence pas 68 fence features a post and clamp bar configuration, providing a simple and easy installation method. Supplied with vandal-proof security fixings and installed using either power or hand tools.
PAS 68 HVM FENCE VARIATIONS
Posts are available in different lengths to accommodate panel heights. Additional variations are also available: cranked, v shape or top hat extensions for barbed or razor wire. Extended posts for cctv, electric fencing, lighting or physical security devices.

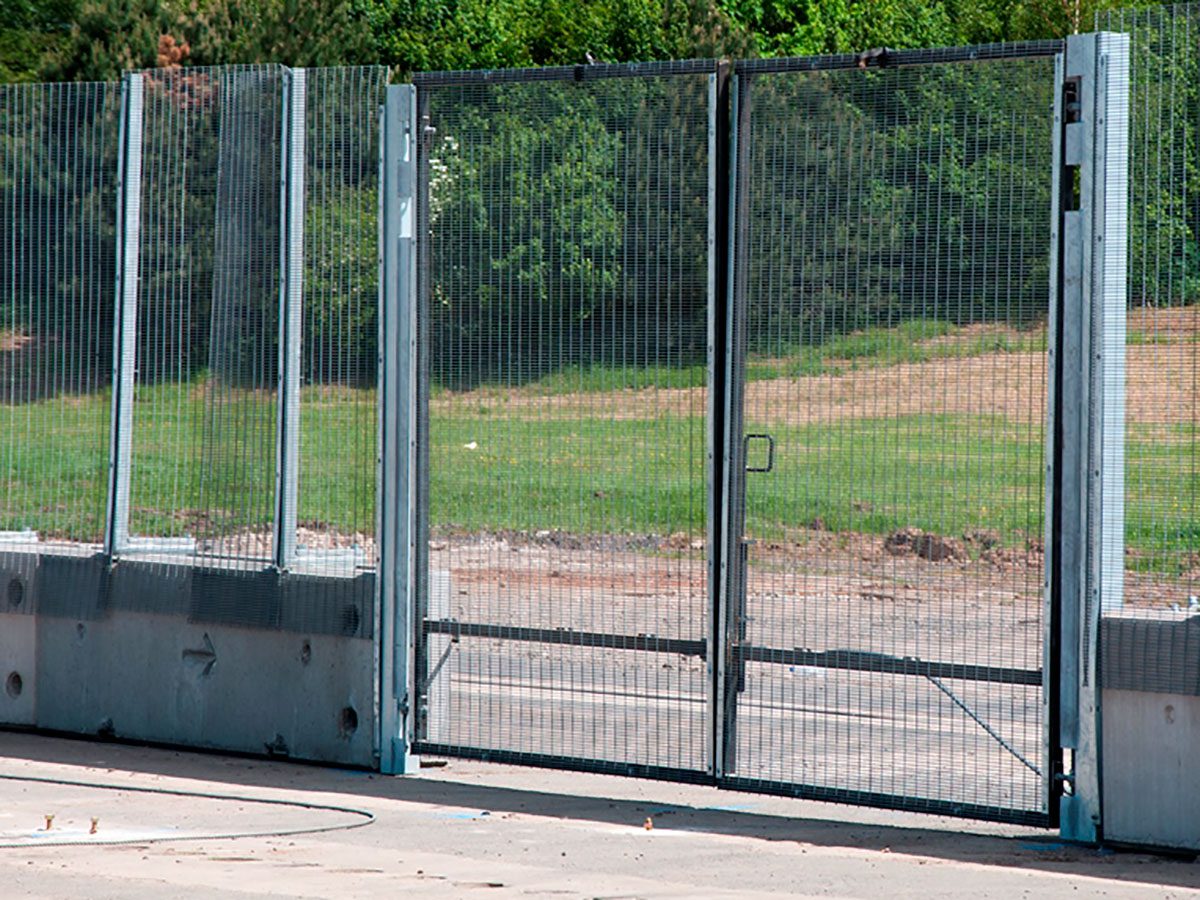

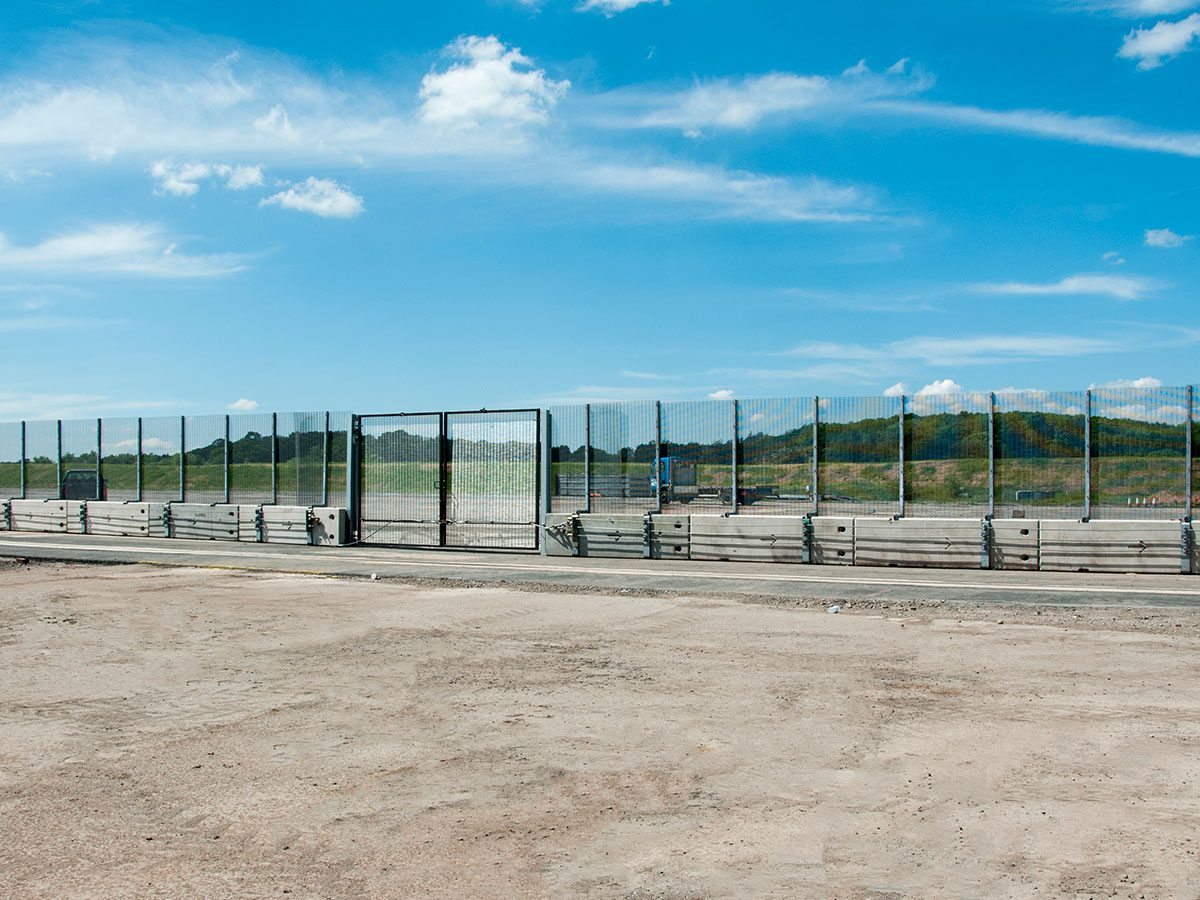

HVM PAS 68 FENCE GATES AVAILABLE
A wide range of hostile vehicle mitigation (hvm) gates is available to complement this pas 68 fencing system. Our range of hvm gates is designed and manufactured with matching hisec super mesh. Also available galvanised and/or powder coated to a colour of your choice.
FINISH
Zaun multifence panels are typically manufactured from pre-galvanised galzal® steel wire according to BS en 10244-2 class a zn95al5 standards with a typical thickness in wire diameter of 275g/m2 (on a 4mm wire). Fences coated in galzal® do not require additional powder coating as protection.
A powder-coated option and enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments.
PAS 68 RATING
Bsi pas 68 is the publicly available specification for vehicle security fencing, gates, blockers, bollards and barriers. It has become the standard and benchmark for all hostile vehicle mitigation (hvm) products. It is in this specification that all physical perimeter security equipment is tested to prevent vehicle-borne attacks.
-This Publicly Available Specification (PAS) addresses the requirements of companies and organisations who want to guarantee that the perimeter vehicle barriers will provide the level of impact resistance they are aiming for. -PAS68 identifies impact test methods, tolerances, test vehicle type and vehicle performance criteria that need to be met to conform to PAS68.
