Alumil Smartia M19800 Insulated Folding Doors
SMARTIA M19800 INSULATED FOLDING DOORS
SMARTIA M19800 INSULATED FOLDING DOORS
Smartia m19800 is an insulated folding door system with top-hung operation and suitable for normal and large constructions.
It offers sturdy and elegant solutions applied to middle and high-end projects, such as luxury residences, office buildings, conference centers, hotels, restaurants and many other.
INFORMATION
THERMAL TRANSMITTANCE UF
1.9 W/m²K
BRAND
Alumil
PRODUCT TYPE
Folding Doors
LOCKING
Double Locking Latches
COLLECTION
Smartia
PRODUCTION
Made in Greece
WATER TIGHTNESS
- 4A
- IFT
WIND LOAD RESISTANCE
- IFT
- C1/B1
GLAZING
24-32 mm
POLYAMIDE
Double 18mm
MAXIMUM WEIGHT
80Kg per vent
THERMAL INSULATION
Yes
MAIN GASKET
Double Epdm
AESTHETICS
Relatively low sight line
AIR PERMEABILITY
- cl. 3
- IFT
PANEL
Aluminium framed panel with glazing bead
APPLICATIONS
- Hotels
- Restaurants
- Office Buildings
- Modern Residences
- Conference Centers
OPERATION
Top-hung Operation
MAXIMUM PANEL WIDTH
1.0m
SASH WIDTH
50 mm
MAXIMUM HEIGHT
2.5m
MATERIAL
Aluminium
DESIGN
Elegant
CERTIFICATE
ADVANTAGES
- Easy machining and installation
- Large dimensions and wide spans
- High thermal insulation and energy saving
- Sturdy structure with flawless and long-lasting operation
- High performance in terms of wind resistance, air permeability and water tightness
VISIBLE ALUMINIUM
143m
DOWNLOAD
↓ Brochure
DETAIL
SECTIONS

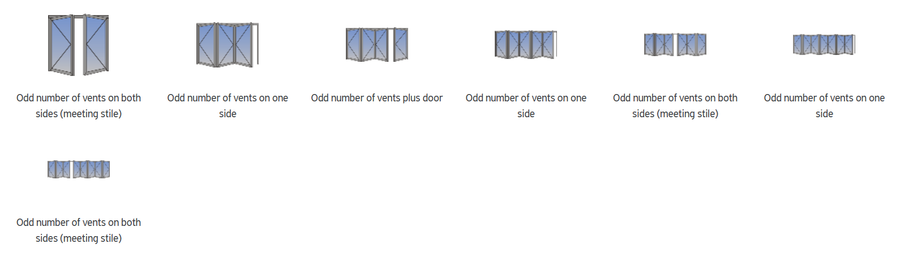

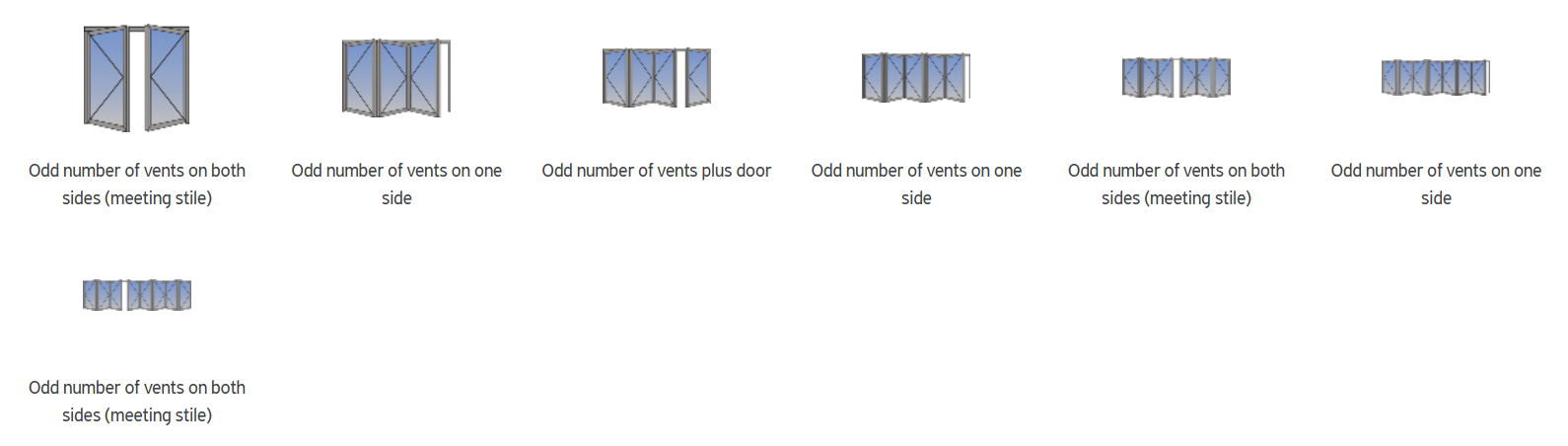

TYPOLOGIES
