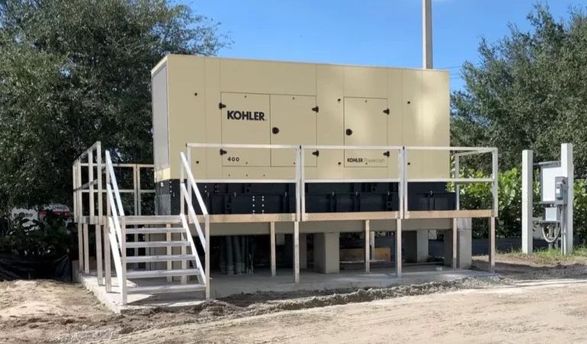

Upsideinnovations Generator Access Stairs
GENERATOR ACCESS STAIRS
GENERATOR ACCESS STAIRS

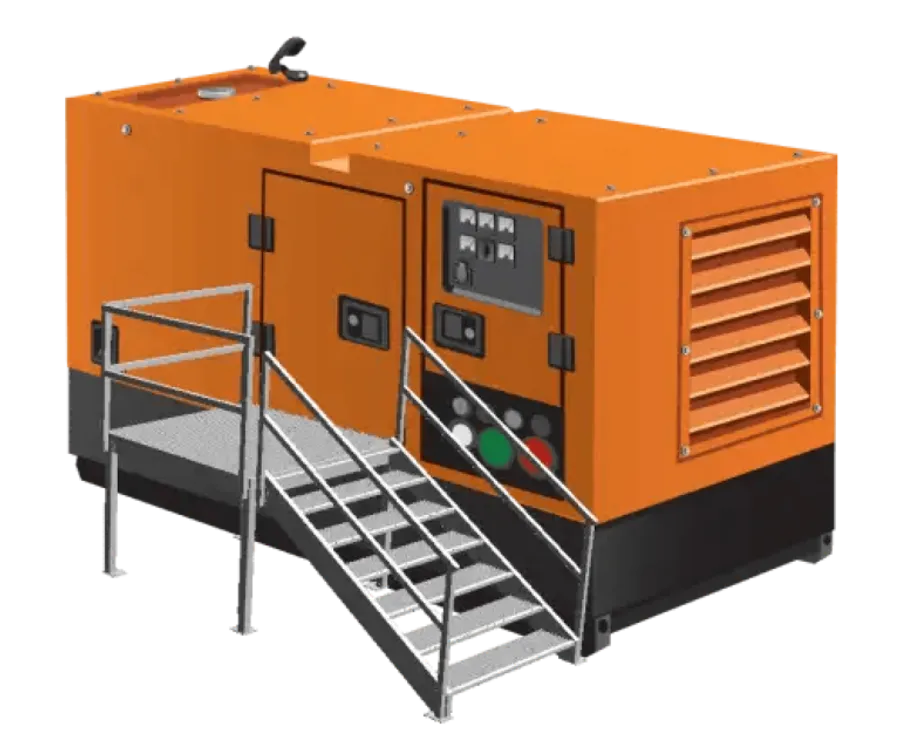

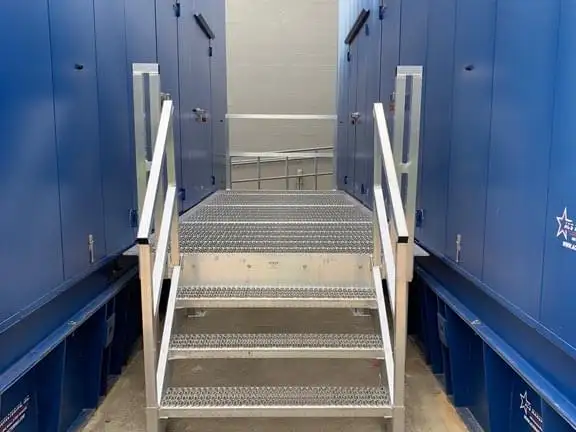

Our prefabricated Generator Access Stairs are ready to install and are constructed out of industrial-grade aluminum components.
The components bolt together, allowing for the possibility of endless configurations. Say goodbye to custom fabrication, on-site welding, and time-consuming engineering. Reduce your costs, cut installation time, and simplify your project.
FEATURES
EASY INSTALLATION
Our commercial stairs are modular and bolt together
CODE COMPLIANT
Our generator access stairs are prefabricated and comply with OSHA regulations.
NON-CONDUCTIVE DECKING
Our optional fiber-grate decking is non-conductive, non-sparking, and non-magnetic.
RECONFIGURABLE
Because the APEX System is modular, ramps, stairs and railings can be reused, added to, and reconfigured as your needs change.
MODULAR DESIGN
Modular commercial stairs, platform landings, legs, and handrails bolt together without any on-site welding.
PIVOTING RISERS
Our team of engineers will design a stair configuration layout just for you, and professional engineer stamps are available.
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
100% ALUMINUM – LONG LASTING
The entire line of APEX products will never rust, warp, or rot. Components are low maintenance and will last much longer than wood or steel.
HPD/LEED/ESG
Prefabricated systems are typically made with 6061 and 6063 aluminum alloys containing ≥99% and ≥50% recycled content. Some prefabricated systems can help contribute to several LEED v4.1 credits and other green building rating systems.
SLIP-RESISTANT DECKING

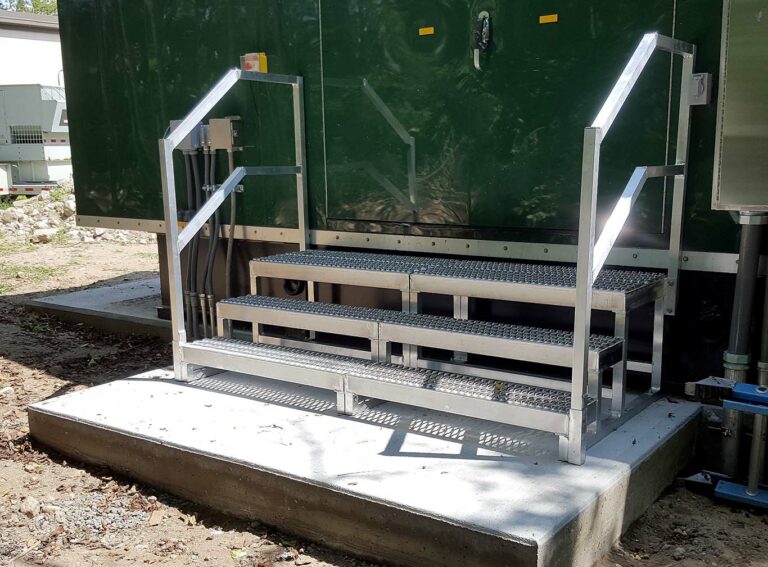

APEX stairs come standard with an aggressive, heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance. Other decking options are also available.
INFORMATION
BRAND
Upside Innovations
PRODUCT TYPE
Stairs
MATERIAL
Heavy duty 3″ channel Grip Strut Grating

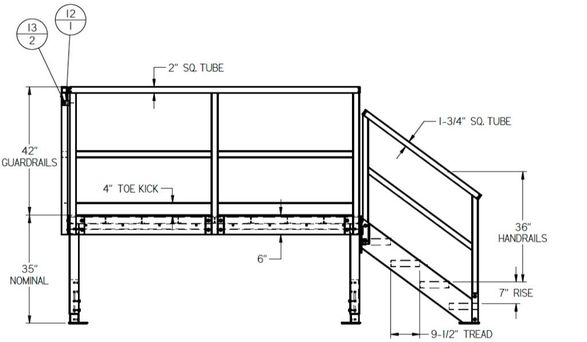

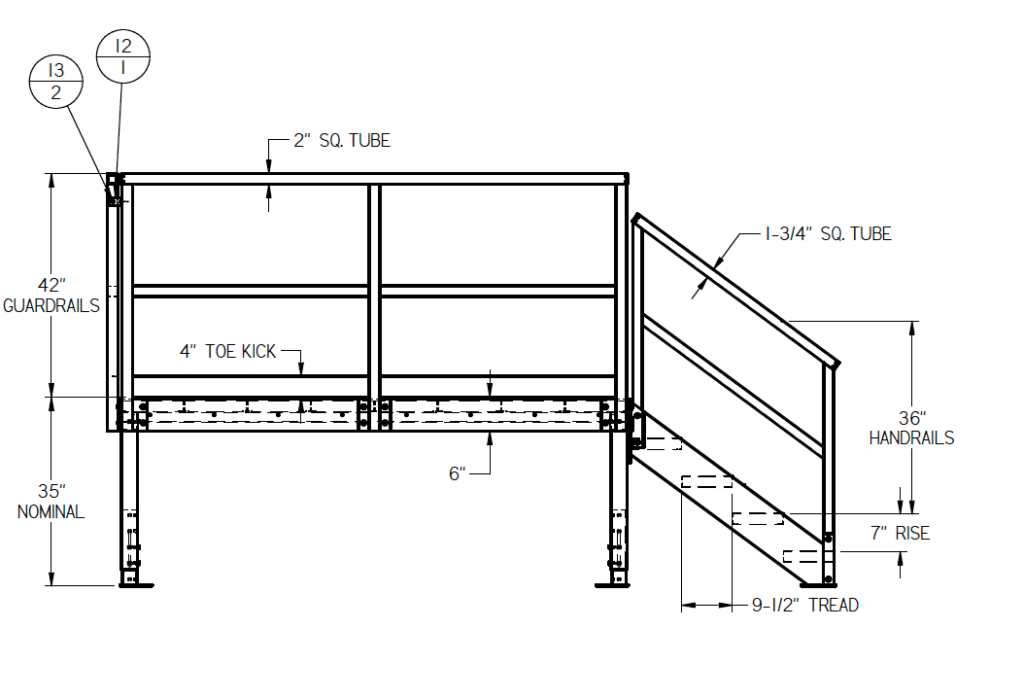

DIMENSIONS
- Tread Depth : 9 1/2″
- Width : 40″ between the guardrail, 48″ out-to-out
- Height : We use 7″, 7 1/2″, or 8″ rises between the treads to reach any height
OSHA COMPLIANT
All stairs and access platforms meet OSHA codes. We also offer an IBC-compliant option.
PRODUCTION
Made in USA
GUARDRAIL
36″ high
WEIGHT CAPACITY
100 lbs/sqft live load, 300 lbs point load over a sqft area
PLATFORM SIZES
48″ x 96″, 48″ x 72″, 48″ x 84″ (other sizes available)
DO YOU INSTALL OR SERVICE GENERATORS
Because stairs and access platforms are what we do, Upside generator steps and platforms are your “easy button” to checking these items off your list.
WE INSTALL
Our professional installation crew ensures that your project goes smoothly.
REACH ANY HEIGHT
Our team can design generator access stairs to reach any height that you need.
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
DESIGN
Our Generator Access Stairs meet OSHA standards. The GenStep is a modular design, combined with our experienced engineers, allows us to offer any configuration you need. Made from 100% industrial-grade aluminum, our generator access stairs will not rust, warp, or rot.
INFINITE CONFIGURATIONS
Our modular design and experienced engineers can configure solutions for the most challenging projects.
DECKING OPTIONS
