Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base

SB9120.01 47" BLU·STONE™ SHOWER BASE

Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base

SB9120.01 47" BLU·STONE™ SHOWER BASE

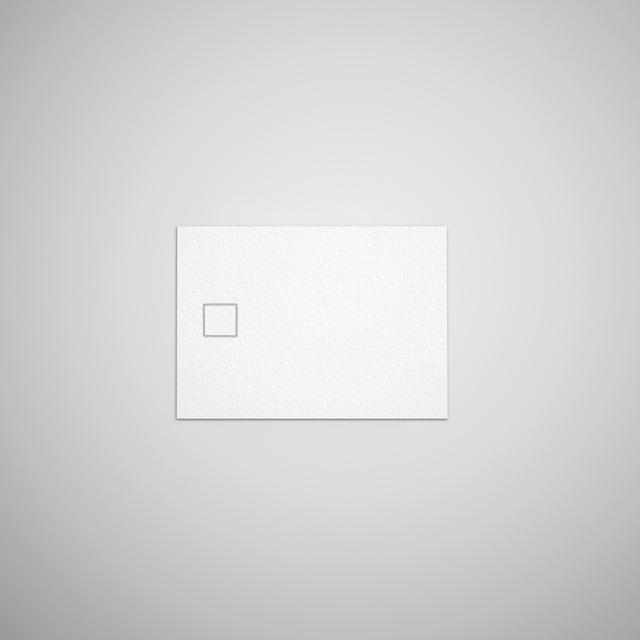

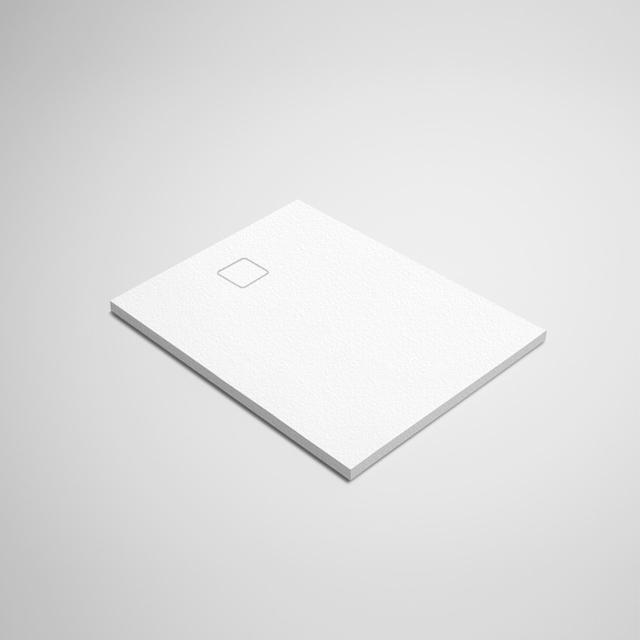

This new and stylish 1½” threshold shower receptor is made from eco-friendly blu·stone™ material, which is crafted primarily from quartzite.

Visually luminous & soft – almost warm – to the touch, this seamless one-piece shower base is highly durable in nature, making it suitable for both residential and commercial applications.

INFORMATION

BRAND

Blu bathworks

PRODUCT TYPE

Shower Tray

COLLECTION

blu•stone™

PRODUCTION

Made in United States

CODES / STANDARDS APPLICABLE

- ADA
- CSA B 45
- IAPMO / cUPC
- ANSI / ASME Z124.1.2

USE

Bathroom

ENVIRONMENT

Indoor

COLOR

- Textured White (01MC1)
- Textured Black (04MC1)
- Textured Concrete (06MC1)

DESIGN

Designed for drain versatility, alcove or freestanding installation and flexible surface-mount or recessed installation, this shower base is ideal for new construction and remodels.The shower base measures 47¼” L x 35½” W and can be cut to fit on-site. Available in a white matte textured finish as standard or range of blu·stone™ textured colors (special order).

Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base

ACCESSORIES

- blu·stone™drain cover included
- Standard drain is required (not Included)
- TF.BTSB tile flange for alcove installation (sold separately)

FINISH

Matte

DRAIN LOCATION

End

WEIGHT

99 lbs (45kg)

SHIPPING WEIGHT

121 lbs (55kg)

DIMENSIONS

- Length : 47½” (1200mm)
- Width : 35½” (900mm)
- Height : 1½” (40mm)

SHIPPING DIMENSIONS

- Length : 52¼" (1400mm)
- Width : 40"(1020mm)
- Height : 3" (80mm)

FEATURES

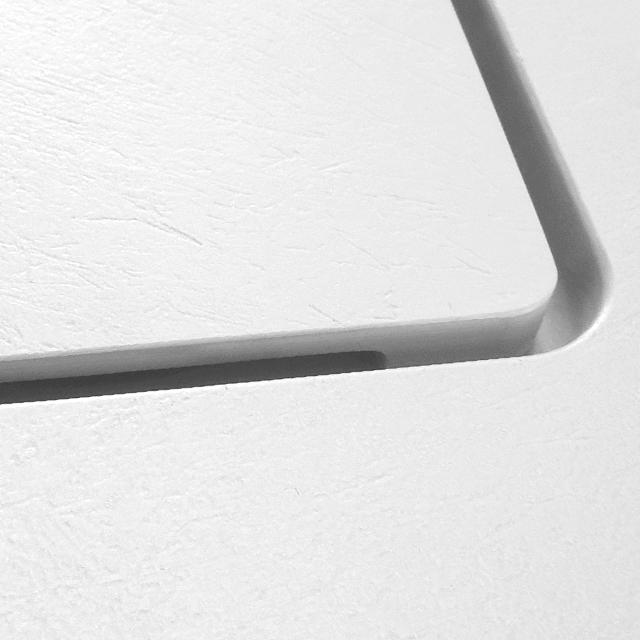

-Standard 3½” drain opening -Versatile left/right hand drain installation -Cement-like, slip resistant texture added for safety -Please refer to blu·stone™ sample chips for true finish + color -blu·stone™ shower base with matching drain cover, seamless design -Easily customizable with adjustable lengths that can be cut to be fit on-site -Alcove installation requires separate tile flange (recommend TF.BTSB tile flange) -Standard finish for all blu·stone™ shower bases is textured matte white. Color texture finishes are available as special order.

SKU

SB9120.01-01MC1

LENGTH

31-47"W (Shower base)

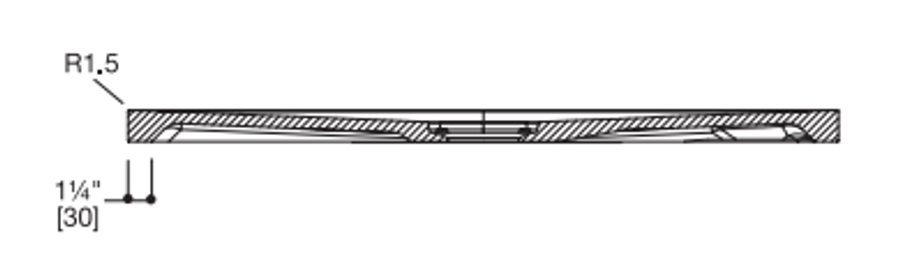

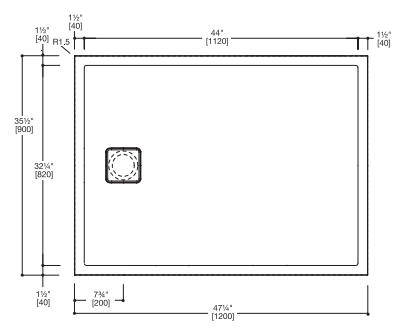

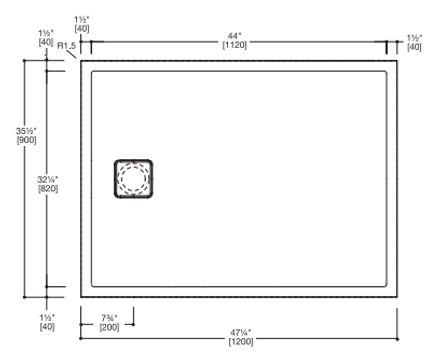

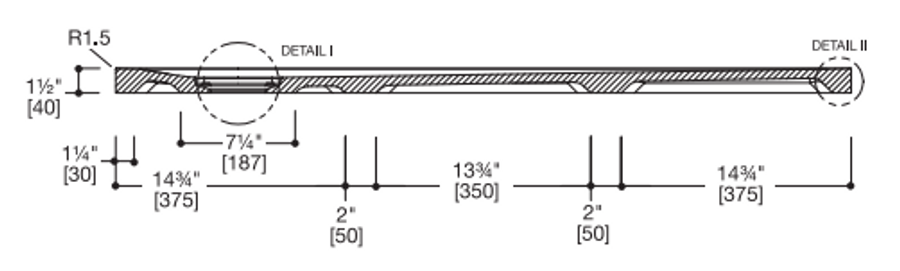

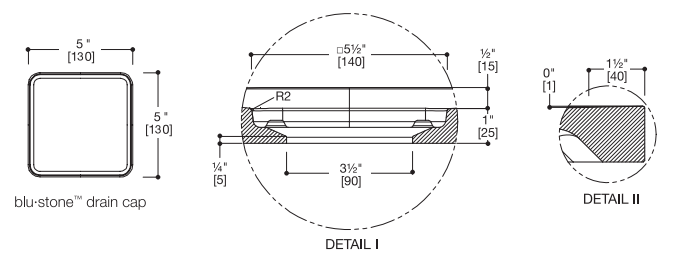

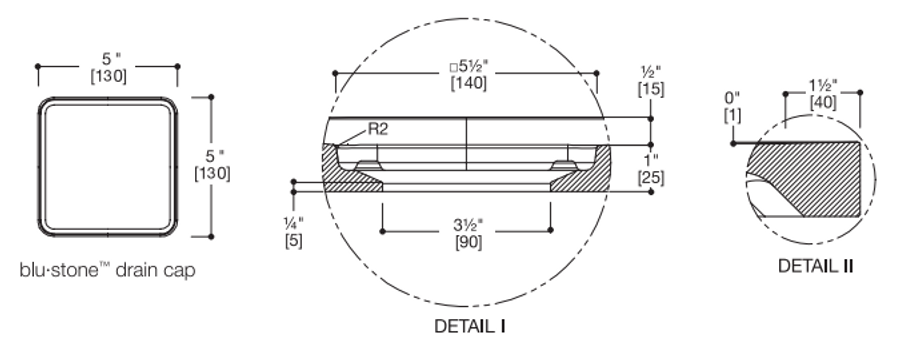

TECHNICAL DRAWINGS

TECHNICAL DRAWINGS

Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base
Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base
Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base
Blu bathworks Sb9120.01 47" Blu·stone™ Shower Base
