Unosider Gate Shade Awnings
GATE SHADE AWNINGS
GATE SHADE AWNINGS
Designed by Nicolas Thomkins
Self-supporting structure with two integrated arm awnings, LED lighting system, and custom audio installation.<br>Design: Nicolas Thomkins

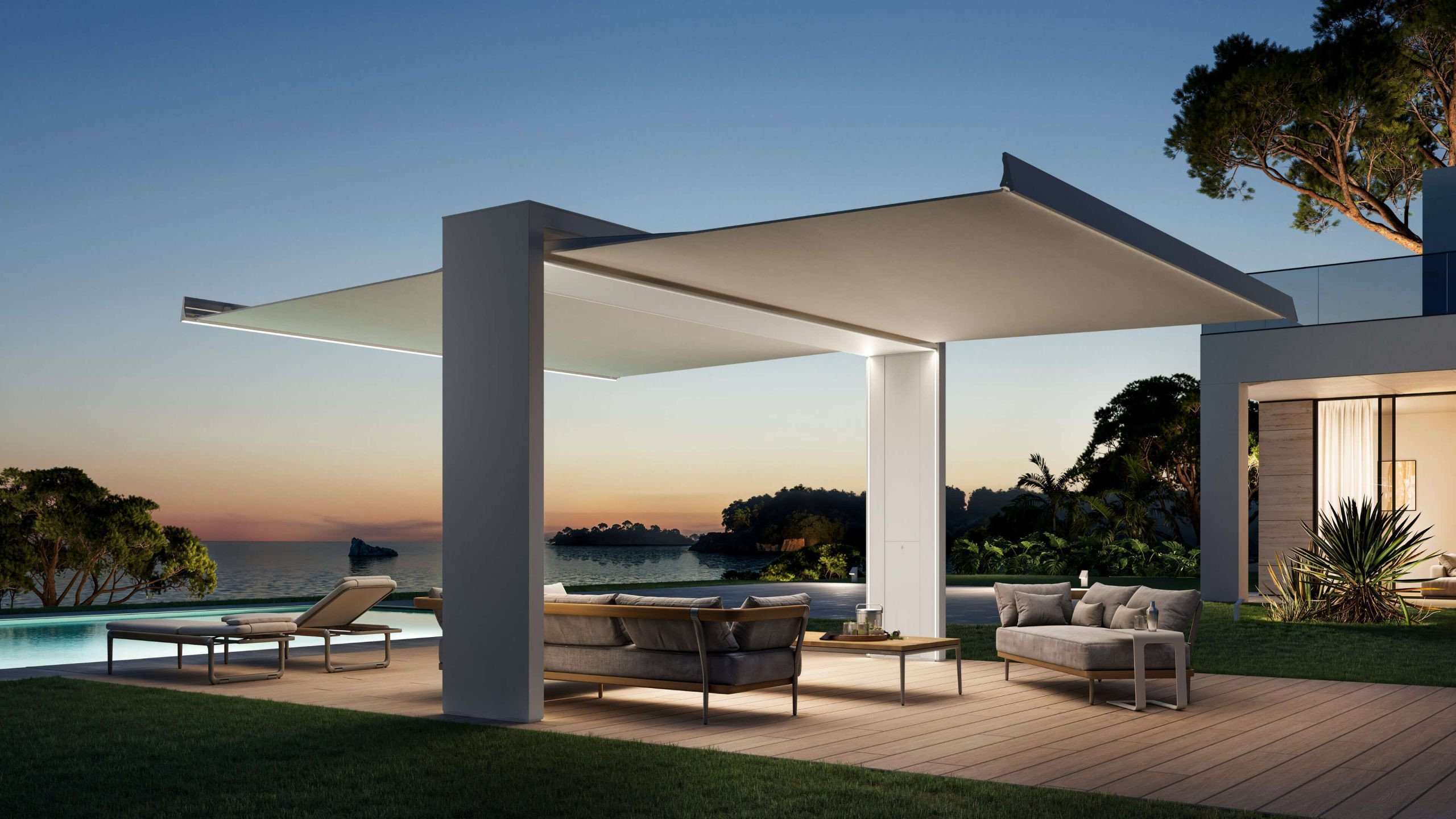

Sun protection as an architectural element: gate shade is an iconic structure that defines spaces with style and originality.
Protection, privacy and soft light thanks to arm curtains and LED system, all enhanced by customized sound.
INFORMATION
BRAND
Unosider
PRODUCT TYPE
Awnings
ELEGANT METAL ARCH
In fact, the central element of Gate Shade is an elegant metal arch, available in a variety of colors, with an internal steel supporting structure.
PURE & ARCHITECTURAL
Nicolas Thomkins writes: “The design of Gate Shade provides shade in a pure and architectural way: the arc as protective statement.”
PRODUCTION
Made in Italy
DESIGNER
Nicolas thomkins
LED LIGHTINING SYSTEM
Yes
DESIGN
Versatility and innovative
STATEMENT
The arc as protective statement
ENVIRONMENT
Outdoor
DOWNLOAD
↓ Data sheet
PERFECT ARCHITECTURAL ELEMENT

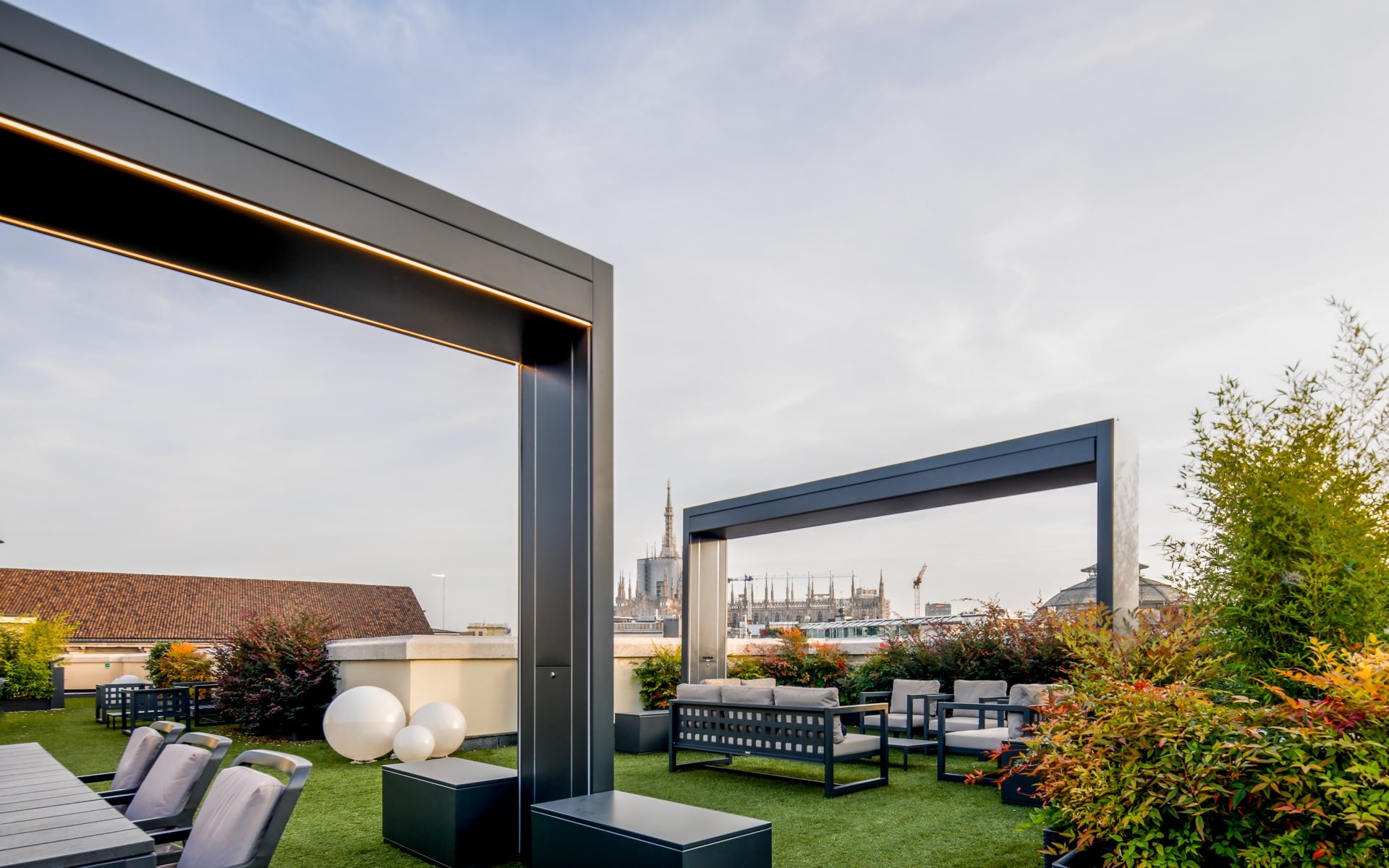

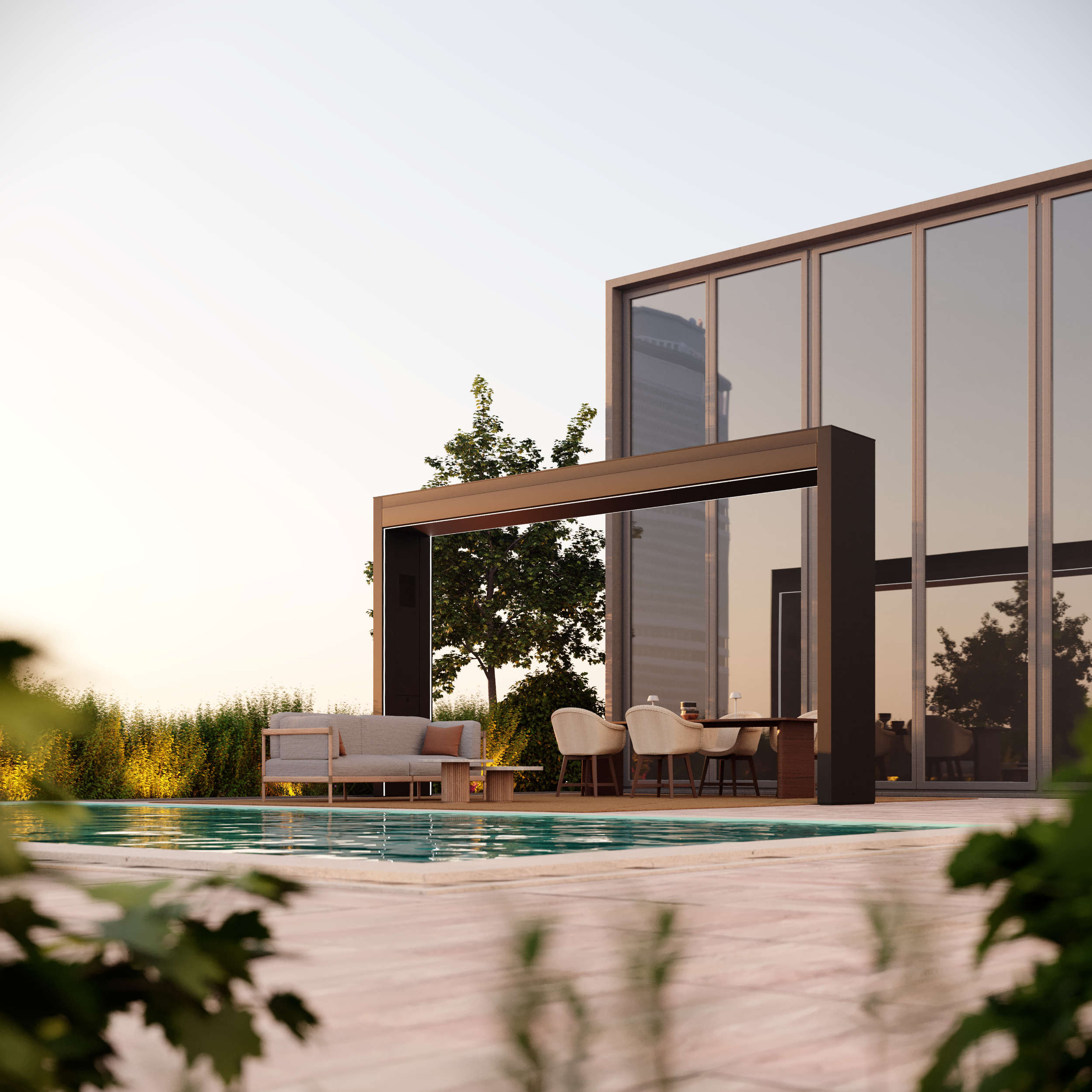

In the collected position, with all accessories perfectly integrated, the Gate Shade becomes a perfect architectural element.
SEAMLESS INTEGRATION, ARCHITECTURAL ELEGANCE
In the collected position, with all accessories perfectly integrated, Gate Shade becomes a perfect architectural element.
ARM TENT

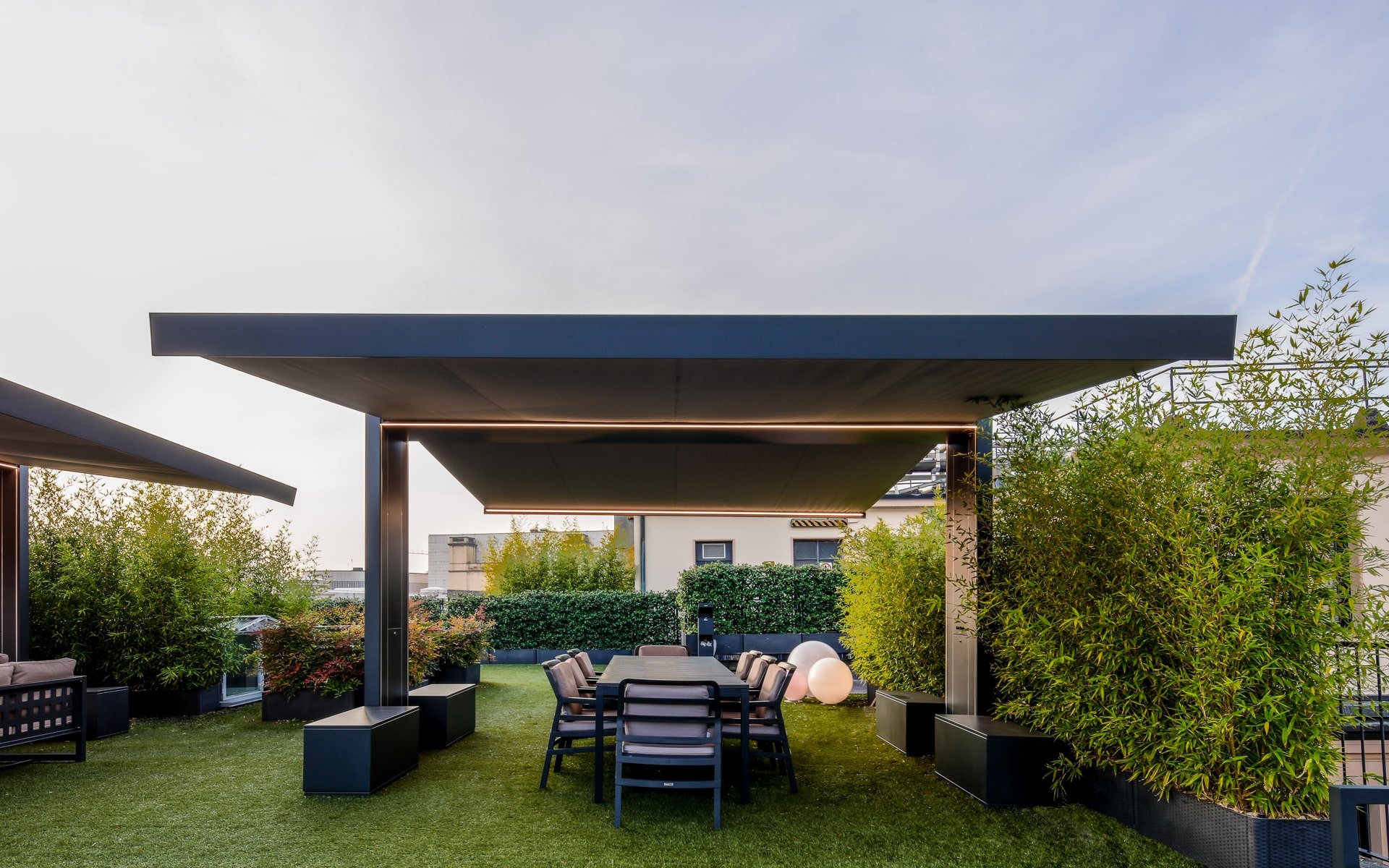

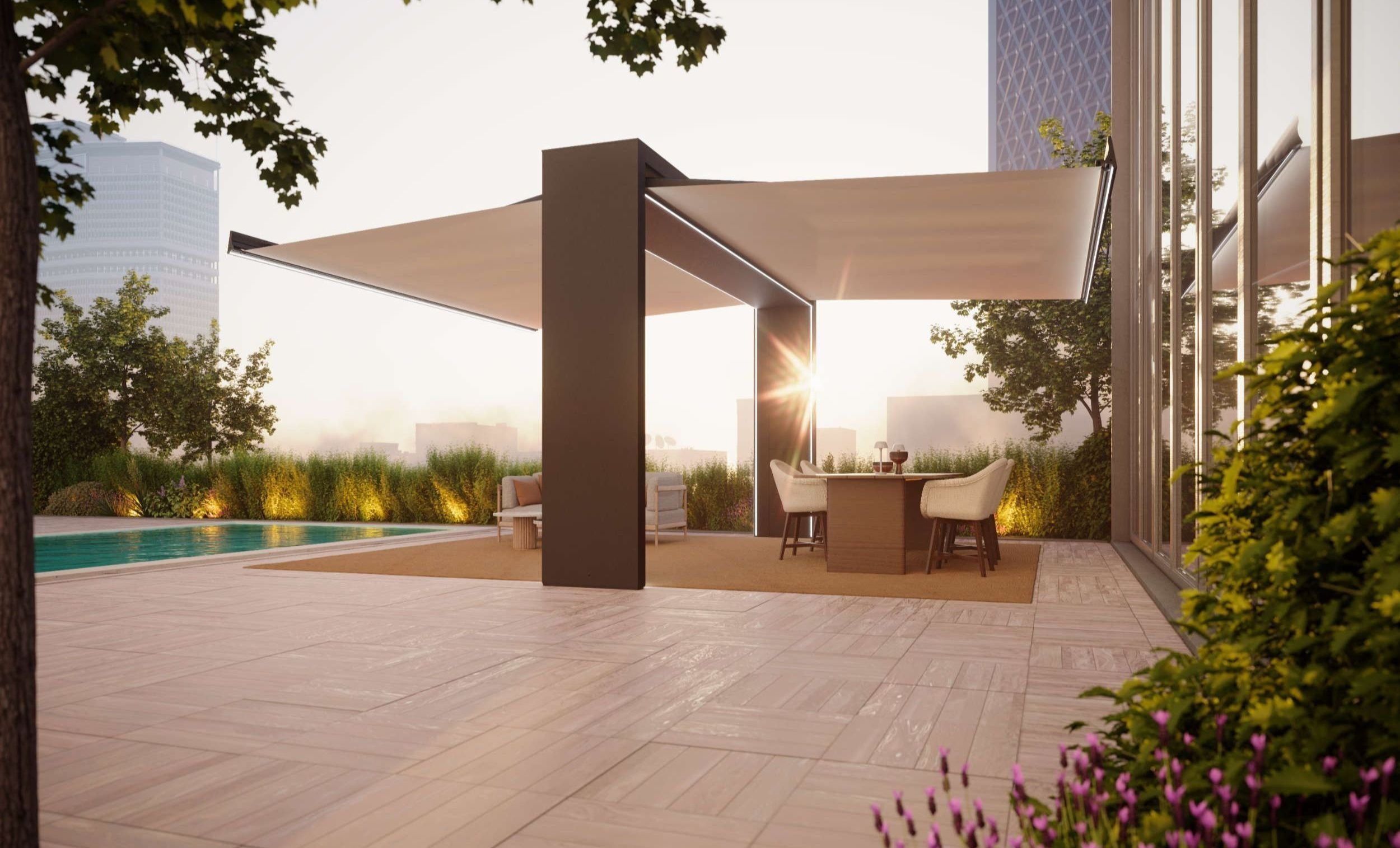

This structure houses two motorized arm tents, controllable by remote control, which can cover a maximum area of 5 x 6.4 meters.
ACCESSORIES
- LED inside columns

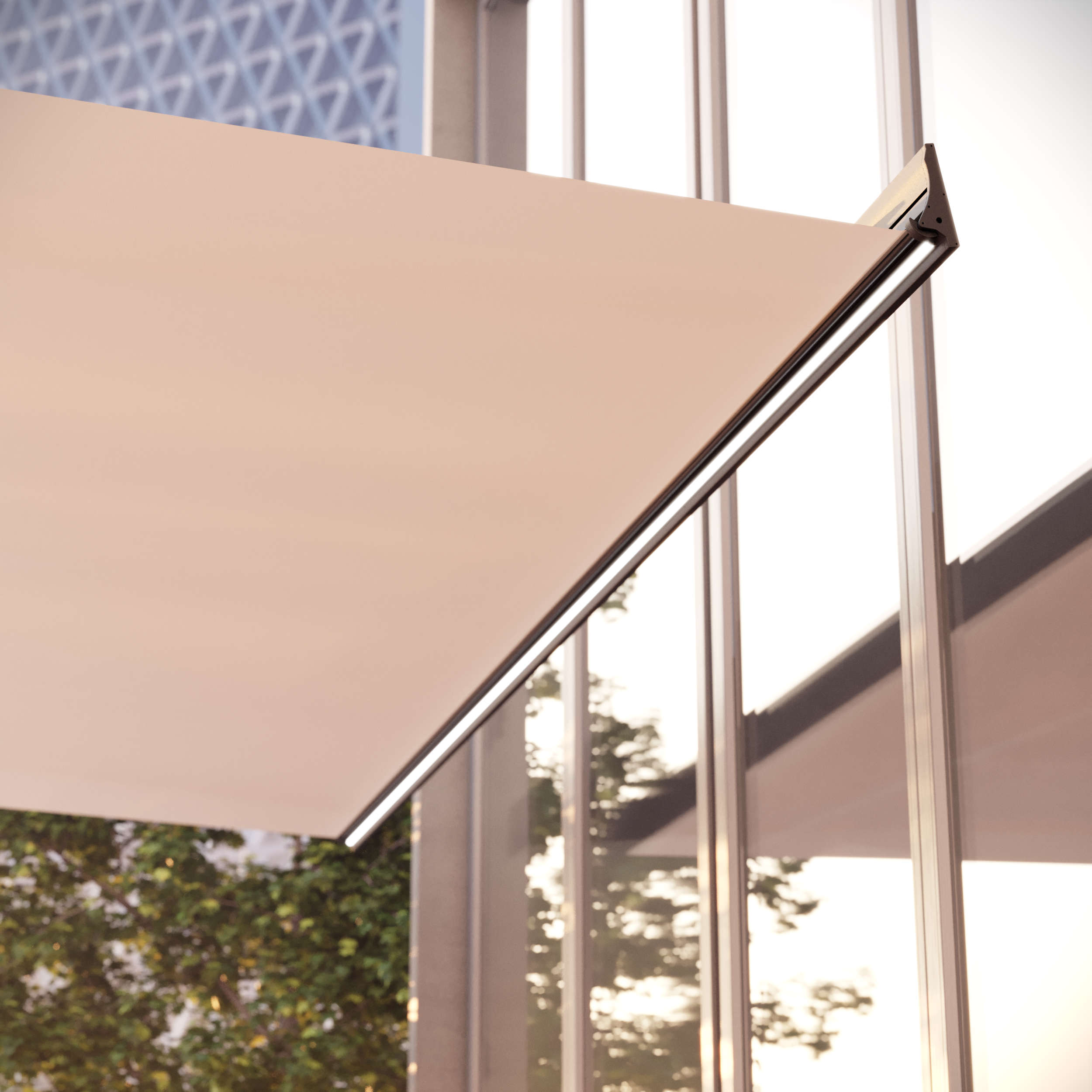

- LED curtain terminals
- Rain sensor for automatic closing of curtains in case of rain

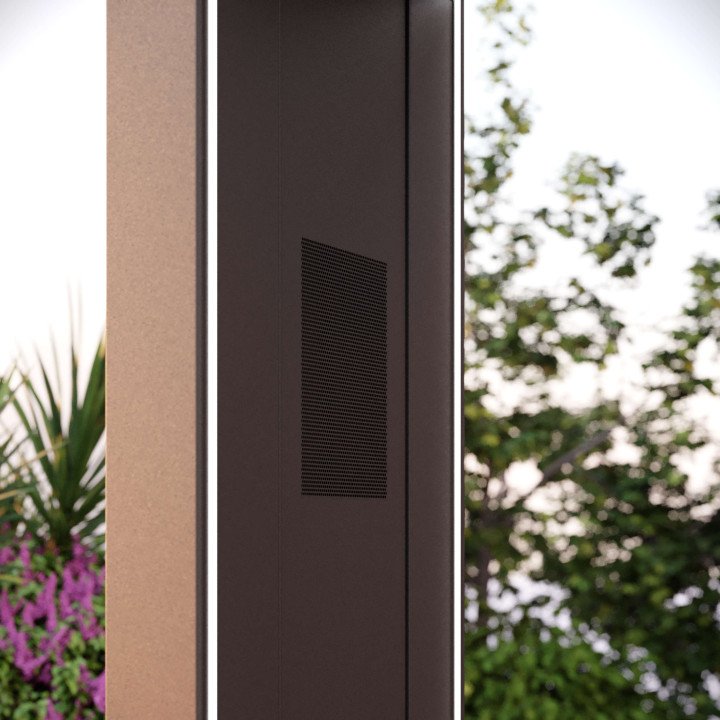

- Audio system consisting of two unamplified audio speakers and an amplifier equipped with network audio player
- Alternative system for ground fixing with planters or benches with ballast function
ICONIC
Gate Shade is an iconic element of our collection, a structure that combines sun protection and architectural originality. Born from the collaboration with Nicolas Thomkins, a renowned international designer, this structure stands out for its versatility and innovative design.
FLEXIBLE ANCHORING FOR EVERY SURFACE
To secure the structure to the ground when holes cannot be drilled in the pavement, Unosider offers an alternative anchoring system through planters or weighted benches.
AUTOMATIC
For added safety and convenience, the tents are equipped with an anemometer for automatic closure in winds above 25-28 km/h, and a rain sensor for automatic closure in bad weather.
BEYOND SHADE: LIGHT, SOUND & OUTDOOR COMFORT

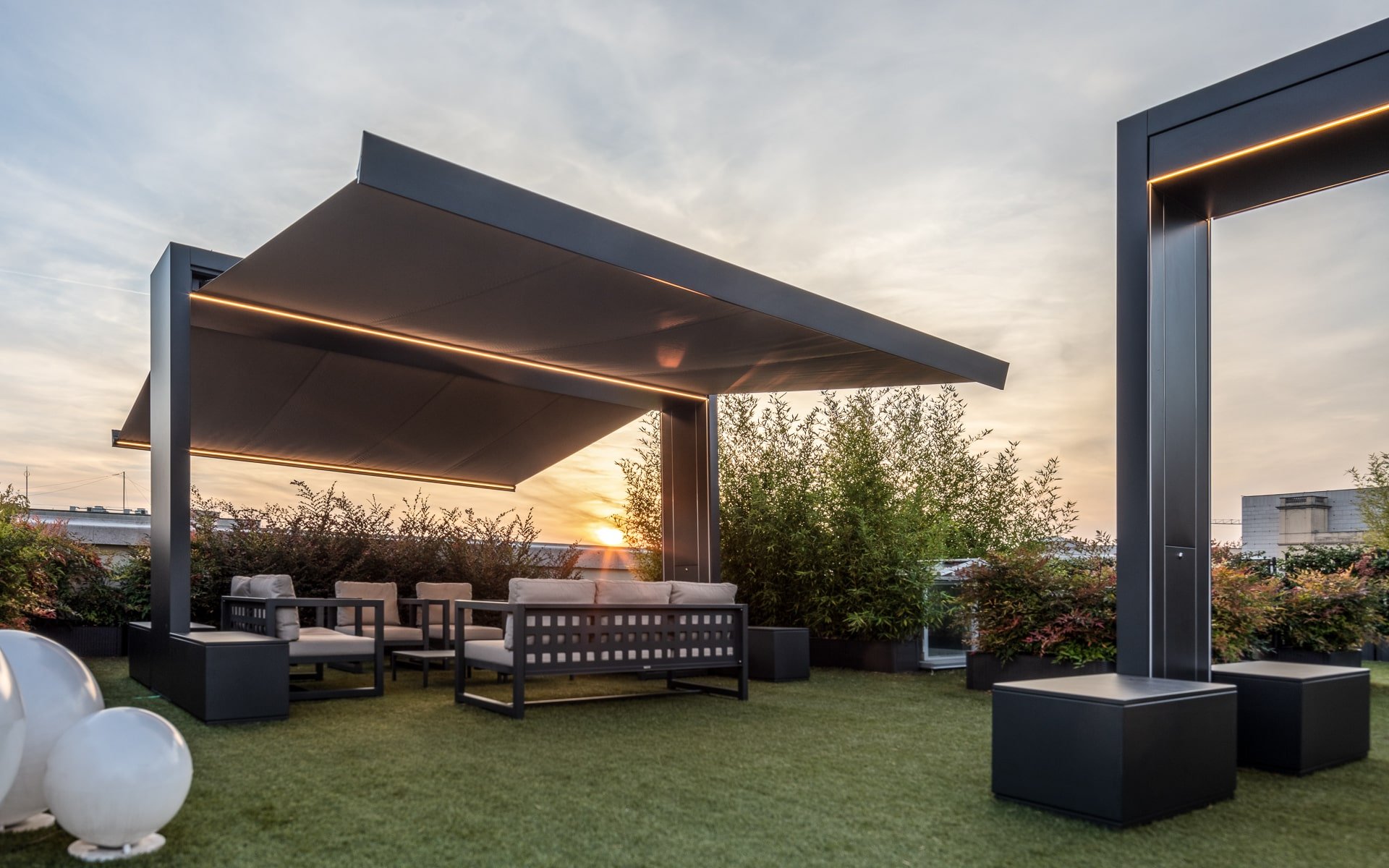

Gate Shade is not limited to sun protection-its design includes an LED strip system built into the ceiling to gently illuminate the area below during nighttime hours. It also offers a customized sound system to make the outdoor space experience complete.
MAIN STRUCTURE
Standard equipment
- Front beam height 300 mm

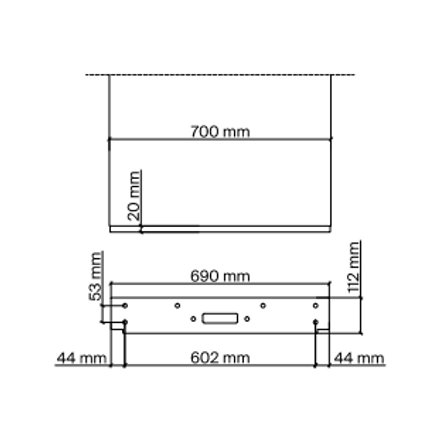

- Abutment section 700 x 112 mm
- Two LED strips integrated into the ceiling
- UV-resistant, polyester resin-based epoxy powder coating, available in 4 standard colors
- Two arm awnings, motorized and complete with anemometer for automatic closure in winds above 25-28 km/h
- Internal structure of machined steel profiles with hot-dip galvanizing treatment and external covers of galvanized sheet metal
TECHNICAL DATA

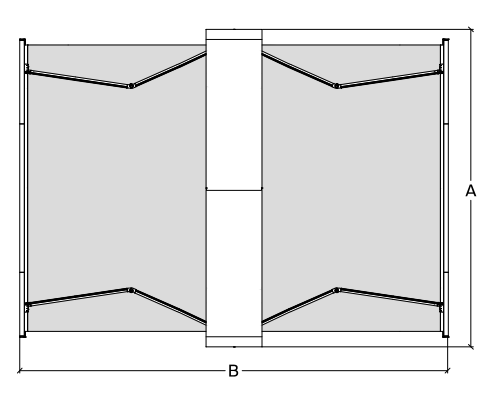

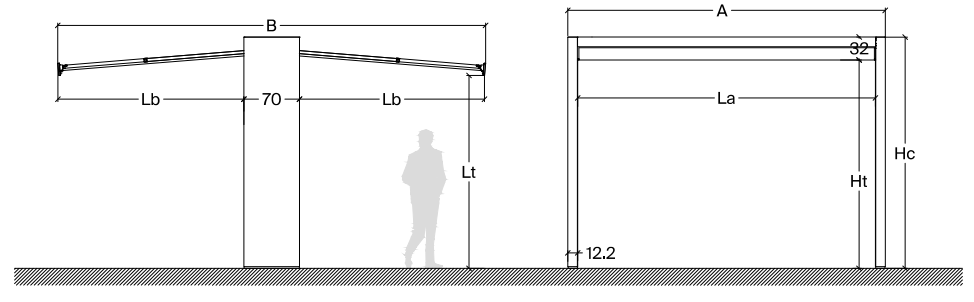

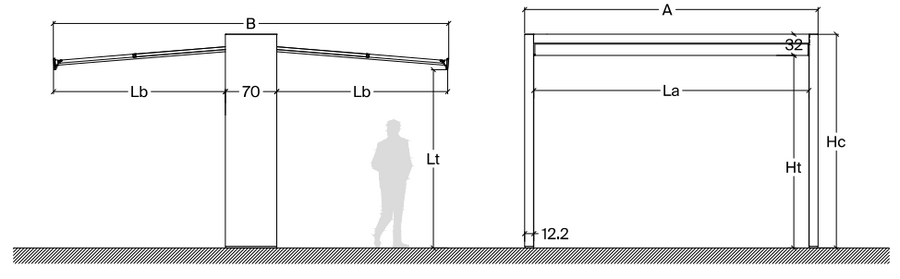

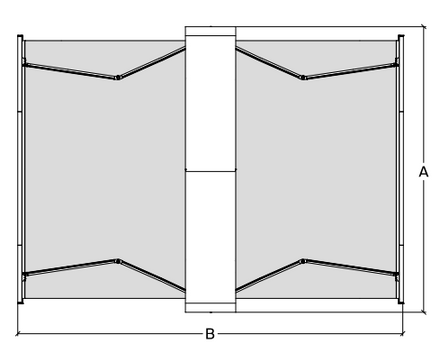

TECHNICAL DIAGRAM
STANDARD SIZES
| AxB | 300x340 | 300x440 | 400x340 | 400x440 | 400x540 | 400x640 | 500x340 | 500x440 | 500x540 | 500x640 |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 300 | 300 | 400 | 400 | 400 | 400 | 500 | 500 | 500 | 500 |
| B | 340 | 440 | 340 | 440 | 540 | 640 | 340 | 440 | 540 | 640 |
| La | 276 | 276 | 376 | 376 | 376 | 376 | 376 | 476 | 476 | 476 |
| Lb | 135 | 185 | 135 | 185 | 235 | 285 | 135 | 185 | 235 | 285 |
| Lt | 246-255 | 240-254 | 246-255 | 240-254 | 235-252 | 230-250 | 246-255 | 240-254 | 235-252 | 230-250 |
| Ht | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 |
| Hc | 292 | 292 | 292 | 292 | 292 | 292 | 292 | 292 | 292 | 292 |
| n° colli | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| kg | 471 | 472 | 529 | 530 | 531 | 532 | 582 | 583 | 585 | 587 |
| COD. | GS300X340 | GS300X440 | GS400X340 | GS400X440 | GS400X540 | GS400X640 | GS500X340 | GS500X340 | GS500X540 | GS500X640 |
COLORS
TEMPOTEST®
COVERAGE (TEMPOTEST® STARLIGHT BLUE XL)
-6929-603 Warm grey warm grey 6929-603 // tempotest® starlight blue xl -6236-690 tech beige -6015-603 ice grey -6253-697 -6929-603 warm grey warm grey 6929-603 // Opatex Pro
PAINTING (POWDER COATING WITH POLYESTER EPOXY PAINT)
