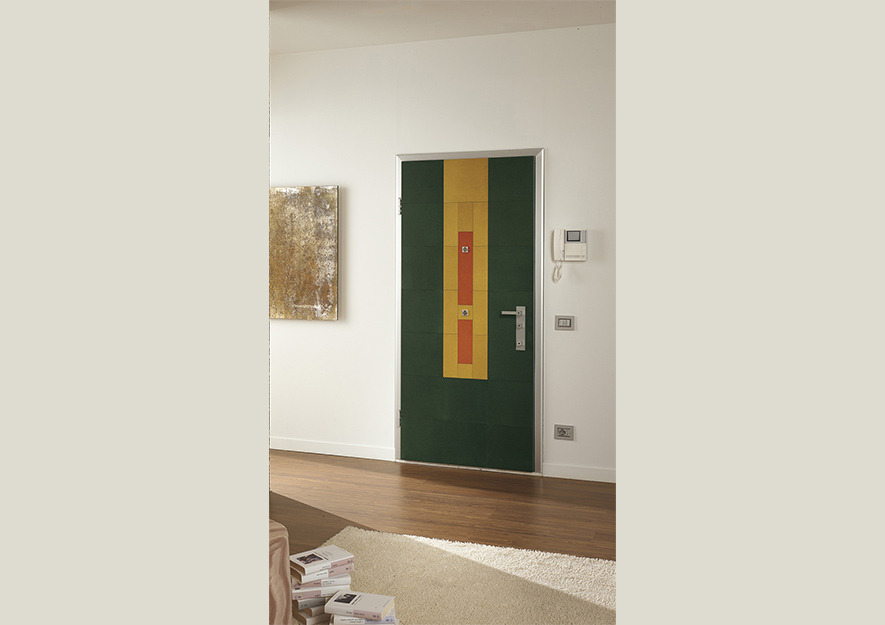

POKER 1 DOOR

The standard class anti-intrusion 3 security door

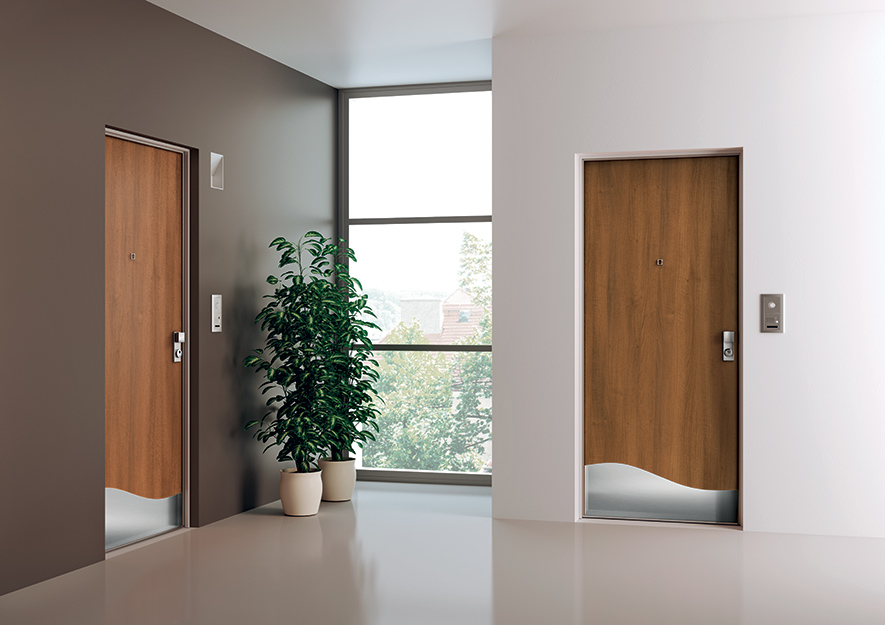

Poker 1 is the security door which gathers technology, security and beauty. It has been designed for those who looks for a standard dimension door with an exclusive and customizable style.

ACOUSTIC INSULATION NOTES

- 30 dB with external panel 4mm thick
- 31 dB with external panel 10mm thick

DIMENSIONS

- Height : 210 cm
- Width : 80-85-90 cm

DOWNLOADS

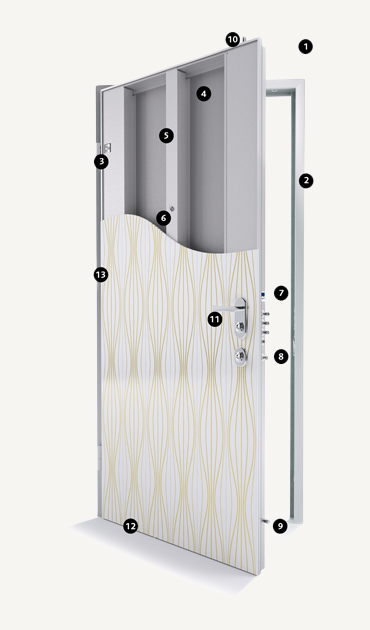

TECHNICAL FEATURES

- 1. Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
- 2. Frame made with 20/10 thick galvanized steel, painted grey Ral 9006 and complete with plastic covers, gasket and footers. Standard colour brown Ral 8017
-3. Adjustable hinges on 3 axes with hinge covers of the frame colour

-4. Doorleaf made of one galvanized steel sheet 16/10 thick. Gasket in the perimeter of the leaf
- 5. Inner reinforcement spar
-6. Wide-angle peephole

-7. Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with a hardened steel drill-proof plate.
- 8. Opening limiter and inside service lock
- 9. Lateral deadbolt
- 10. Upper deadbolt bar

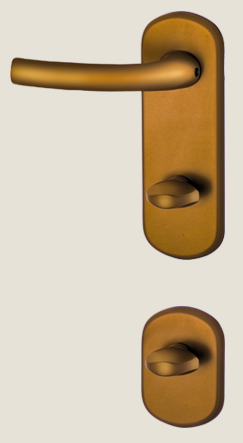

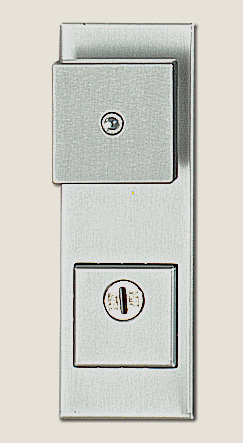

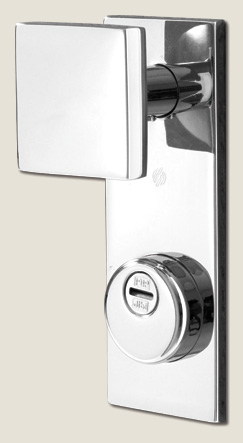

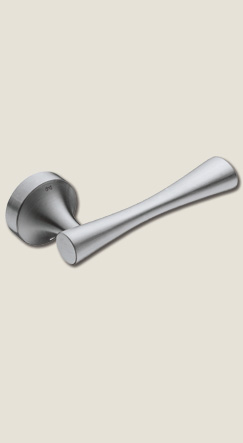

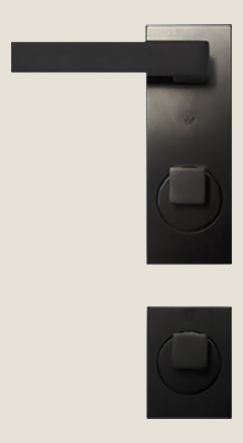

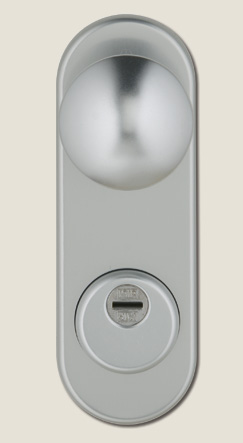

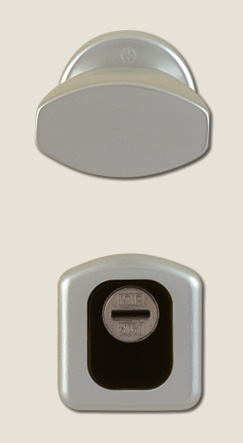

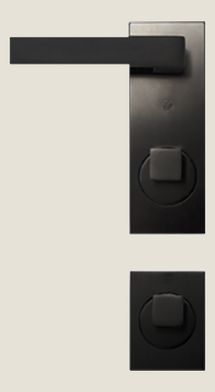

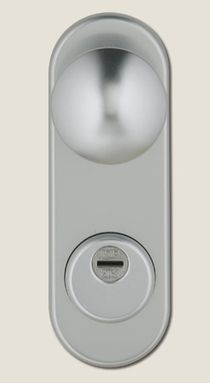

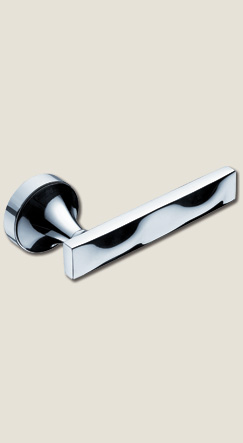

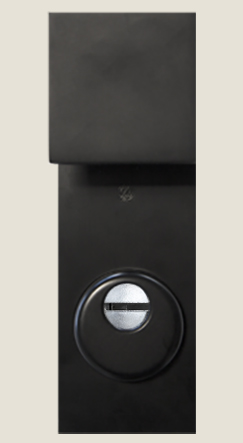

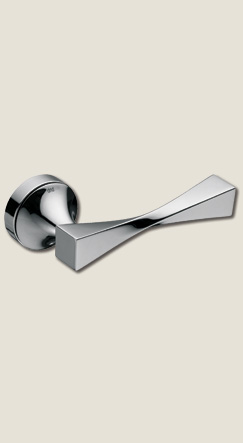

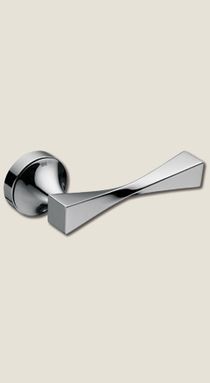

- 11. Handle set in polished chrome aluminium (inside handle + outside fixed knob. Upon request, outside turning knob or inside+ouside handle). Standard version: Poker, bronzed
-12. Weatherstrip bar or bottom rebate of the door threshold
-13. 5 fixed deadbolts on the hinge side

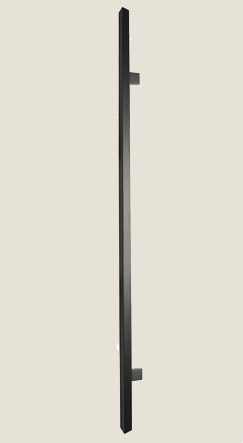

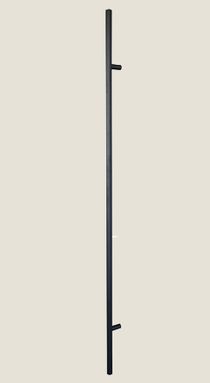

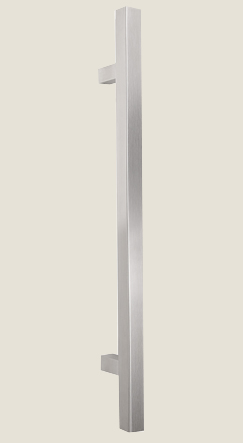

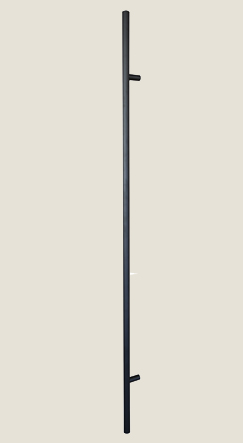

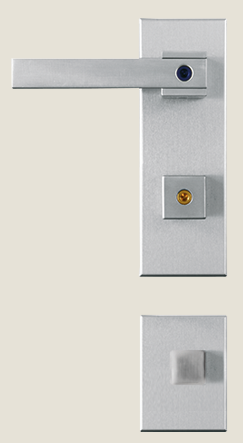

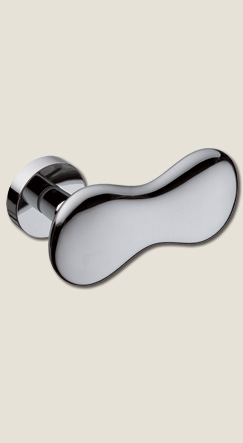

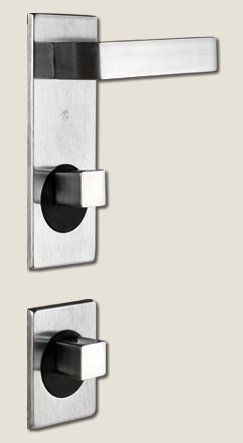

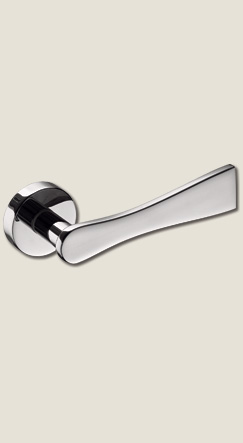

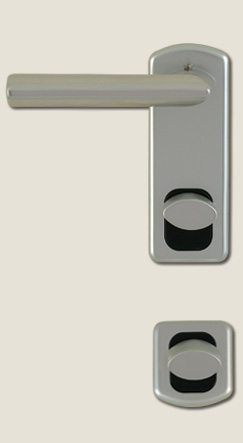

ALL ACCESSORIES

TOP SECURITY EUROPEAN CYLINDER EVVA 3KS

3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.

The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

HIGH SECURITY EUROPEAN CYLINDER EVVA ICS

ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.

It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
