Crosswater Belgravia Bath Tap
BELGRAVIA BATH TAP
BELGRAVIA BATH TAP

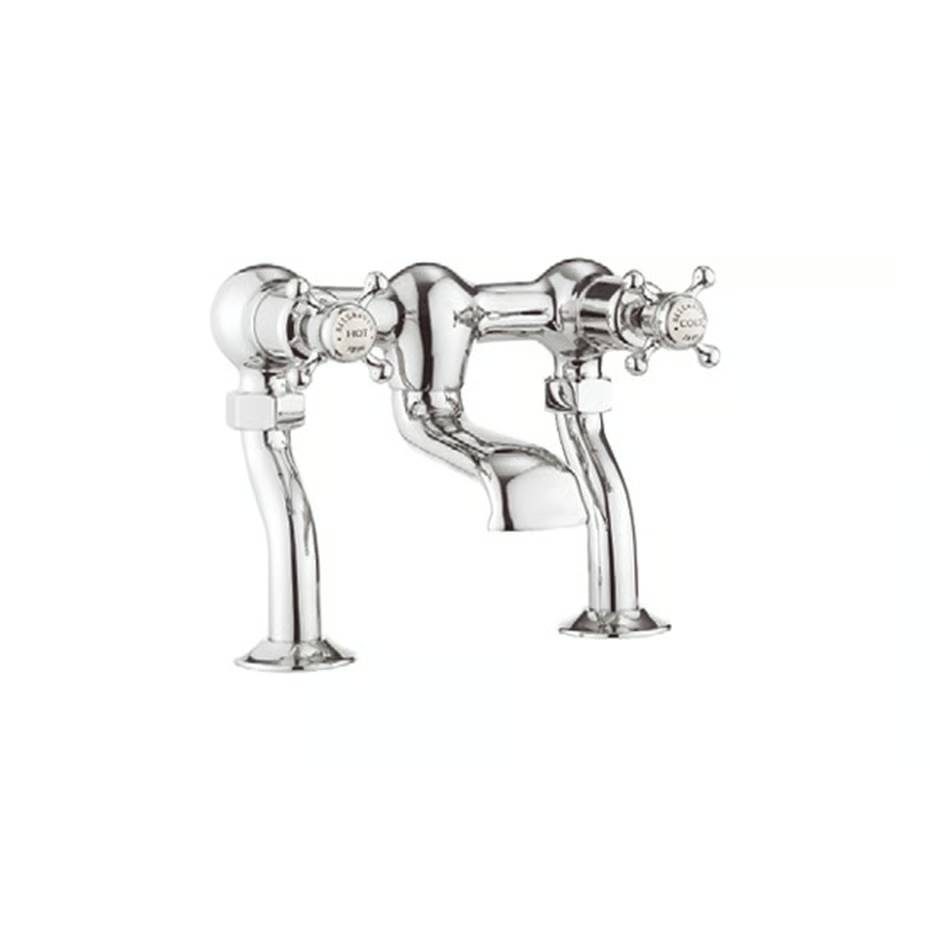

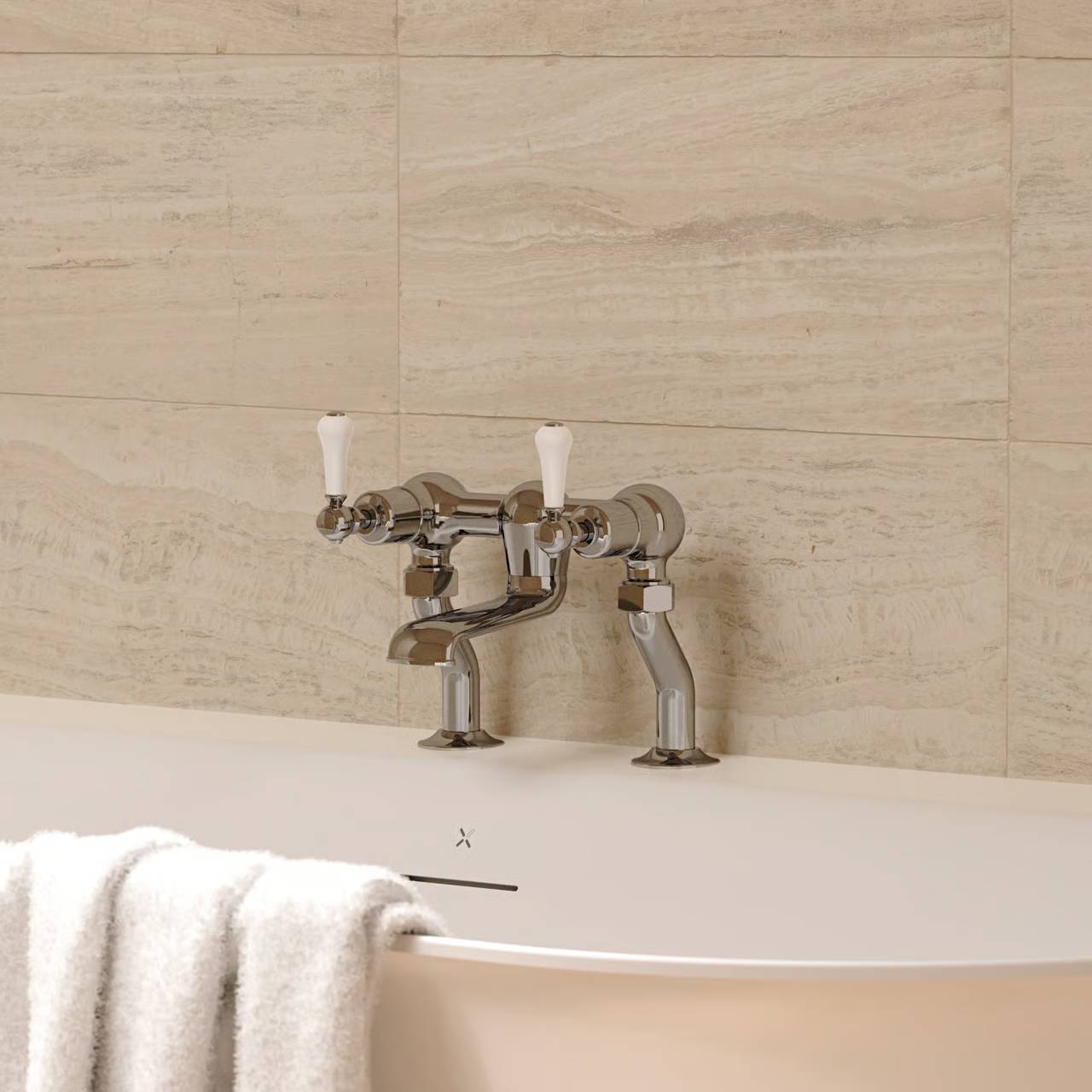

This Belgravia bath tap showcases traditional styling with a timeless appeal, combining elegant detailing with enduring design.

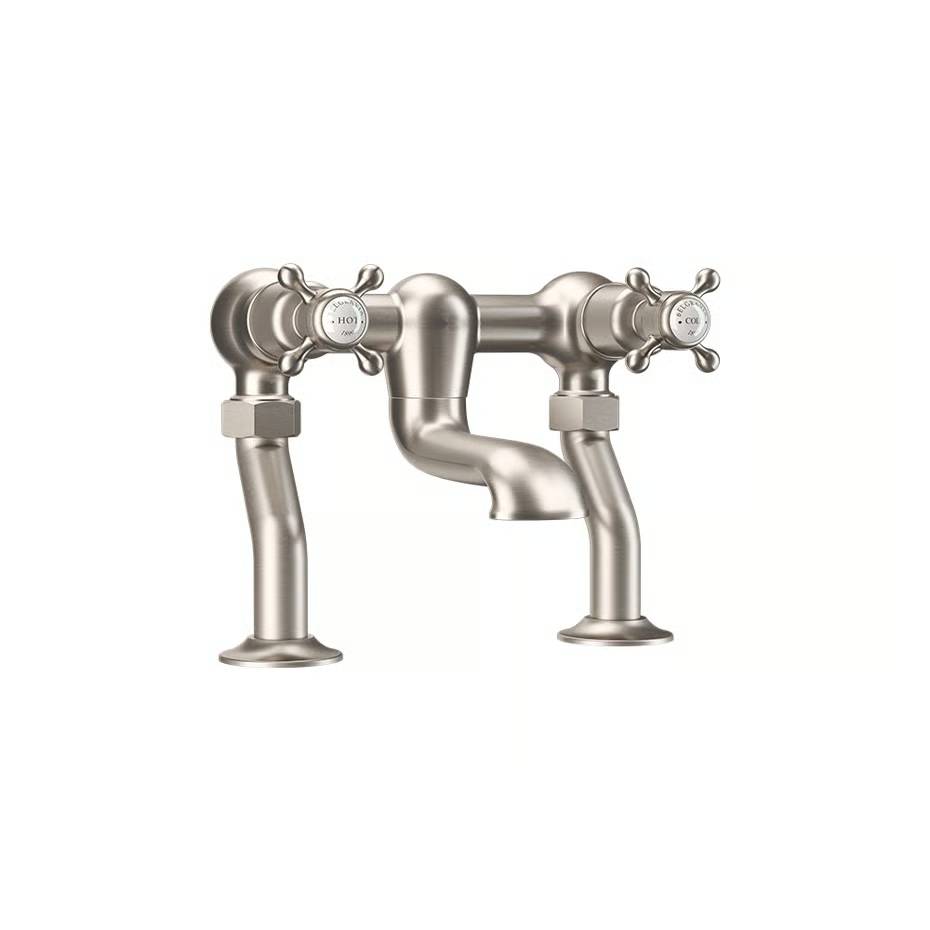

The beautiful crosshead or lever handles add an authentic classical touch, bringing heritage character confidently into modern bathroom spaces.
Designed in a conventional all-in-one format, the bath spout and temperature controls are seamlessly integrated into a single unit.
information
BRAND
Crosswater
PRODUCT TYPE
Bath Tap
INLET CONNECTIONS THREAD
G3/4”
COLLECTION
Belgravia
INSTALL TYPE
Deck Mounted

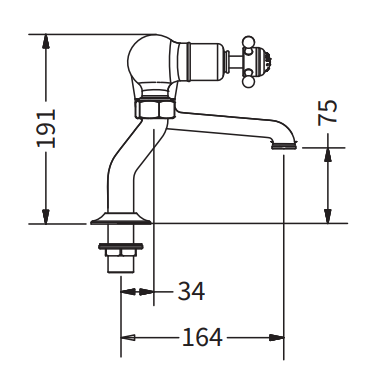

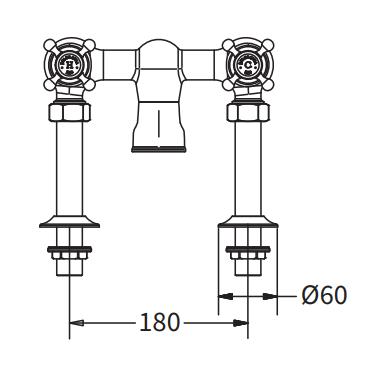

DIMENSIONS

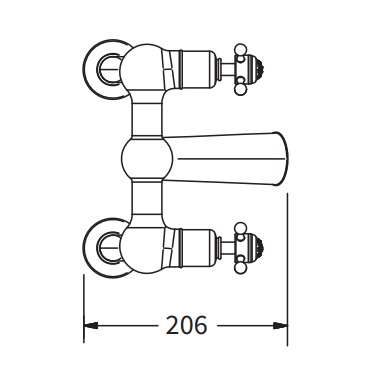

-Width : 240mm -Height : 191mm -Depth : 206mm -Length : 230mm
STANDARDS
BS EN 200:2008#BS EN 817:2008
DESIGN
Elegant
APPROVAL NUMBER
240988002
HEADWORK
3/4” Quarter turn ceramic cartridge
WEIGHT
4.1kg
USE
Bathroom
FEATURES
- Hand Polished
- Hand Assembled
- Porcelain Indices
- Brass Construction
- Ceramic Disc Cartridge
CODE
- Chrome : BL322DC
- Brushed Brass : BL322DF
- Brushed Nickel : BL322DL
ENERGY SAVING
No
ANTI-SCALD PROTECTION
No
BARCODE
- Chrome : 5055833618941
- Brushed Brass : 5056553468540
- Brushed Nickel : 5056553468298
MINIMUM PRESSURE
1 Bar
MAX WORKING PRESSURE
5 Bar
HANDLE STYLE
- Lever
- Crosshead
SWIVEL SPOUT
No
NUMBER OF OUTLETS
1

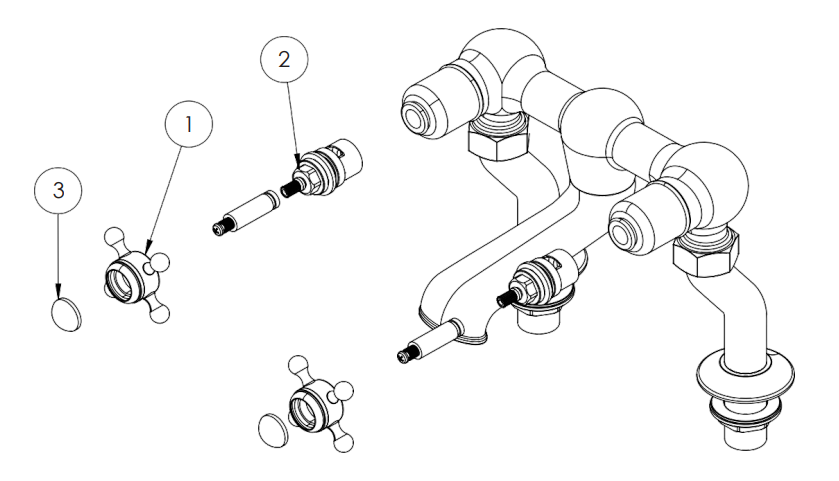

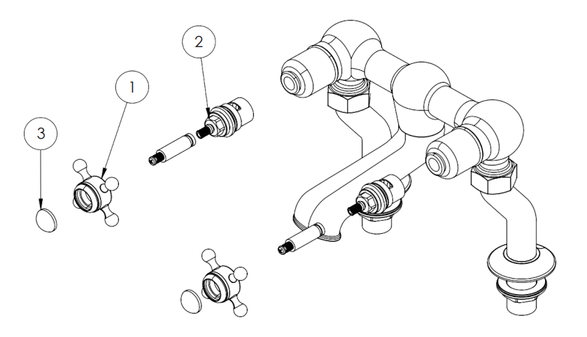

SPARES PART
- 1. 57BLH : Belgravia Crosshead Handles Pair Chrome
- 2. 57BLSP001 : Belgravia 322 And 422 Cartridge Pair
- 3. 57BLSP003 : Belgravia Indicie Hot & Cold Pair
AVAILABLE FINISHES
3
WARRANTY DETAIL
15 Years
WASTE INCLUDED
No
SPOUT PROJECTION
164
DOWNLOADS
↓ Data Sheet
↓ Installation Guide
CLASSIC DESIGN & TIMELESS FINISHES

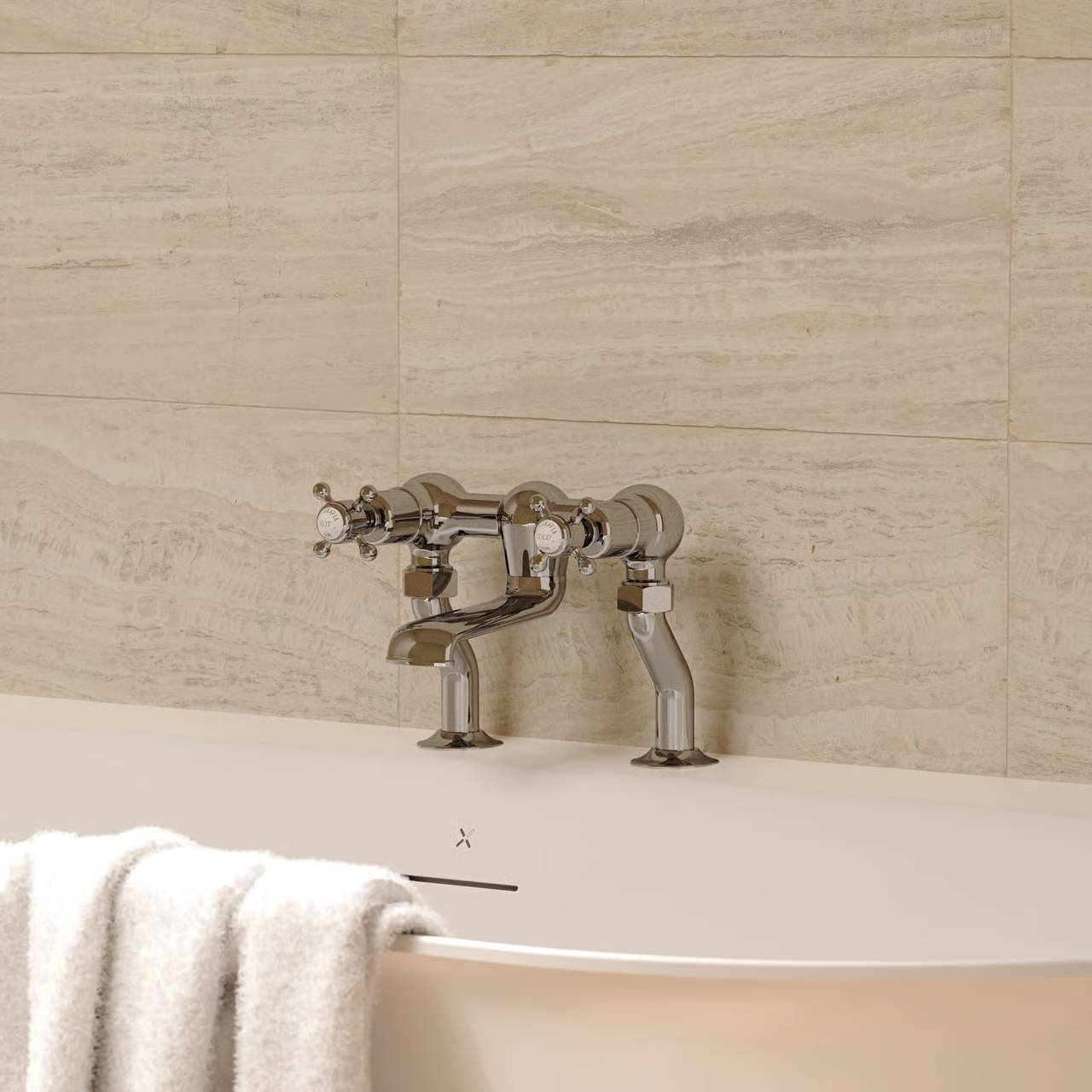

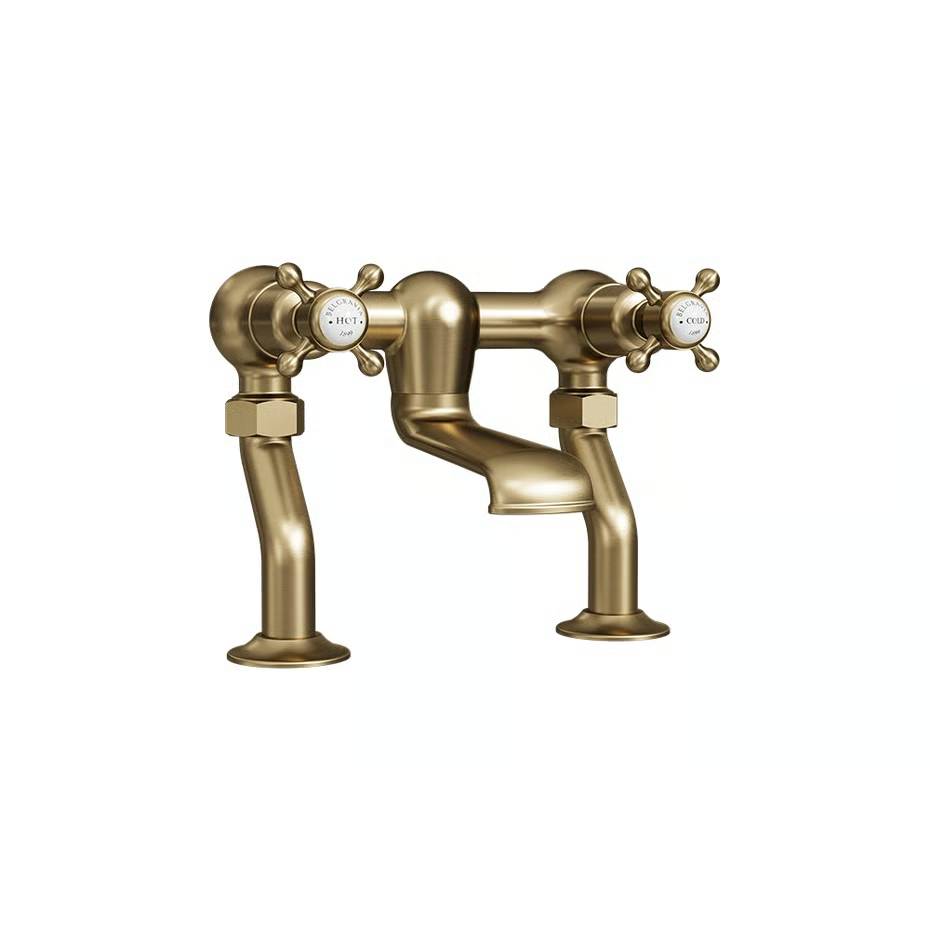

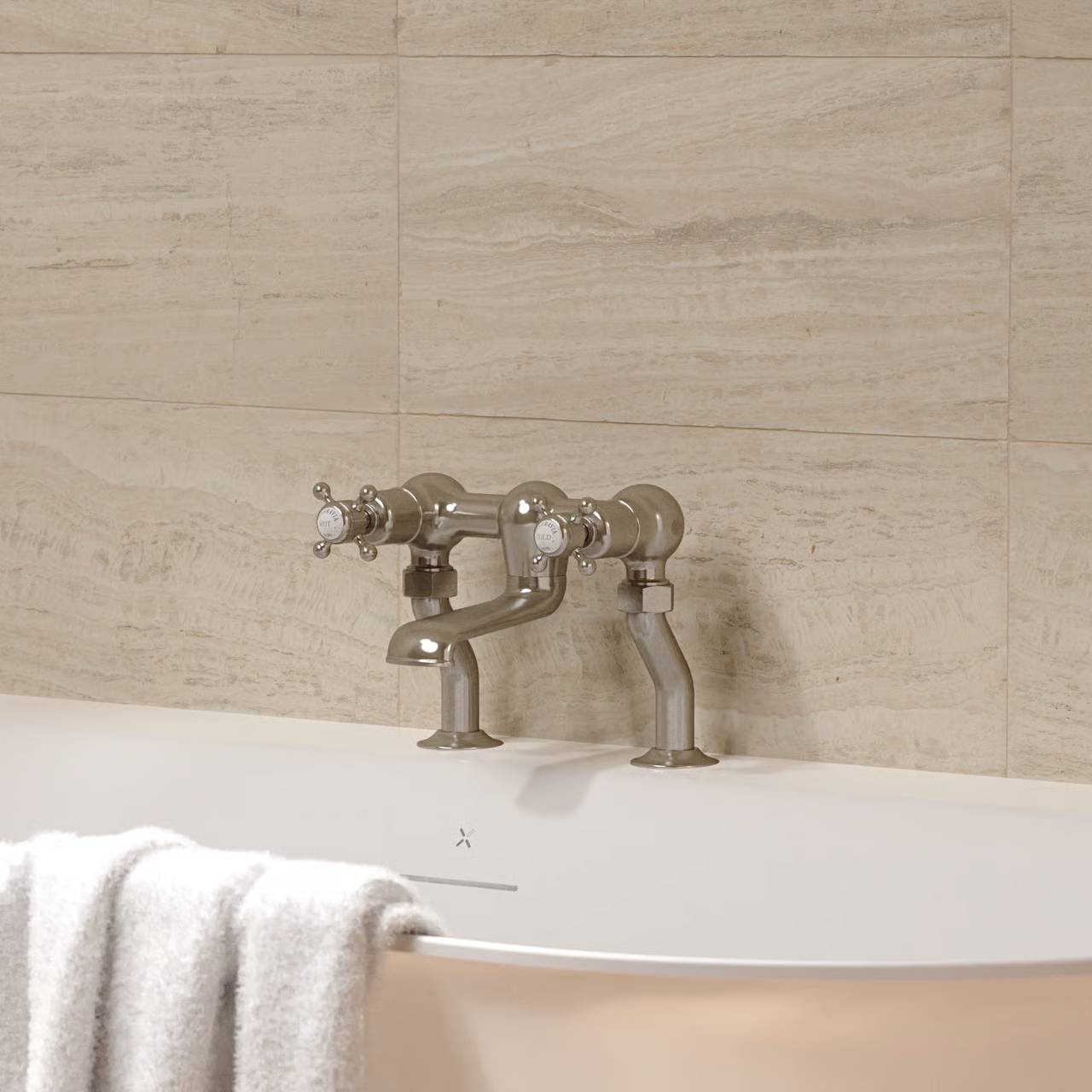

This classic configuration offers both visual harmony and ease of use, staying true to traditional tap design. Deck-mounted for a refined look, this Belgravia bath tap is ideal for pairing with back-to-wall, single-ended or double-ended baths. The Belgravia bath tap is available in three beautiful timeless finishes that can be found across the entire Belgravia collection.
PRIMARY MATERIAL
Brass
PRODUCTION
Made in United Kingdom
