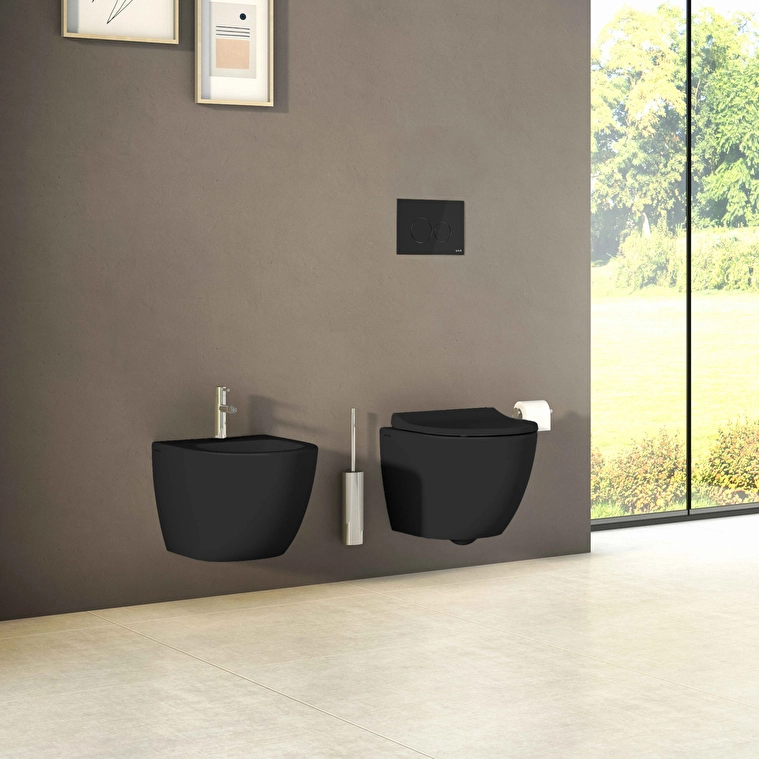

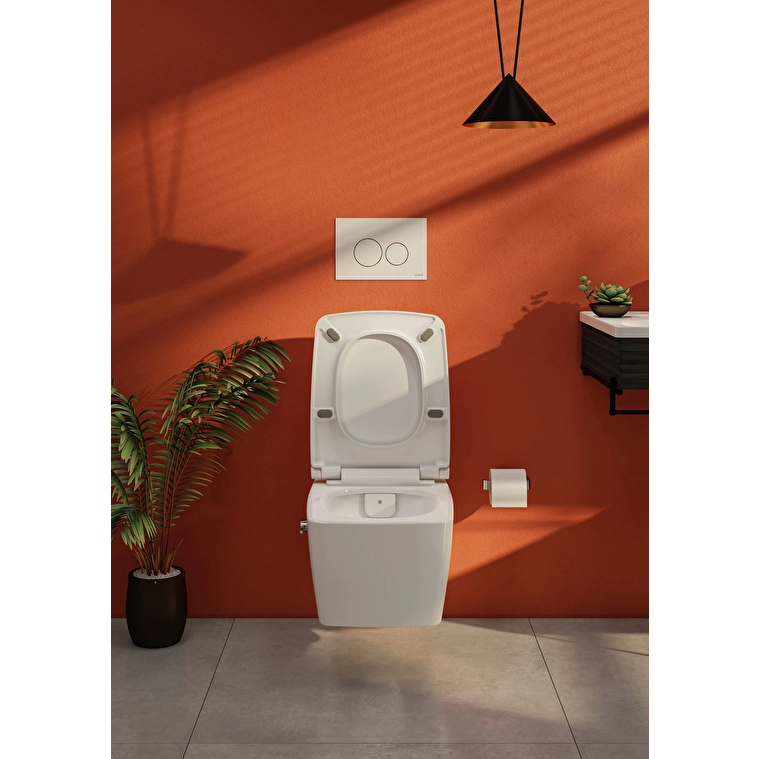

Vitra Origin Flush Plate
ORIGIN FLUSH PLATE
ORIGIN FLUSH PLATE
Designed by VitrA Design Team
INFORMATION
BRAND
Vitra
PRODUCT TYPE
Flush Plate
PRODUCT CODE

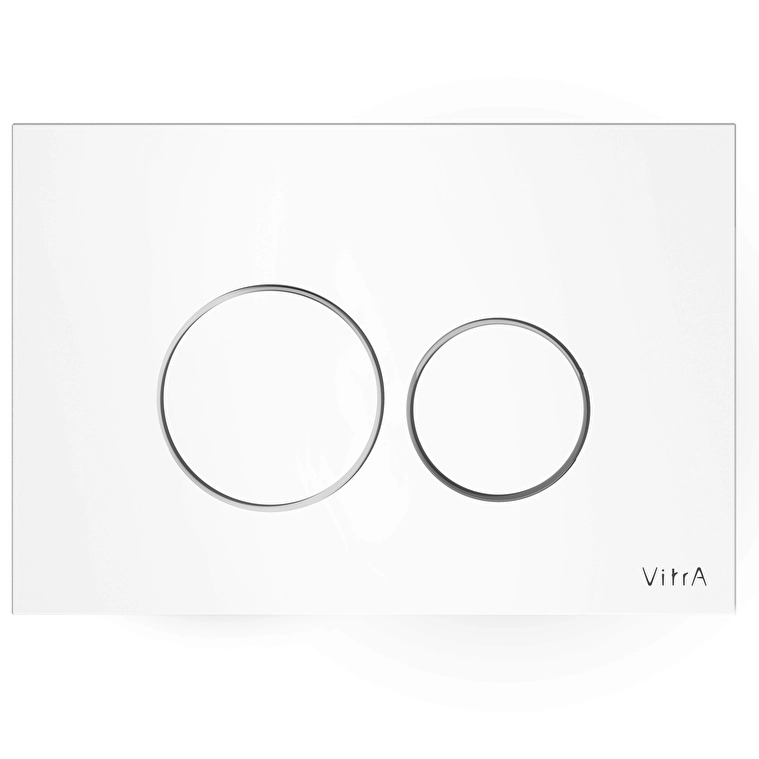

- White : 7401600

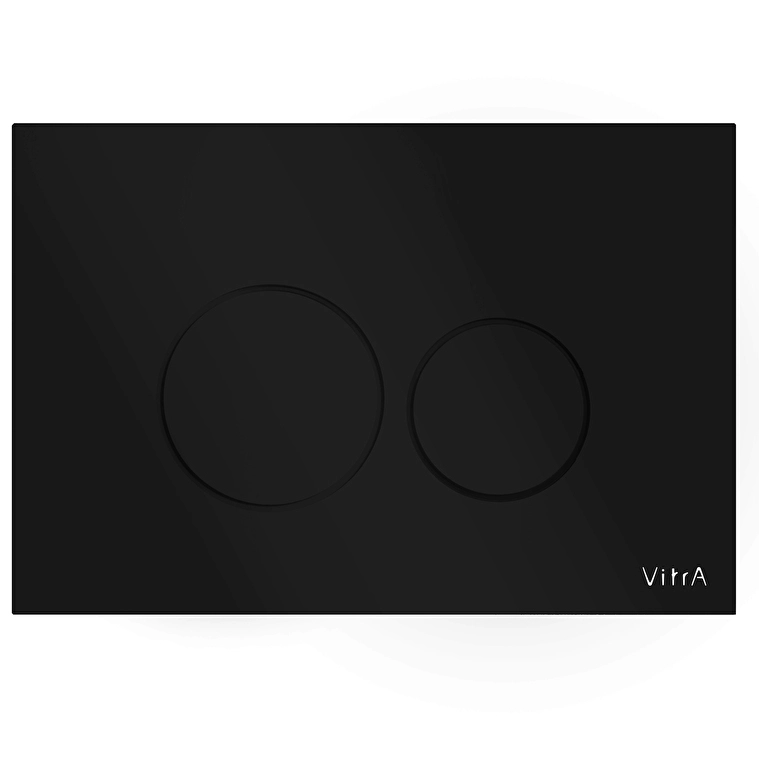

- Black : 7401601

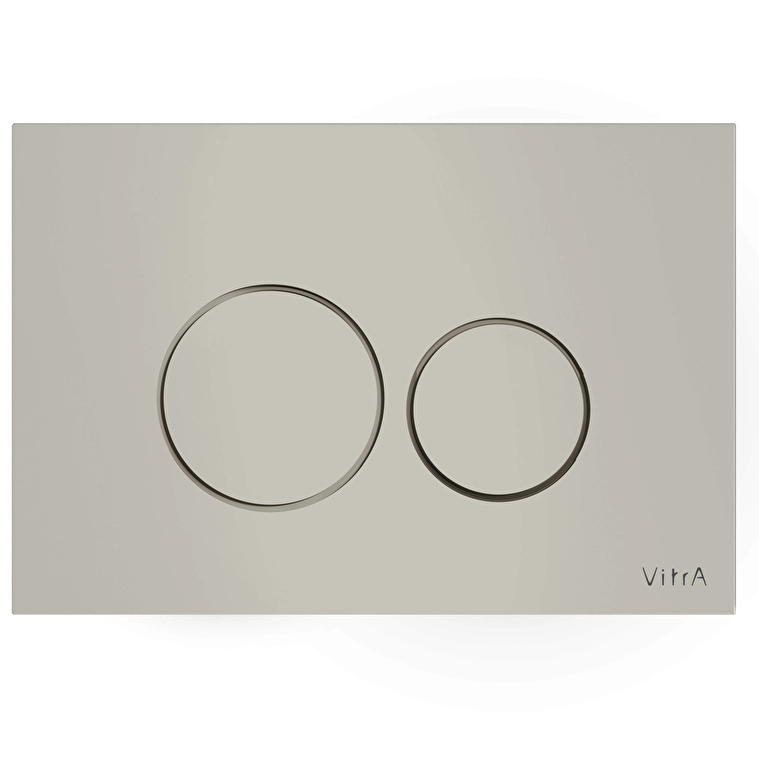

- Beige : 7401602
FLUSH VOLUME
- A : Pre-flush - 3 It. (Factory setting: deactivated)
- B : Main flush - (Factory setting; 3-6 It.; Active)
COLLECTION
Origin
PRODUCTION
Made in UK
PANEL
- PVD lining and High Corrosion Resistance (on some models)
- Mechanic and Pneumatic Control Mechanism (depending on the model)
USE
Bathroom
ENVIRONMENT
Indoor

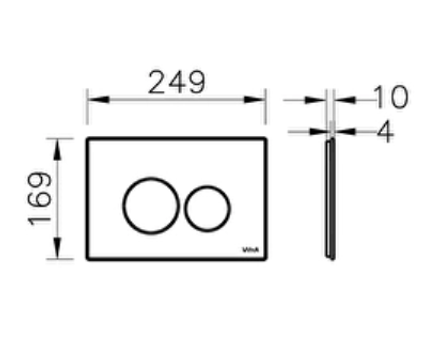

PRODUCT DIMENSIONS
- Height : 169 cm
- Width : 249 cm
- Depth : 10 cm
FLUSH
- Manuel Flush : (Factory setting; 6 It.; Active)
- Automatic Flush : 72 Hours (Factory setting: deactivated)
- Intermediate Flush : Every 60 min. (max. 3X) (Factory setting: deactivated)
AWARDS
Good Design
APPLICATION TYPE
Pre-Wall
DETAIL
Reception range according to Kodak Gray Card, Grey Side, 8x10", landscape (factory settings) – 72 cm
POWER CONSUMPTION
4 VA
SUPPLY VOLTAGE
Transformer 230 V AC/12 V AC
RESERVOIR
- A Discharge Flow of 2.2±0.2 It/sec.
- Overflow Pipe and Discharge System
- Operating water pressure range 0.5-10 bars
- Compatibility with different types of Control Panels.
- Reduced (2.5 and 3 It) and Full Wash (4 and 6 It) features (depending on the model) • Automatic Filling Mechanism
FRONT MATERIAL
Glass
BODY MATERIAL
Plastic
COLORS
