MEZZANINE STAIRS
MEZZANINE STAIRS
Modular Stairs, Ramps, and Canopies
Prefabricated Aluminum Mezzanine Stairs (OSHA & IBC-Compliant)
With a durable, long lifecycle, our prefabricated aluminum mezzanine stairs will not rust, warp, or rot.
The modular OSHA & IBC-compliant design allows for numerous configurations and can reach any height that you need. Our professional installation crew can install your mezzanine stairs quickly.
FEATURES
EASY INSTALLATION
Our mezzanine stairs are modular and bolt together seamlessly.
CODE COMPLIANT
Our mezzanine stairs comply with IBC and OSHA regulations and can meet local building codes.
RECONFIGURABLE
Because the system is modular, ramps, stairs and railings can be reused or reconfigured as your needs change.
MODULAR DESIGN
Modular mezzanine stairs, platform landings, legs, and handrails bolt together without any on-site welding.
CUSTOM LAYOUTS
Our team of engineers will design a mezzanine stair configuration layout just for you. Professional engineer stamps are available.
LEVELING LEGS
Platform legs have 8” of adjustability for uneven ground or ongoing adjustments.
100% ALUMINUM – LONG LASTING
The entire line of APEX products will never rust, warp, or rot. Components are low maintenance and will last much longer than wood or steel.
SLIP-RESISTANT DECKING
APEX stairs come standard with an aggressive, heavy-duty 3” channel grip strut grating that provides maximum, multi-directional slip resistance. Other decking options are also available.
HPD/LEED/ESG
Because our products are modular, repurposable, and contain 32.5% to 75% recycled content, including 50% to 65% pre-consumer and up to 20% post-consumer recycled scrap, they can help contribute to several LEED v4.1 credits and other green building rating systems.
INFORMATION
MATERIAL
Mill finish aluminum extrusions and sheet
BRAND
Upside Innovations
PRODUCT TYPE
Stair
TREAD DEPTH
12″ (11″ + 1″ nosing)
HANDRAIL
36″ high
DURABLE, LONG LIFECYCLE
100% industrial-grade aluminum that won’t rust, warp, or rot.
OSHA & IBC-COMPLIANT
Designed to your needs. Complies with OSHA, IBC, and local building codes.
WE INSTALL
Our professional installation crew will ensure that your project goes smoothly.
GUARDRAIL (STEPS > 30″)
36″ high
GUARDRAIL (STEPS ≤ 30″)
36″ high
WIDTH (STEPS > 30″)
40″ between the handrails, 48″ out-to-out
WIDTH (STEPS ≤ 30″)
40″ between the handrails, 48″ out-to-out
DETAIL
As the manufacturer, we can design mezzanine stairs to your specifications… however unique. Since units are prefabricated and bolt together, there is no need for custom fabrication, welding, and time-consuming engineering. Our mezzanine stairs save you precious time and money.
BALUSTERS
Less than 4″ apart (when required)
POWDER COATING (OPTIONAL)
Ask a solutions advisor for available color options
WEIGHT CAPACITY
100 lbs/sqft live load, 300 lbs point load over a sqft area

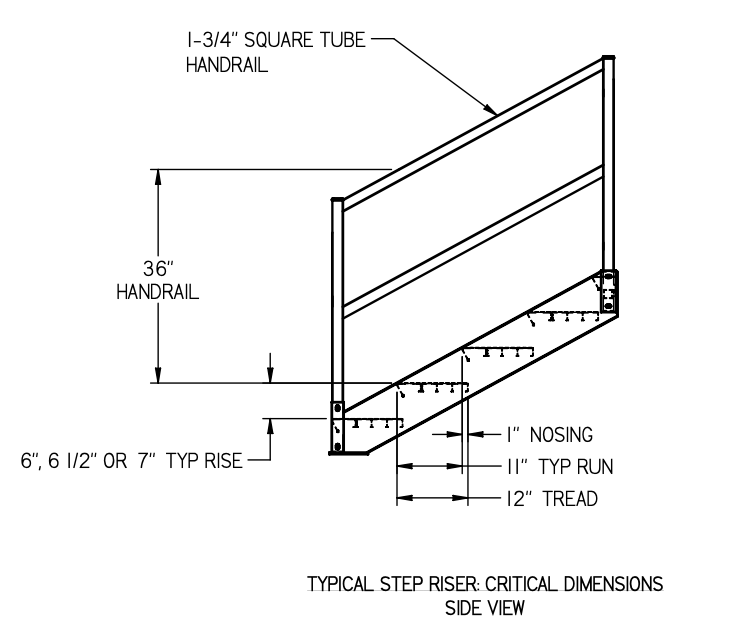

EXTRUDED TREAD DECKING
- Step risers are open between treads.
- All step nosings have a uniform radius of 1⁄4” and an underside angle of 60 degrees from the horizontal.
- All step treads are designed to have a uniform depth of 12” with a 1” nosing for an effective run of 11” minimum per step, INCLUDING THE TOP STEP ONTO THE PLATFORM / LANDING.
GRIP STRUT DECKING
- Step risers are open between treads.
- All step treads are designed to have a uniform depth of 9-1⁄2” per step with a typical rise of 7″, 7 1/2″, 8″.
PLATFORM SIZES
- 48″ x 48″
- 48″ x 64″
- 64″ x 64″ (other sizes available)
DIMENSION
Height : We use 6″, 6.5″, or 7″ rises between the treads to reach any height
REACH ANY HEIGHT
Our team can design modular stairs to reach any height that you need.
FAST INSTALLATION
Prefabricated and bolts together on-site with no welding required.
COLLECTION
Mezzanine
INFINITE CONFIGURATIONS
Our modular design and experienced engineers can configure solutions for the most difficult projects.
DECKING OPTIONS
