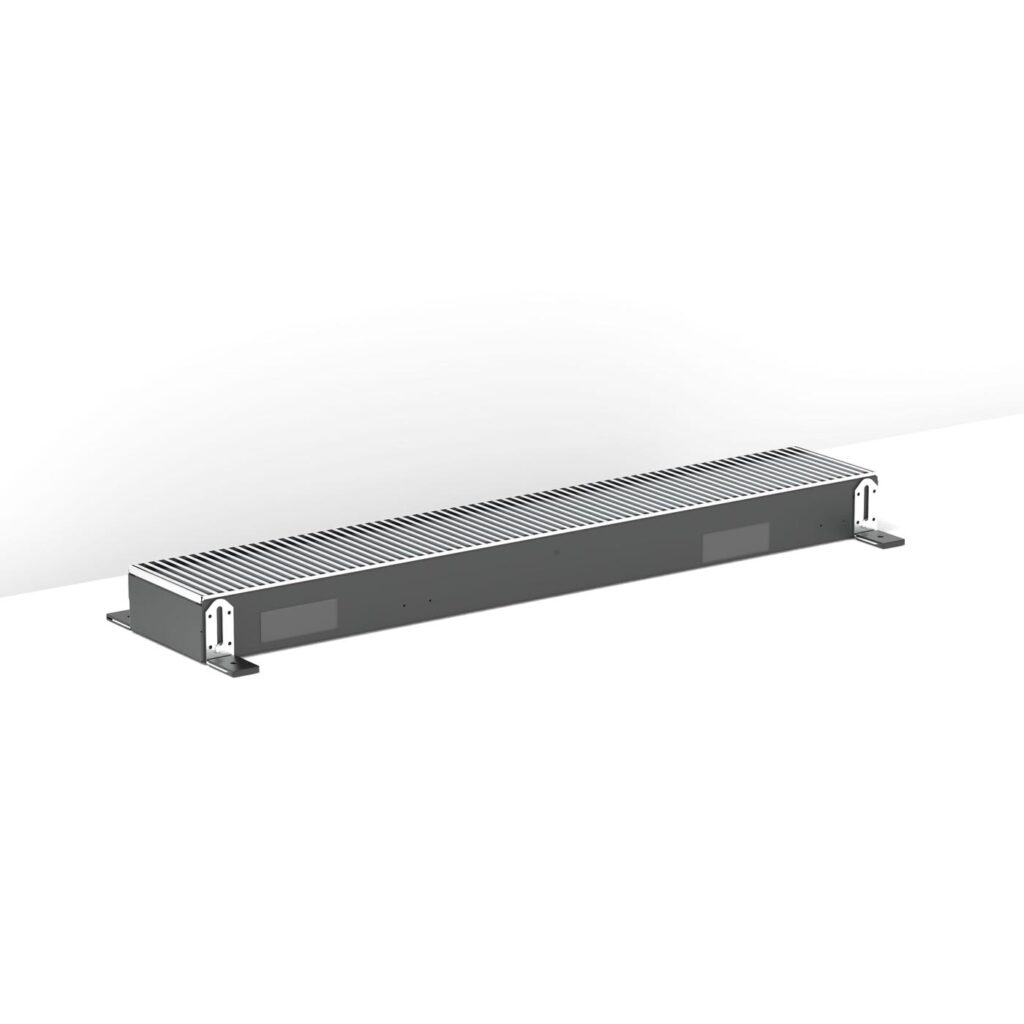

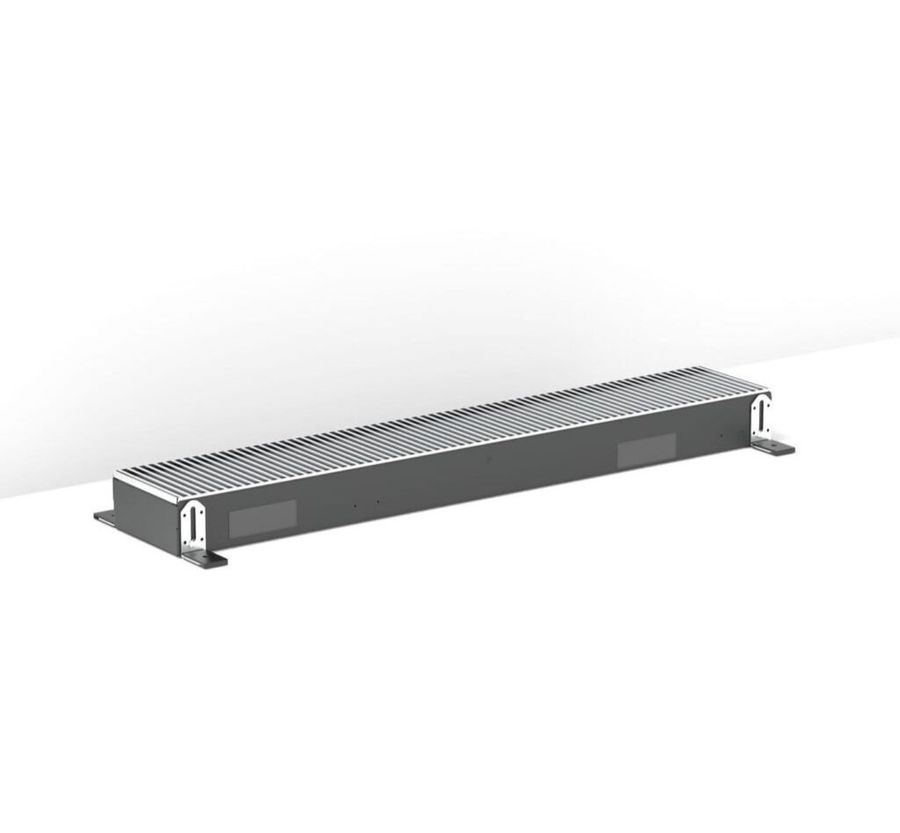

Jaga Clima Canal 08 2-pipe Radiator
CLIMA CANAL 08 2-PIPE RADIATOR
CLIMA CANAL 08 2-PIPE RADIATOR
Extremely compact and silent
INFORMATION
BRAND
Jaga
PRODUCT TYPE
Radiator
FEATURES
- Ventilate comfortably
- With energy-efficient EC-motors
- For low temperature heating and non-condensing cooling
QUALITY WITHOUT CONCESSIONS
The use of high-quality materials, such as copper and aluminium for the heat exchanger and electro-galvanised steel for the duct, provides a perfect rustproof end product, with all its components carefully coated with a UV-resistant polyester paint of the highest quality. The specially selected EC motor operates in a sealed dust-free environment with a balanced and vibration-free movement.
USE
Heating
COLLECTION
Clima Canal 08

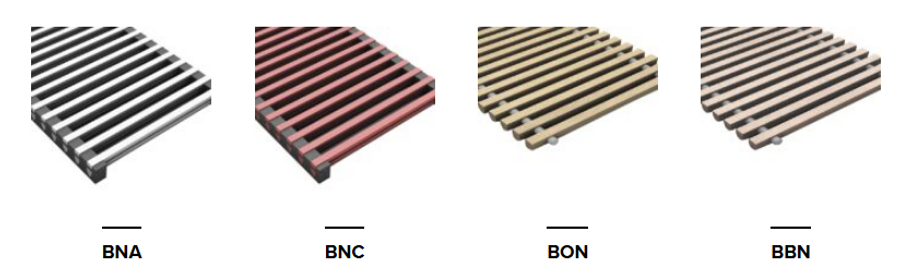

GRILLES
- BNA
- BNC
- BON
- BBN
STANDARD DELIVERY
- Cover plates
- Dynamic heat exchanger
- Height-adjustable base 0 < 4.5 cm
- Grille(s): anodised aluminium or wood
- Stainless steel flexible connections 1/2", 15 cm long
- Provided as standard to enable continuous installation
- Thermal activator(s), (tangential mini activator) 24 VDC
- Fine adjustment 0 > 0.8 cm (not included with Clima Canal 019)
DOWNLOADS
↓ Manual
↓ Brochure
↓ Selection Tool

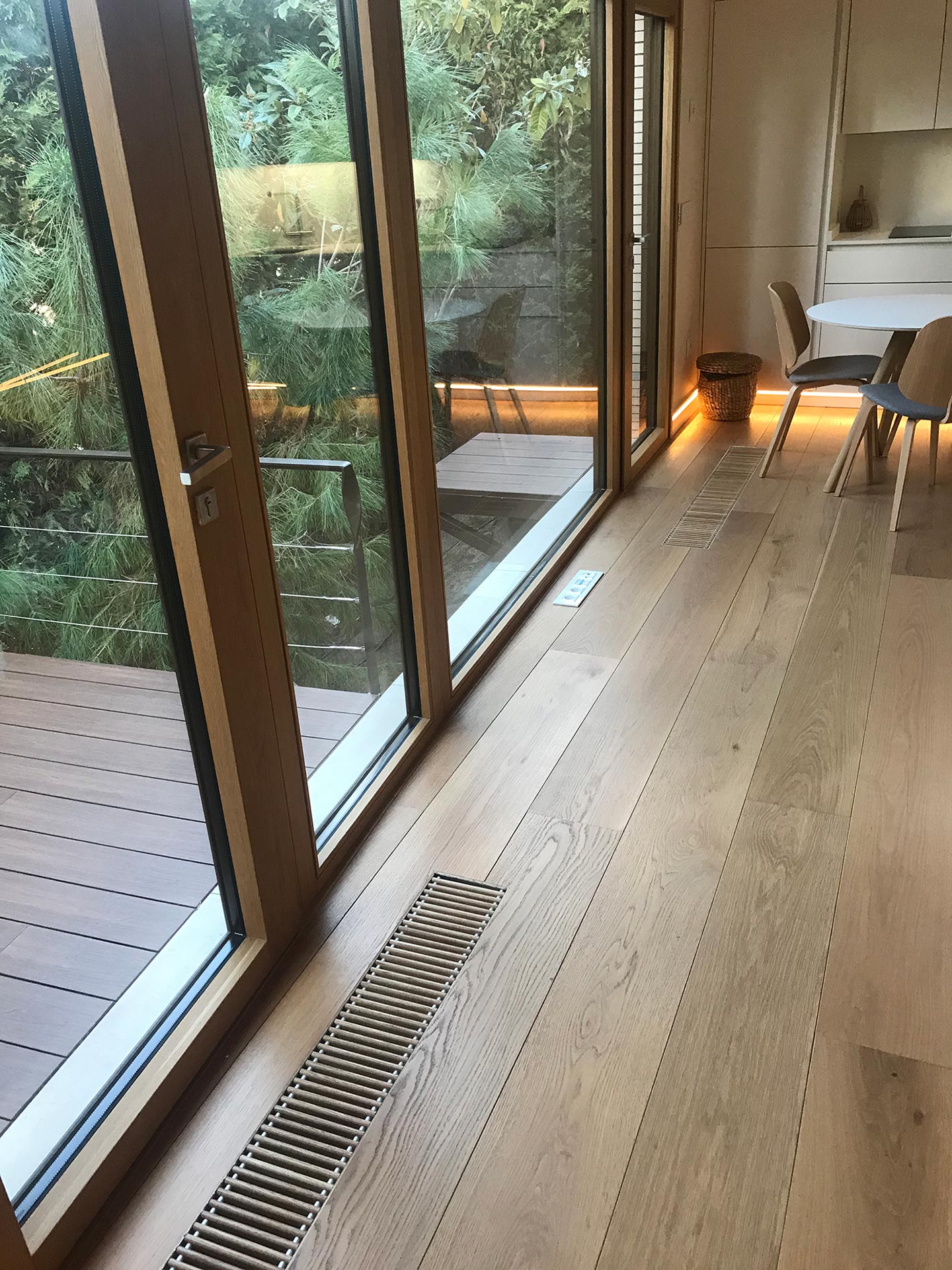

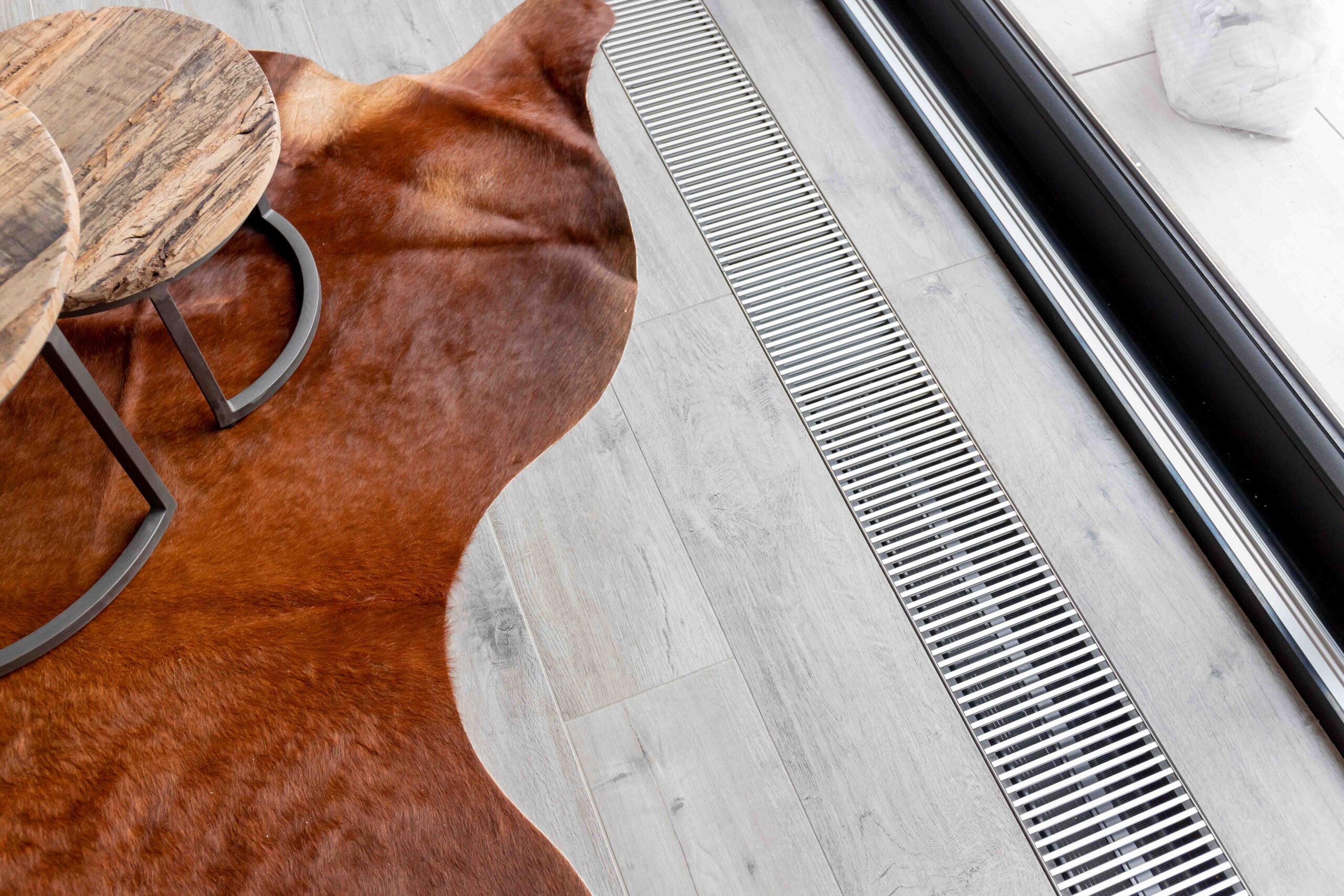

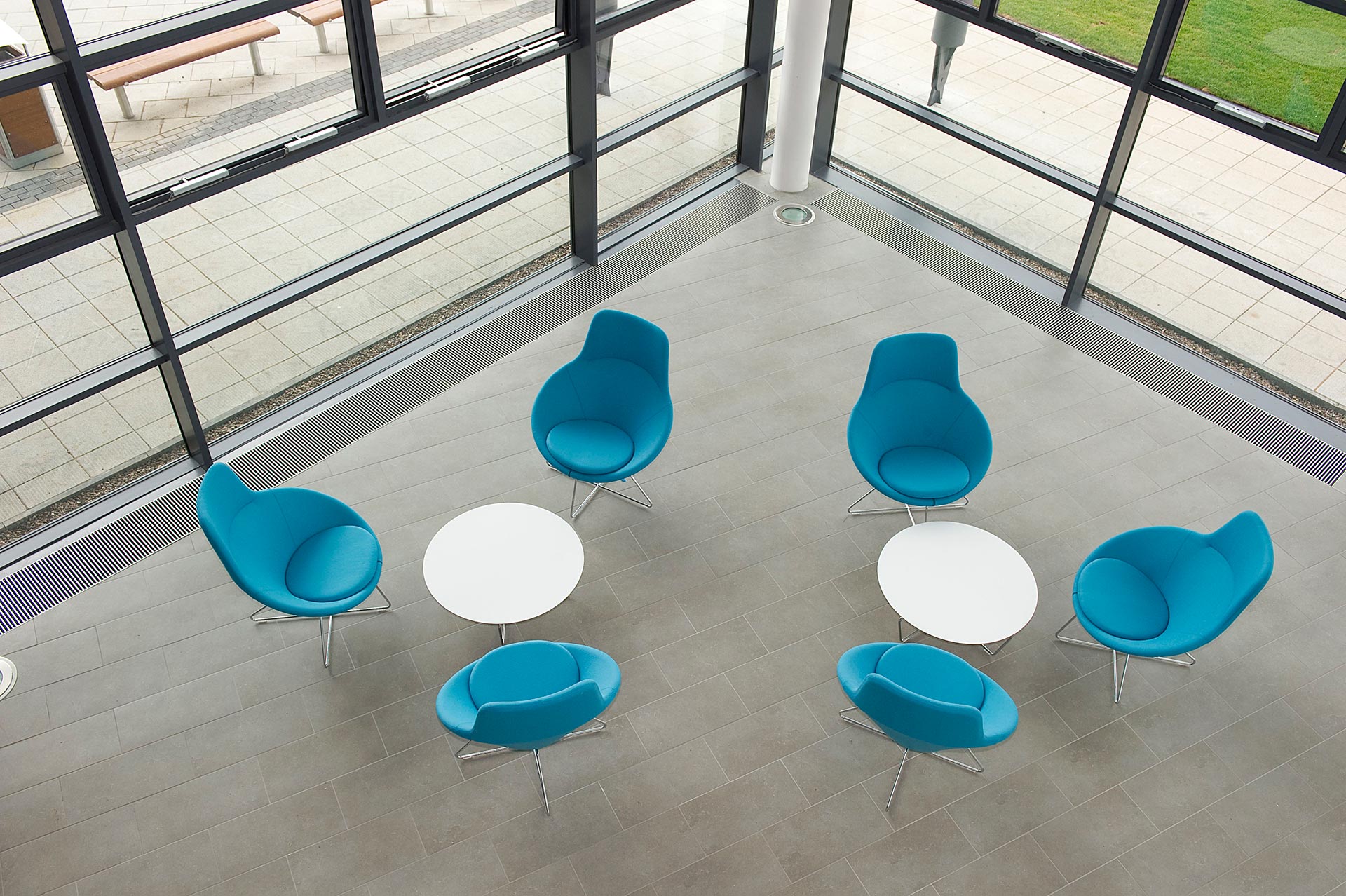

SOPHISTICATED DESIGN
Clima Canals off er powerful climate technology from minimal installation depths. After fi nishing, only the grille remains visible, which can be adapted to the interior fl awlessly thanks to the wide variety of colour options and materials available. With all the internal components coated dark grey, the entire interior is designed to be invisible.
For safety and performance purposes, fl oor convectors must not be covered by furniture or window coverings. Therefore, the space between the unit and the window should be considered when fi tting curtains and blinds to ensure they do not touch the unit. For optimal comfort, the fl oor duct is preferably the same length as the window.

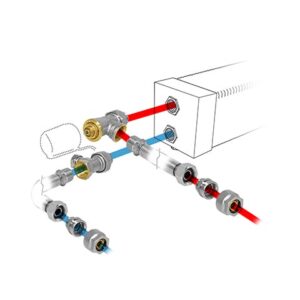

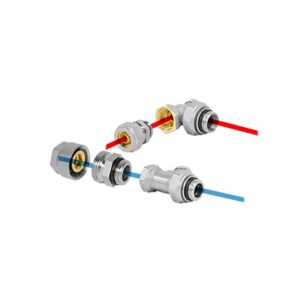

CONNECTION SET
- Set 299
- Set 298
- Set 297

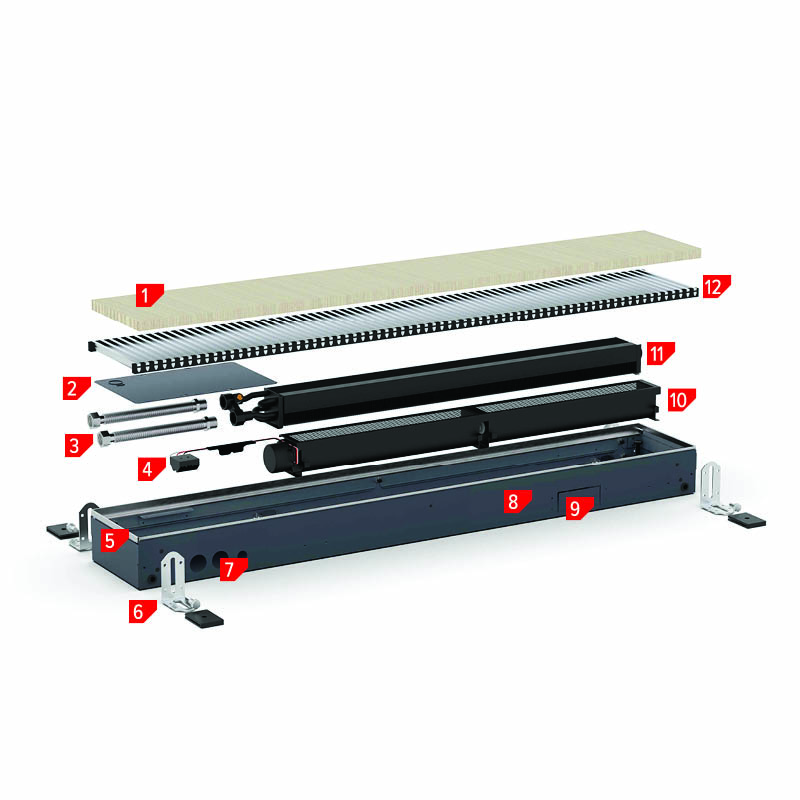

DETAIL
- 1. protection panel: panel for mounting and site protection
- 2. valves Cover plate
- 3. stainless steel flexible connections 1/2", 15 cm long: stainless steel flexible hoses allow the internal mechanism to be removed completely for easy cleaning
- 4. electrical connection on the inside
- 5. Fine adjustment to max. +0.8 cm, for a perfect alignment with the finished floor
- 6. height-adjustable base 0 > 4.5 cm: provided with acoustic decoupling
- 7. Hydronic & electrical connection always left-hand side
- 8. duct with stainless steel grille support: coated housing in sendzimir galvanised steel plate
- 9. optional nozzle(s) for ventilation duct
- 10. fans
- 11. dynamic heat exchanger
- 12. Grille: aluminium and wooden grilles in a variety of colours and materials
TECHNICAL DATA
TECHNICAL DATA
| HEIGHT | LENGTH | WIDTH | SPEED | HEATING 1 | HEATING 2 | HEATING 3 | HEATING 4 | LIGHT COOLING | SOUND PRESSURE | ELECTRIC POWER CONSUPTION | AIR FLOW | ORDERING CODE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 008 | 072 | 18 | 2 | 276 | 165 | 108 | 68 | 30 | 14 | 0.5 | 24 | CLCM 008 072 18 XXX |
| 008 | 072 | 18 | 4 | 496 | 296 | 195 | 123 | 66 | 15 | 0.8 | 37 | CLCM 008 072 18 XXX |
| 008 | 072 | 18 | 6 | 699 | 417 | 275 | 173 | 104 | 23 | 1.3 | 52 | CLCM 008 072 18 XXX |
| 008 | 072 | 18 | 8 | 891 | 531 | 350 | 220 | 144 | 28 | 2.1 | 68 | CLCM 008 072 18 XXX |
| 008 | 072 | 18 | 10 | 1075 | 641 | 422 | 266 | 185 | 34 | 3.0 | 79 | CLCM 008 072 18 XXX |
| 008 | 108 | 18 | 2 | 569 | 339 | 224 | 141 | 62 | 15 | 0.6 | 42 | CLCM 008 108 18 XXX |
| 008 | 108 | 18 | 4 | 1021 | 609 | 401 | 253 | 135 | 19 | 1.3 | 75 | CLCM 008 108 18 XXX |
| 008 | 108 | 18 | 6 | 1438 | 858 | 565 | 356 | 214 | 29 | 2.7 | 98 | CLCM 008 108 18 XXX |
| 008 | 108 | 18 | 8 | 1834 | 1094 | 720 | 454 | 296 | 32 | 4.6 | 125 | CLCM 008 108 18 XXX |
| 008 | 108 | 18 | 10 | 2214 | 1320 | 870 | 548 | 381 | 37 | 7.1 | 160 | CLCM 008 108 18 XXX |
| 008 | 144 | 18 | 2 | 894 | 533 | 351 | 221 | 97 | 16 | 1.1 | 66 | CLCM 008 144 18 XXX |
| 008 | 144 | 18 | 4 | 1605 | 957 | 631 | 397 | 212 | 20 | 2.1 | 112 | CLCM 008 144 18 XXX |
| 008 | 144 | 18 | 6 | 2260 | 1348 | 888 | 559 | 336 | 30 | 4.0 | 150 | CLCM 008 144 18 XXX |
| 008 | 144 | 18 | 8 | 2881 | 1718 | 1132 | 713 | 465 | 35 | 6.6 | 193 | CLCM 008 144 18 XXX |
| 008 | 144 | 18 | 10 | 3479 | 2075 | 136 | 861 | 598 | 39 | 10.1 | 239 | CLCM 008 144 18 XXX |
| 008 | 180 | 18 | 2 | 1219 | 727 | 479 | 302 | 132 | 18 | 1.2 | 84 | CLCM 008 180 18 XXX |
| 008 | 180 | 18 | 4 | 2188 | 1305 | 860 | 541 | 290 | 22 | 2.5 | 150 | CLCM 008 180 18 XXX |
| 008 | 180 | 18 | 6 | 3082 | 1838 | 1211 | 763 | 458 | 32 | 5.4 | 196 | CLCM 008 180 18 XXX |
| 008 | 180 | 18 | 8 | 3929 | 2343 | 1543 | 972 | 634 | 37 | 9.1 | 250 | CLCM 008 180 18 XXX |
| 008 | 180 | 18 | 10 | 4744 | 2829 | 1864 | 1174 | 816 | 41 | 14.1 | 320 | CLCM 008 180 18 XXX |

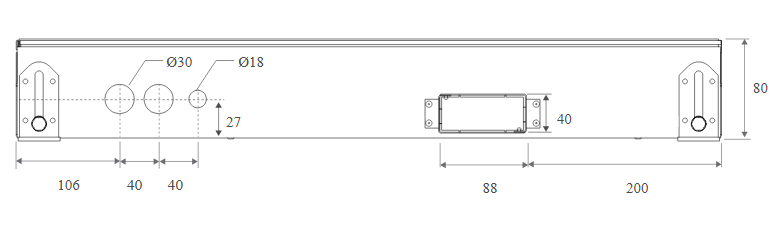

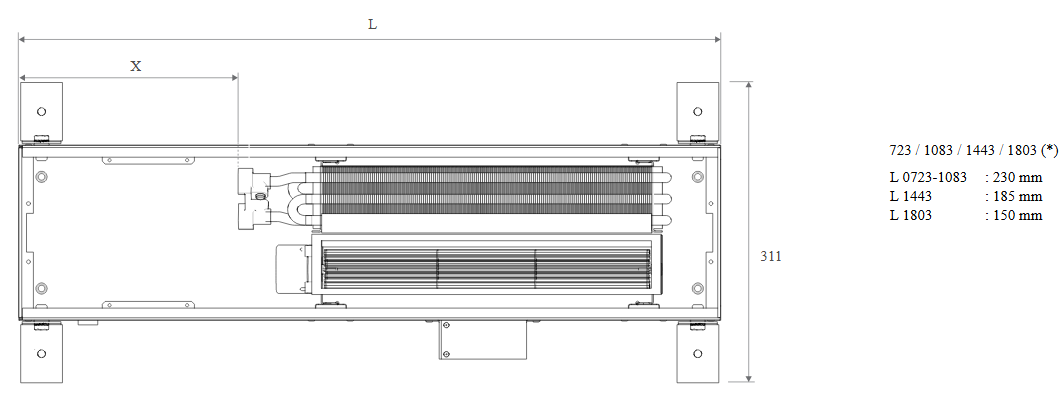

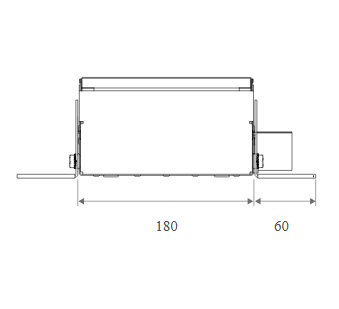

TECHNICAL DRAWINGS
TECHNICAL DRAWING
