EFFISUS STOPPER
EFFISUS STOPPER
The Versatile Penetration Sealing Solution for Flat Roofs and Façades
Cases of multiple and/or irregular pipes/ducts/cables penetrating the building’s rooftops and façades breach watertightness and are especially difficult to solve.
INFORMATION
BRAND
Effisus
PRODUCT TYPE
Stopper
ENVIRONMENT
Indoor
USE
Construction
SEALING

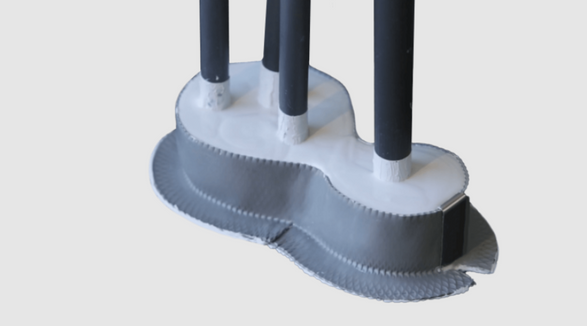

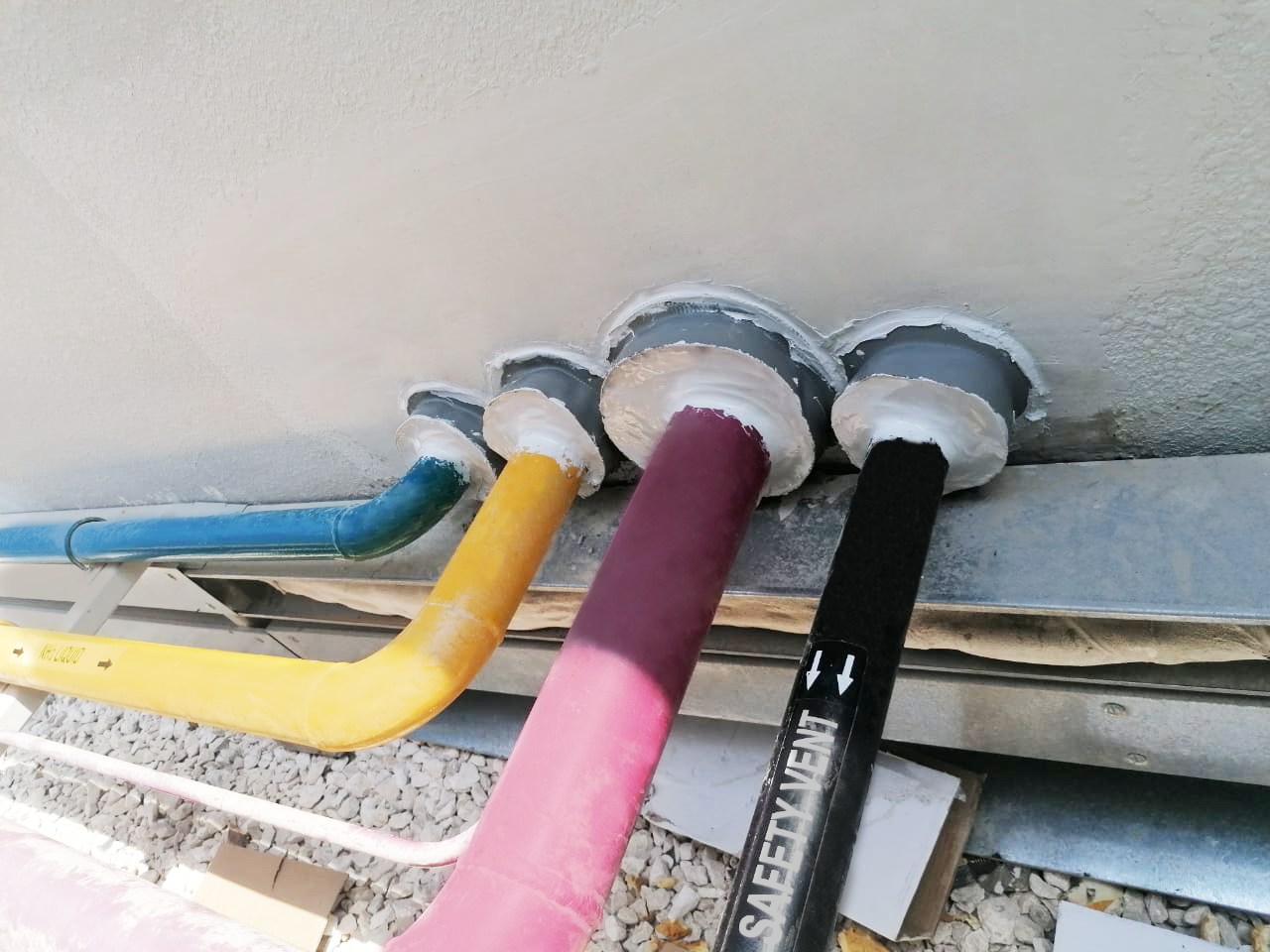

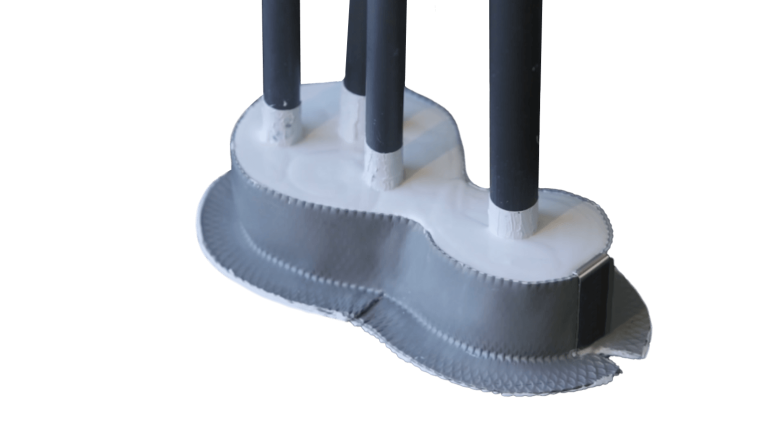

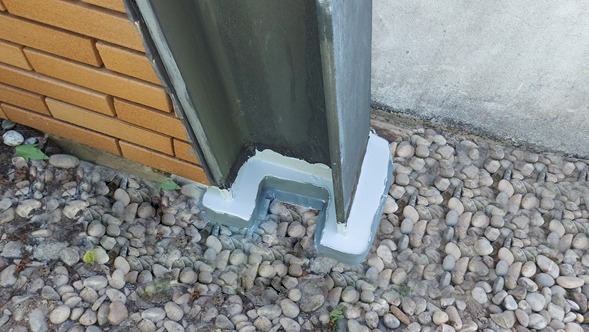

Effisus Stopper is an innovative and reliable system solution for sealing flat or sloped roof as well as façade penetrations of any size or configuration. Applicable to virtually all common substrates (asphaltic membranes, PVC, TPO, EPDM or metal) it offers complete versatility and will remain functional under sub-zero or high temperatures, direct UV exposure and will accommodate large/repetitive movements.
DOWNLOADS
↓ Technical Data Sheet 1-P
↓ Technical Data Sheet M-1
↓ Installation Manual Stopper 5cm
↓ Technical Data Sheet Multishapper
↓ Installation Manual Stopper 10cm
↓ Installation Manual Stopper 5cm Vertical Applications
ROOF
Metal
TEMPERATURE
High
EFFISUS MULTISHAPPER – FLEXIBLE PENETRATION SEALING SYSTEM

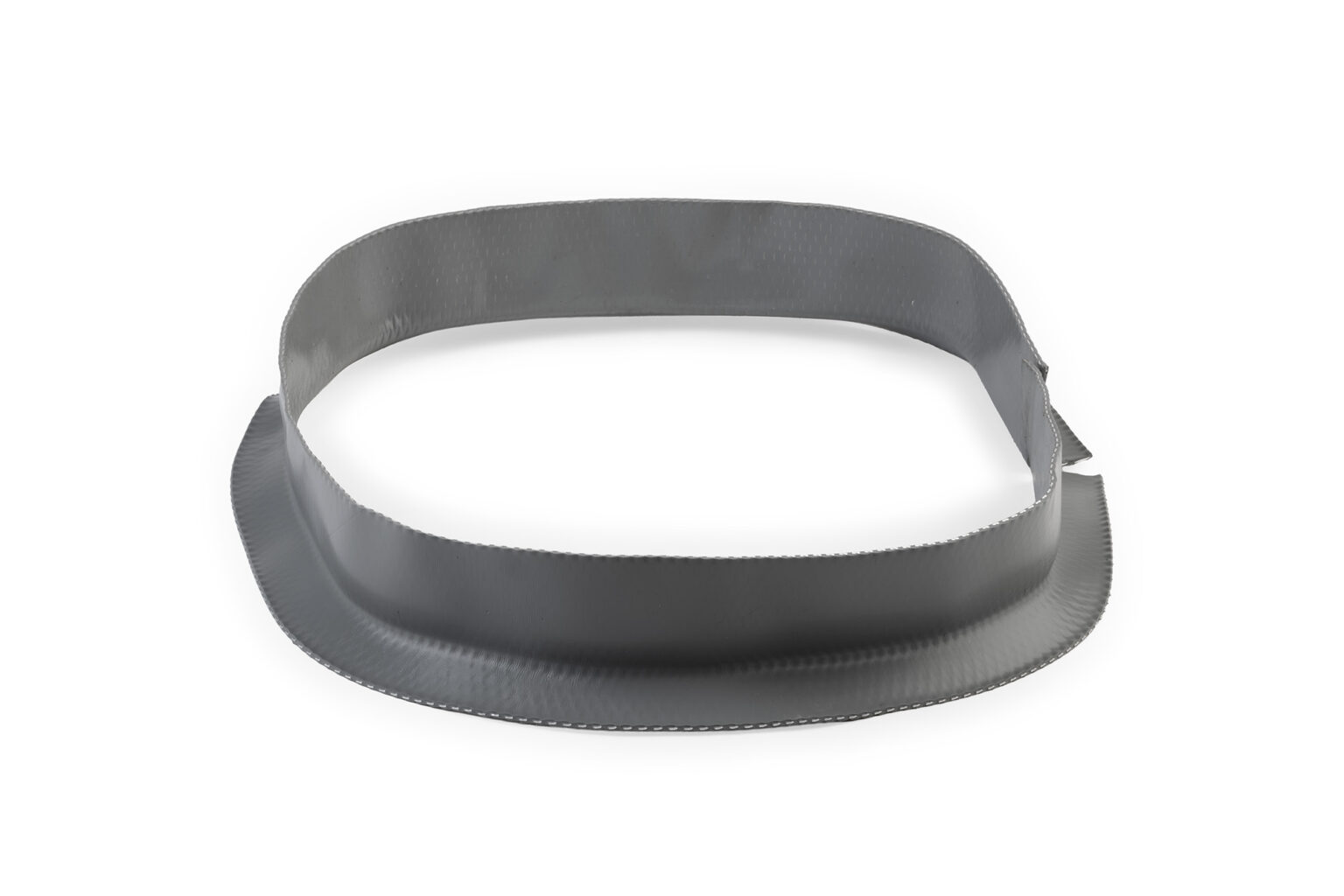

At the core of the system is effisus multishapper, a patented solution since 2021, engineered as a stretchable, flexible and conformable frame, adapting with precision to any penetration shape, thus significantly optimising sealant consumption.

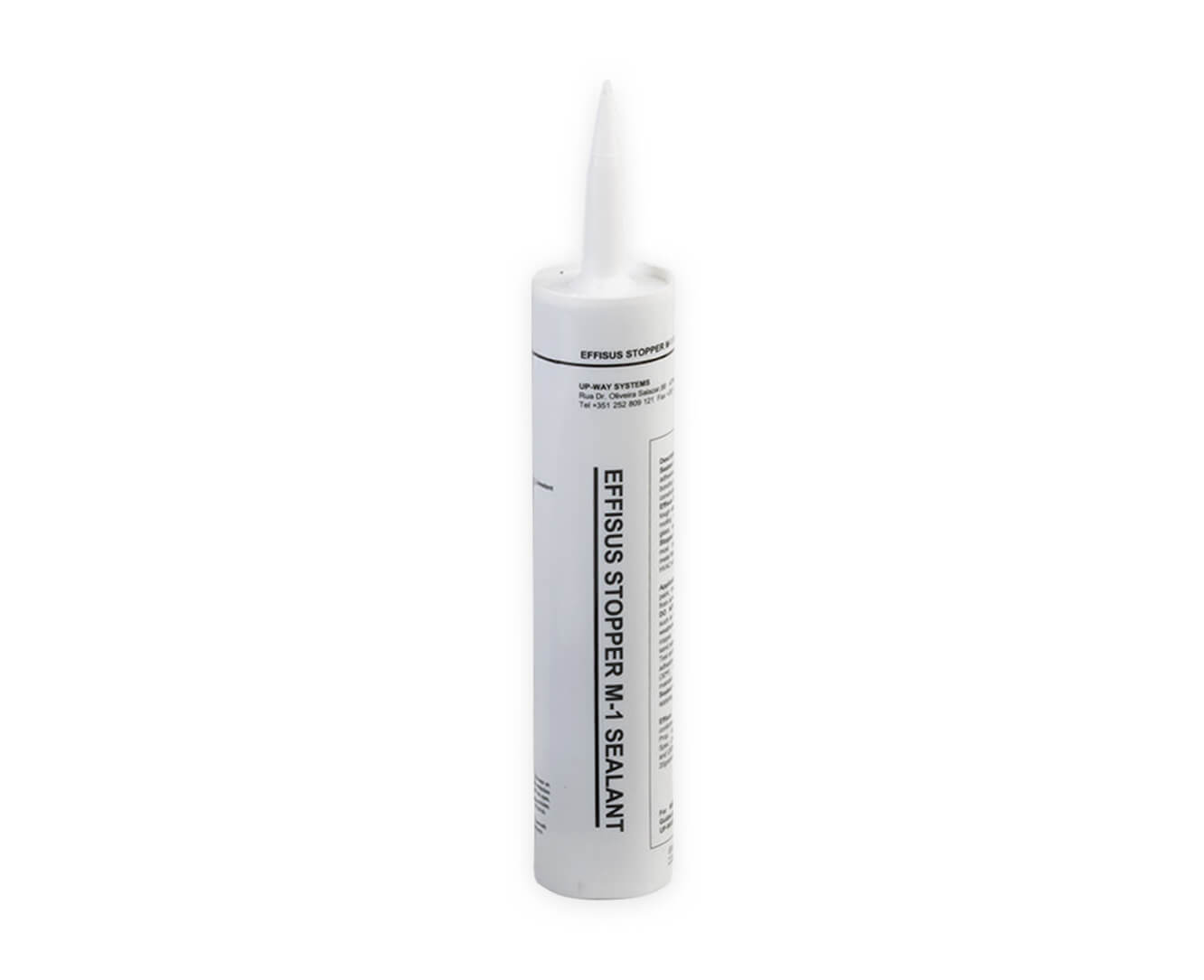

Combined with effisus stopper m-1 and effisus stopper 1-p fire-classified sealants, which remain highly flexible, the system provides a durable, maintenance-free solution designed for long-term performance. For single pipe/duct penetrations in metal roofs and façades the prefabricated effisus stopper MR is a perfect alternative solution.
ACCESSORIES
TECHNICAL DATA
TECHNICAL DATA
| PROPERTY | STANDARD | VALUE |
|---|---|---|
| UV exposure | - | 100% |
| Compatibility | - | Concrete, Cement, Metal, EPDM, TPO, PVC |
| Service temperature (standard grade) | - | -40°C to 93°C |
| Service temperature (high grade) | - | -62°C to 204°C |
| VOC content (tested at 115°C) | ASTM D2369 EPA Method 24EN 12311 | Less than 24 grams / liter |
| Sustainability | - | LEED 2.2, NAHB Model Green Home Buildings Guidelines |
| Life expectancy | - | 35 years |
