PALETO SHELTER
PALETO SHELTER
Designed by Velopa B.V.
The Paleto Shelter System is a fully modular, secure cycle and storage shelter that scales to fit your site, now and in the future.
Built around a hot-dip galvanised steel frame with a cladding in hardwood, softwood, duo wire steel, Paleto ranges from an open canopy to a fully enclosed, lockable cycle and storage shelter.
Standard roof made of trapezoidal metald deck, upgradable to a sedum roof. As options we can offer single and two-tier bike parking, e-bike charging points, integrated LED lighting.
One flexible platform for bicycles, e-bikes, scooters and motorcycles, designed, manufactured and installed by BSFG for schools, workplaces, transport hubs and public realm schemes UK-wide.
INFORMATION
BRAND
Bailey Streetscene
PRODUCT TYPE
Shelter
COLLECTION
Paleto
AREA OF APPLICATION
Outdoor
SKU CODE
107.1433.001.QF
ITEM NO.
107.1433
FINISHING / TREATMENT
- Galvanised
- Powder Coated
MATERIAL
- Steel
- Wood
DESIGNER
Velopa B.V.
3D MODEL AVAILABLE (STEP/IFC)
Yes
ROOF TYPE
Flat Roof
SHELTER TYPE
Bike Shelter
CLADDING MATERIAL
- Sapele
- Redwood

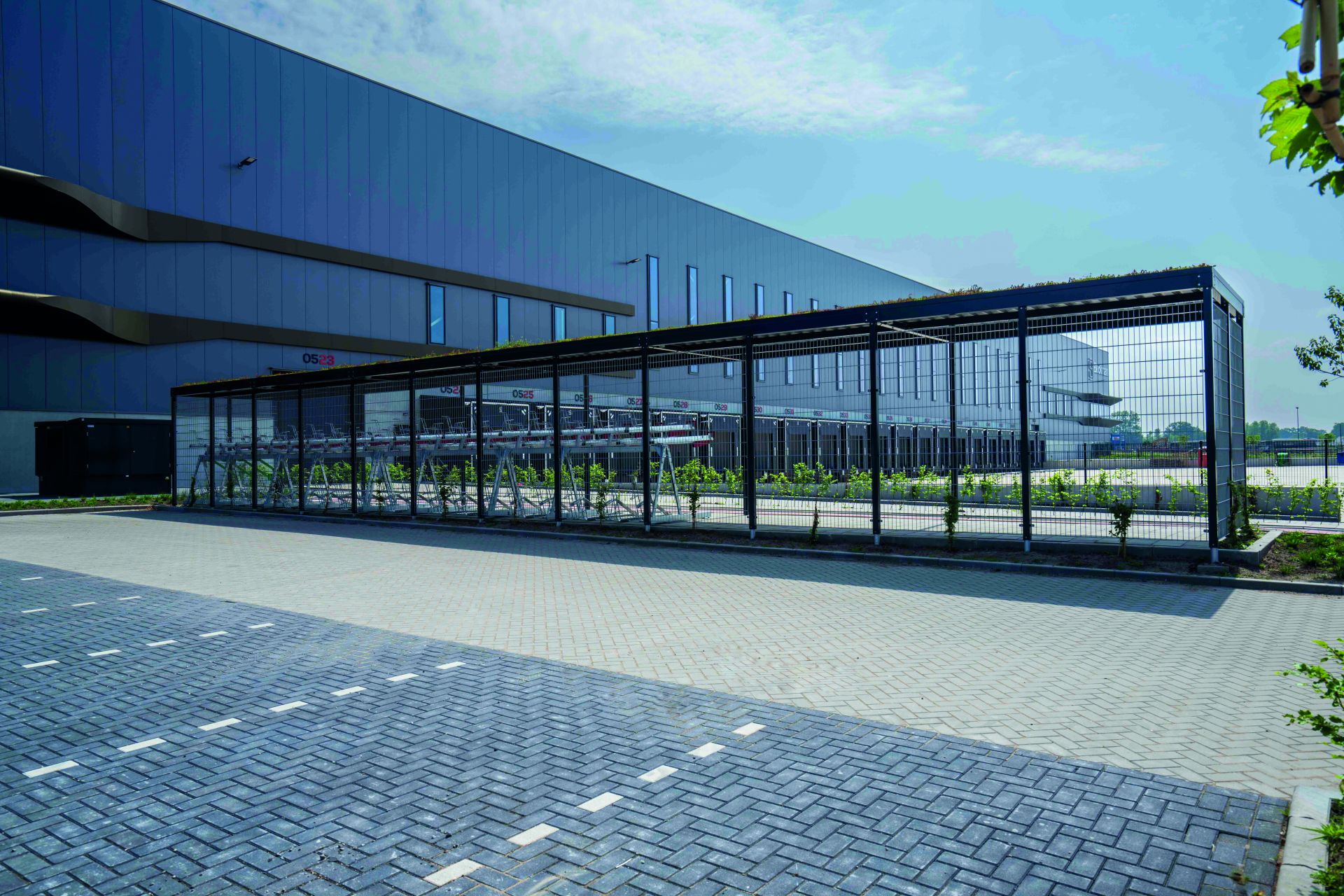

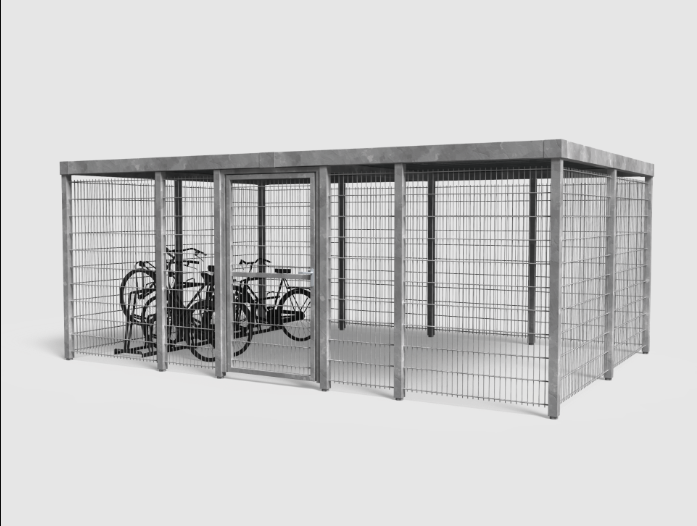

- Duo Wire Mesh
ROOF MATERIAL
- Sedum Roof
- Trapezoidal Metal Deck
BIM OBJECT AVAILABLE
Yes
RECYCLABLE
Yes
CONDITION UPON DELIVERY
Unassembled
TYPE OF LIGHTING
LED
MOUNTING OPTIONS
- Surface Mounted
- Sub Surface Fixed
LOCKABLE
Yes
NBS SOURCE LISTED
Yes
DIMENSIONS 1
- Depth : 1980 mm, 3980 mm
- Height : 2350 mm, 3000 mm
- Length : 3000 mm, 2350 mm
DIMENSIONS 2 (MODULES)
- Height : 2.35m or 3m
- Length : 2.5m or 3m (with 2.42m and 2.92m extension modules)
- Depth : 1.98m or 3.98m (with 1.9m and 3.9m extension modules)
2D DWG AVAILABLE
Yes
DOWNLOADS
↓ Data Sheet
DETAIL
ONE SHELTER, MULTIPLE USES

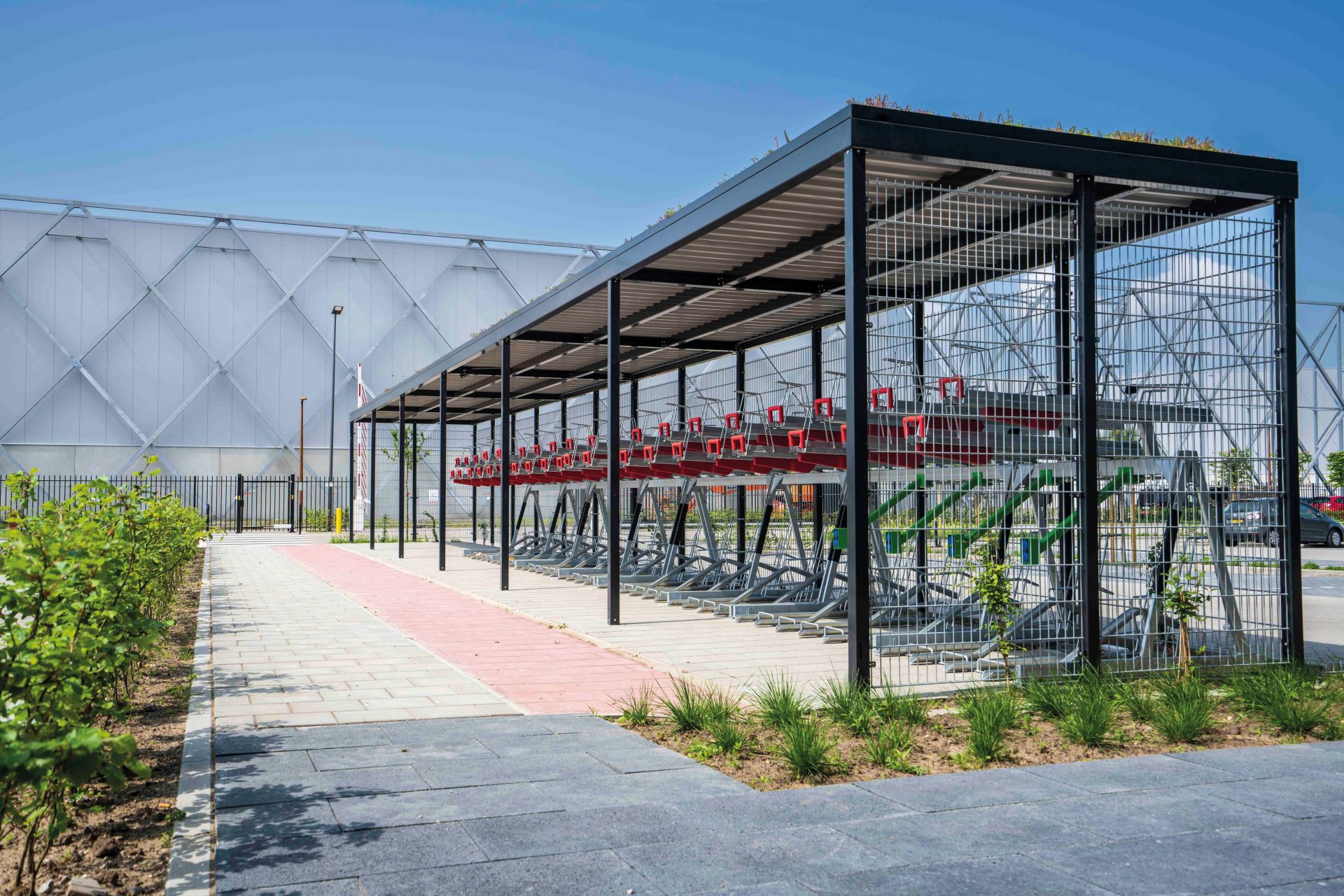

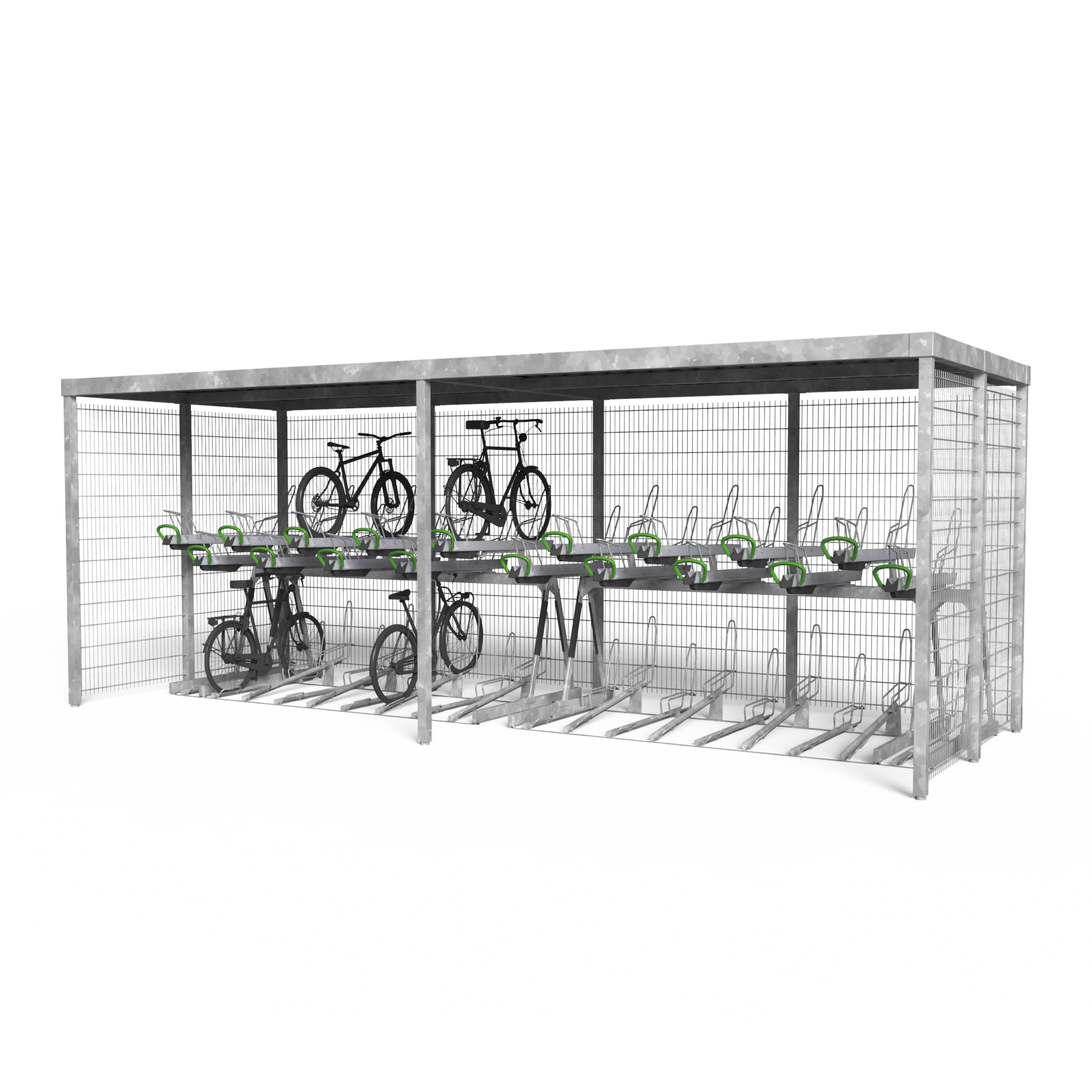

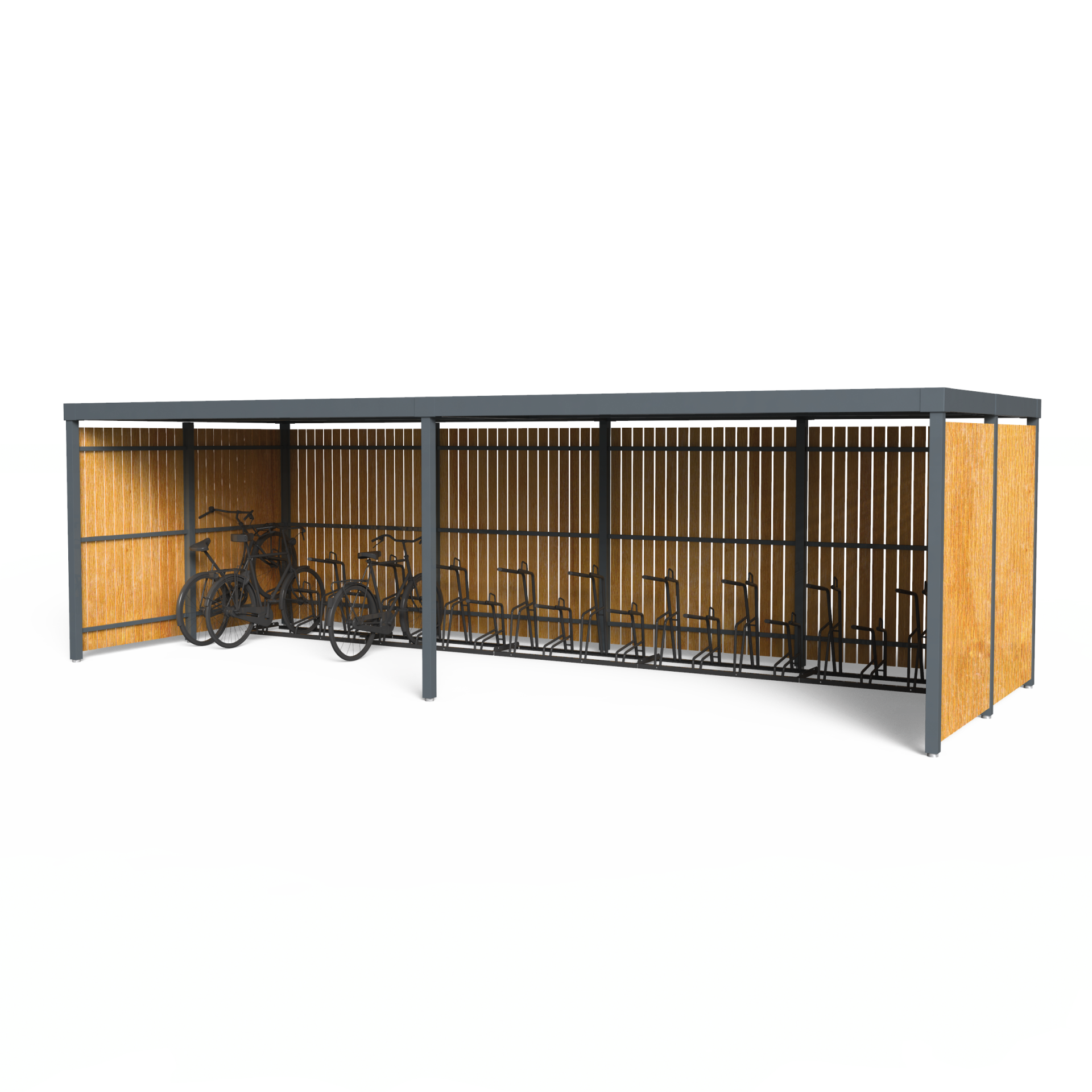

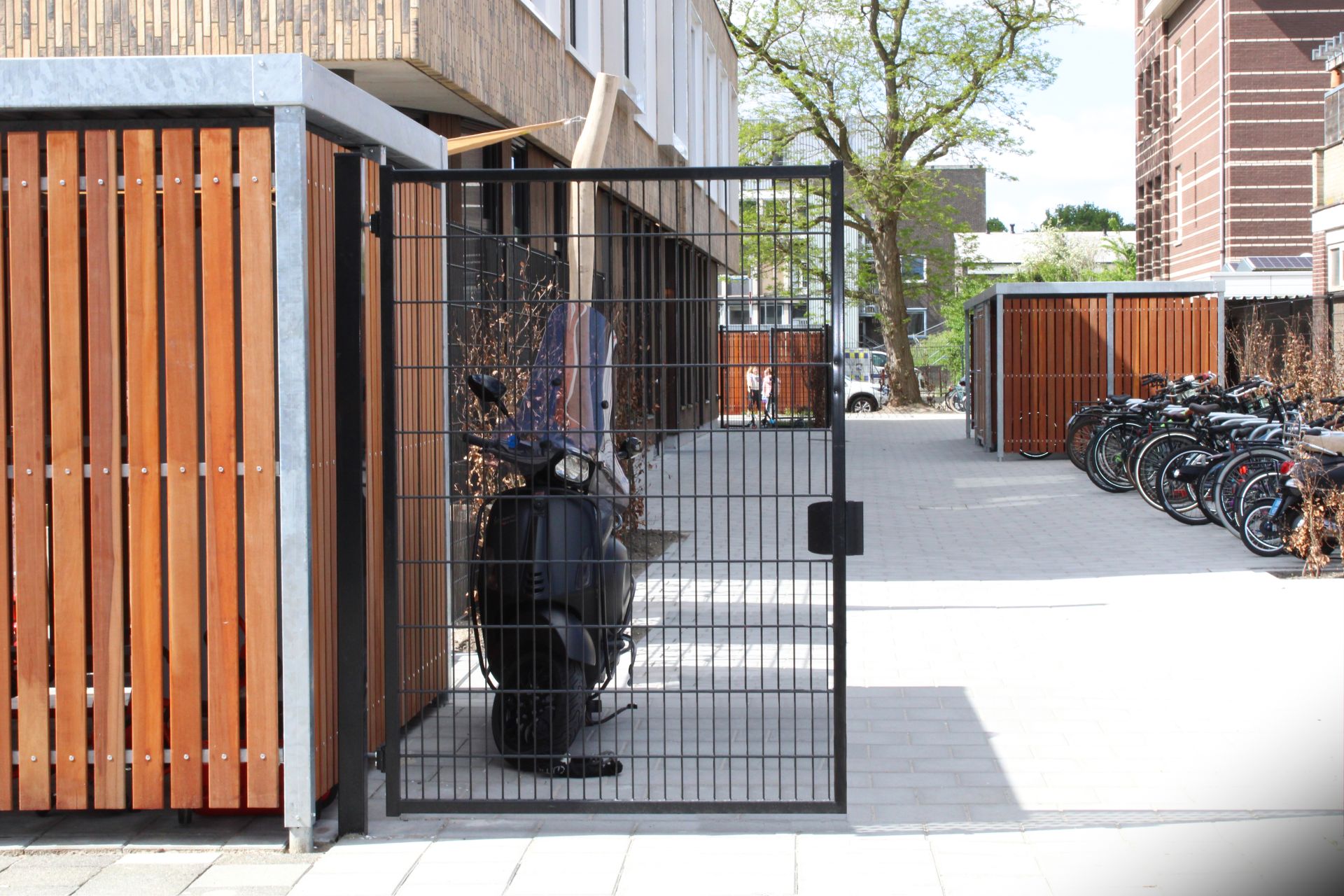

Because Paleto is a platform rather than a single fixed design, the same shelter family covers bicycle parking (single or two-tier, at up to 3 m height),with optional e-bike charging, scooter and motorcycle parking, secure cycle lockers, covered walkways, smoking shelters and general equipment storage — often within the same structure.That flexibility means one specification can serve several needs on a single site, and be adapted or extended in later phases as usage patterns change.
SPECIFIED FOR SUSTAINABILITY

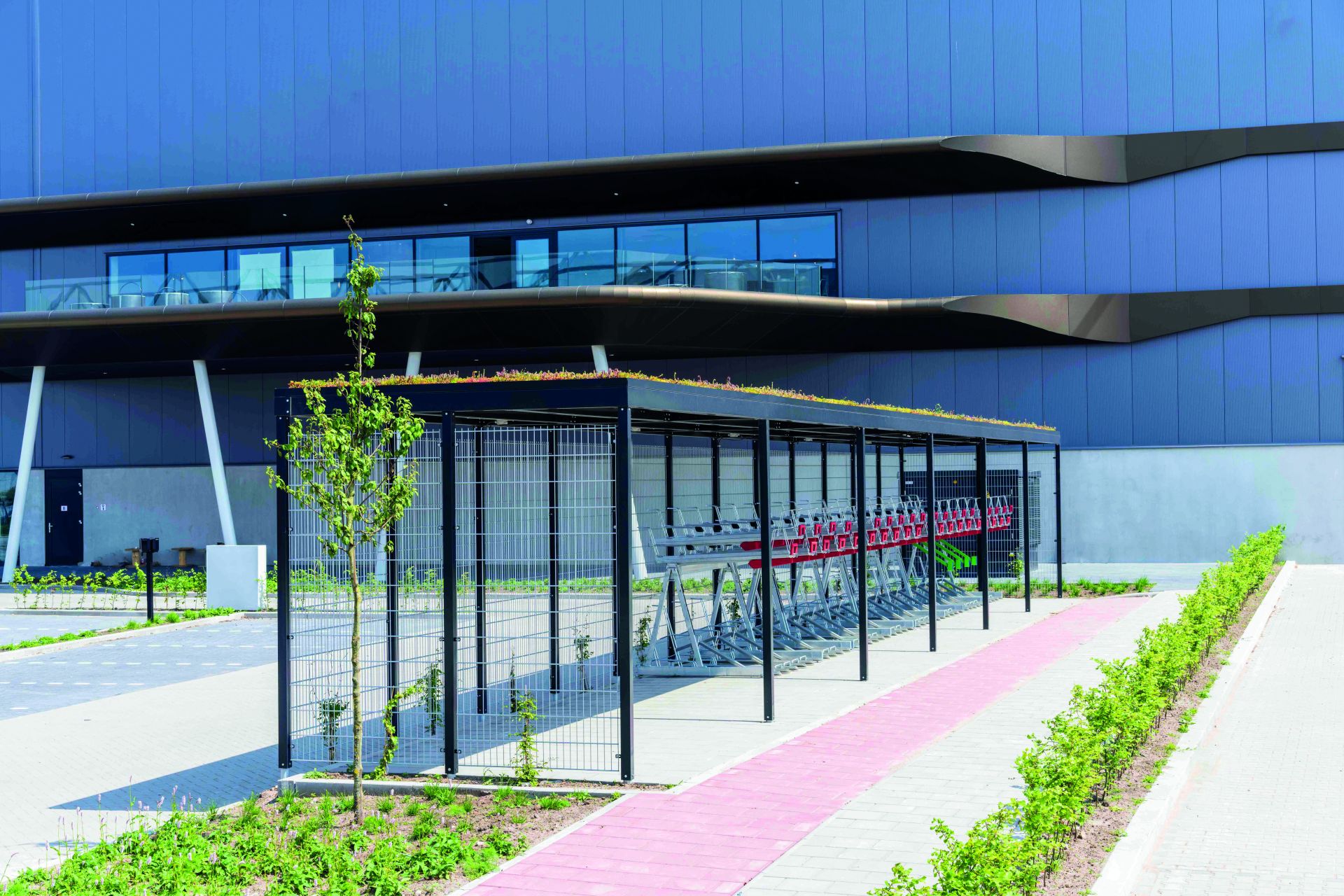

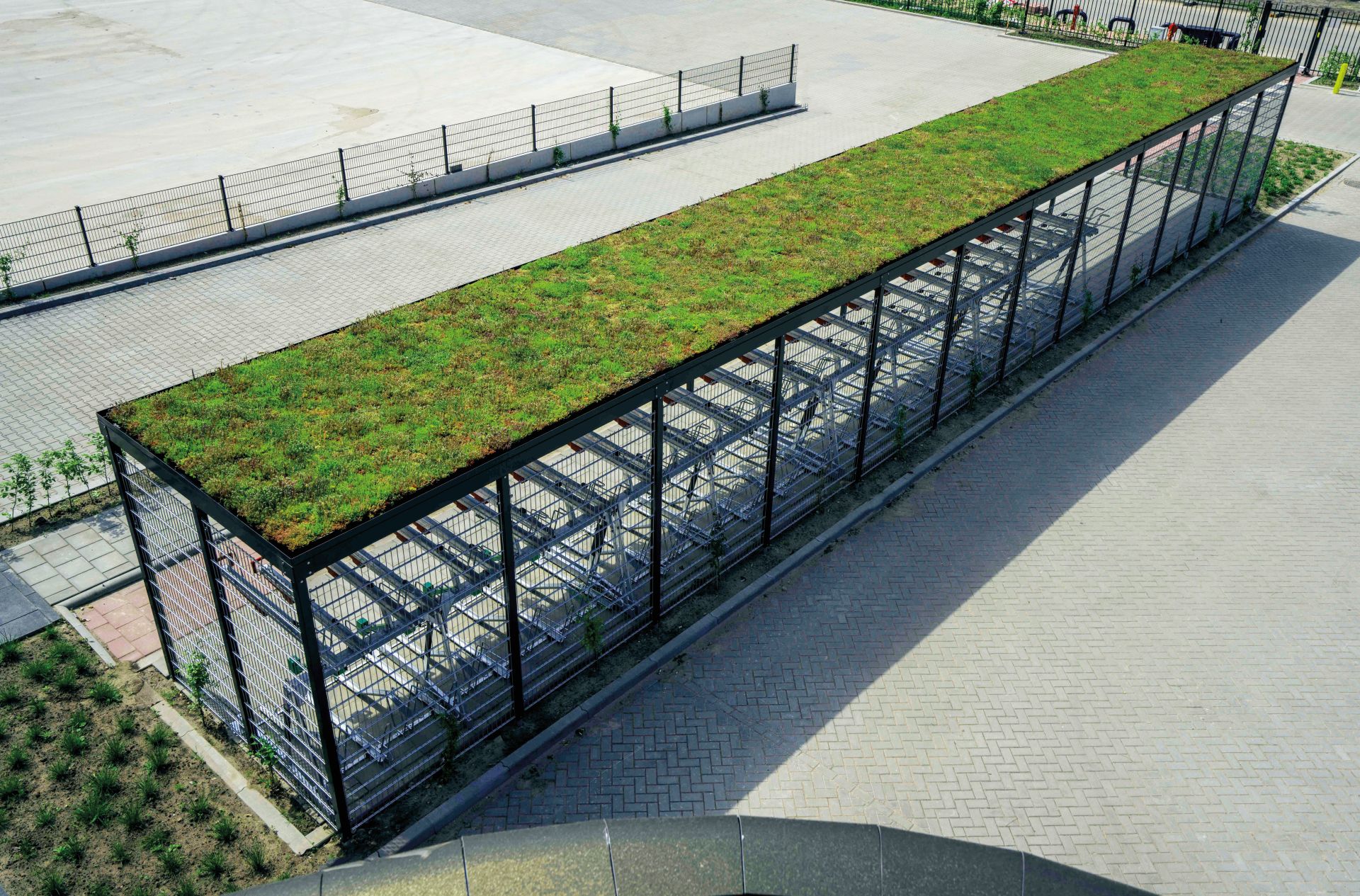

An optional sedum (green) roof — supported by the raised roof-edge option — adds biodiversity and SuDS value to the scheme, while the LED lighting with motion sensors is specified to BREEAM-NL guidelines to help support the sustainability credentials of the wider development. The e-bike charging points future-proof the shelter for the continued shift to electric-assist cycling, and FSC-certified timber keeps the specification aligned with responsible-sourcing requirements.
MODULAR DESIGN
The Paleto Shelter System gives specifiers and contractors a genuinely modular cycle and storage shelter platform: not a fixed product, but a flexible building-block system that can be configured, enclosed and extended as demand grows.
Starting from a base module and adding extension bays, Paleto scales from a compact single-bay shelter to a large-scale mobility hub, without redesigning the structure from scratch. At its core sits a robust 80×80mm steel box-section frame in hot-dip galvanised steel, coated and finished in a range of RAL colours of your choice.

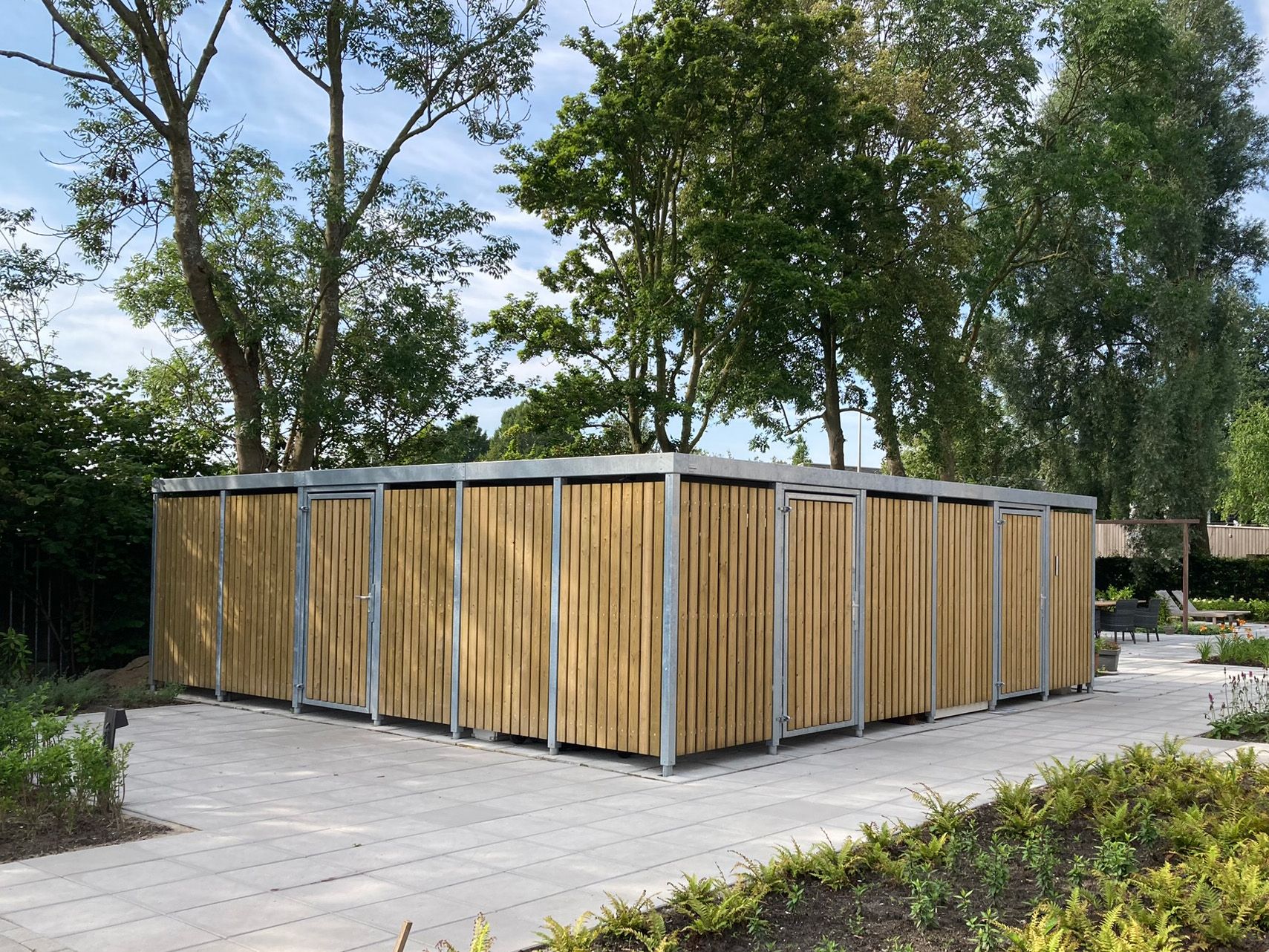

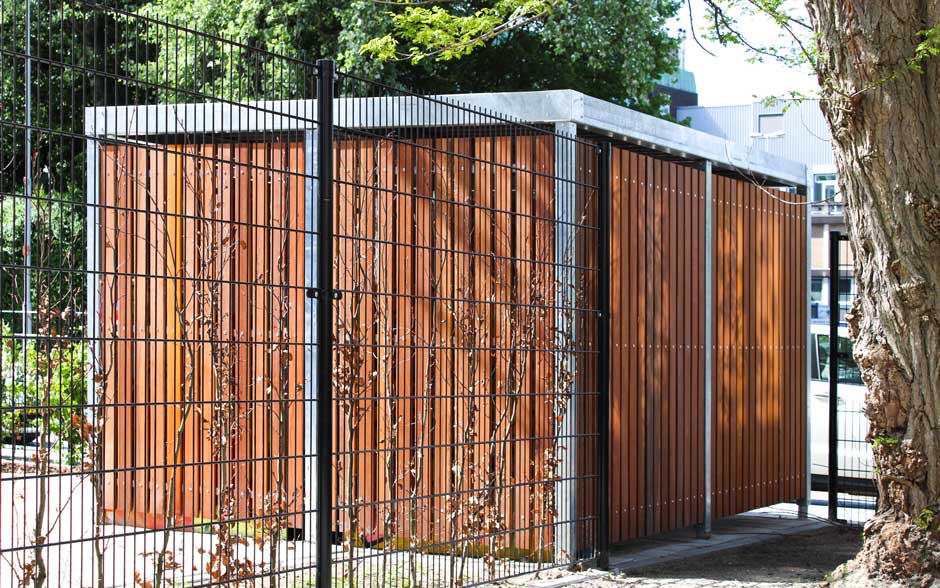

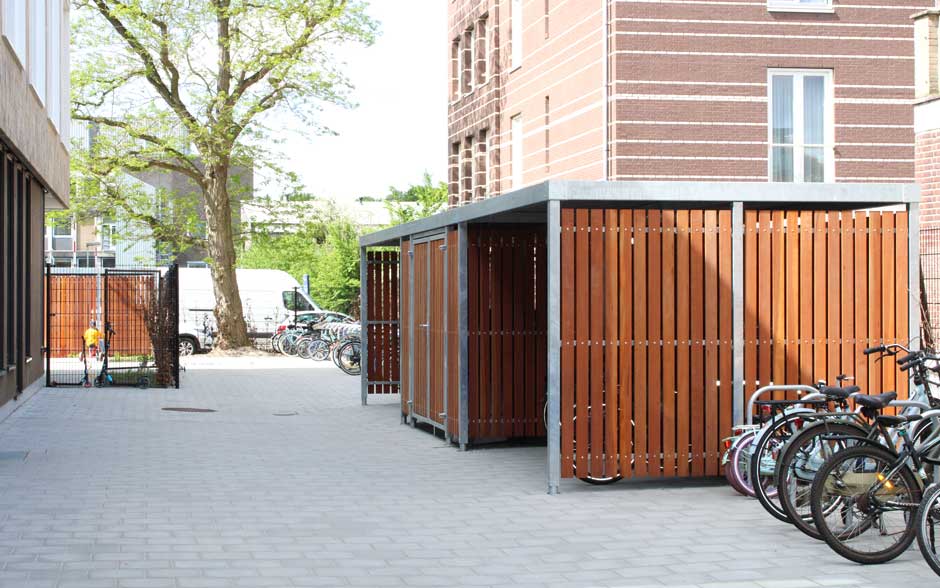

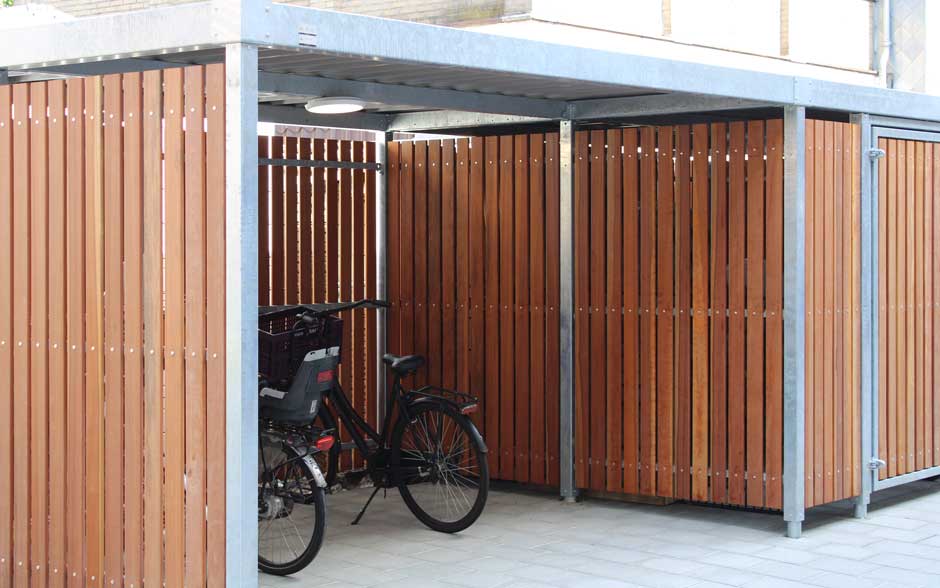

Wall infill can be specified in hardwood (sapele), softwood (redwood) and a duo-wire mesh, letting you dial enclosure up to a fully secure, lockable cycle store or down to an open, welcoming canopy. The roof comes as standard with a trapezoidal deck, which can be upgraded to a sedum green roof, and it sheds from water through the hollow steel posts, with drainage concealed below ground and connected directly to concrete footings or the site's rainwater system, so there's no visible guttering to interrupt the design.
ENGINEERED FOR REAL SITES

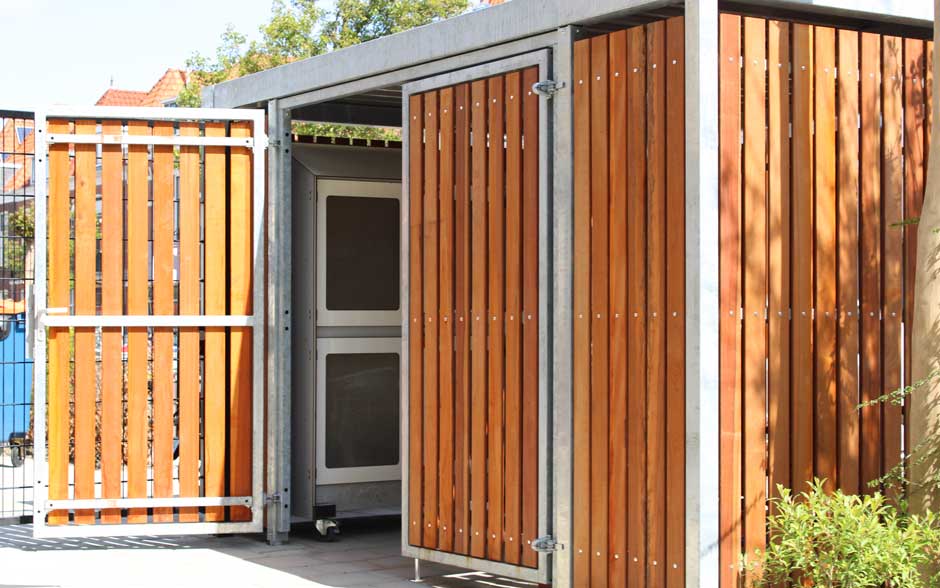

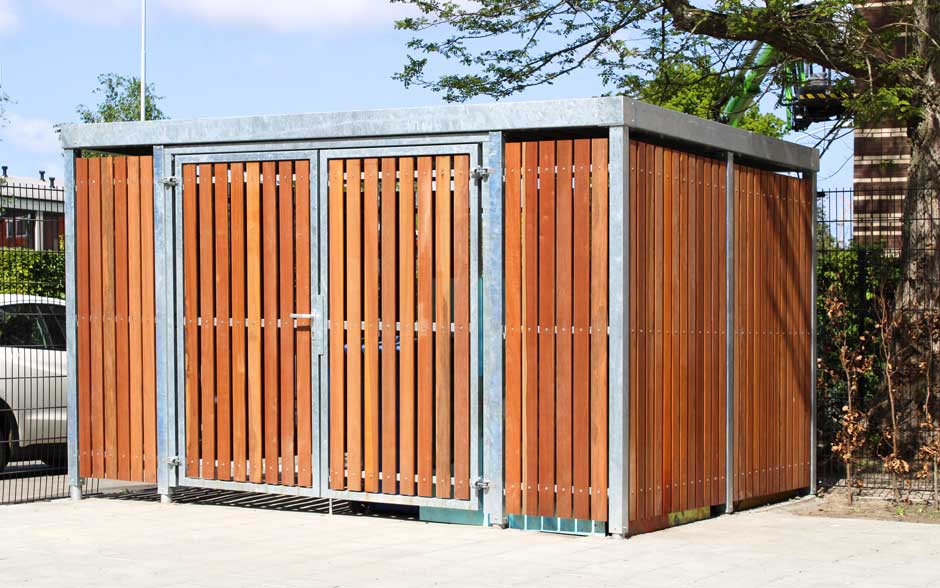

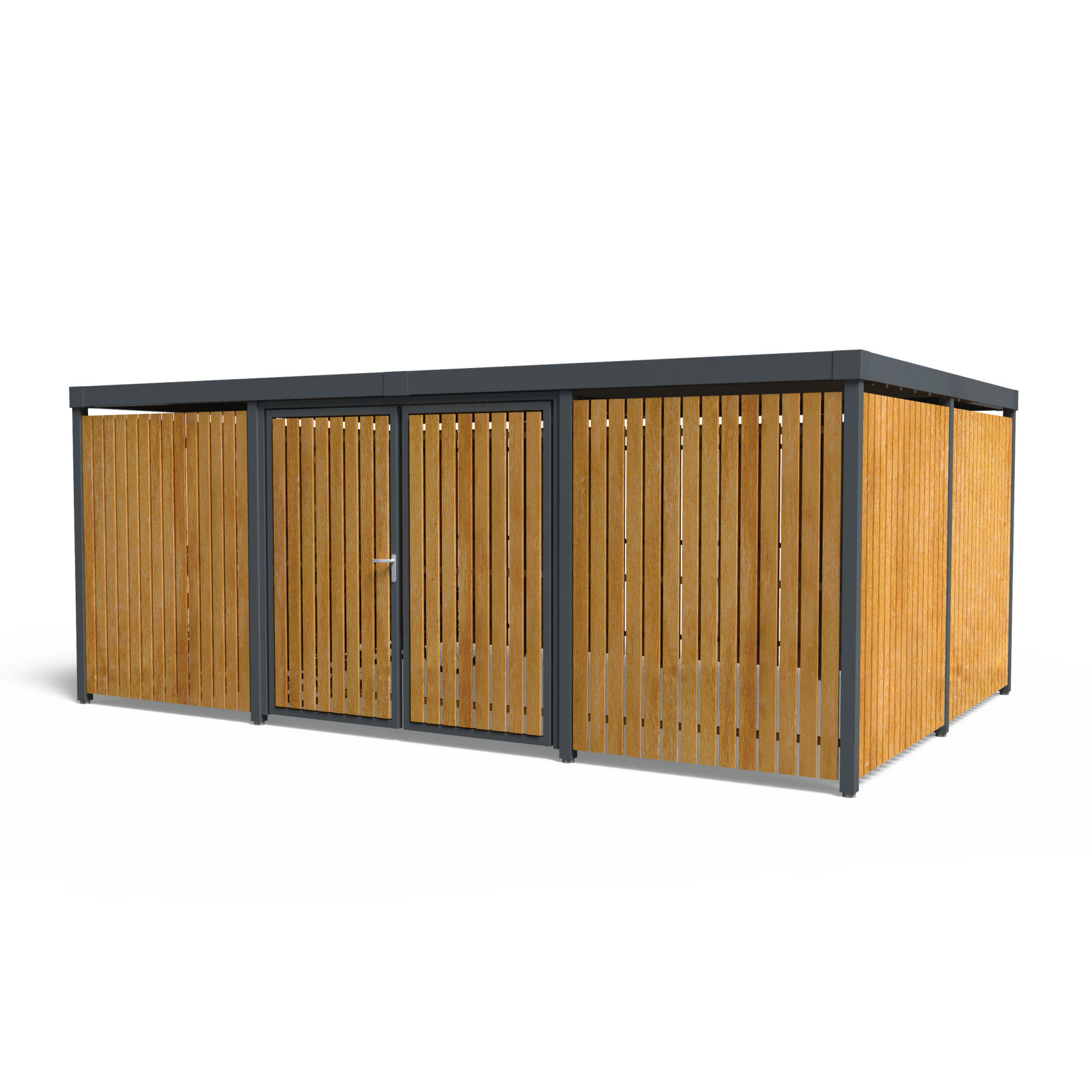

Three anchoring methods — surface-mounted with chemical anchors, flush-fitted to a concrete footing, or flush-fitted with a concealed rainwater connection — mean Paleto can be specified for paved plazas, new-build podium decks or retrofit sites alike. Single (approx. 1.1 m) and double (approx. 2.2 m) door options, door closers and access-control hardware are available as options, where fully secure storage is required.
Supplied and installed by BSFG as part of a single, UK-coordinated project — from CAD-supported specification through to manufacture, delivery and aftercare — Paleto is built for transport hubs, universities and schools, business parks, hospitals, residential developments and public realm cycle parking schemes that need infrastructure to last, and to grow.
