QUARTZ DOUBLE GLAZED BLEND PARTITIONING
QUARTZ DOUBLE GLAZED BLEND PARTITIONING
Our 100mm double glazed Blend system, featuring integrated mullion posts and transoms, excels in providing a high acoustic resistance that fosters a calm and focused atmosphere.
Its seamless design facilitates a smooth transition between glass, timber and solid panels, offering limitless design options, creating a beautiful framed finish.
INFORMATION
BRAND
Apton
COLLECTION
Quartz
PRODUCT TYPE
Framed Partitioning
DIMENSIONS
- Height up to 4200mm
- Track Width 100mm
- Track Height 27mm/50mm
GLAZED BLEND SYSTEM
Double
JOINT
Aluminium Linear Joint
PROFILES & DOOR FRAME
Aluminium
DEFLECTION HEAD
+/-12.5mm / +/-25mm
PRODUCTION
Made in United Kingdom
ACOUSTICS
Up to 55dB (Rw)
CORNERS
Dry Joint (90, 135 & T)
IRONMONGERY
A wide range of ironmongery can be supplied with Quartz.
BRITISH STANDARDS
- Sound Rating BS EN ISO 717
- Sound Measurement BS EN ISO 140
- Structural Stability BS5234, BS6180, BS6399
USE
Office
ENVIRONMENT
Indoor
STRUCTURE
- BS5234
- BS6180
- BS6399
MATERIAL
Glass & Aluminium
GLASS THICKNESS
10 – 19mm
DOOR OPTIONS
- QuartzGlide
- Timber Door
- Glass Door
- Stile Door
- GDS Door
- MK2 Door
COMPATIBLE WITH OPTIONS

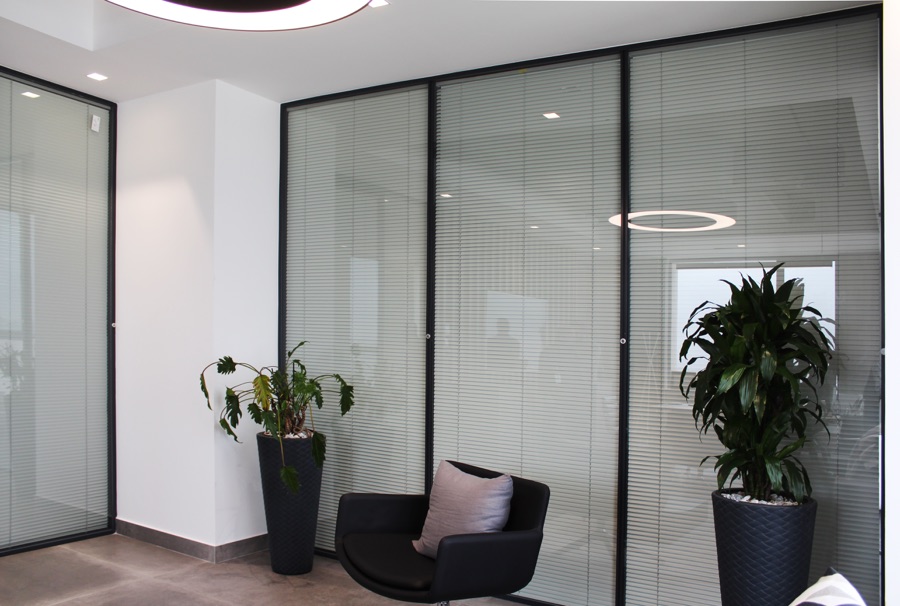

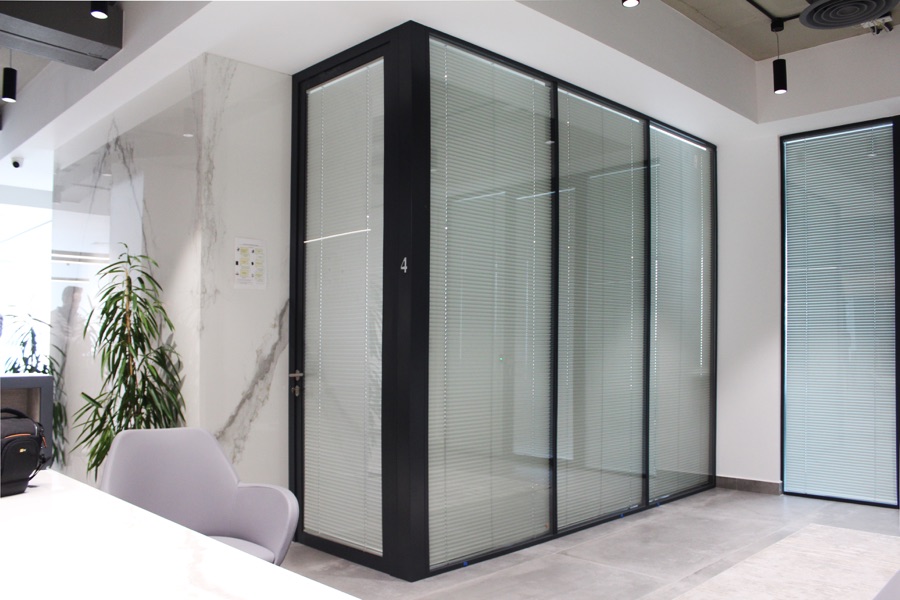

- Blinds
- Graphics
- Switch Glass
- Manifestations
FINISHES
- Polyester Powder Coat
- Special Anodised Finish
- Satin Anodised Aluminium
GLASS TYPE
Toughened
DOWNLOAD
↓ Data Sheet

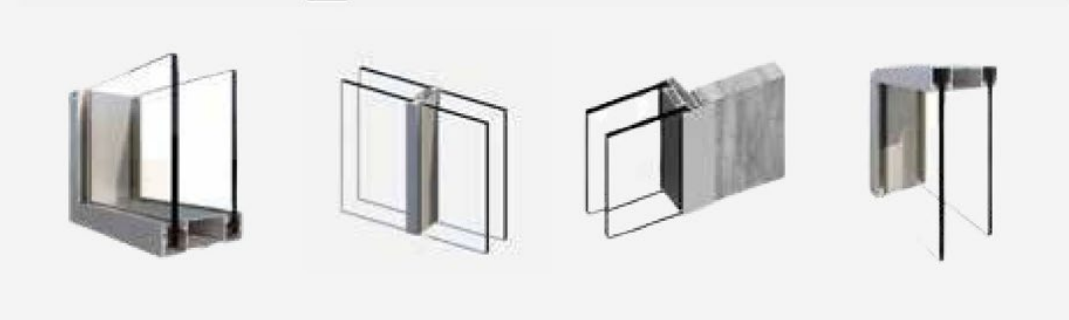

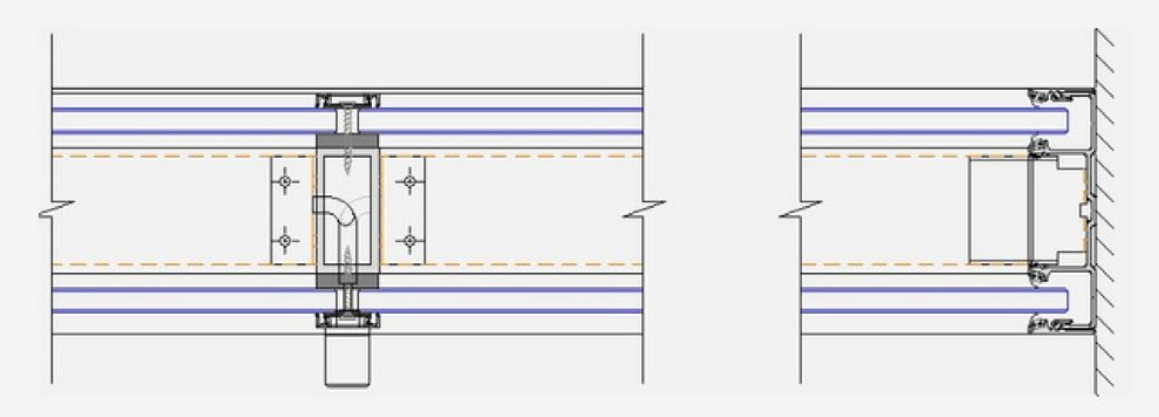

TECHNICAL DRAWINGS

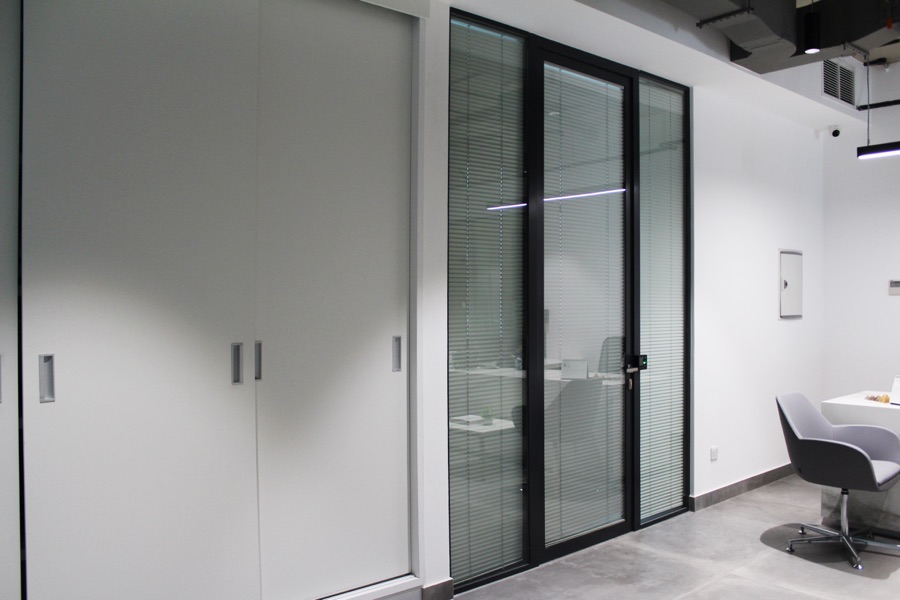

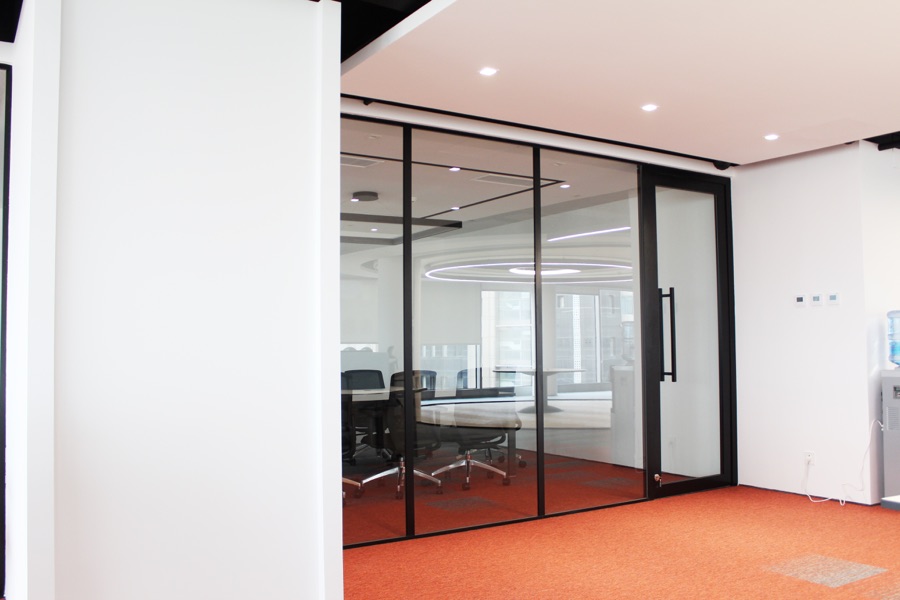

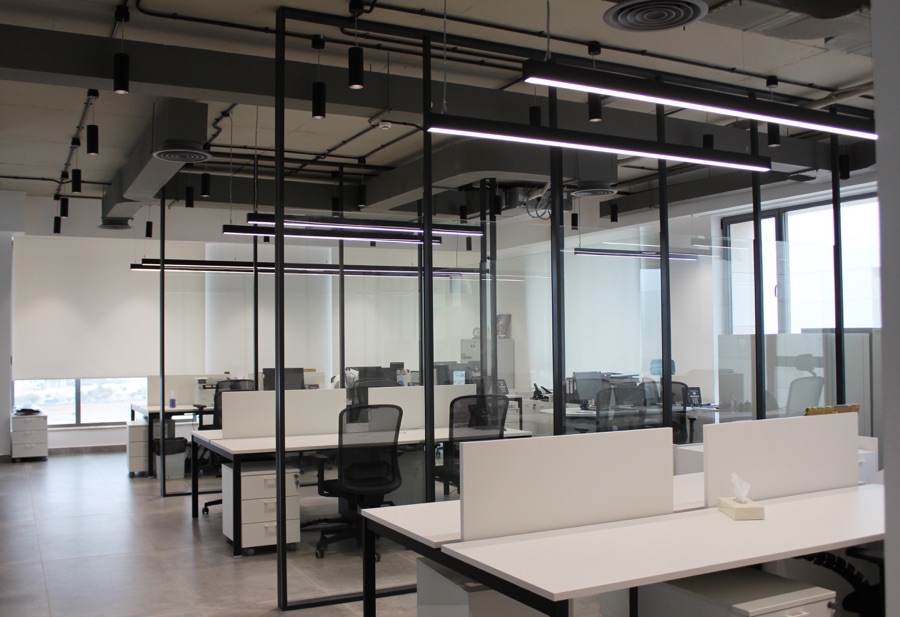

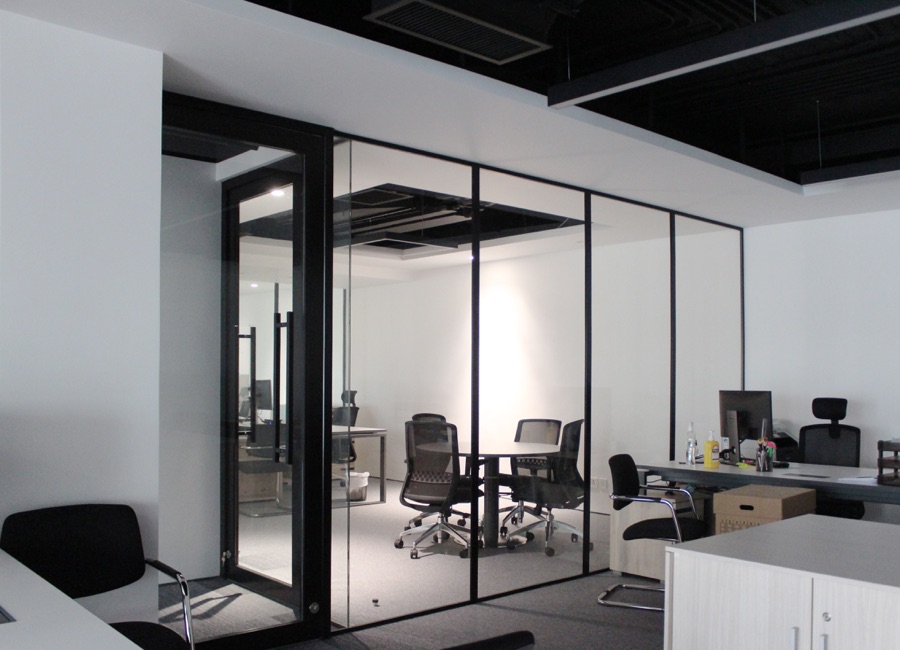

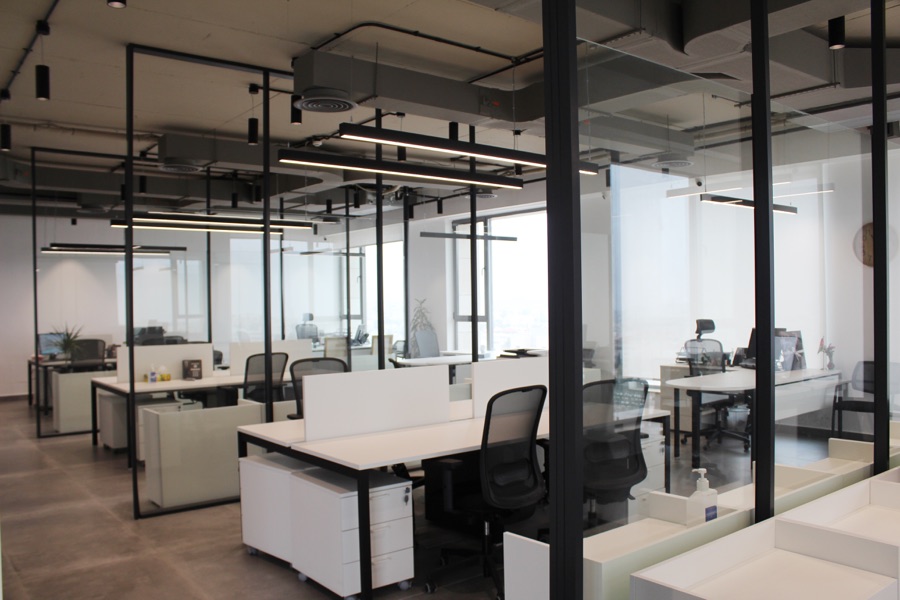

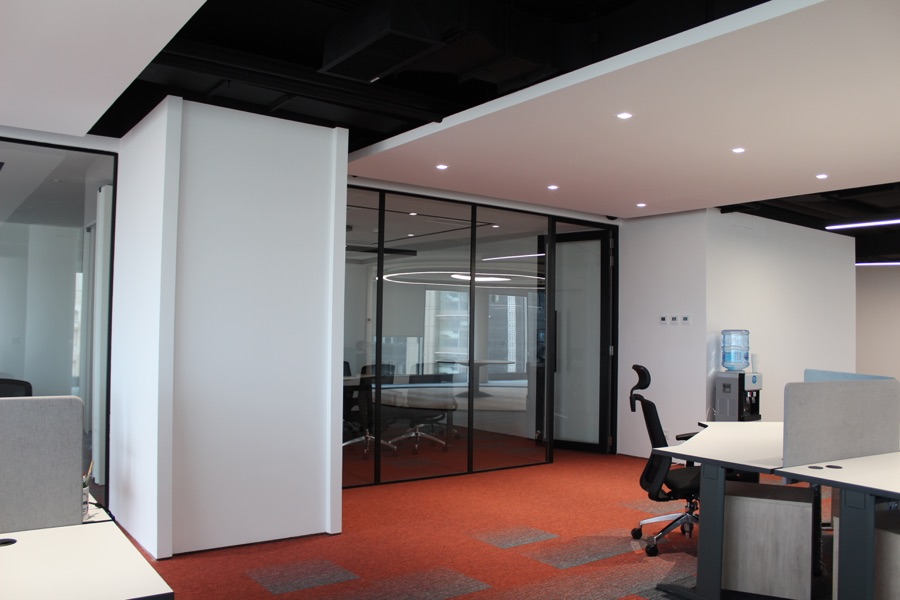

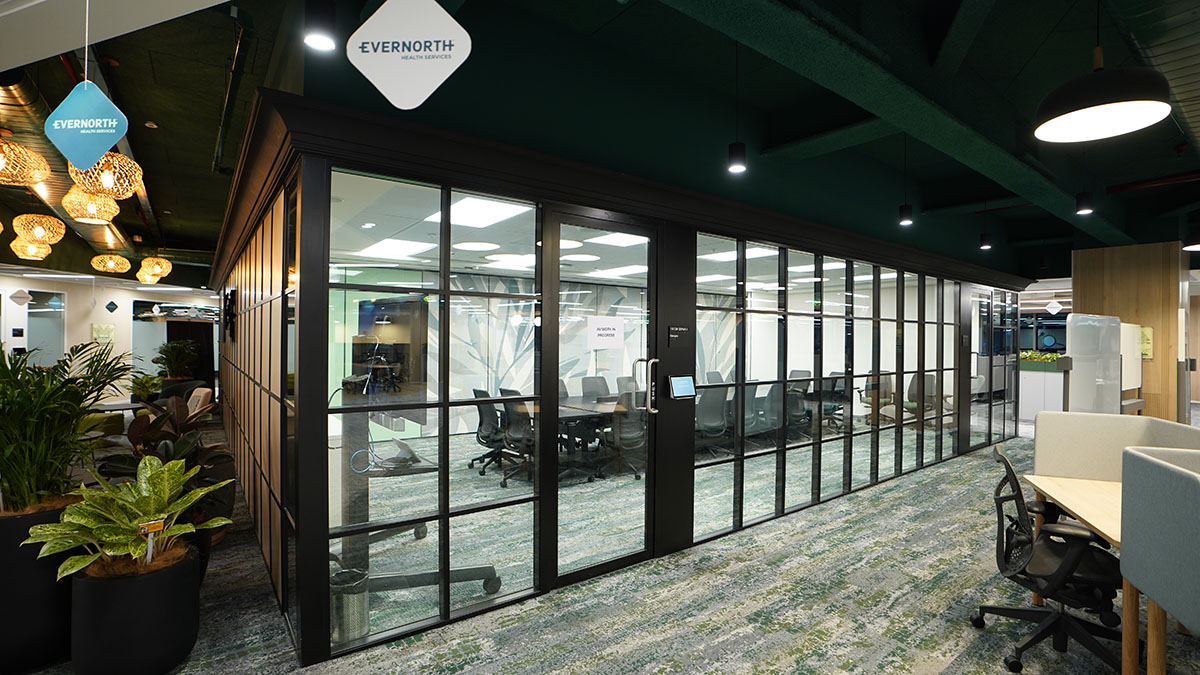

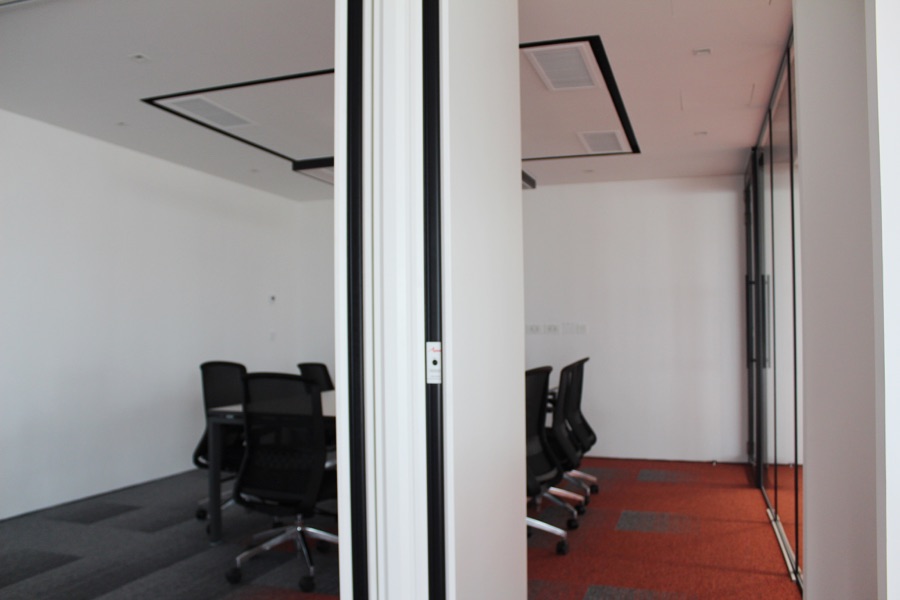

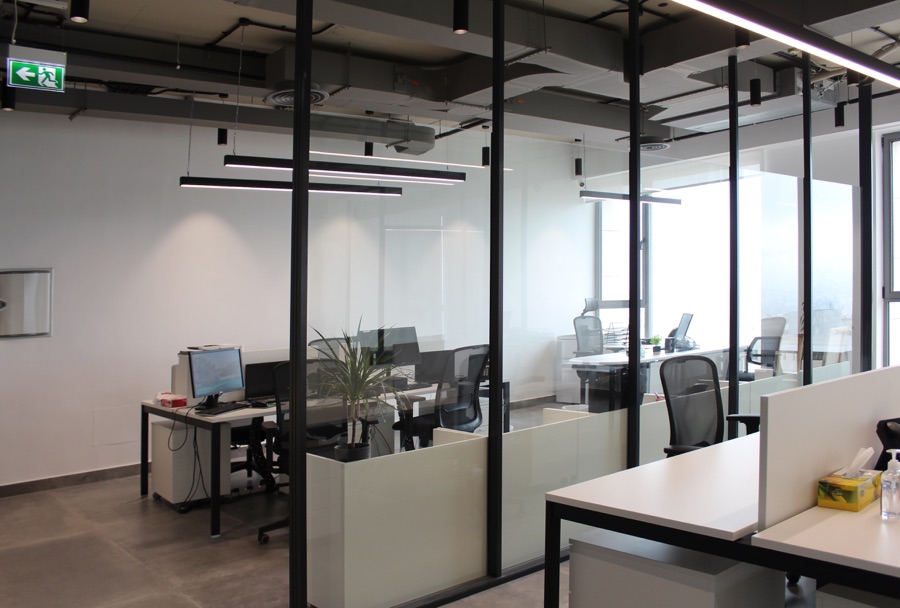

GALLERY
