AXIOM FENCE SYSTEM
AXIOM FENCE SYSTEM

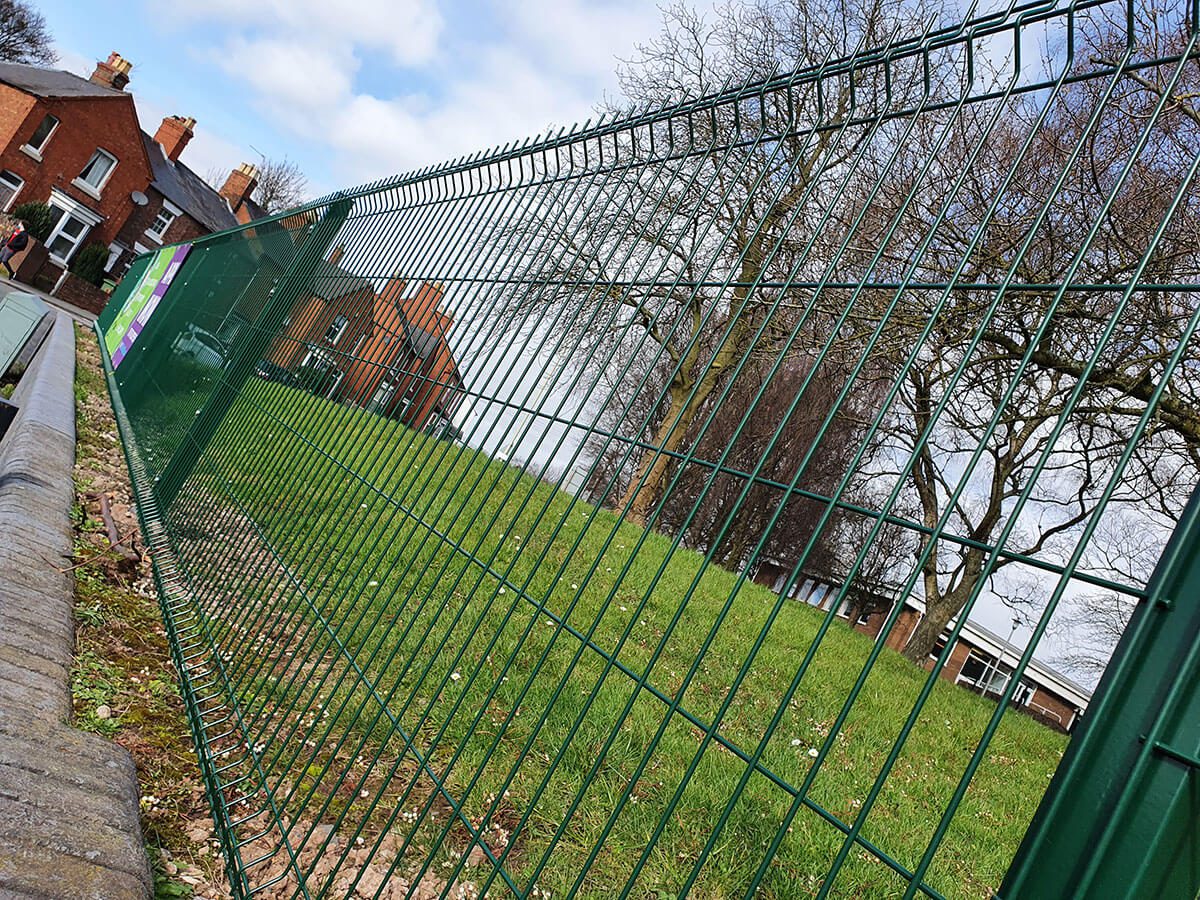

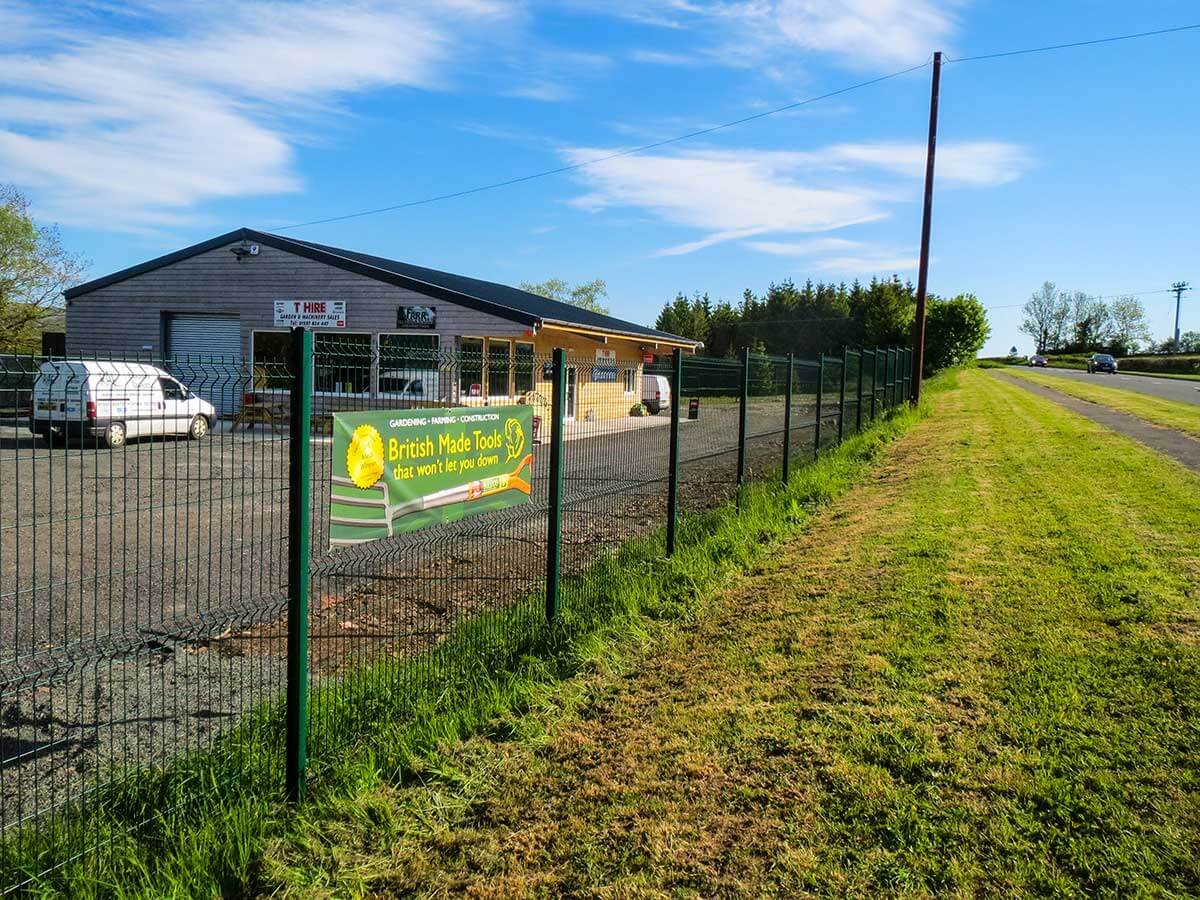

Zaun‘s Axiom perimeter fence system is a lightweight, cost-effective profile mesh fencing system ideal for low-security perimeter demarcation.

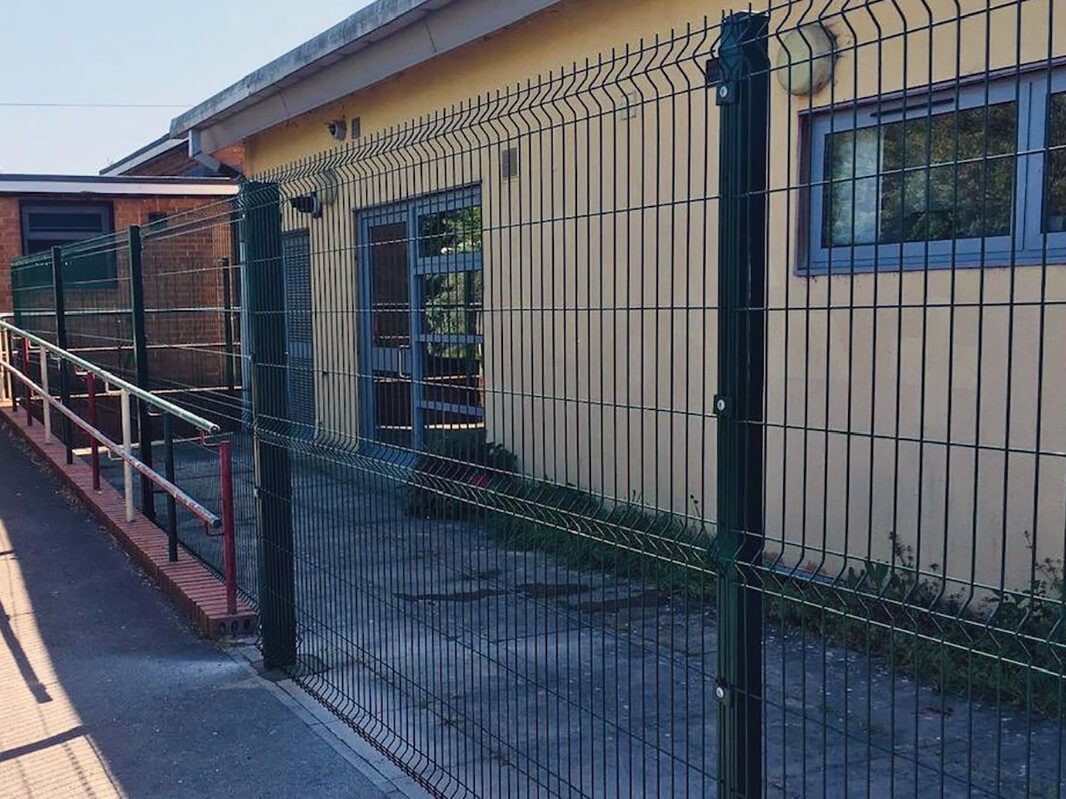

Designed with a contemporary, non-threatening design, perfect for parks, schools, industrial estates, commercial sites or simple area demarcation.
This high quality and long service life profile mesh system is visually appealing with large 200mm x 50mm open mesh patterns, enabling this perimeter fence system to blend into its surroundings.

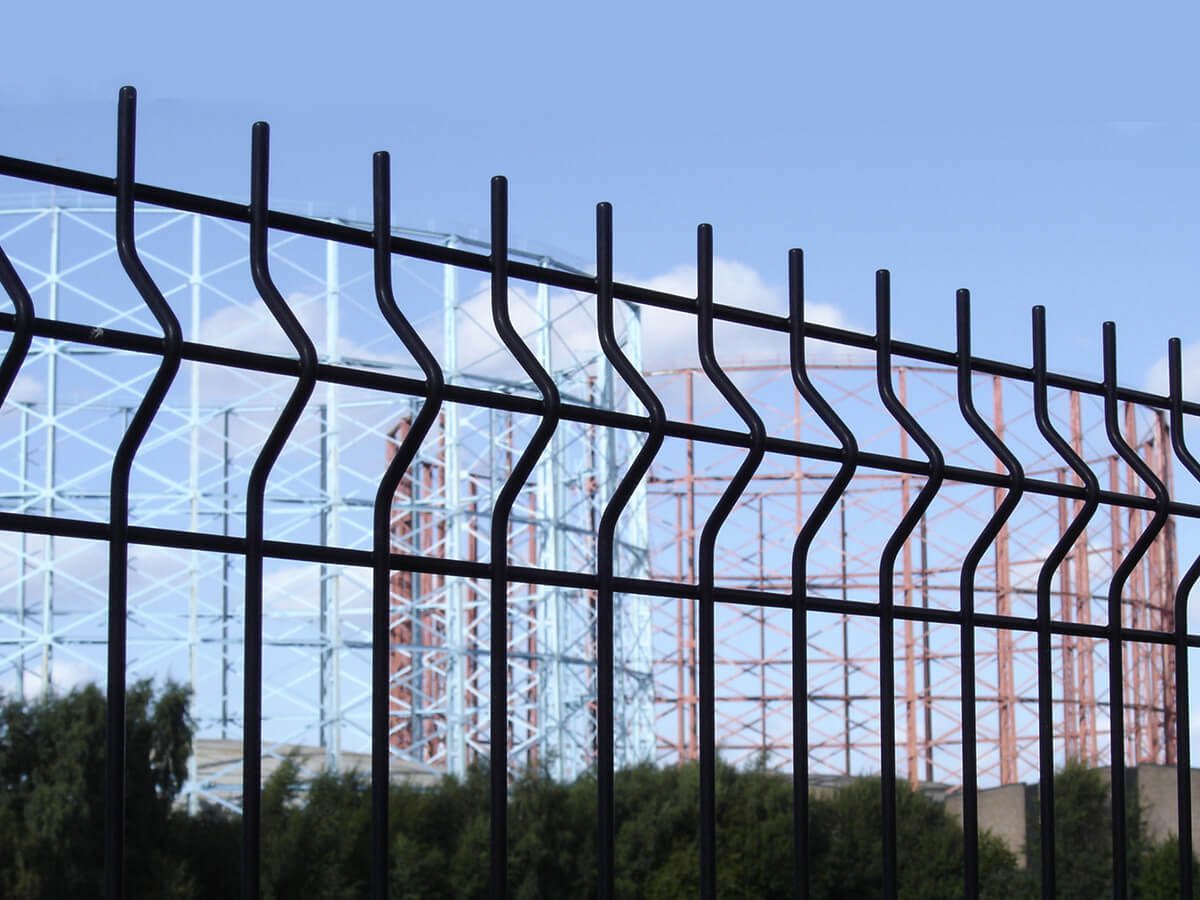

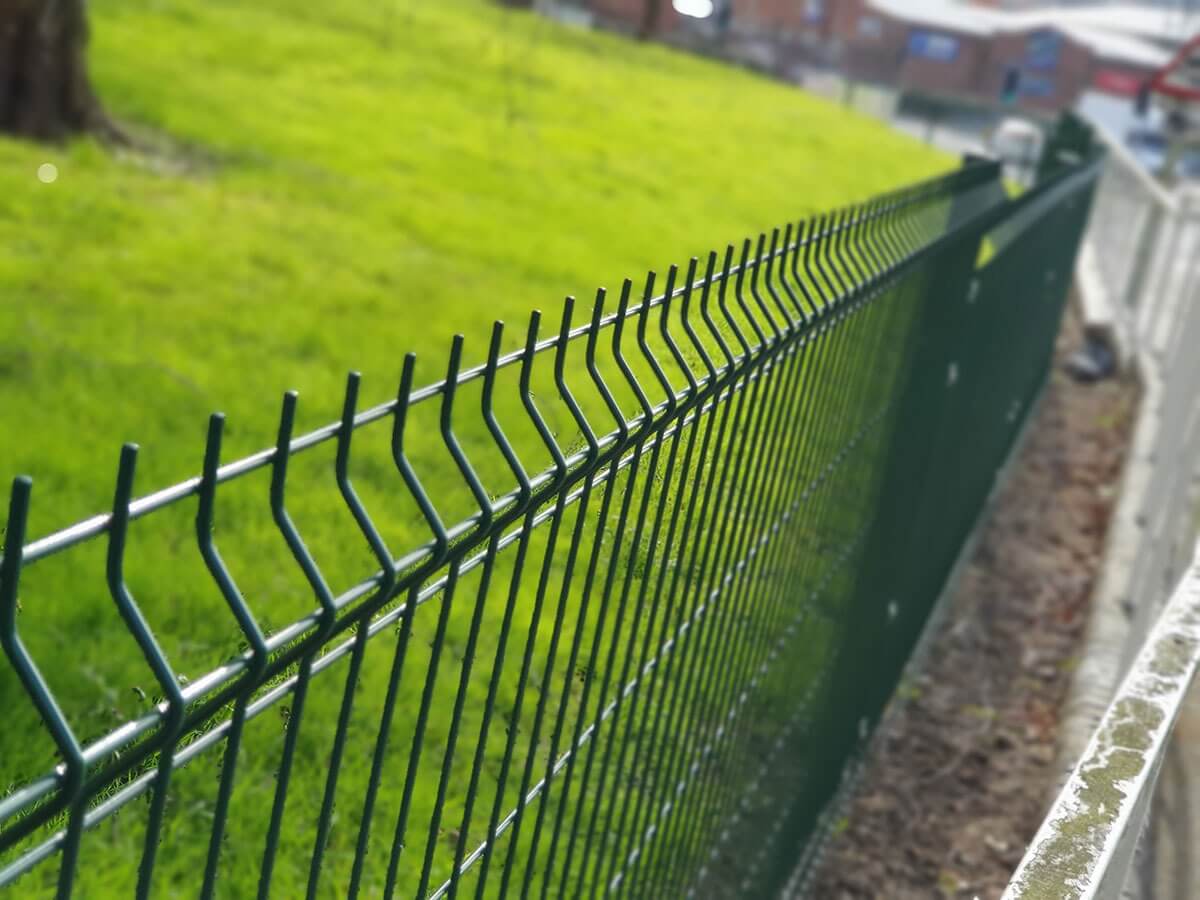

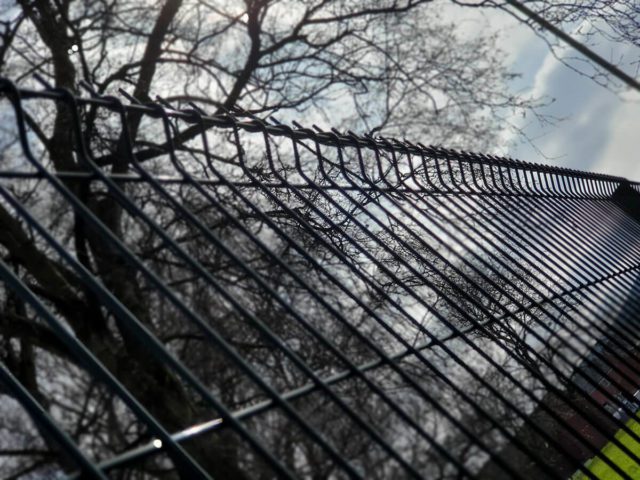

The profile mesh panel is constructed from 5mm wires and has V pressings along the length of the panel to provide lateral rigidity. The panel is ideal for perimeter fencing where the perimeter is not likely to be the subject of sustained abuse.
INFORMATION
BRAND
Zaun
PRODUCT TYPE
Fence System
TOP EDGE PROJECTION
30mm Projection as Standard
FIRE-RESISTANT & ANTIMICROBIAL UPHOLSTERY
Axiom is manufactured to the highest standards and offers excellent value for money.
PRODUCTION
Made in Britain
FIXINGS
Anti Tamper Security Fixings
POST SIZE
60 x 60
POST CENTRES
3025mm (2825mm for 2960 High)
DIMENSIONS
- Height : 1730, 1930, 2330, 2960mm
- Panel Width : 3005mm (2805mm for 2960 High)
WIRE DIAMETER
- 5mm Verticals
- 5mm Horizontals
FIXING TYPE
Clips
MESH SIZE
200mm x 50mm
ENVIRONMENT
Outdoor
FIXING CENTRES
400mm
APPLICATIONS
- Utilities
- Transport
- Industrial
- Parks & Playgrounds
- Schools & Education
- Emergency Services
DETAIL
POSTS & FIXINGS

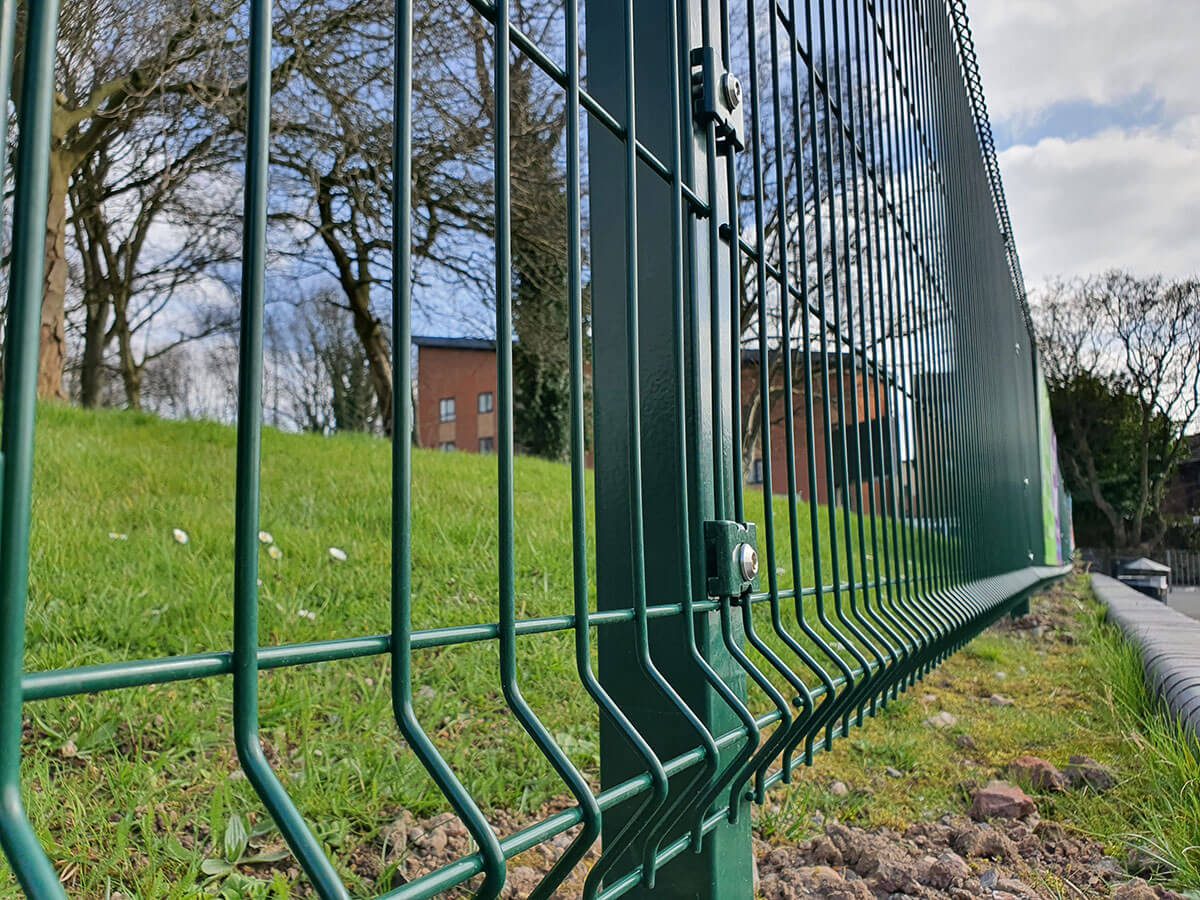

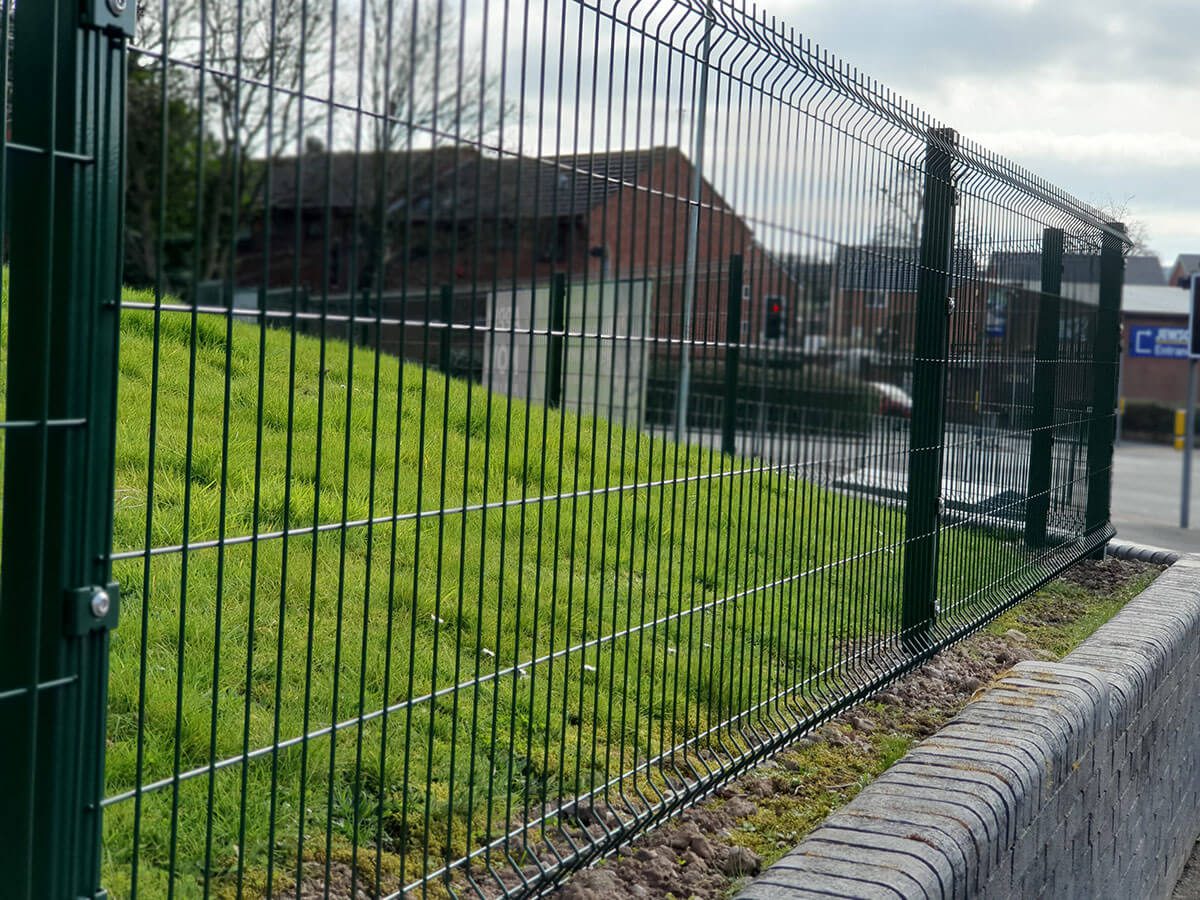

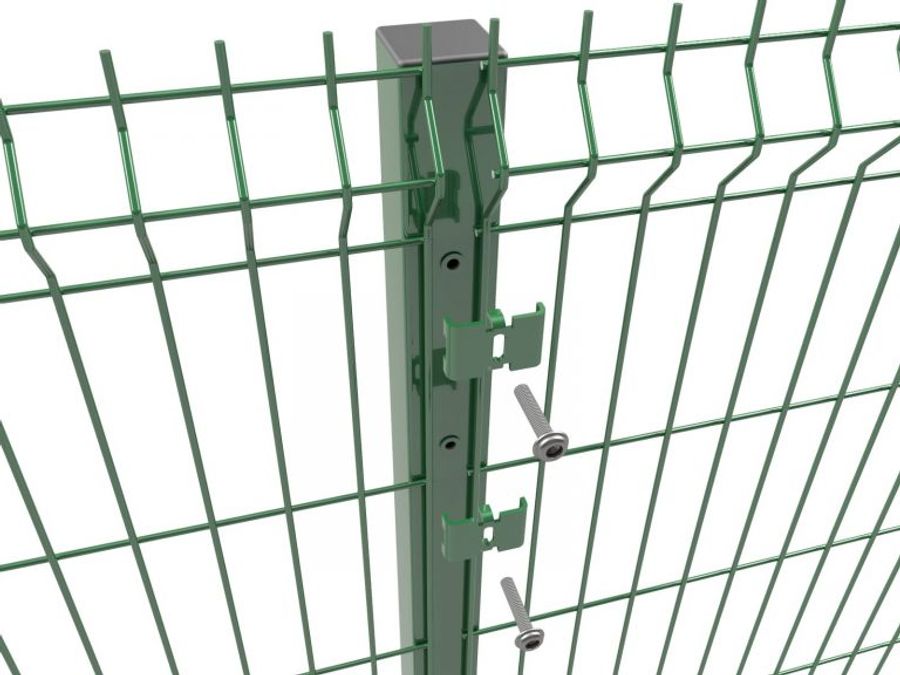

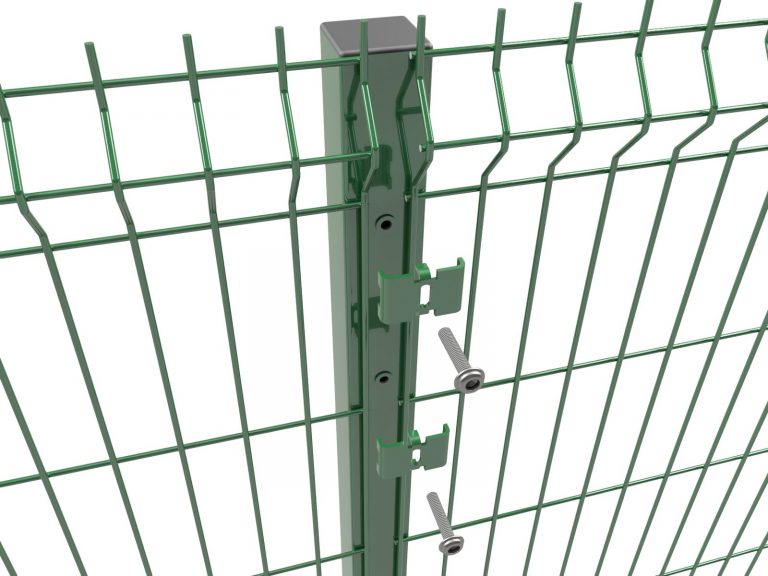

The Axiom profile mesh fencing system features a post, and clip configuration, providing a simple and easy installation method. Supplied with vandal-proof security fixings and installed using either power or hand tools.
VARIATIONS FOR PROFILE MESH FENCING

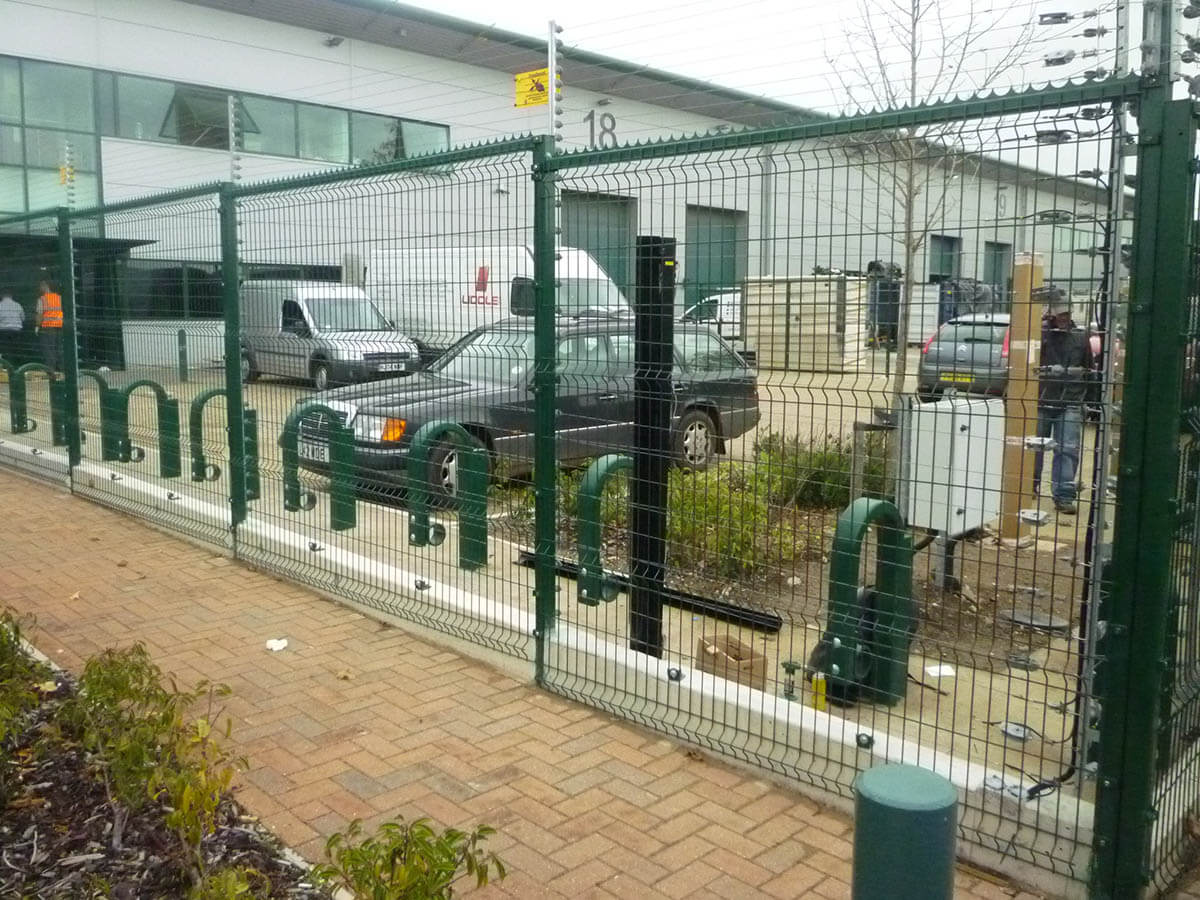

Posts are available in different lengths to accommodate panel heights and ground conditions. Additional variations are also available: Wall fixing, cranked posts or base plated. Extended posts for CCTV, lighting or physical security devices.
PROFILE MESH GATES

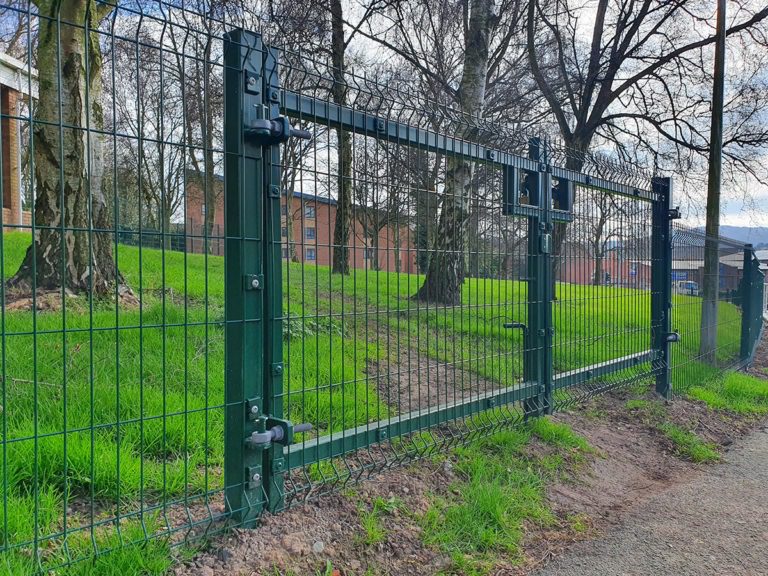

Pedestrian gates are single leaf 1.2m wide (or width to suit), framed in a 50mm x 50mm RHS with Zaun Axiom mesh clad on the outside of the frame, with slide latch. Gate supplied with rubber bump stop and 2 x suitable gate posts.
Vehicle access gates are double leaf (single leaf vehicle gates available) 3.0m wide (or width to suit), framed in 50mm x 50mm RHS, with Zaun Axiom mesh clad outside the frame with drop bolts and slide latch. Gate supplied with rubber bump stop and 2 x suitable gate posts.
FINISH
All Zaun posts/panels/gates and painted auxiliary components (for example, clamp-bars, slide bolts etc.) benefit from a protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers.
In a UK C1 environment, as defined in ISO 12944 p2, this should ensure a useful life expectancy of the fence of at least 15-20 years. Life expectancy in all environments can be extended by maintaining the fencing with regular washing. Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to reduce the effect on useful life.
Enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments.
