1-Handle Pull-Out Kitchen Faucet
Every great kitchen has a showpiece or two, balanced by a talented ensemble cast. Wray is designed for modern neutrality, with clean lines in a softer form that fits the friendlier, more intuitive relationship we now have with our surroundings. It’s the faucet that looks like company’s coming and feels like home.
FEATURES
FEATURES
INFORMATION
MODEL

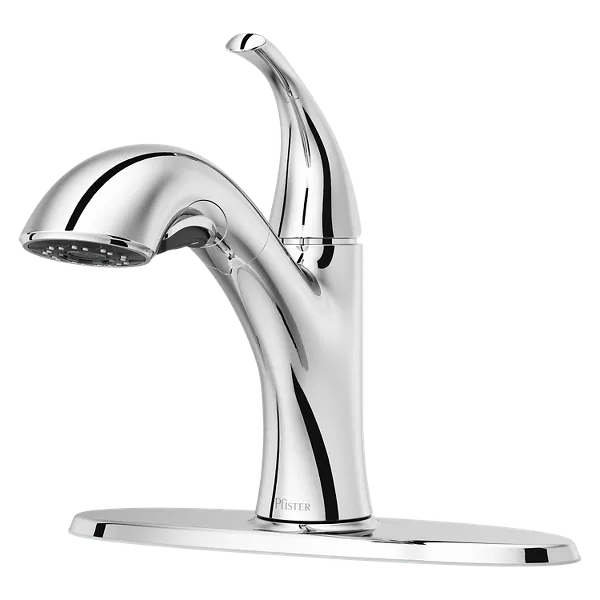

- Chrome : F-534-7WRYC

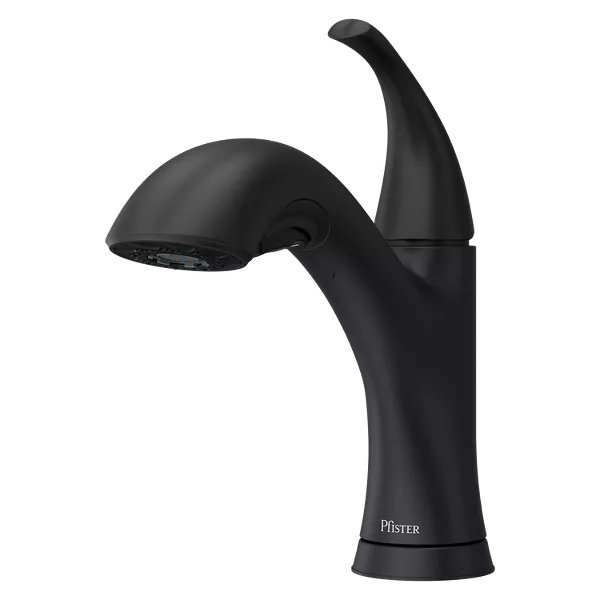

- Black : F-534-7WRYB

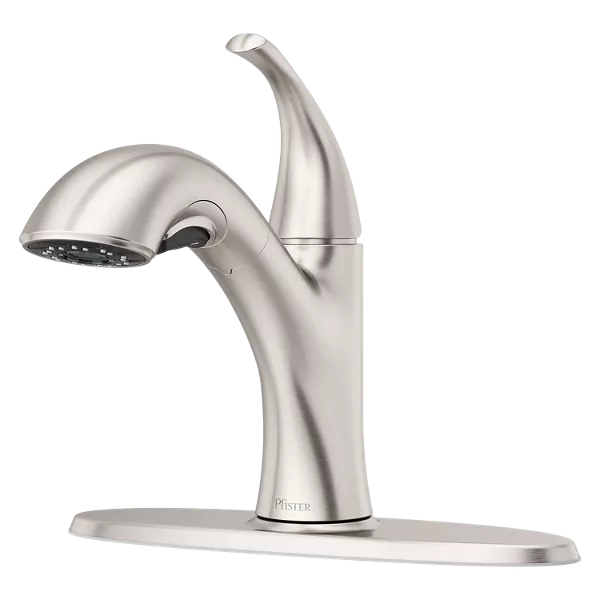

- Stainless Steel : F-534-7WRYGS
BRAND
Pfister Faucets
PRODUCT TYPE
Kitchen Taps
GPM FLOW RATE
1.8
# OF HANDLES
1
CODE COMPLIANCE
- CEC Certified
- ADA Compliant
- NSF/ANSI/CAN 61: Q≤1
- IAPMO Certified to ASME A112.18.1/CSA B125.1
TOGGLE BUTTON
Pull-Out spray head with toggle button to select spray or stream modes conveniently in the palm of your hand
TOTAL SPOUT HEIGHT
7-7/16
MAX DECK THICKNESS
3

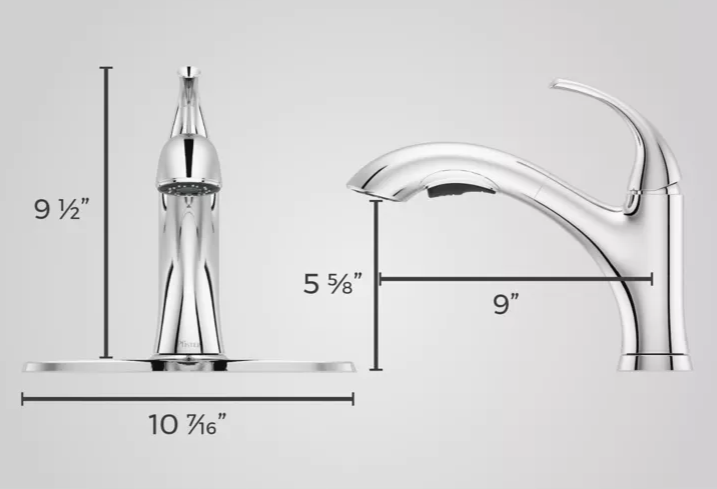

DIMENSION
- Height : 9 1/2"
- Deck To Aerator Height : 5-5/8

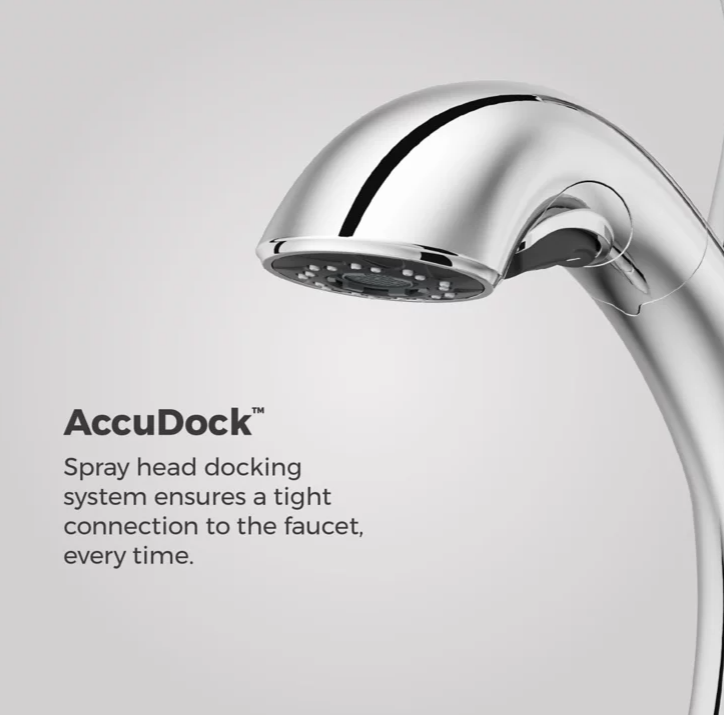

DOCKING SYSTEM
Advanced spray head docking system ensures a secure, tight connection to the faucet spout
DECKPLATE INCLUDED
Yes
SOAP DISPENSER
No
PE-RT SUPPLY

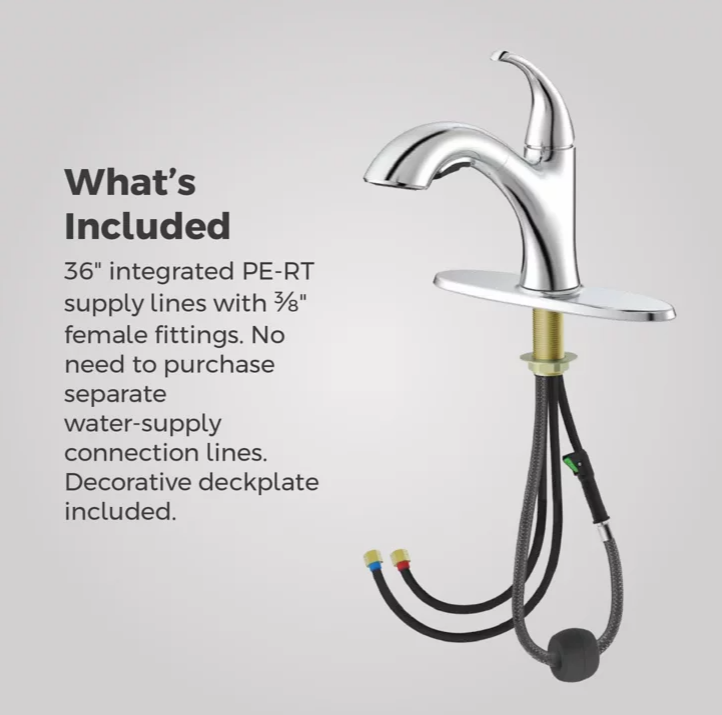

Includes 36” integrated PE-RT supply lines with 3/8” female fittings. No need to purchase separate water-supply connection lines.
MOUNTING

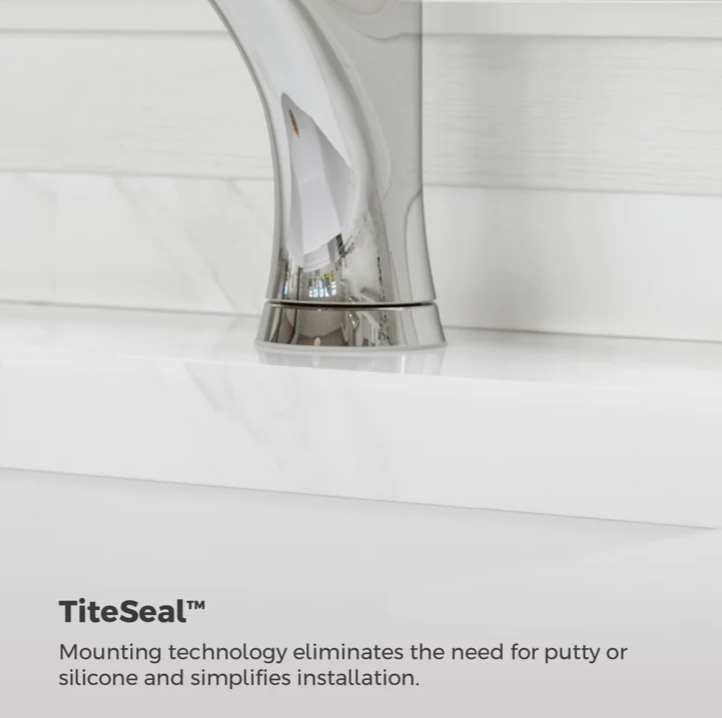

TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
TECHNOLOGY
Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
SUPPLY
Pfast Connect™ technology securely connects water supply lines with a quick click
ACCESS
Mid-arc spout to help provide easy access
INSTALL
Convenient Quick Install Tool included to speed up installation

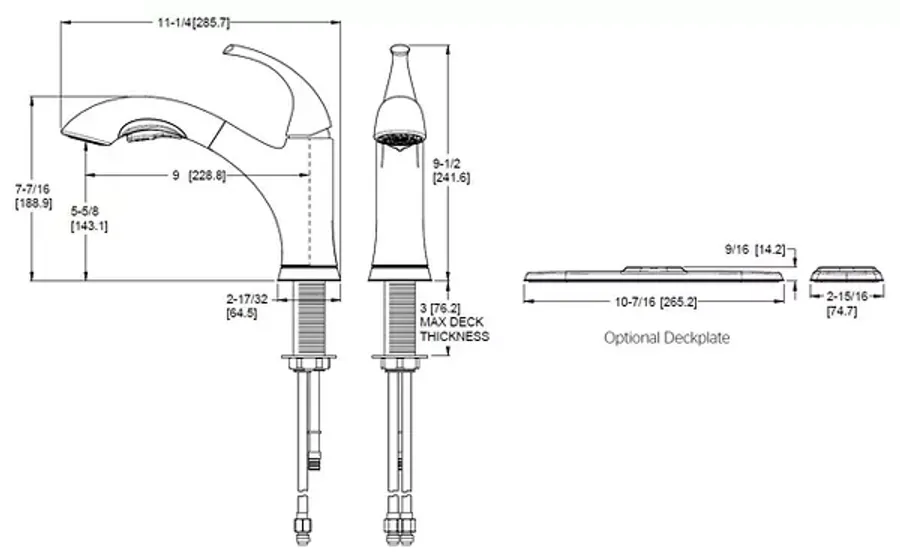

TECHNICAL DRAWINGS
REQUIREMENTS
Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
DECORATIVE
Includes decorative deck plate
SPRAY FUNCTIONS
Spray and Stream
CALGREEN
Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent

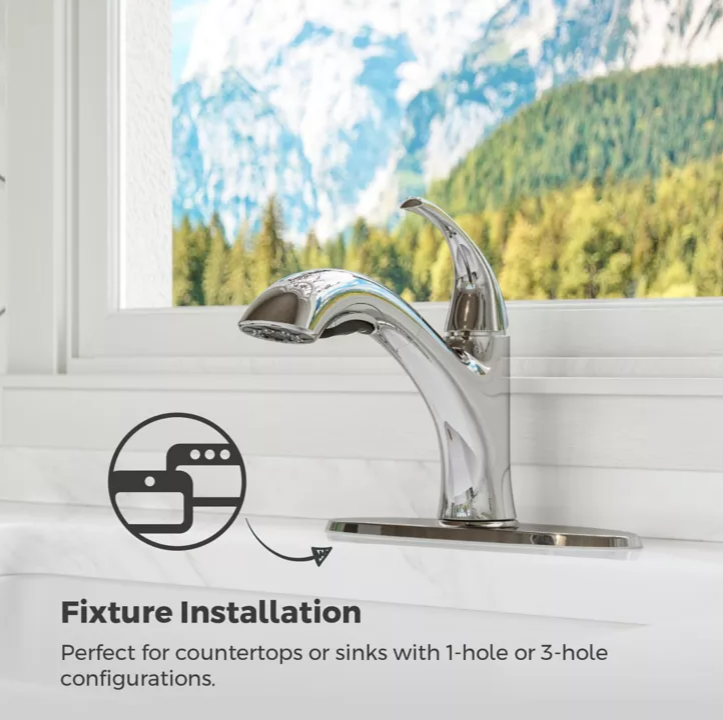

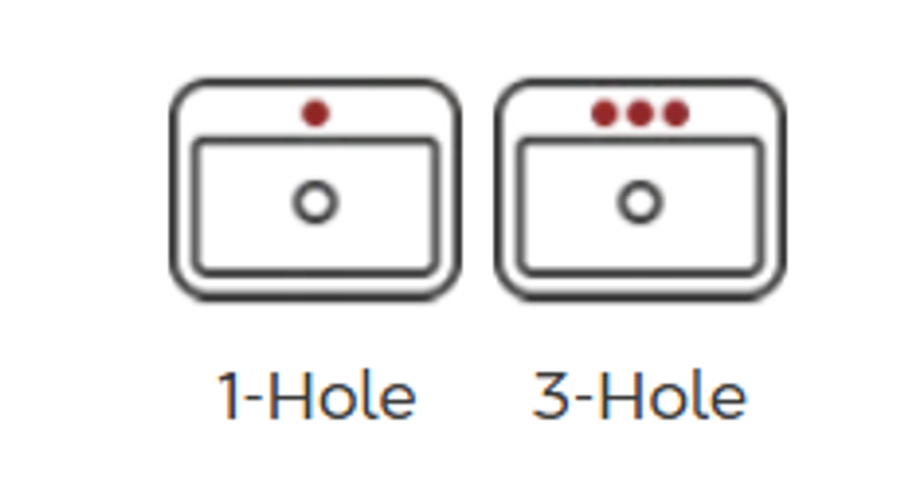

CONFIGURATIONS
- 1-Hole
- 3-Hole
SPRAY FUNCTIONS
PERT Flex-Line
PULL-OUT/DOWN HOSE LENGTH
28
COMPLIES
Complies with Federal and State safe drinking water legislation.HU
PULL-OUT/DOWN HOSE MATERIAL
Braided Nylon
FAUCET ARC TYPE
Medium-Arc
COLORS
