HINGED INSULATED SYSTEM SMARTIA S61 WINDOWS-DOORS SYSTEMS
HINGED INSULATED SYSTEM SMARTIA S61 WINDOWS-DOORS SYSTEMS

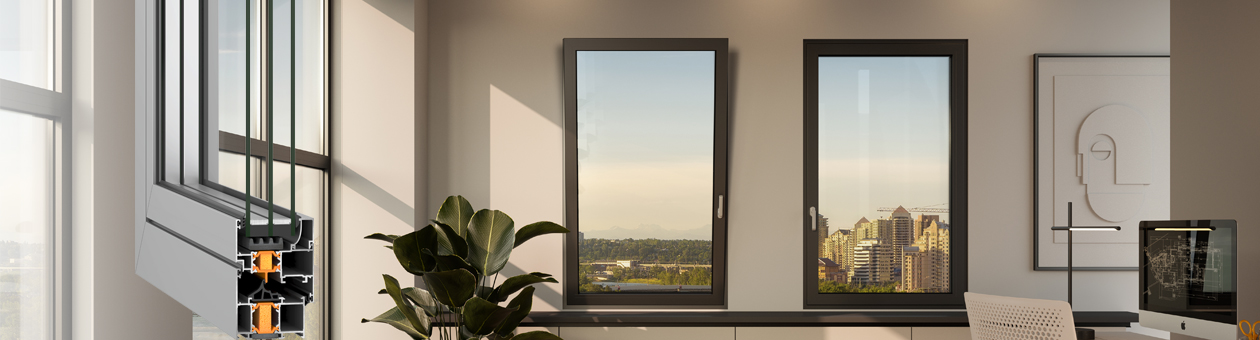

SMARTIA S61 is a sophisticated, thermally-insulating hinged system that combines modern design with exceptional performance.
It enhances any space by blending functionality with contemporary aesthetics, providing a perfect connection between indoor and outdoor environments.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Sliding Insulated System
PRODUCTION
Made in Greece
WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
ENERGY-EFFICIENT
Three energy-efficient options for enhanced insulation and reduced overall energy costs
APPLICATIONS
Designed for residential and commercial applications
REDUCTION
Significant sound reduction thanks to triple glazing
EXTERIOR SHAPE
Flat
WATER TIGHTNESS
E 1950
CERTIFICATES
AIR PERMEABILITY
Class 4
WIND LOAD RESISTANCE
Class C5
TYPES OF TYPOLOGY
All tilt & turn typologies, typologies with low threshold
SOUND REDUCTION
46dB
SASH WEIGHT
Up to 180 Kg
ENERGY UPGRADES
Ideal for both new constructions and renovations, as it meets the criteria for household energy upgrades
THERMAL TRANSMITTANCE UF
1,5 - 2,5 W/m²K
GLAZING TYPE
Double - Triple
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
151 mm
ENHANCED
Enhanced aesthetics and accessibility with low threshold
ADVANTAGES
- Increased static loads and functionality
- High safety with the use of multi point locking mechanisms
FRAME DEPTH
61 mm
SASH DEPTH
69 mm
MAXIMUM GLAZING THICKNESS
From 11 up to 52 mm
MINIMUM THRESHOLD HEIGHT
14 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93 mm
MECHANISM
- Euro-groove
- Euro-nut
SEALING METHOD
Perimetrical in 3 levels with EPDM gaskets
TYPE OF THERMAL INSULATION
- Polyamides 24 mm
- PE insulation Foam
SERIES
Smartia S61
ENVIRONMENTS
Indoor and outdoor

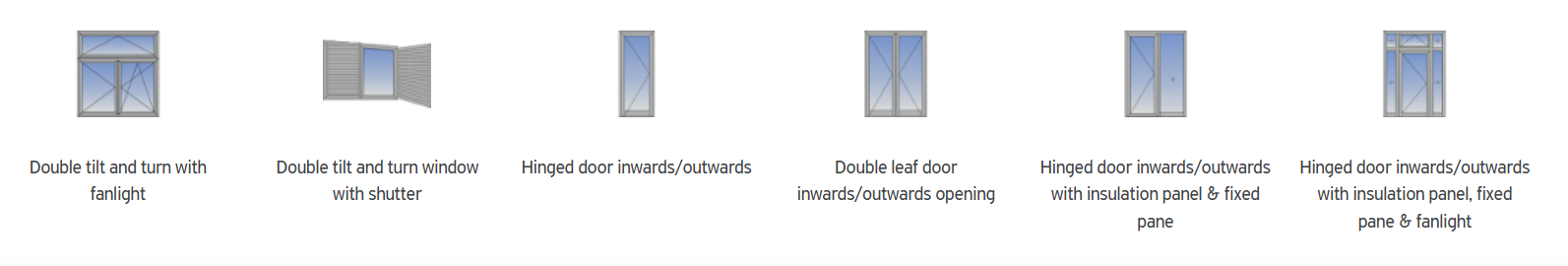

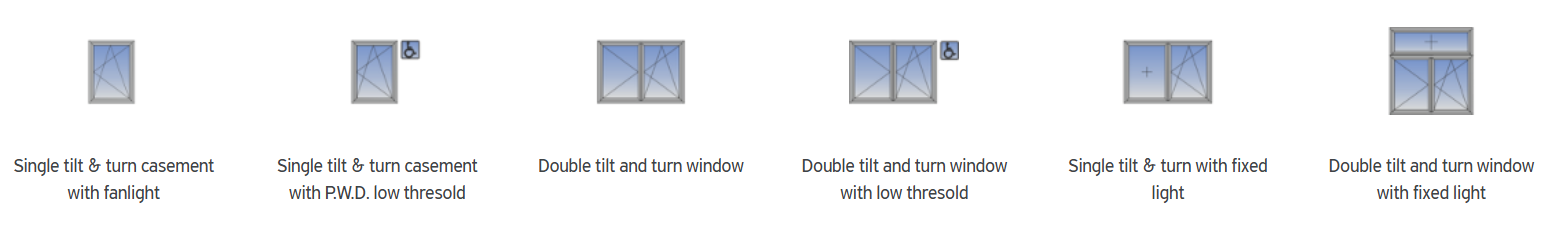

ALL AVAILABLE TYPOLOGIES
