Adjustable Aluminum Guardrail System. One rail. Infinite possibilities.
FlowRail is the first prefabricated aluminum guardrail system engineered to adjust in the field to every slope, curve, and corner the jobsite gives you.
As a permanent OSHA-compliant guardrail, FlowRail eliminates fitting catalogs, custom fabrication, and on-site welding — reducing installed cost, install time, and complexity.

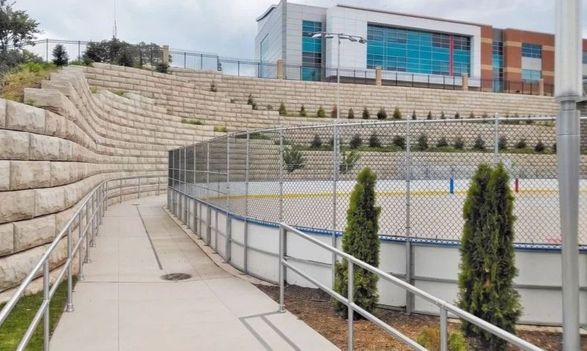

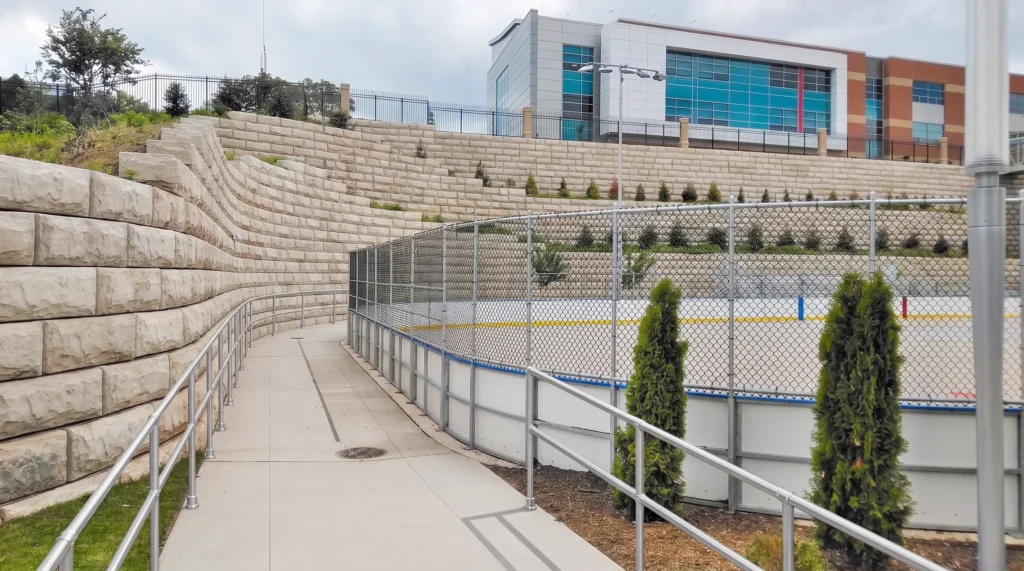

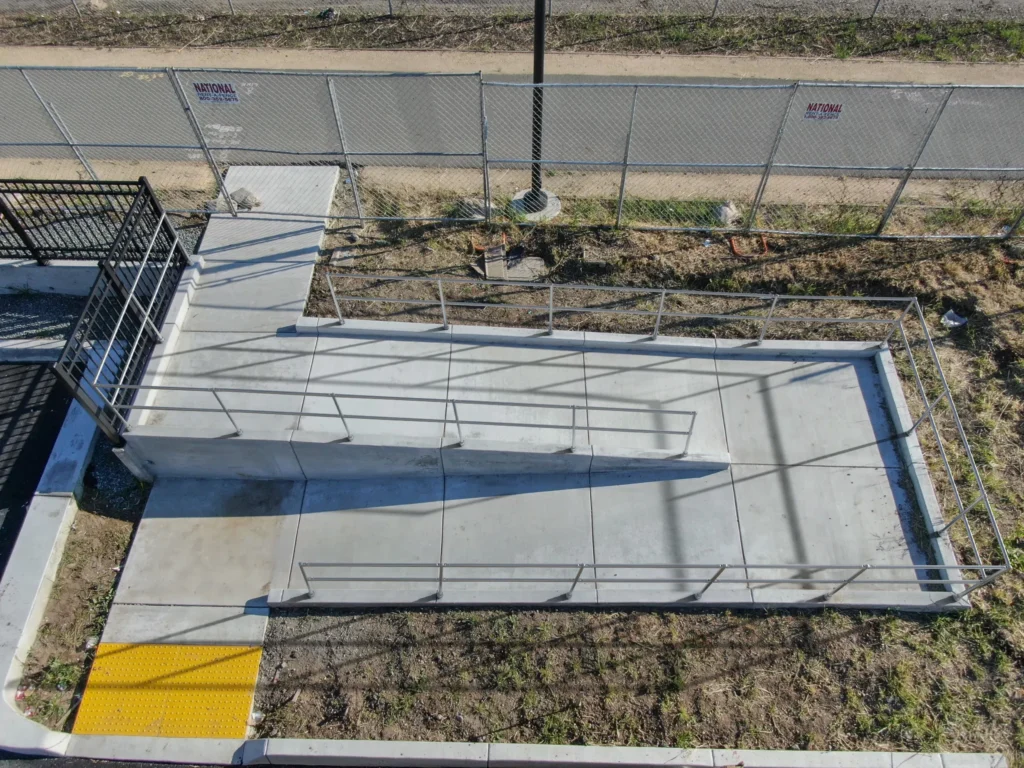

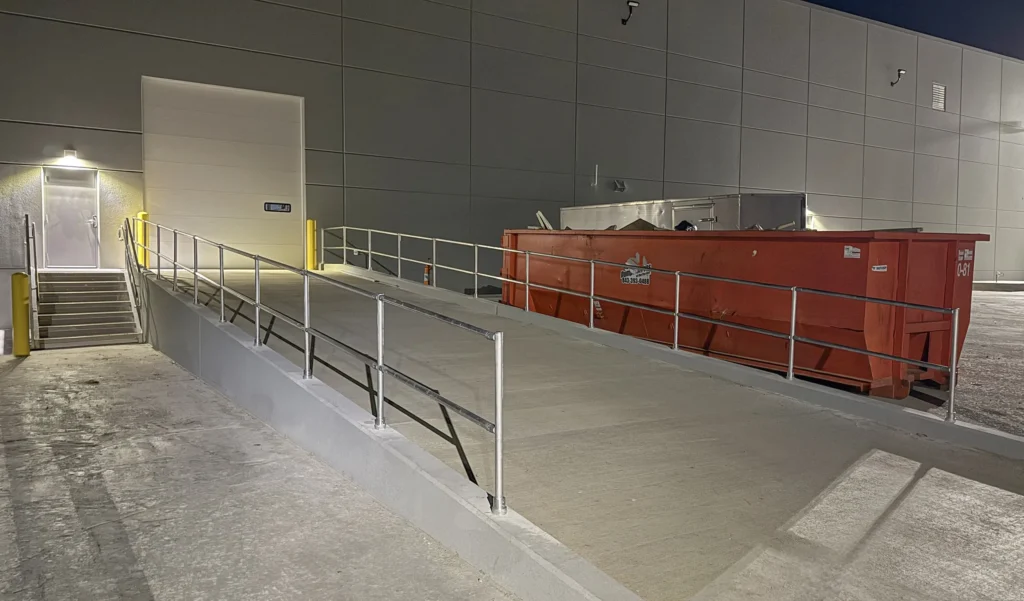

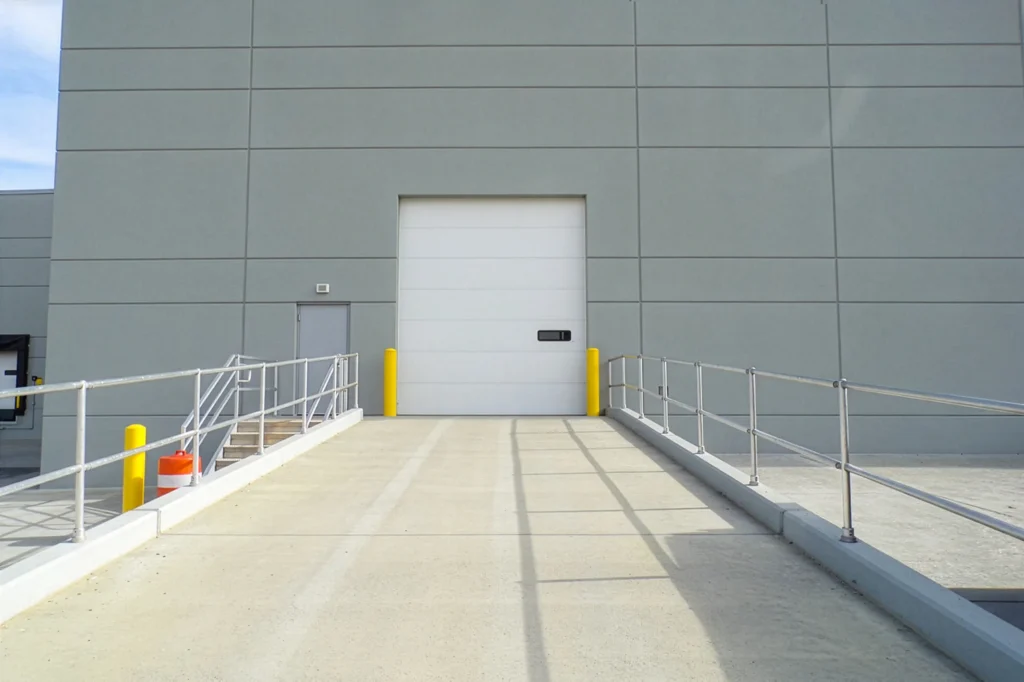

Whether it’s a loading ramp, elevated walkway, or mezzanine, our weather-resistant aluminum components bolt together and adjust on site to handle any slope from 0° to 20° and follow curves, corners, and switchbacks without splice castings or shop drawings.
FEATURES
BOLT-TOGETHER ASSEMBLY
Posts, rails, bases, and fasteners bolt together on site with standard hand tools. No welding, no hot-work permits, no certified welders required — and no production shutdowns.
SOLD BY THE LINEAR FOOT
Order by the linear foot — no detailed drawings, no fitting takeoffs, no anticipating every angle on the run. FlowRail ships as a complete kit with all the hardware you need and adjusts on site to match what’s actually in front of you.
POST CONNECTION SYSTEM
Self-adjusting top rail and mid rail trunnions connect to each post through slotted, laser-cut mounting positions. Multi-axis pivoting lets the rail follow curves, corners, switchbacks, and odd-angle conditions without custom fabrication. Tighten to lock — the connection stays exactly where you set it.
HPD/LEED/ESG
FlowRail’s aluminum construction is fully recyclable and contains post-industrial recycled content, contributing to LEED v4.1 credits and other green building rating systems.
CODE COMPLIANT
FlowRail complies with OSHA 1910.29 (general industry walking-working surfaces) and OSHA 1926.502 (construction fall protection) for permanent guardrail systems.
100% ALUMINUM — LONG LASTING
FlowRail is built from 6061 / 6063 industrial-grade aluminum in mill or powder-coated finish. It will never rust, warp, or rot. Low maintenance and durable, aluminum guardrail lasts much longer than steel — maximizing your ROI over the life of the installation.
EASY INSTALLATION & FIELD-FORGIVING DESIGN
FlowRail arrives as a prefabricated kit with all hardware included. Plumb the posts, drop the trunnions into the slotted connections, tighten, and move on. Basic hand tools, two-person crew, no on-site fabrication. When the as-built site doesn’t match the drawings, FlowRail adjusts on site to fit what’s actually there. Pivoting trunnions accommodate misalignment, uneven substrates, and unexpected grade changes without requiring rework or return trips.
SLOPE-ADJUSTABLE BASE — SLOPELOCK

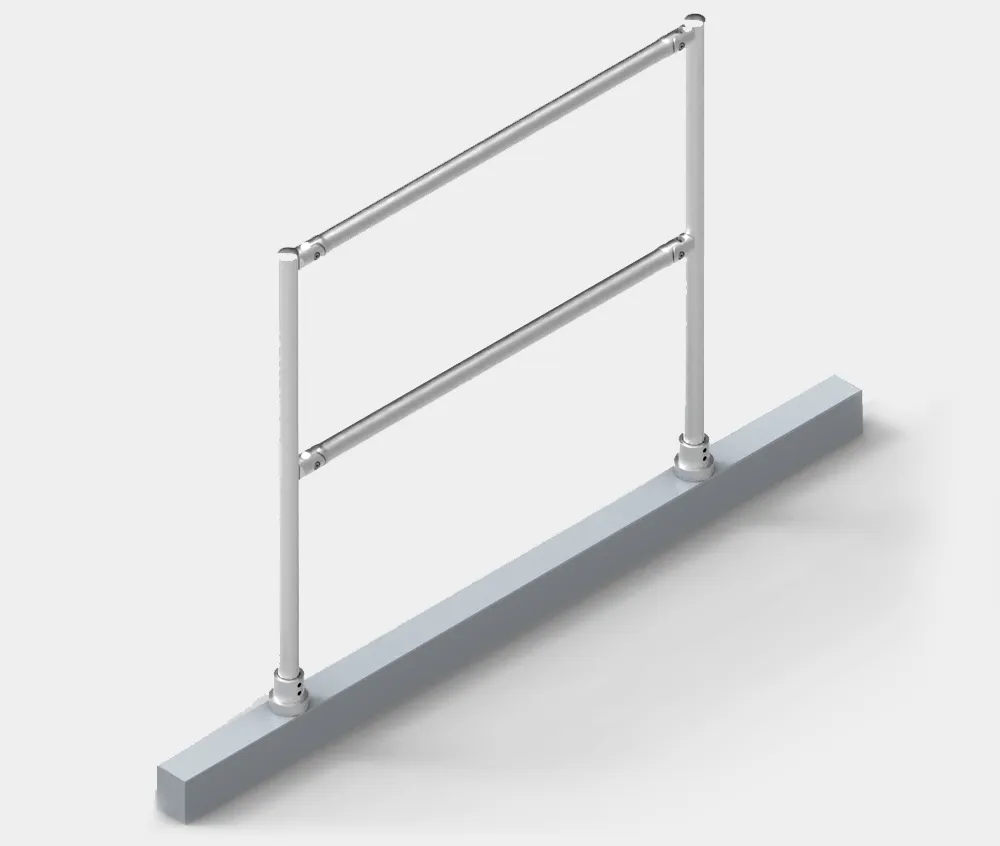

The top-mount base is the adjustable, slope-handling foundation of FlowRail. It bolts to the top surface of a ramp, platform, walkway, or deck and continuously adjusts from 0° to 20° to keep posts plumb on any slope — no shims, no field cuts.
MOUNTING OPTIONS
- Top mount : Adjustable trunnion base for ramps, decks, and platforms
- Side mount : Cast aluminum base for vertical concrete or metal substrates
INFORMATION
BRAND
Upside Innovations
PRODUCT TYPE
Extruded Rail
PRODUCTION
Made in USA
IN STOCK, READY TO SHIP
Proudly designed and manufactured in West Chester, Ohio, United States.
FIELD ADJUSTABLE
Pivoting connections that follow slopes, curves, corners, and switchbacks.
MOUNTING OPTIONS
Top-mount or side-mount for vertical concrete or metal substrates.
ALWAYS OSHA COMPLIANT
Meets OSHA 1910.29 and 1926.502 for permanent guardrail systems.
LONG LASTING
6061 / 6063 aluminum. Mill or powder-coated. Won’t rust, warp, or rot.
EASY INSTALLATION
Bolts together. No field welding or on-site fabrication.
DOWNLOAD
↓ FlowRail Resources
FIELD-FORGIVING
Slot-and-trunnion connections adjust on site and lock when tightened.
EASY TO ORDER
Sold by the linear foot to your plan. Ships with all the hardware you need.
PRODUCT RESOURCES
- BIM/CAD Files
- Specifications (CSI Spec)
- Elevation/Plan Views
- Environmental/LEED/HPD
- Product Info & Tech Specs
COMMERCIAL AND INDUSTRIAL GUARDRAIL
Our FlowRail Adjustable Aluminum Guardrail System is prefabricated and ready to install. The industrial-grade lightweight aluminum components bolt together and adjust on site, allowing the rail to follow every slope, curve, and corner the jobsite gives you. This eliminates fitting catalogs, custom fabrication, welding, and time-consuming engineering while reducing costs, installation time, and complexity.
