PATHWAY® 3G MODULAR ACCESS SYSTEM RAMPS
PATHWAY® 3G MODULAR ACCESS SYSTEM RAMPS
The PATHWAY® 3G Modular Access System is a complete, American-made aluminum ramp solution for enhanced home accessibility.
Safer, faster, and more versatile than custom-built wooden ramps, it requires virtually no maintenance due to its rust- and decay-resistant, lightweight, and durable aluminum construction.
The modular design ensures easy assembly and reconfiguration to fit your home’s layout, blending functionality with aesthetic appeal for long-lasting performance and unmatched flexibility.
FEATURES

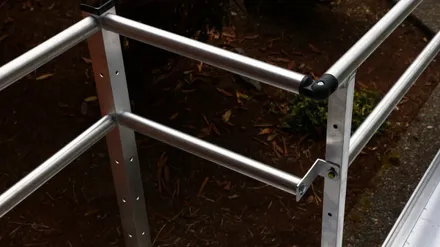

PREMIUM HANDRAILS

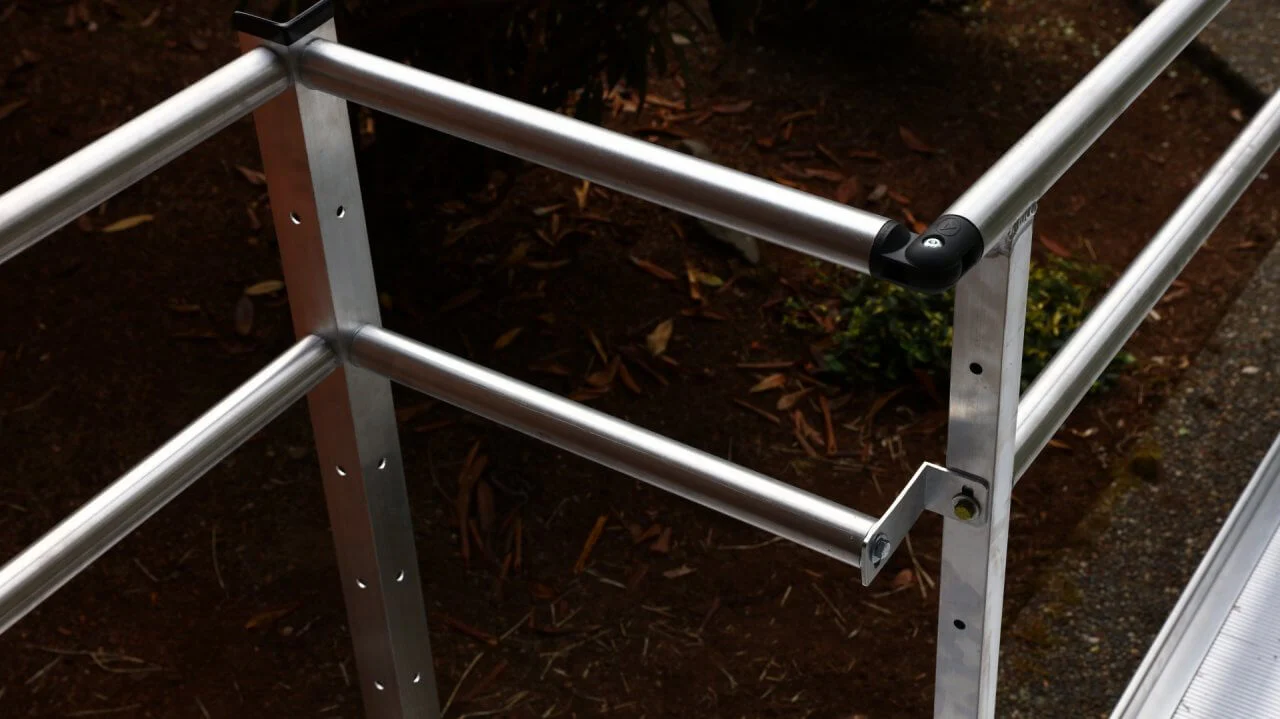

PATHWAY 3G Kits feature two-line handrails, which are made of aluminum and feature a durable finish. The lower rail provides an additional gripping surface below the continuous top rail, making it the ideal solution for those in wheelchairs who prefer pulling up a ramp instead of propelling.
HASSLE-FREE DESIGN
The ramp system will not impact your home's property value because it does not alter or add to the structure of the residence - no poured footers, no construction - just simple assembly. While considered a semi-permanent ramp, the PATHWAY 3G can be easily disassembled if the need arises.

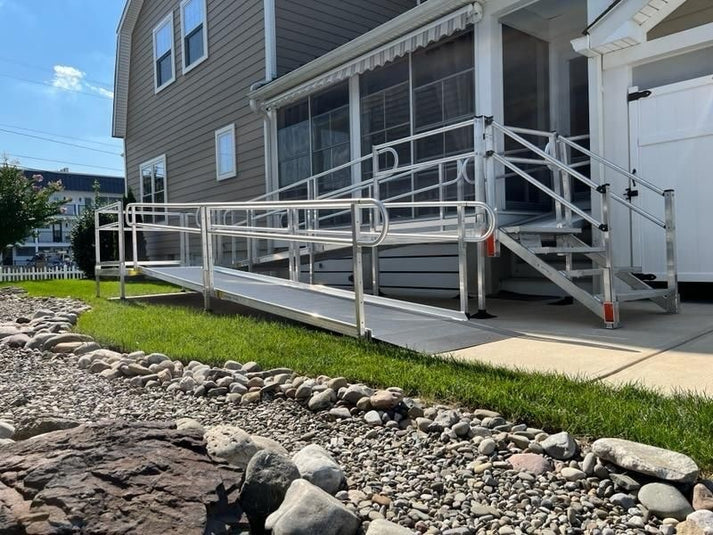

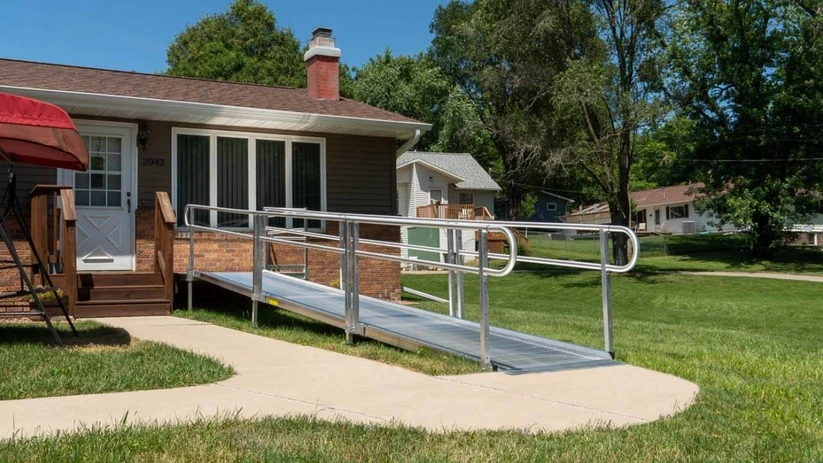

VERSATILE CONFIGURATIONS

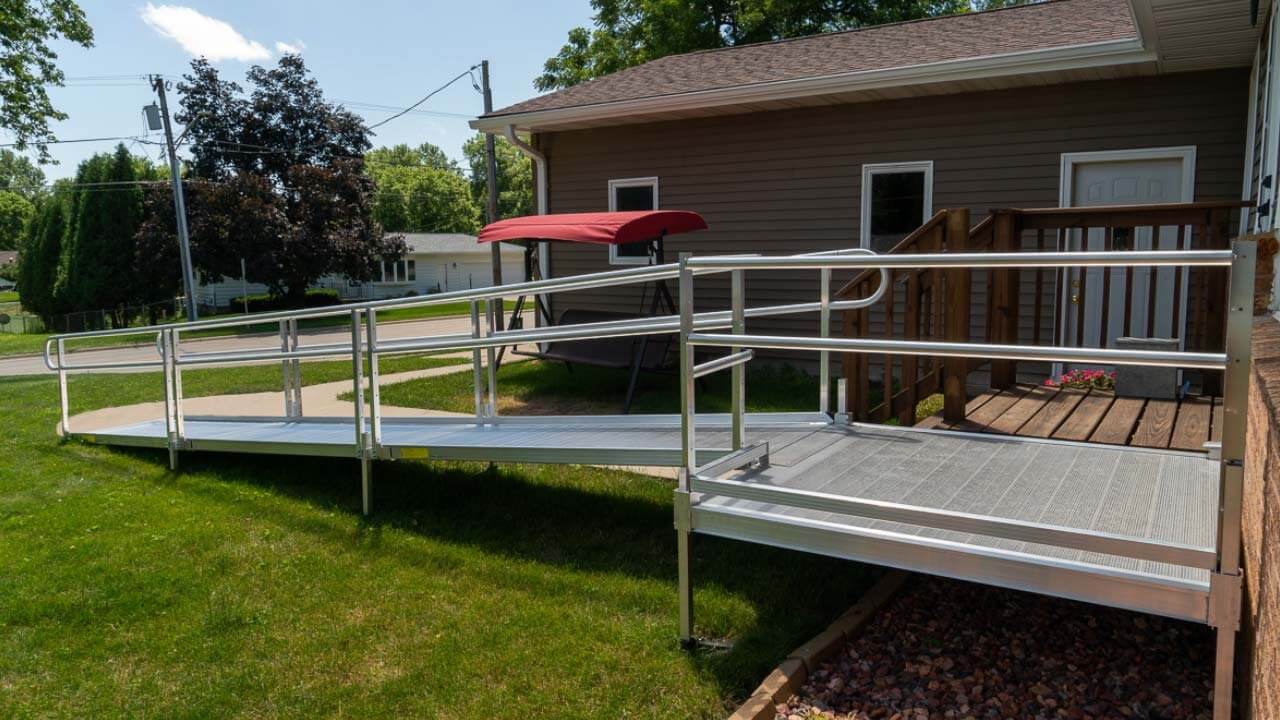

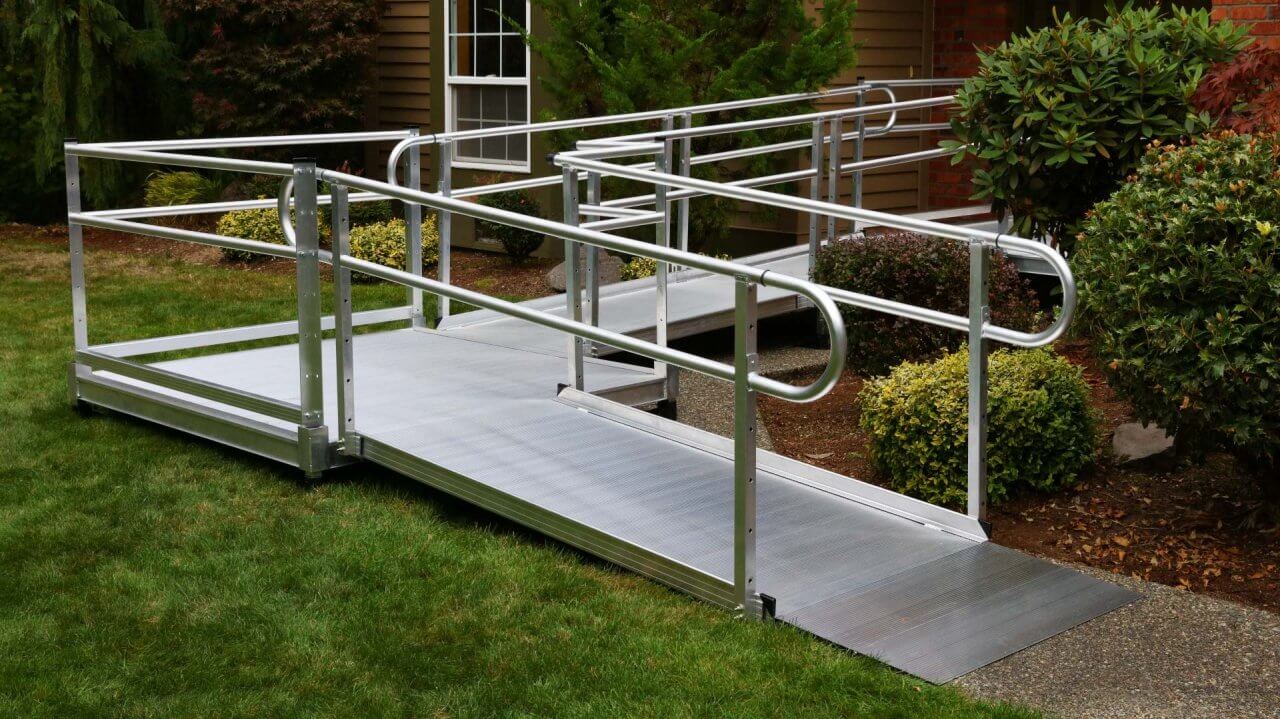

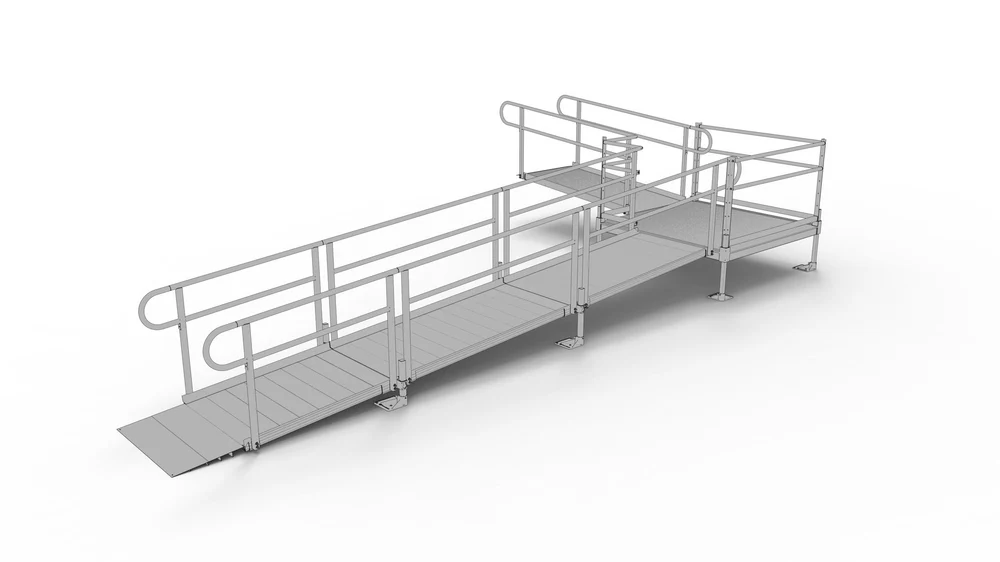

The PATHWAY 3G Modular Access System Kit offers versatile configurations tailored for homeowners seeking a customizable accessibility solution that balances flexibility with ease of assembly. Available in multiple layouts, including straight, L-shaped, and U-shaped configurations, these kits allow users to create pathways that suit their home’s unique entryway requirements.
ADAPTABLE FOR LIFE’S CHANGES
This DIY wheelchair ramp kit is designed to adapt to evolving accessibility needs, offering a flexible, modular solution that can be reconfigured to accommodate changes in mobility or home layout. Crafted from lightweight, durable aluminum, the kit’s ramps and platforms can be easily rearranged, and its non-invasive design allows for disassembly and relocation, making it an ideal, cost-effective choice for users seeking a long-term mobility ramp solution.
DURABLE AND SAFE

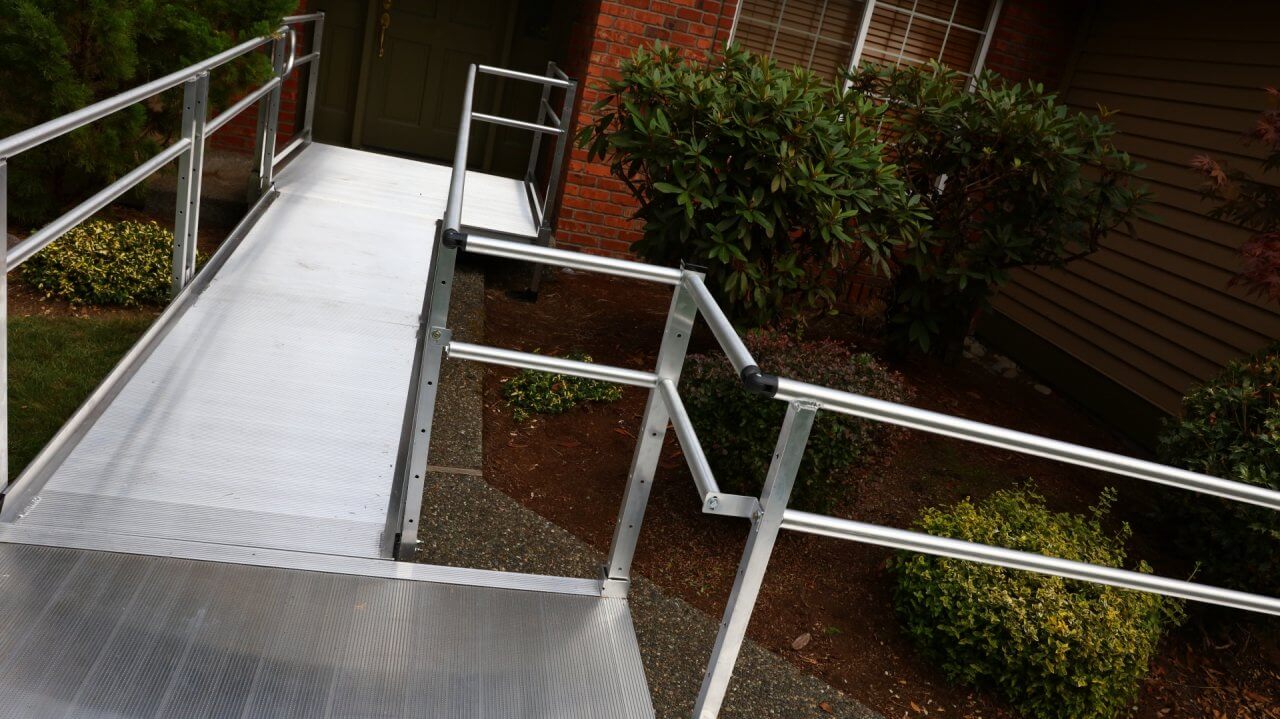

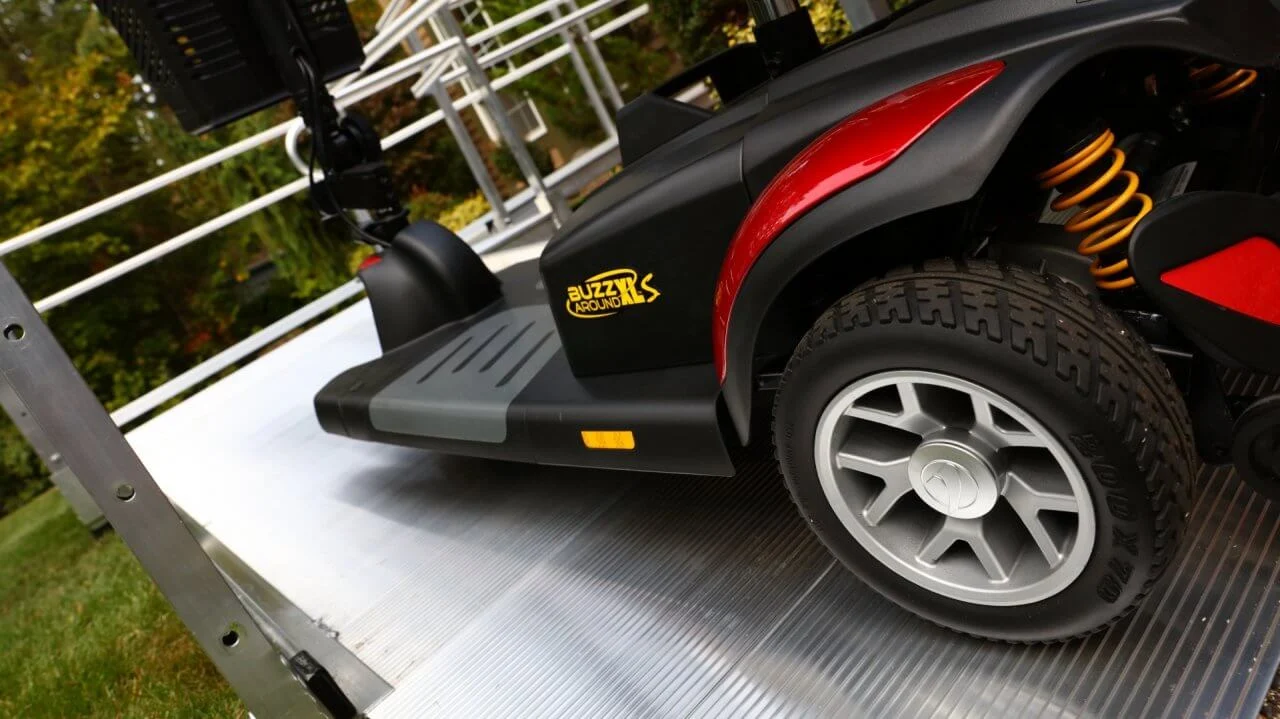

Modular wheelchair ramps for homes need to withstand frequent use as well as climate and weather events. The PATHWAY 3G is made of high-strength aluminum, which will not deteriorate in the outdoor elements, and features an extruded tread with raised ribs that ensures exceptional slip resistance in any weather.

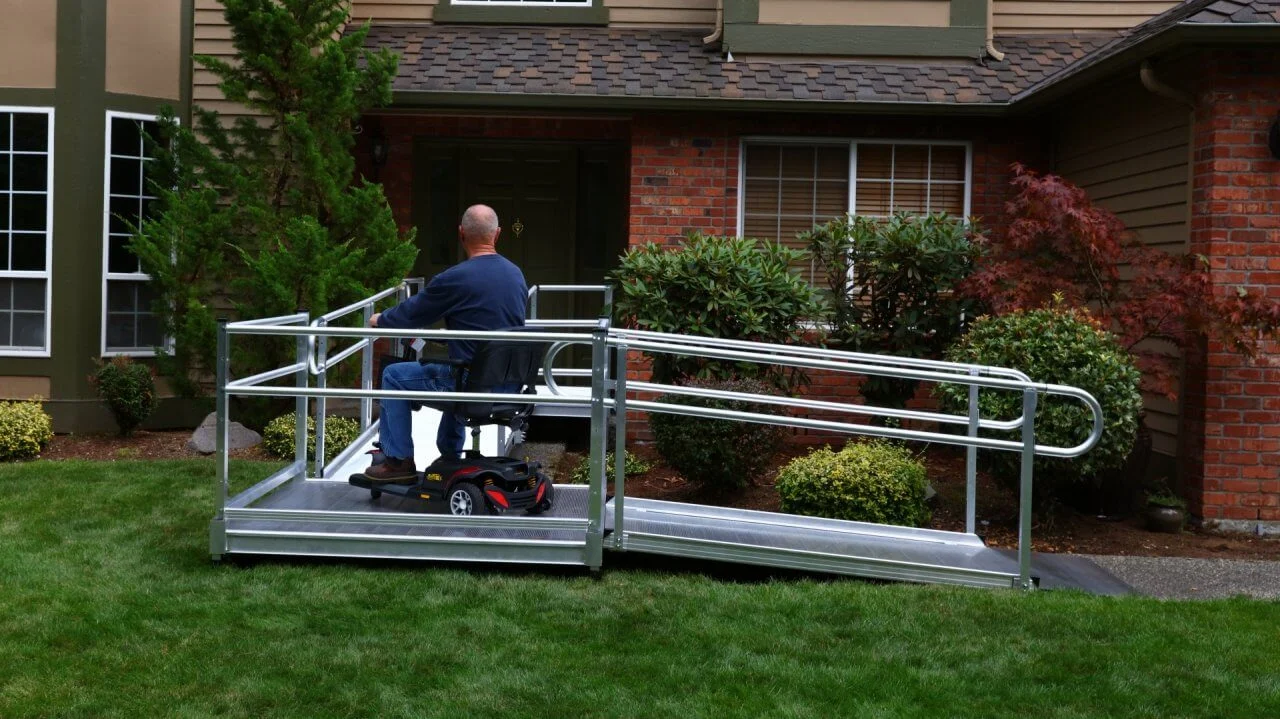

Even the weight of a motorized wheelchair won't be a problem. The sides are finished and flush with no hazardous nuts or bolts protruding into the usable ramp area, to avoid catching on anything as you pass by. Each ramp is carefully crafted and inspected in our manufacturing facilities here in the United States to ensure every inch is safe and sturdy.
INFORMATION
BRAND
EZ Access
PRODUCT TYPE
Ramps
MATERIAL
Made Of Aluminum
COUNTRY OF ORIGIN
USA
QUICK AND EFFICIENT INSTALLATION
The PATHWAY 3G installs quickly, which means minimal disruption for you and your family. Typically, a wheelchair ramp kit can be set up and ready to use the same day that it arrives. Since our ramp systems are prefabricated and do not require concrete footers, the tool requirements for installation are minimal.
WARRANTY
Lifetime Limited
SLIP-RESISTANT SURFACE
Yes
WEIGHT CAPACITY (DO NOT EXCEED)
1.000 lbs.
BUILD YOUR SYSTEM
A custom-fit solution that is quoted by our product experts to ensure the right system is configured for your project.
- Expert Support & Guidance
- Maximum Safety & Compliance
- Perfect Fit, Custom Configurations
BASE FOOT
- Made of polymer : Yes
- Overall dimensions :
7.875" x 7.875"
ALUMINUM ADVANTAGE
The PATHWAY 3G is virtually maintenance-free—it will not rust or rot and is constructed from an environmentally friendly material. Aluminum's sturdiness and aversion to decay provide peace of mind that the ramp is secure. While wood becomes easily discolored over time, aluminum maintains a consistent appearance. Beyond an occasional rinse to remove mud or debris, the aluminum requires no sealing or other significant maintenance. Aluminum is both lightweight and durable, providing low-effort installation and a long lifespan.
TECHNICAL DATA
GROUND TRANSITION, GROUND TRANSITION & BRIDGE PLATE
| DATA | GROUND TRANSITION | GROUND TRANSITION | BRIDGE PLATE |
|---|---|---|---|
| Made of aluminum | Yes | Yes | Yes |
| Slip-resistant surface | Yes | Yes | Yes |
| Usable dimensions (l x w) | 18" x 35.375" | 3.5" x 35.375" | 8" x 35.375" |
| Overall dimensions (l x w) | 18" x 35.375" | 3.5" x 35.375" | 8" x 35.375" |
LANDING DATA
| DATA | LANDING PAD W/O LOWER TRANSITION | LOWER TRANSITION | LANDING PAD W/LOWER TRANSITION STRAIGHT CONFIGURATION | LANDING PAD W/LOWER TRANSITION TURN CONFIGURATION |
|---|---|---|---|---|
| Made of aluminum | Yes | Yes | Yes | Yes |
| Slip-resistant surface | Yes | Yes | Yes | Yes |
| Usable dimensions (l x w) | 53.25" x 54.5" | 6" x 35.375" | 59.48" x 54.375" | 53.25" x 60.17" |
| Overall dimensions (l x w) | 53.25" x 54.5" | 6" x 35.375" | 59.48" x 54.375" | 53.25" x 60.17" |
SPECIFICATION
| DATA | 4' RAMP | 6' RAMP | 4' x 4' PLATFORM W/ 4' HANDRAILS | 5' x 5' PLATFORM W/ 5' HANDRAILS |
|---|---|---|---|---|
| Usable dimensions (l x w) | 4' x 36" | 6' x 36" | 48" x 48" | 60" x 60" |
| Overall dimensions (l x w) | 4' x 40.1875" | 6' x 40.1875" | 53.5" x 53.5" | 65.5" x 65.5" |
| Overall dimensions – including BASE feet (l x w) | 4' x 41.1875" | 6' x 41.1875" | 53.75" x 53.75" | 65.75" x 65.75" |
| Side rail curb height | 2" | 2" | Platform handrails include 1.5" x 2" curb | Platform handrails include 1.5" x 2" curb |
| Upper handrail height | 34.5" | 34.5" | 34.5" | 34.5" |
| Lower handrail height | 24" | 24" | 24" | 24" |
| Handrail diameter | 1.5" | 1.5" | 1.5" | 1.5" |
| Weight w/o handrails | 29.2 lbs. | 42.3 lbs. | 57.2 lbs. | 71.9 lbs. |
| Weight w/handrails | 45.2 lbs. | 61.8 lbs. | 73.3 lbs. | 95.5 lbs. |
