CARMIX DUMPER D6 EVO
CARMIX DUMPER D6 EVO

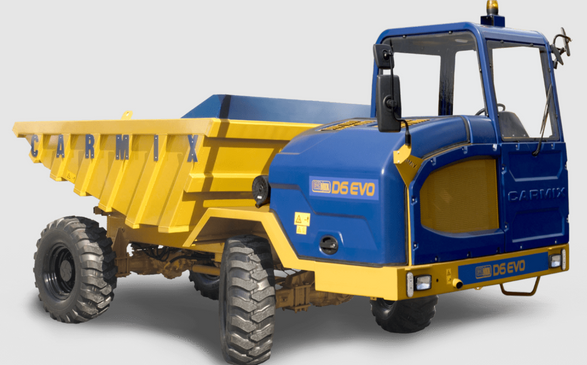

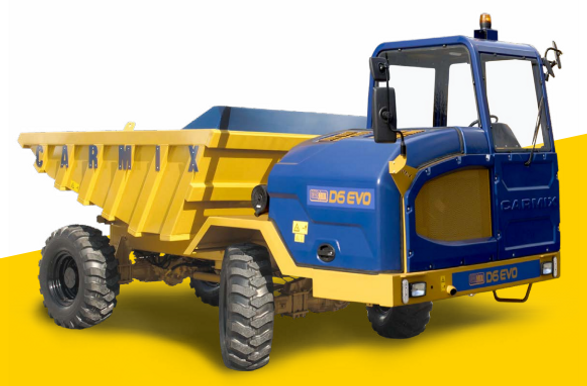

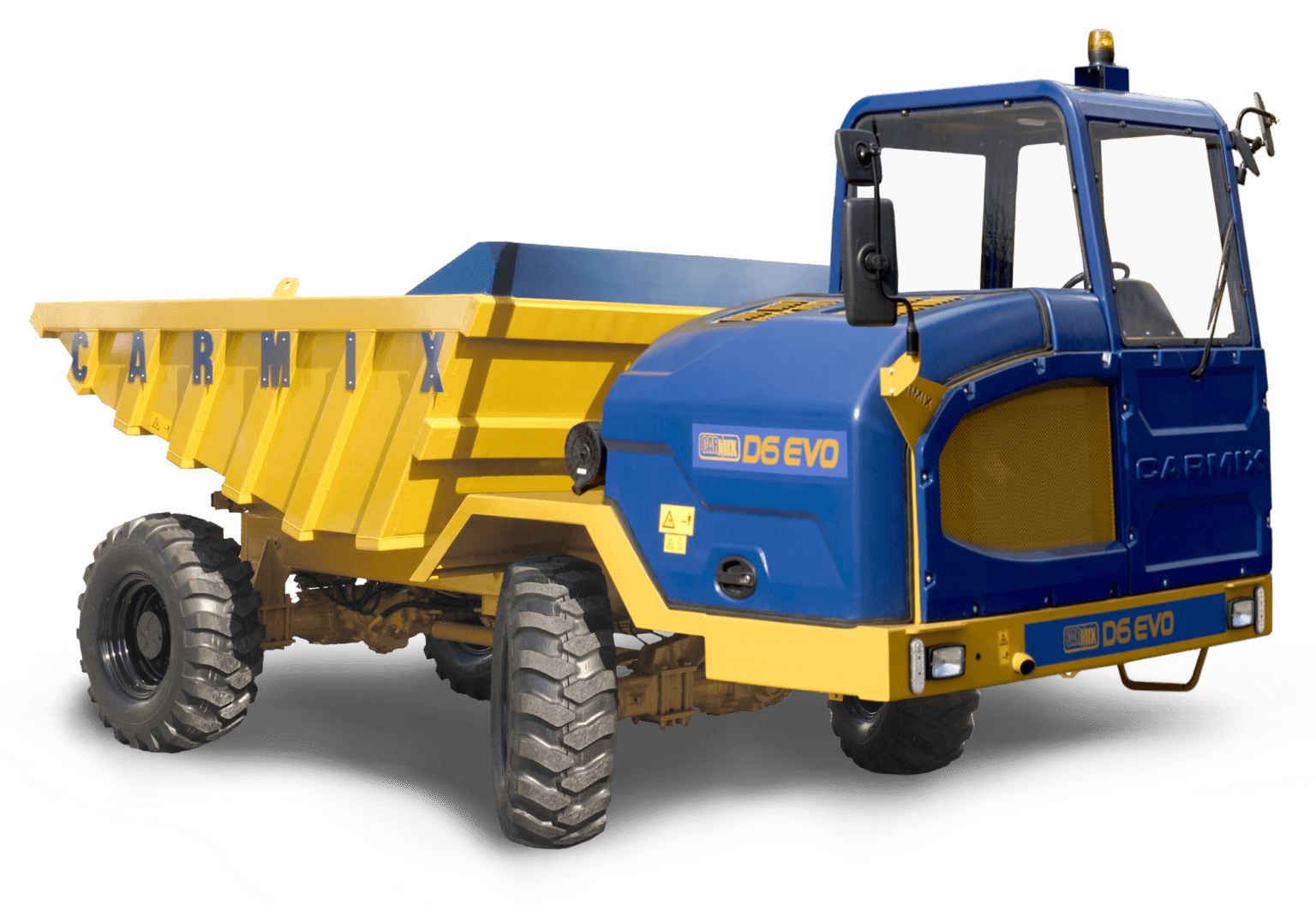

Concrete dumper 4×4 with 4,500 litres level and 6,000 litres full, equipped with rock-type bin with 2 cylinder hydraulic dump box, operating speed from 0 to 12 km/h, road transfer speed from 0 to 25 km/h.
INFORMATION
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
SKIP
Heavy duty rock type. Hydraulic tilting with 2 cylinders.
AXLES
Dana Spicer with oil bath disc brakes and planetary reducers.
SIZE
- Length : 5478 mm
- Height (bucket lifted) :
4042 mm
- Height (bucket lowered) :
2969 mm
PRODUCTION
Made in Italy
ACCESSORIES
Spare wheel
LOADING CAPACITY
- Struck : 4500 liters
- Payload : 10000 kg
- Heaped : 6000 liters
WEIGHT
Empty: 5.800 kg equally distributed on both axles.
SPEED
Working speed from 0 to 9 km/h. Road transfer from 0 to 25 km/h.
DOWNLOAD
↓ Data Sheet
GRADIENT
Fully loaded 30%.
AVAILABLE ENGINES
- Perkins Stage V - Tier 4F 904J-E36TA Turbo-diesel, 55,4 Kw (74 Hp)
- Perkins Stage III - Tier 3A 1104D-44TA Turbo-diesel, 4 cylinders, 62,5 kW (84 HP)
TRANSMISSION
Fully hydrostatic Bosch rexroth with electric inverter.Gear box with mechanic control, two speeds. 4 wheel drive and steering.
BRAKES
Oil bath disc brakes on 4 wheels. Hydraulic parking brake negative on rear axle manually operated.
CABIN
Closed cab rops fops (ISO 20474-1-6) complete with air conditioning and front camera. Reversible driving seat 180° with automatic inversion of hydraulic steering circuit. Rear and front camera.
HYDRAULIC SYSTEM
2 indipendent circuits, variable outlet pump for hydrostatic transmission and hydraulic pump for services. Heat exchanger water-oil-air/air type.

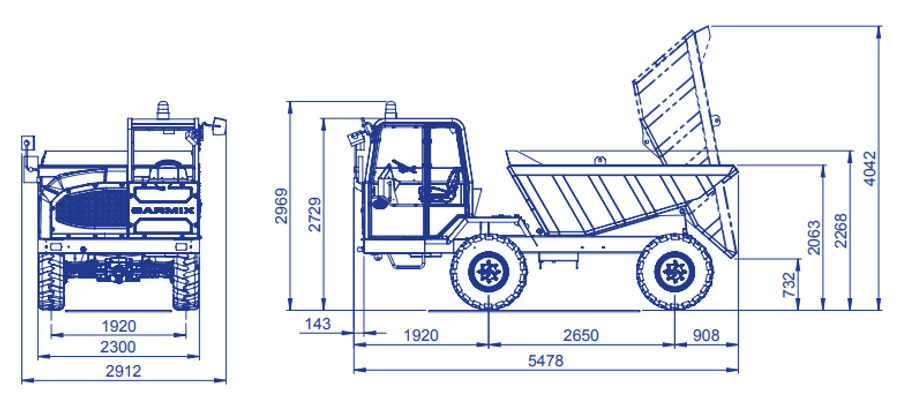

TECHNICAL DRAWING
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator.
STEERING
Hydrostatic, “load sensing“ type 3 way steering. Radius: internal 2000 mm. external 3700 mm.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
OPERATIONS
The Dumper mixer D6 guarantees maximum safety of the operator and is engineered for off-road operations.
ELECTRIC SYSTEM
12 volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS CAPACITY
- Diesel : 115 liters
- Hydraulic oil : 80 liters
TYRES
Off road industrial type 16/70-20 14 PR.
TELAIO
Steel profile specially enginereed for off-road operations.
