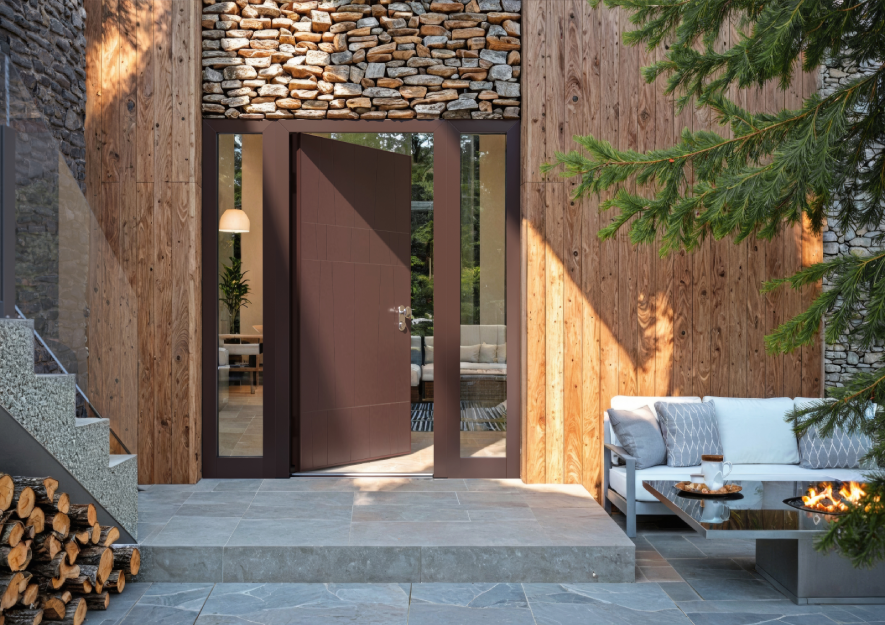

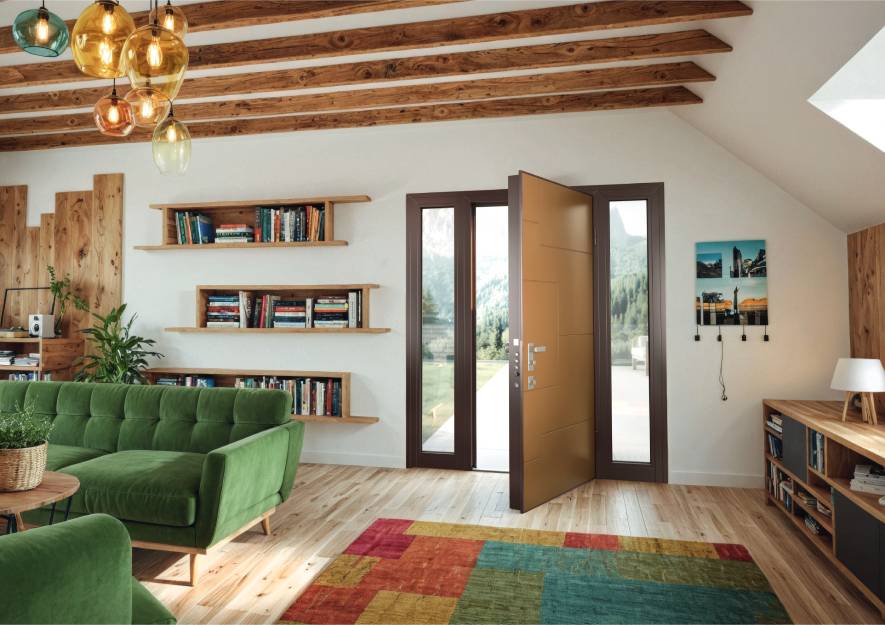

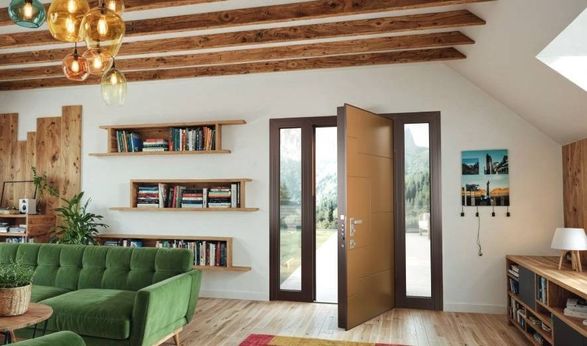

MITE DOOR
MITE DOOR
The security door with the best performing thermal insulation rate
Mite is the latest model of security door produced by Di.Bi. It stands out for his high performance in terms of thermal insulation, with the achievement of a rate of 1,05 W/m²K .
INFORMATION
BRAND
Dibi
PRODUCT TYPE
Door
ALUMINIUM FRAME
The door has been designed with a special aluminium frame with thermal break and the door structure is equipped with specific filling material for thermal insulation
RESISTANCE TO WIND LOAD
Class 5
COLLECTION
Mite
ACOUSTIC INSULATION
36 dB
THERMAL INSULATION
1.05 W/m²K
INSTALLATION SOLUTIONS
DIMENSIONS (DOUBLE LEAF WITH SYMMETRIC LEAVES)
- Width : 100 to 200 cm
- Main leaf Width : max 100 cm
- Height : 190 to 230 cm (di 1 cm in 1 cm)
DIMENSIONS (DOUBLE LEAF WITH ASYMMETRIC LEAVES)
- Width : 100 to 140 cm
- Main leaf Width : max 100 cm
- Height : 190 to 230 cm (steps of cm 1)
DIMENSION (SINGLE LEAF)
- Width : 70 to 100 cm
- Height : 190 to 230 cm (steps of cm 1)
OPENING
Push opening
ANTI-INTRUSION
Class 3
WATERTIGHTNESS
Class 9
AIR PERMEABILITY
Class 4

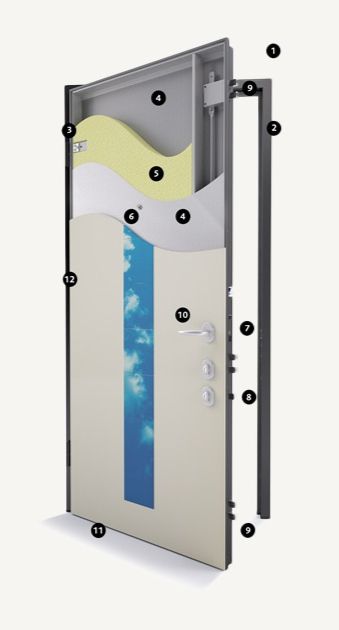

TECHNICAL FEATURES

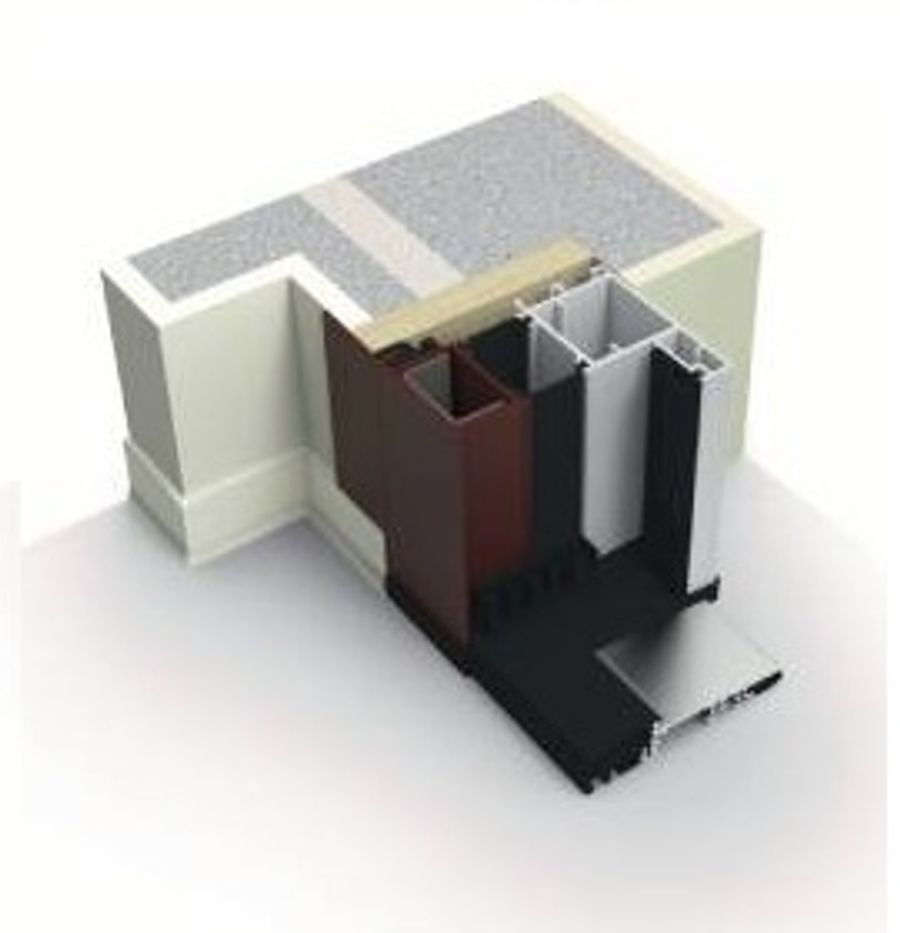

-1. Box-shaped aluminium frame with thermal break (P100 Ponzio Model), complete with plastic covers, gasket and footers.
-2. Adjustable hinges on 3 axes with hinge covers of the frame colour
-3. Doorleaf made of two galvanized steel sheets. Double gasket in the perimeter of the leaf
-4. Thermal insulation with high density polyurethane, polystyrene insulation and soundproofing rubber.
-5. Security locking system with master core + core with European cylinder with 5 user keys equipped with drill-proof manganese cover. Opening limiter and inside service lock.
-6. Lateral deadbolt
-7. Weatherstrip bar or bottom rebate of the door threshold
-8. 5 fixed deadbolts on the hinge side

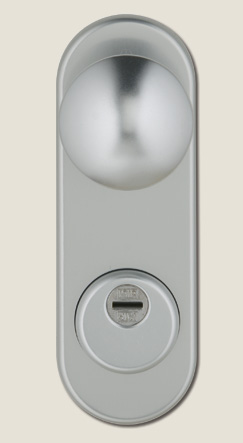

-9. Handle set in aluminium silver colour (inside handle + outside fixed knob. Upon request, outside turning konb or inside+outside handle).
-10. Wide-angle peephole
ALL ACCESSORIES
- Magnetic defender Key Protector -Electric remote opening device -Profil Poker -Mechatronic lock bBLOCK
LOCKING SYSTEM
LOCKING SYSTEM WITH EUROPEAN CYLINDER 1+5

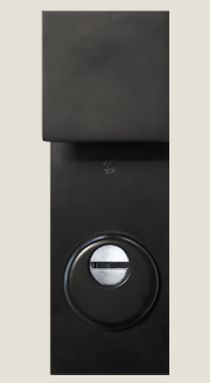

European cylinder locking system with 1 red master key + 5 black keys (1 master key for each cylinder) with card for key duplication. The lock is equipped with a service lock inside and it is protected inside by a hardened steel drill-proof plate. Outside, patented Rolly magnetic defender, drill-proof, dust-proof, with tear-proof base.
ELECTROMECANICAL LOCK MOTTURA XNOVA
Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range.

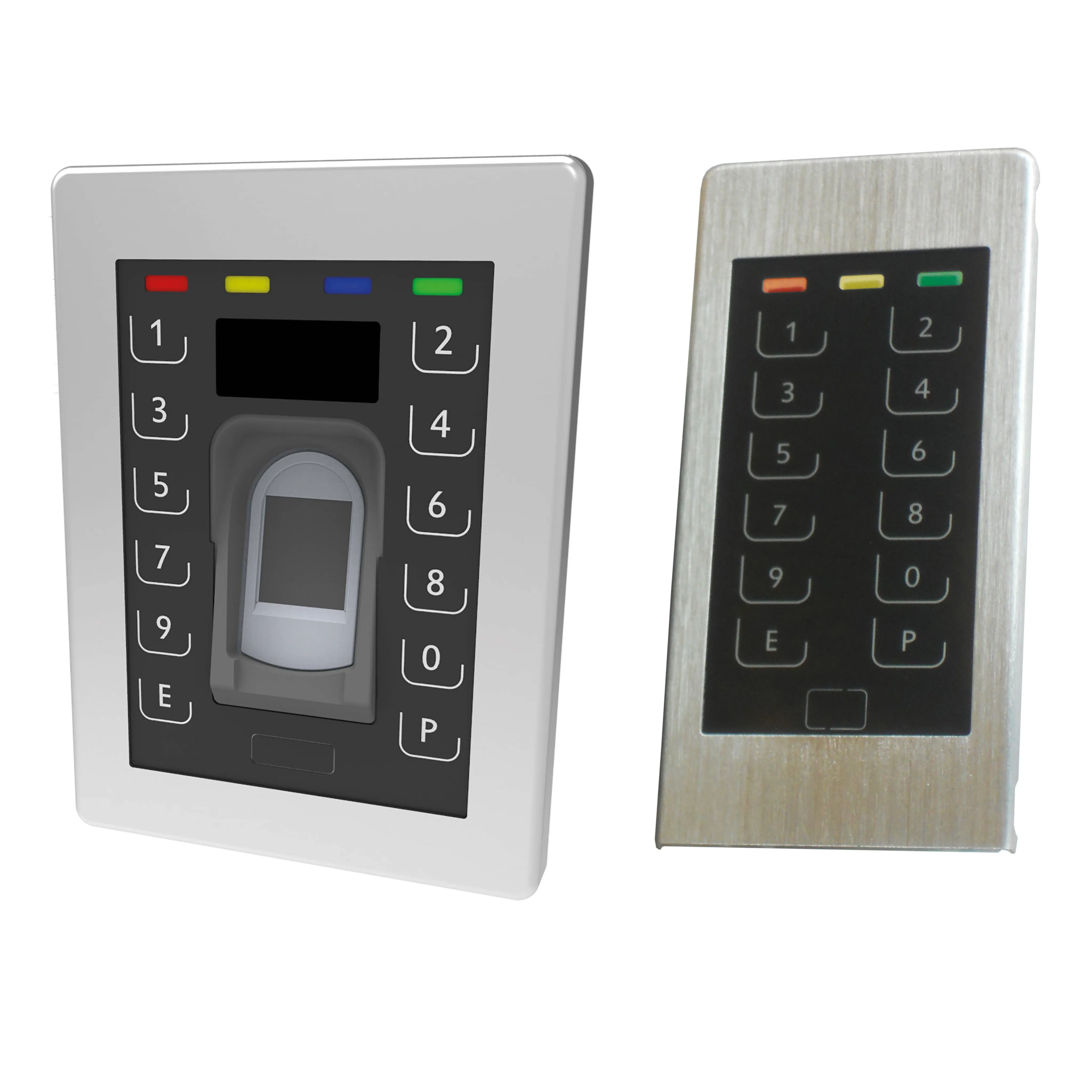

The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.
TOP SECURITY EUROPEAN CYLINDER EVVA 3KS
3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force.
The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.
HIGH SECURITY EUROPEAN CYLINDER EVVA ICS
ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection.
It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

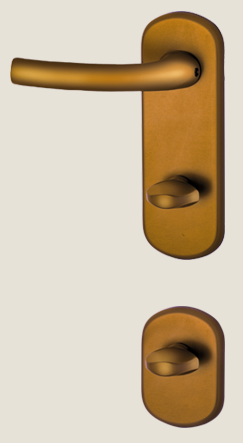

HANDLES
ALL HANDLES

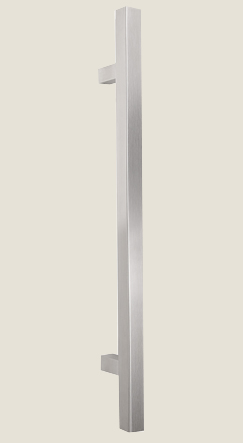

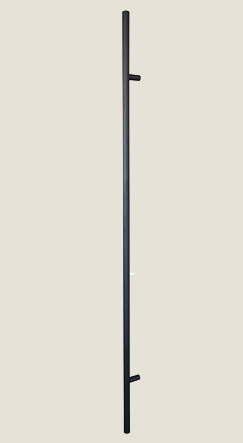

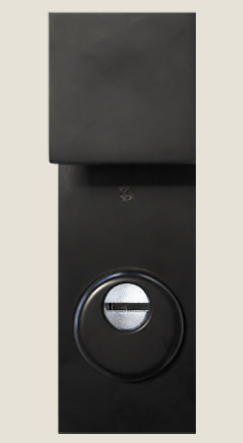

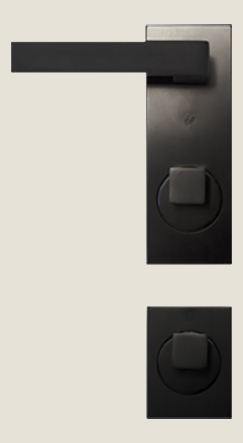

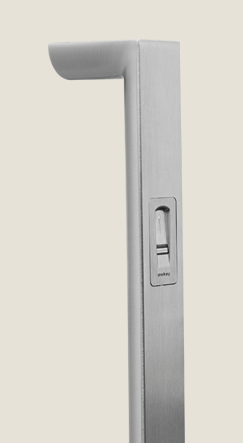

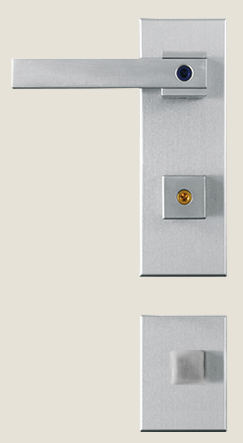

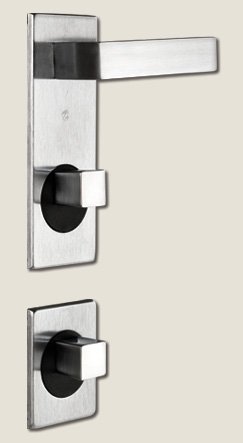

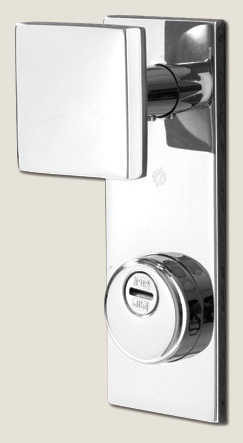

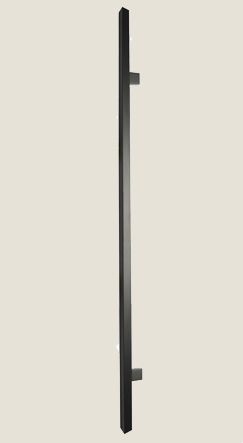

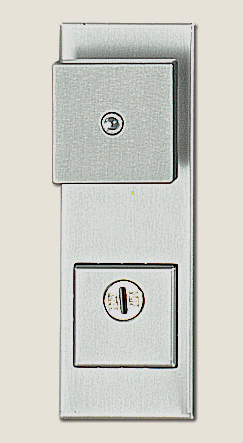

-Longhandle with fingerprint reader by E-Key -Inside black squared handle -External squared black knob -Handle kit DibiDoku -Dibidoku knob -Handle kit Poker -Poker knob -Handle kit Quadrata -Squared knob -Long Handle -Squared longhandle in stainless steel -Round black longhandle -Squared black longhandle
