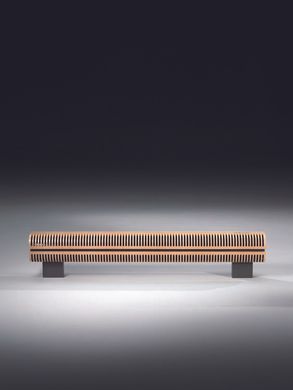

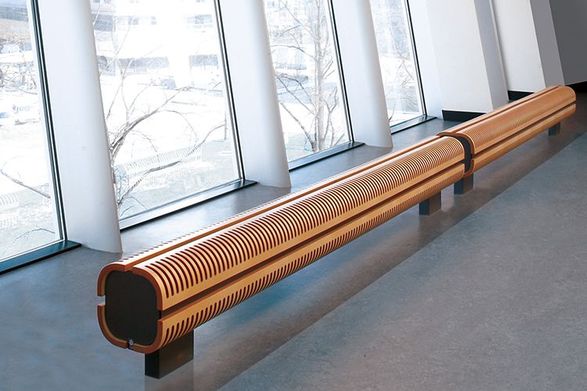

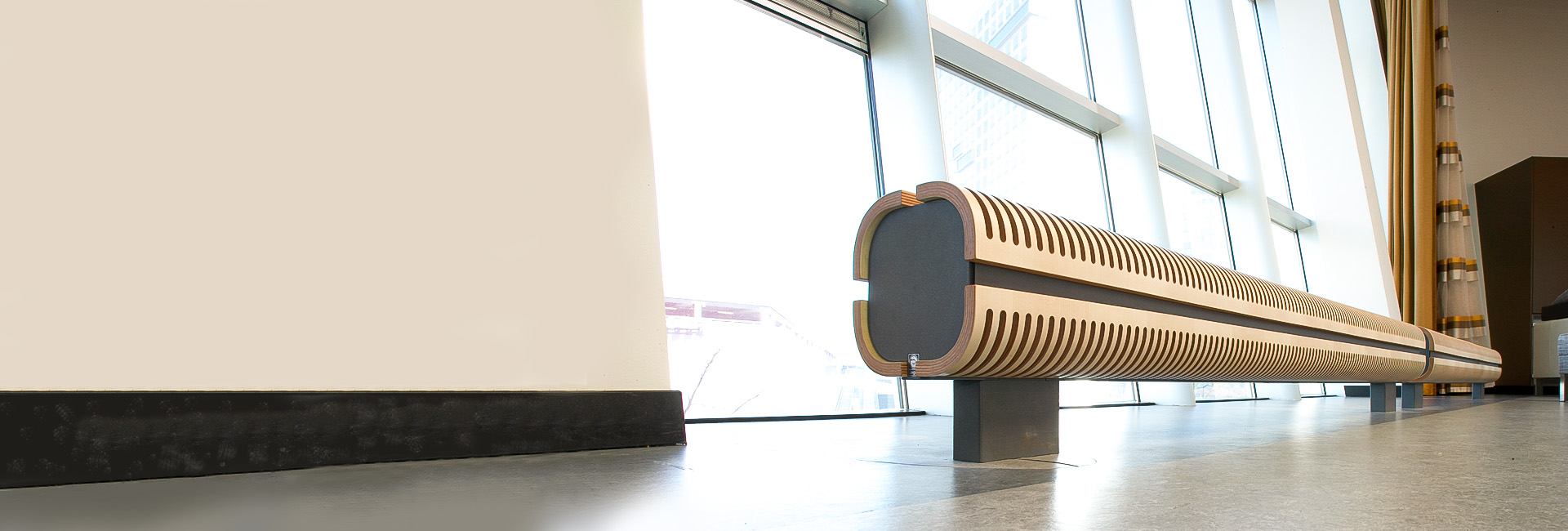

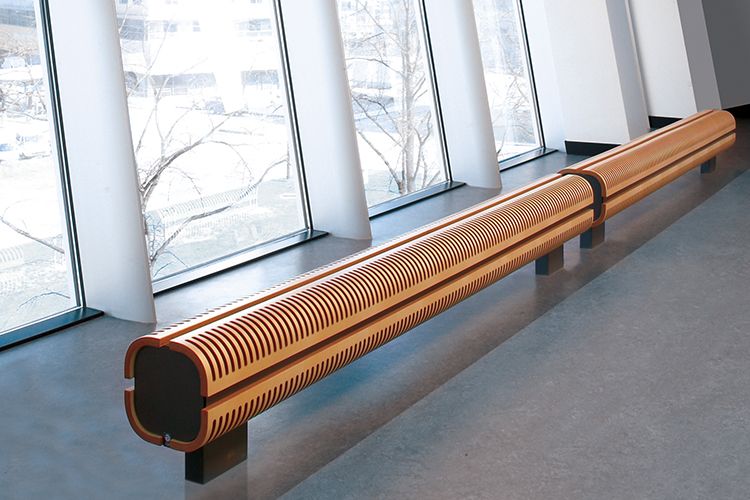

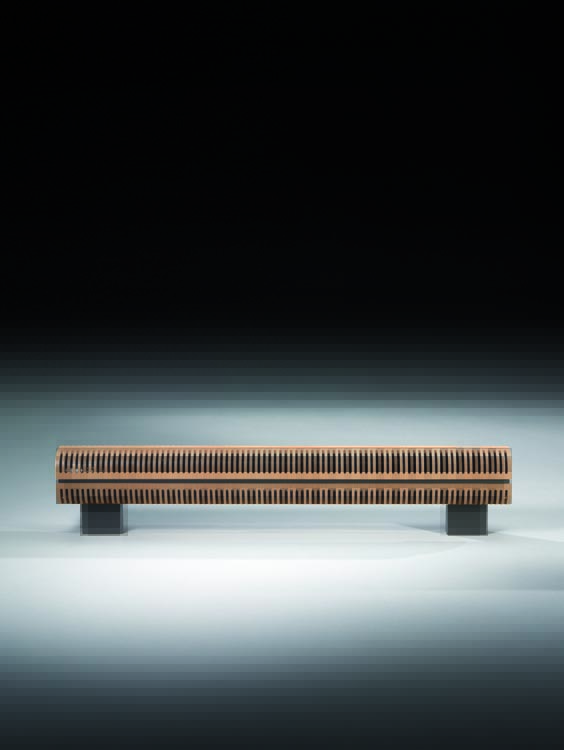

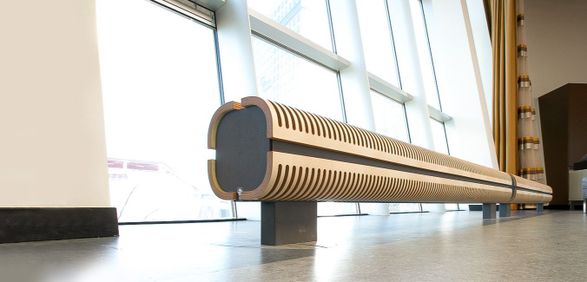

Jaga Knockonwood Freestanding Dbe Radiator
KNOCKONWOOD FREESTANDING DBE RADIATOR
KNOCKONWOOD FREESTANDING DBE RADIATOR
Developed for the house of the future, "Living Tomorrow", in Vilvoorde-Belgium.
INFORMATION
BRAND
Jaga
PRODUCT TYPE
Radiator

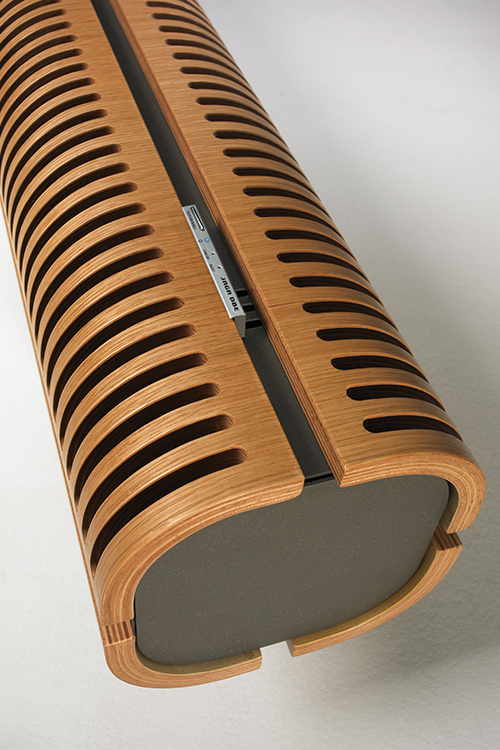

CURVED WOODEN SHELL
Casing with curved wooden shell finished in high-grade veneer in 9 wood finishes.
HEAT EXCHANGER
Heat exchanger electrostatically lacquered with anthracite grey epoxy-polyester RAL 7024, gloss degree 70%. Sides and chassis in the colour sandblast grey metallic lacquered.
USE
Heating
COLLECTION
Knockonwood
TECHNOLOGY
Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
STANDARD & WOOD FINISHES
- 700 / Oak Natural
- 740 / Zebrano Natural
- 720 / Beech Natural
- 760 / Maple Natural
STANDARD DELIVERY
- Fixed feet : 12cm
- Low-H2O heat exchanger type 15
- Angled air vent 1/8" and drain plug 1/2"
- Pre-assembled DBE set with control, and 12 VDC power supply
- Curved plywood casing with a high-grade veneer, satin-matte finish
- One-piece, fully assembled radiator, easy-to-open side to regulate the temperature
- Jaga valve and thermostatic head, can be connected to the left or right in the foot
- Feet and side panels in sandblast grey 001, thermostatic head hidden behind the side panel
DOWNLOADS
↓ Knockonwood freestanding brochure
↓ Knockonwood freestanding DBE manual
↓ Knockonwood freestanding DBE technical information
↓ Knockonwood freestanding_DBE product description
PRESSURE TEST
20 bar
WORKING PRESSURE
10 bar
SURFACE
The surface temperature remains safe at all times, even at a water temperature of 90 °C. Knockonwood complies with the safety requirement DHSS DN4 1992.
CONNECTION SLEEVE COUPLINGS
Eurocone ¾
CONTROL & CONNECTION
Hidden control with pre-mounted connection set and TRV head.
COATING
The coating is a scratch resistant epoxypolyester powder, sprayed electrostatically and baked at a temperature of 200 °C. UV-resistant due to ASTM G53
MATERIAL

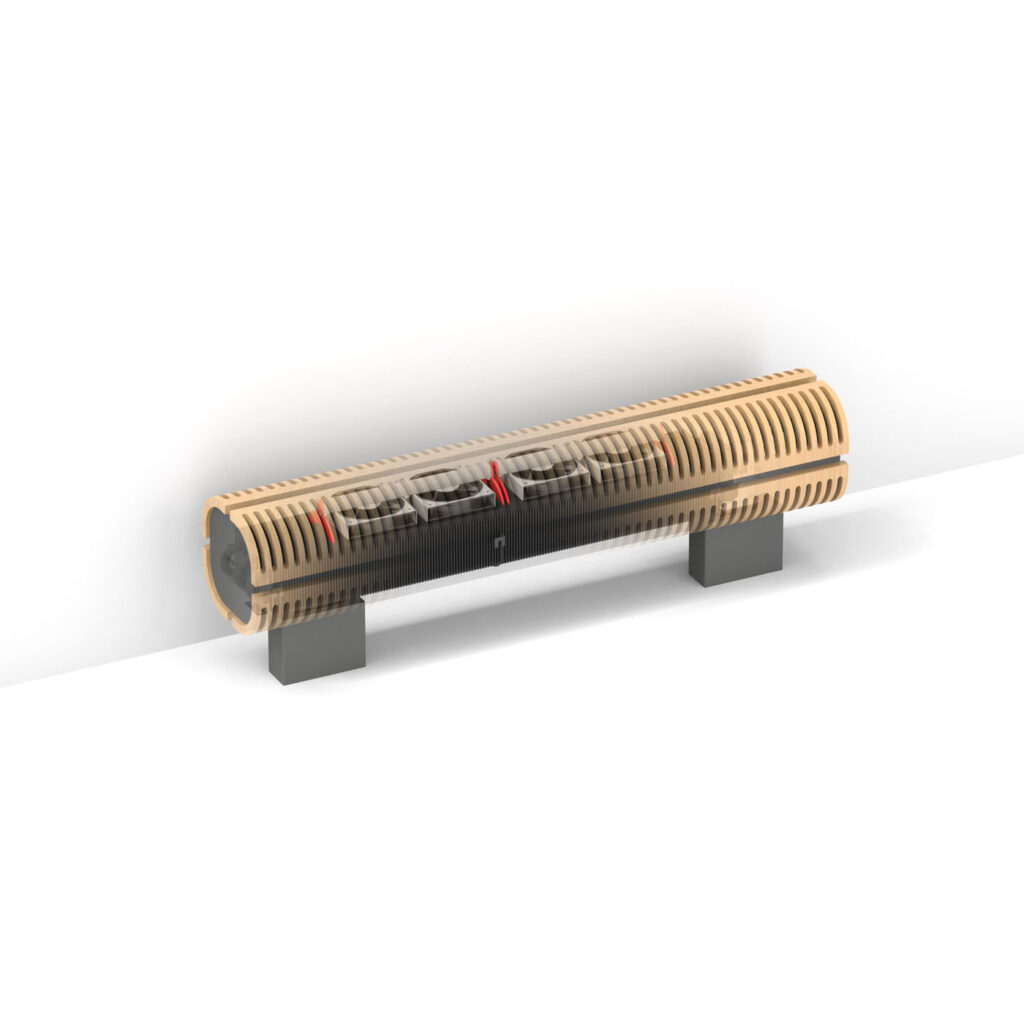

Low-H2O heat exchanger is composed of round, seamless circulation tubes made of pure red copper, with pure aluminium fins and two brass collectors for left or right 1/2” same end connection.
- Air vent 1/8” and drain cock 1/2” are included
- Feet with pipe for guards lacquered in sandblast grey metallic 001
- Chassis from electrolytic, galvanized steel plate of 1.25 mm thick, with integrated Jaga valve
- Covering with integrated grilles consisting of four curved veneered wood laminate panels measuring minimum 16 mm. Partly FSC labelled
PRODUCTION
Made in Belgium
STANDARD
Outputs meet standard EN442
TEMPERATURE
Safe and low contact temperature

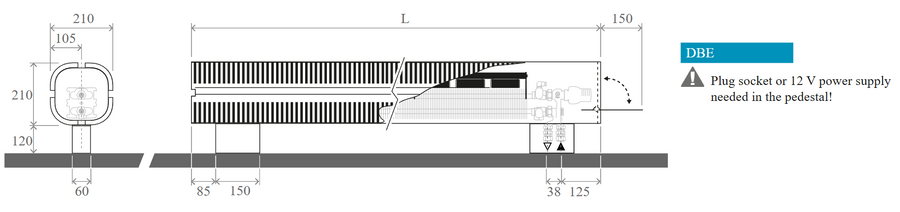

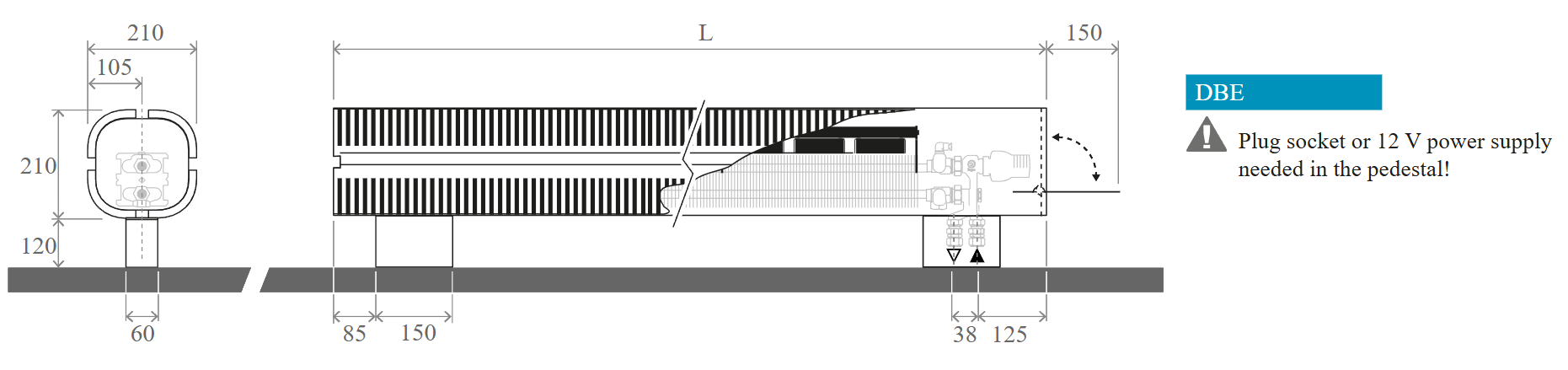

TECHNICAL DRAWING
HOW TO INSTALL
The building services engineer chooses the heating elements considering the following conditions:
- A heat output calculation according to the standard.
- Tables of heat outputs and dimensions for knockonwood dbe, according to en 442.
- When only small outputs are required, the casing can be extended, if necessary, to fill up the total window space
- As minimum space between the top of the casing and the extended window sills, the above mentioned dimensions have to be applied.
- The minimum space requirement under the heating elements is: type 15 and 16: 12 cm
- The heat exchangers will be connected to a one pipe system / two pipe system, with a same side end Connection. The heat exchangers are equipped with 1/2” brass collector, 1/8” air vent and a 1/2” drain cock.
- The normal fitting position for the heating elements is under the window, and to achieve the most aesthetically pleasing appearance the casing should not be wider than the total width of the window. The height of the casing has to be a function of the heat loss calculations; aesthetically narrower types are preferable.
