Marley Lincoln Clay Interlocking Pantileroof Tile
LINCOLN CLAY INTERLOCKING PANTILEROOF TILE
LINCOLN CLAY INTERLOCKING PANTILEROOF TILE

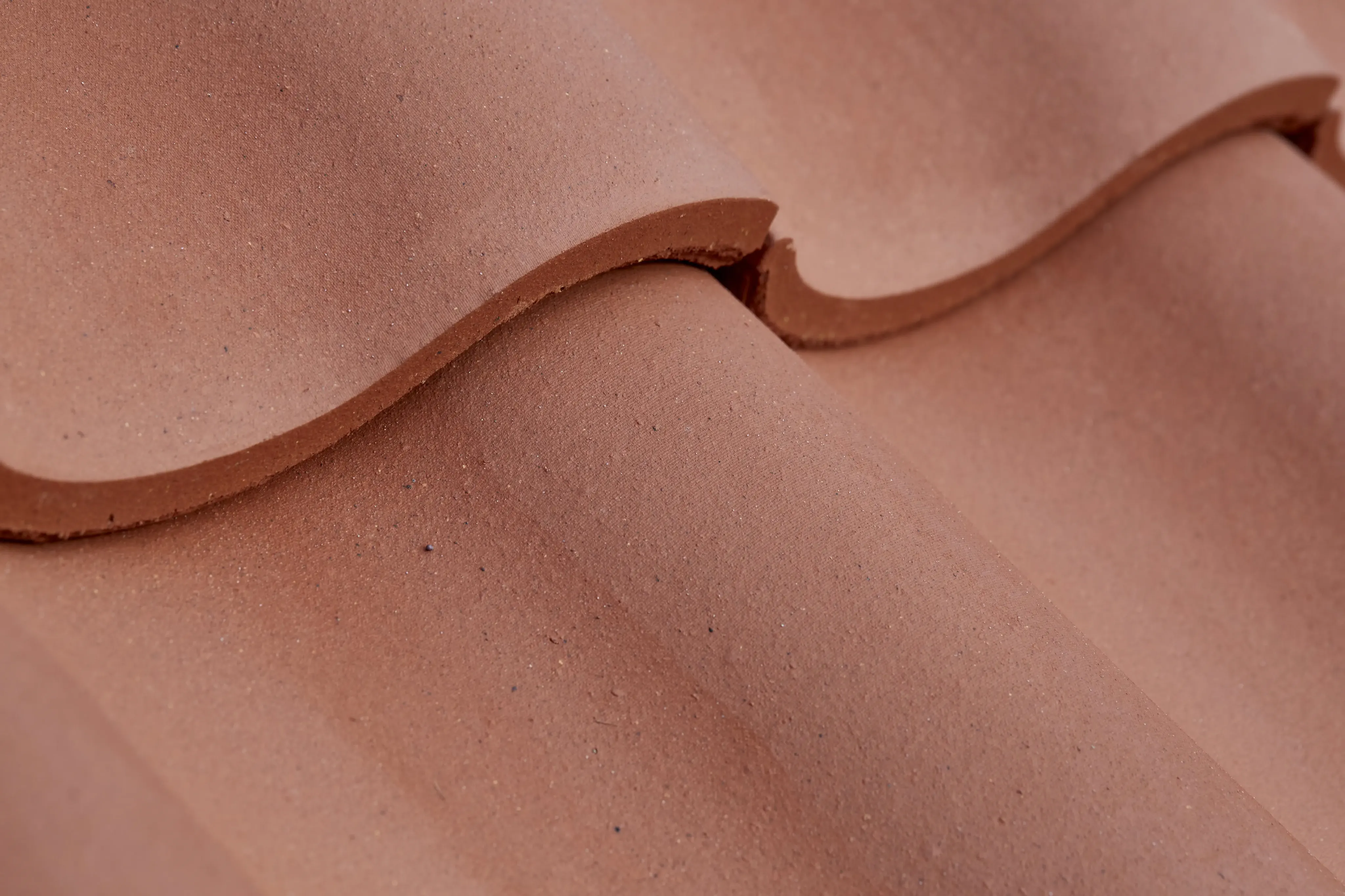

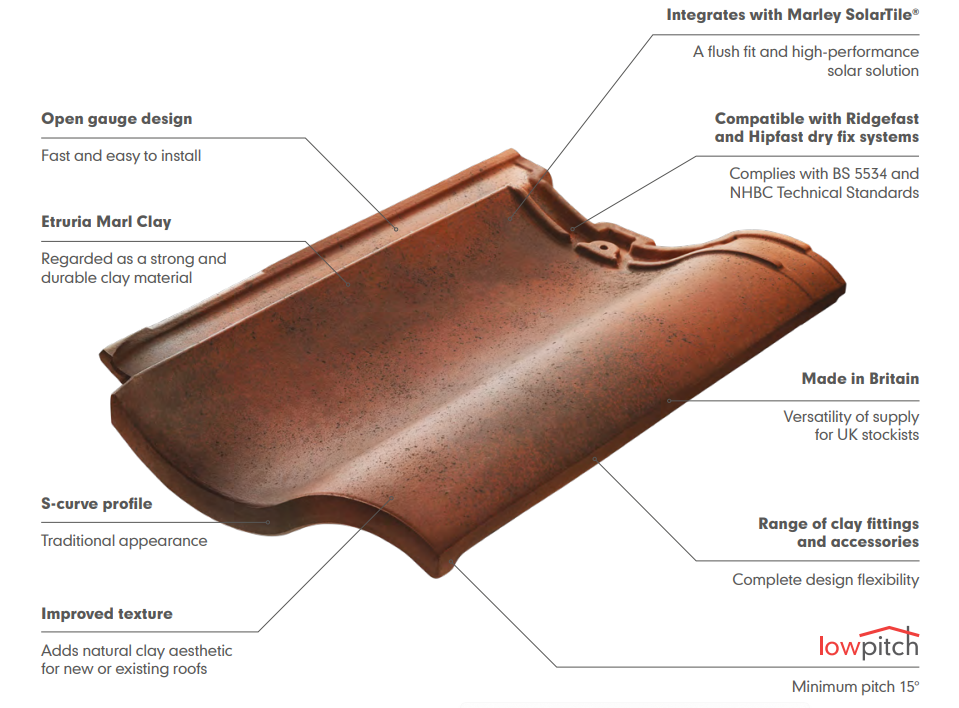

Made in Britain - An easy-to-fit traditional clay pantile with an open gauge design and a traditional s-curve profile with a thin leading edge. 15° minimum pitch at 100mm headlap
INFORMATION
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
BRAND
Marley
PRODUCT TYPE
Roof Tile
COLOR
- Rustic Red
- Red Smooth
DETAIL
Experiencing the vast variety of textures and colours that our roof tiles provide up close can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.
PRODUCTION
Made in United Kingdom
COLLECTION
Lincoln Clay
LINCOLN CLAY PANTILES: TRADITIONAL AND ROBUST
Lincoln Clay Pantiles combine a traditional appearance with the robust qualities you would expect from all Marley products. Available in Rustic Red and Red Smooth colours.
AFFORDABLE CHOICE
We combine the beauty and traditional appearance of natural clay with modern manufacturing techniques that ensure our clay tiles are more affordable than ever. A large range of complementary fittings and universal accessories makes these clay interlocking tiles the ideal choice for your next roofing project.
SIZE OF TILE
375mm x 250mm
MAXIMUM PITCH
70º
BATTEN SIZE RECOMMENDED
- 38 x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
- 50 x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
WEIGHT OF TILING
- 46.2 kg/m² at 75mm headlap (approx.)
- 50.2 kg/m²at 100mm headlap (approx.)
BATTENS REQUIRED
- 3.4 lin.m/m² at 75mm headlap (net)
- 3.7 lin.m/m² at 100mm headlap (net)
TILE WEIGHT
3.1 kg
TILE THICKNESS
15mm (nominal)
FEATURES AND BENEFITS
LINCOLN CLAY PANTILES ARE A LOW PITCH, SIMPLE TO INSTALL SOLUTION
These pantiles combine the elegance of natural clay roofs with the versatile and simple installation of the open gauge design and 15° minimum pitch at 100mm headlap.
FIXING CLIPS
Eaves, verge and tile clips
AUTHORITY
BS EN 1304
COVERING CAPACITY(NET)
- 14.9 tiles/m² at 75mm headlap
- 16.2 tiles/m²at 100mm headlap
COVER WIDTH
224mm (nominal)
MINIMUM HEADLAP
75mm (minimum)
CODE
- Rustic Red : MAKE731AB
- Red Smooth : MAKE730AB
MINIMUM PITCH
- 15º at 100mm headlap
- 22.5º at 75mm headlap
MEETING THE STANDARD
Clay tiles must meet all the latest fixing requirements, and the Lincoln Clay Pantile is no different. They adhere the latest BS 5534 fixing requirements and the NHBC technical standards.
TILE NAILS
38mm x 3.35mm aluminium clout head
TECHNICAL DETAIL
SUPPORTING BRITISH MANUFACTURING
We are proud to manufacture our new range of Lincoln Clay Interlocking Pantiles in Britain. Being able to produce our new pantiles at our clay factory in Staffordshire, allows us to offer versatility for our customers looking to stock Lincoln, all across the UK, whilst also reducing costs and carbon from imported products. All of our clay and concrete tiles are Made in Britain.
