CARMIX ONE SMART MOBILE CONCRETE PLANT
CARMIX ONE SMART MOBILE CONCRETE PLANT

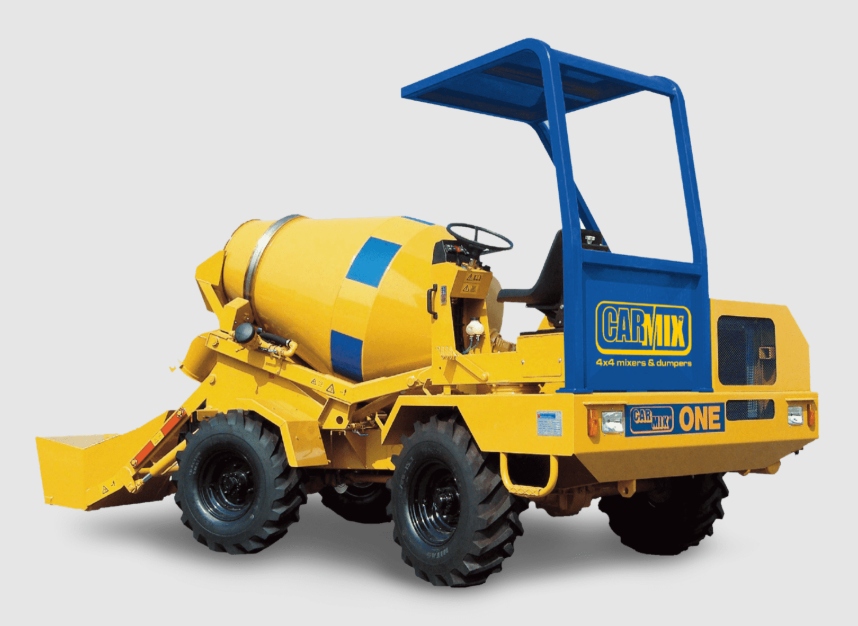

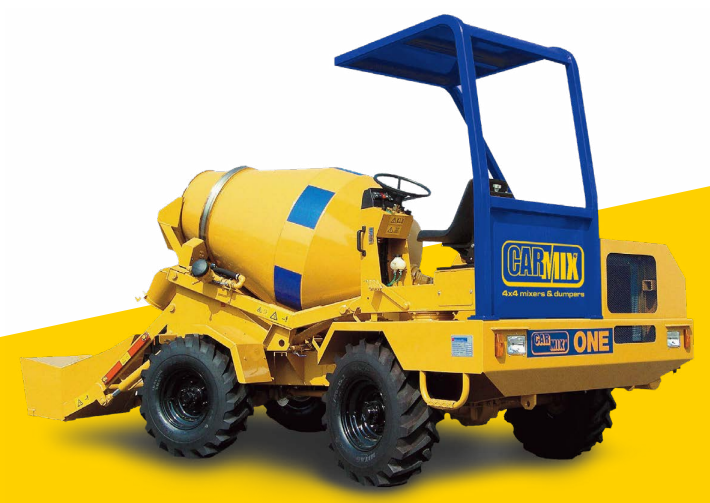

Small concrete mixer 4×4 with 1.400 litre drum, 180 litre shovel articulated chassis.The carmix one mobile concrete mixer works with an operating speed from 0 to 4,35 mph and a road transfer speed from 0 to 8,7 mph.
INFORMATION
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
TYRES
Off road industrial type 11,5/80 - 15,3 PR 10.
SPEED
Working speed from 0 to 7 km/h, road transfer from 0 to 14 km/h. Electric servo control.
CHASSIS
Articulated steel profile specially enginereed for off-road operations.
PRODUCTION
Made in Italy
CONCRETE DRUM OUTPUT
1 m3
WATER SYSTEM
Self-contained. Hydraulic driven water pump, water meter, washing outlet.
CHUTE
Slewing and manually tilting. 2 extra chutes included.
WEIGHT
About Kg. 2800. Equally distributed on both axles.
DOWNLOAD
↓ Data Sheet
DRUM CAPACITY
1400 liters
MIXING UNIT
Drum capacity 1400 liters. Concrete drum output: 1 m3 . EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws. Cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Quick discarge by drum tilting.
STEERING
Hydrostatic and articulated. Radius: internal mm. 2700, external mm. 4600.
ELECTRIC SYSTEM
12 Volt. 80 Ah battery for electric starter and road lighting. Safety battery cut-off.
BRAKES
Disc brakes. Twin indipendent circuits for parking and emergency. Mechanical parking brake acting on rear axle.
ACCESSORIES ON DEMAND
- Spare Wheel
- High Pressure Washing Pump
- Additional Discharging Chute (Cm 80)

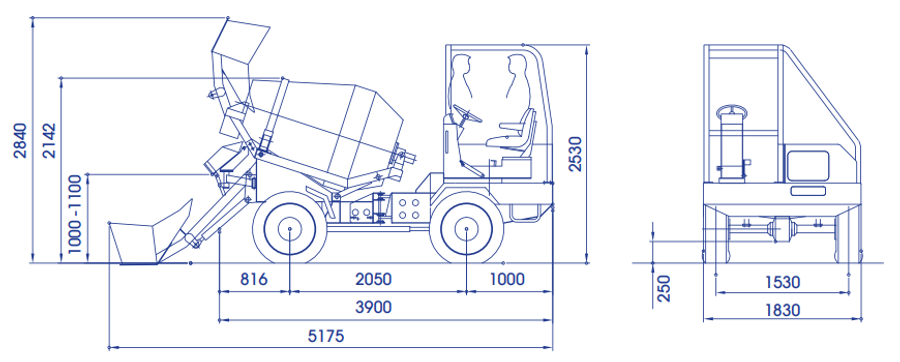

TECHNICAL DRAWING
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
DRIVING SEAT
Reversible seat with automatic inversion of hydraulic steering circuit. ROPS-FOPS (UNI 11023) Canopy.
HYDRAULIC SYSTEM
3 circuits. Variable outlet pumps for hydrostatic transmission and drum rotation. Gear pumps for services and steering. Heat exchanger type water/ oil-air.
SIZE
- Height With Shovel : 2840 mm
- Height Without Shovel :
2530 mm
- Length (Without Loading Shovel) : 3900 mm
GRADIENT
Fully loaded 30%.
LOADING SHOVEL
Effective capacity 180 liters.
TANKS CAPACITY
- Diesel : 35 liters
- Water Tank : 310 liters
- Hydraulic Oil : 25 liters
TRANSMISSION
Hydrostatic. A variable outlet pump drives the hydraulic two speed motor connected to the differential through two speed reducers. 4 wheel drive.
ENGINE
- Perkins Stage III - Tier 3A 403D-15T Turbo-diesel, 3 cylinders, 29 kW (39 HP)
- Perkins Stage V - Tier 4F 403J-E17T Turbo-diesel, 4 cylinders, 36 Kw (48 Hp)
SELF-LOADING
A very handy self-loading concrete mixer with reversible driving seat and chassis in steel profile engineered for off road operations and every kind of ground.
