FYBRO 30 INSULATION ACCESSORIES
FYBRO 30 INSULATION ACCESSORIES
Airborne noise thermal acoustic insulation consisting of polyester fibre panels 30 mm thickness
Wall airborne noise insulation in 30 mm thick made of polyester fibre; density 40 kg/m³. The panels dimensions are 100 cm lenght, 60 cm width.
INFORMATION
BRAND
Isolgomma
PRODUCT TYPE
Insulation Accessories
INSTALLATION
DRY
COLLECTION
Fybro 30
DIMENSIONS
- Length : 1.00 m
- Width : 0.60 m
TRANSMISSION LOSS RW
- Wall : ≥ 54 dB
- Ceilings : 67 dB
DENSITY (CEILING & WALL)
40 kg/m³
THICKNESS (CEILING & WALL)
30-50 mm
THERMAL CONDUCTIVITY COEFFICIENT Λ
0.036 W/m K
WALL ACOUSTIC PERFORMANCE RW (DB)
≥ 54 dB
LAYING COSTS REDUCTION
The low weight and the dimensions compatible with the structures for plasterboard facilitate the laying operations containing the costs
CERTIFIED ACOUSTIC IMPROVEMENT
Thermal-acoustic insulation solution for the acoustic improvement of light or brick walls
TENDER SPECIFICATION
- Flexible use
- High acoustic insulation values
- Extremely easy application
UNDER APPLICATION
Suspended ceiling
SUPERFICIAL WEIGHT
1.20 kg/m²
PANEL
Fibre
APPLICATION'S FIELDS
Suspended ceilings
APPLICATION
Ceiling
REACTION TO FIRE
B s2, d0
TO BE USED WITH
- Ideal for light walls
- Ideal for suspended ceilings
FLEXIBILITY
Stable product moisture resisting, fybro is unassailable
By micro-organisms, molds and insects and it can be
Used alone or with the products of the mustwall line
DOWNLOADS
↓ Technical data - Wall
↓ Technical data - Ceiling
↓ Cat. Solutions for acoustic insulation in building construction
↓ Cat. Solutions for acoustic insulation false ceiling
TYPE
Ceiling
USE
Ceiling
ACOUSTIC REPORT
Our technical staff is able to give you the proper support in all the project phases, supporting you in the identification of materials
ACOUSTIC CERTIFICATE
Product acoustic certificates are available and allow to comply with the limits imposed by law
INSTALLATION TEST
Acoustic performances of the intervention can be tested on site by a competent technician
LAYING ASSISTANCE
Thanks to our extensive commercial technicians network, we are at your disposal for the coordination of the first laying phases on site
INSTALLATION INSTRUCTIONS FOR WALLS

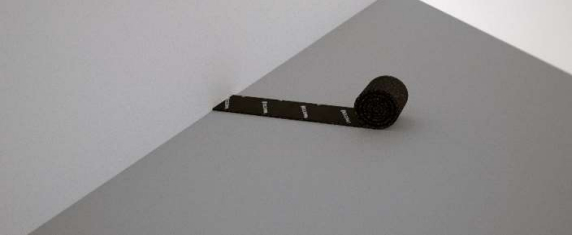

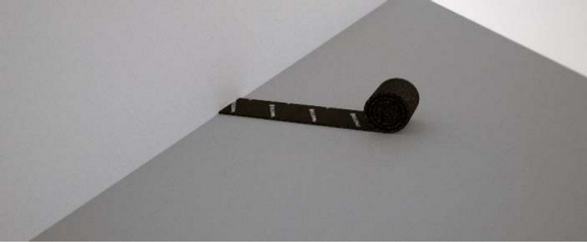

DRY FLOOR
Lay the under wall strip in the dry floor.

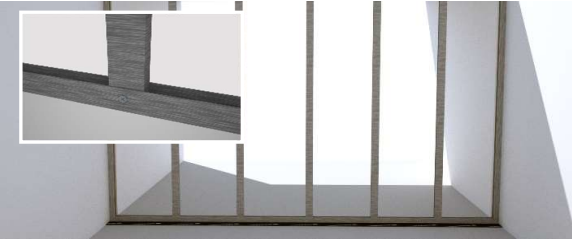

FIX METAL STUD
Fix metal stud on the floor, wall and ceilings

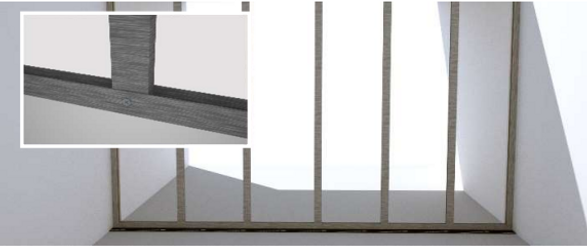

SCREWING
Fix the vertical metal studs on the ceiling and bottom guides by screwing

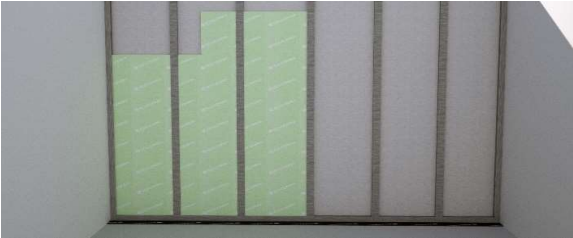

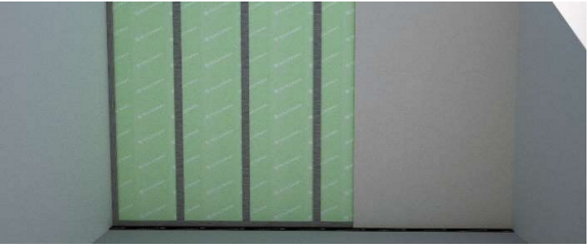

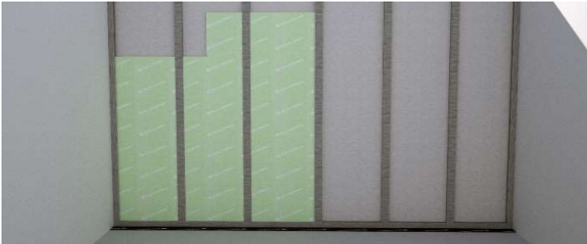

BOARDS
Fix the gypsum boards on one side. Insert the Fybro panel

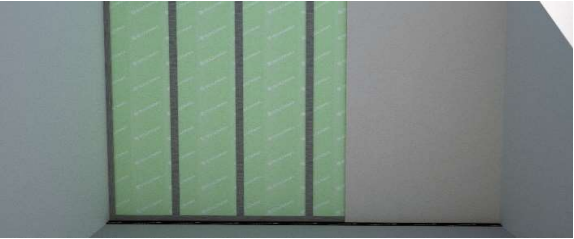

COVER
Cover the insulation layer by screwing the second gypsum boards on the metal studs

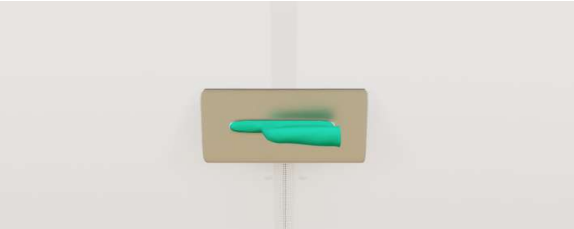

APPLY TAPE

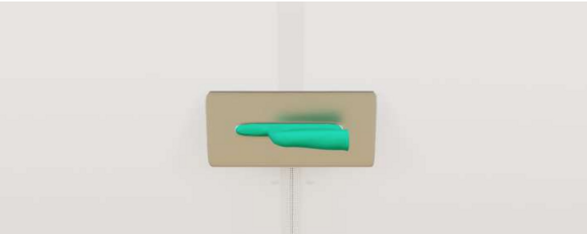

Apply the plastic mesh tape in the gypsum boards jointing lines and grouting
ACOUSTIC INSULATION FOR CEILINGS

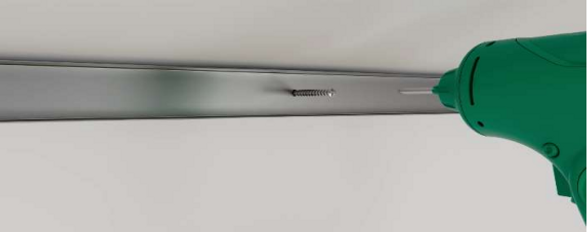

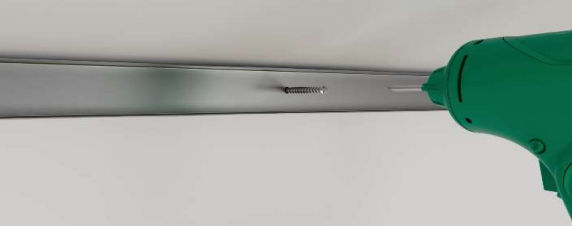

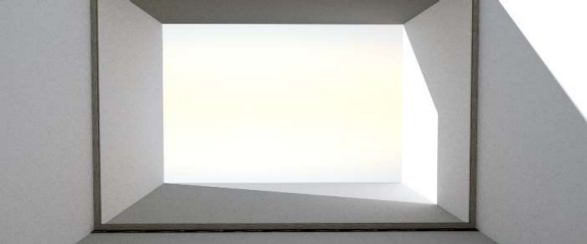

ATTACH METAL FRAME
Attach the metal frame along the upper perimeter of the room

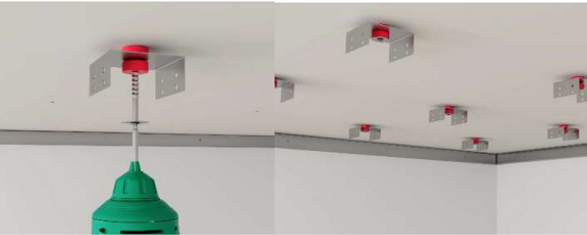

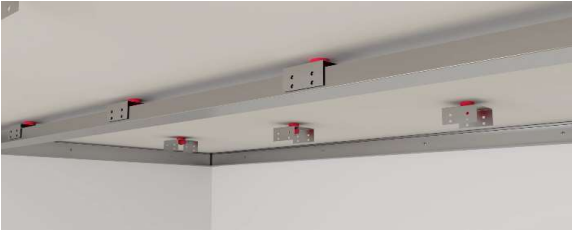

DRILLING
Drill the ceiling e fix the acoustic bracket REDFIX C, with spacing based on the load and the type of floor

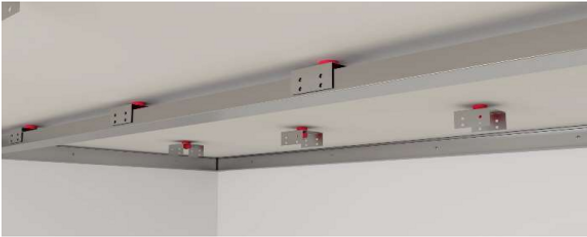

BRACKET
Fix the metal stud to the acoustic bracket

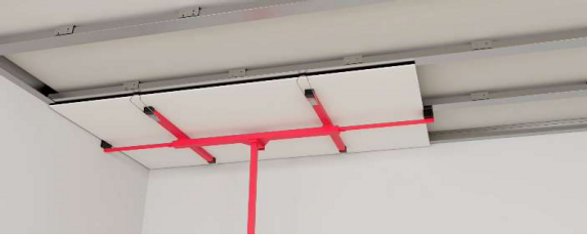

FRAME
Lean the panel to the metal frame

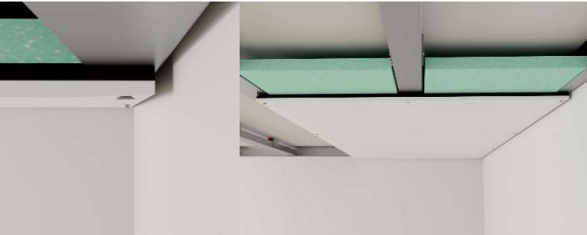

FIX PANEL
Fix the panel to the metal frame with gypsumboard's screws. Apply FYBRO panels

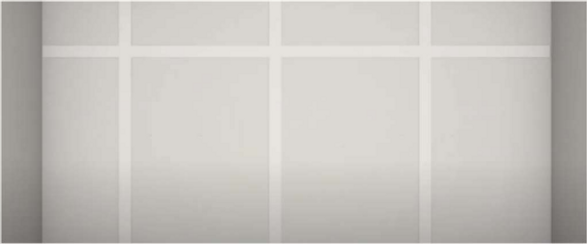

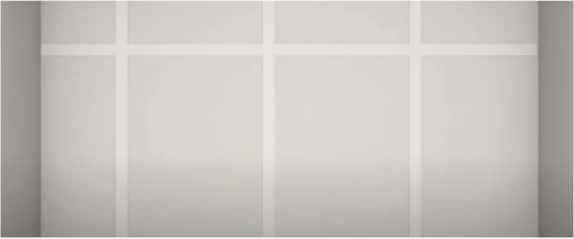

APPLY PLASTIC MESH TAPE
Apply the plastic mesh tape in the gypsum boards jointing lines and grouting
