BETTEFLOOR CORNER SHOWER TRAYS
BETTEFLOOR CORNER SHOWER TRAYS

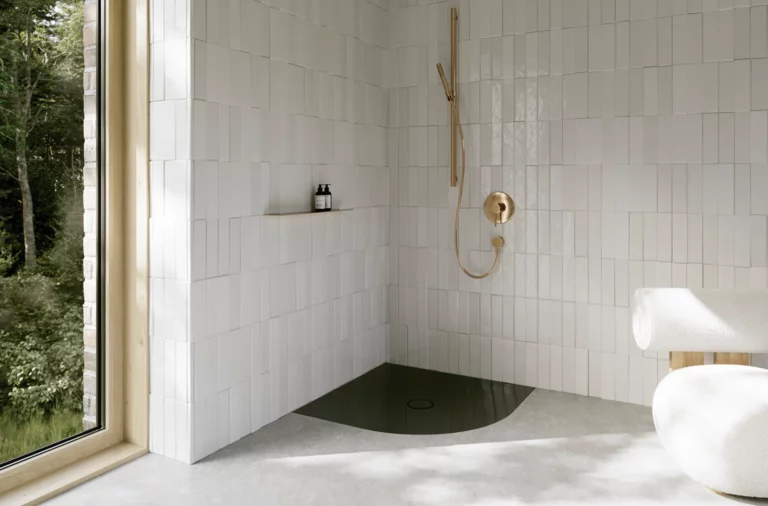

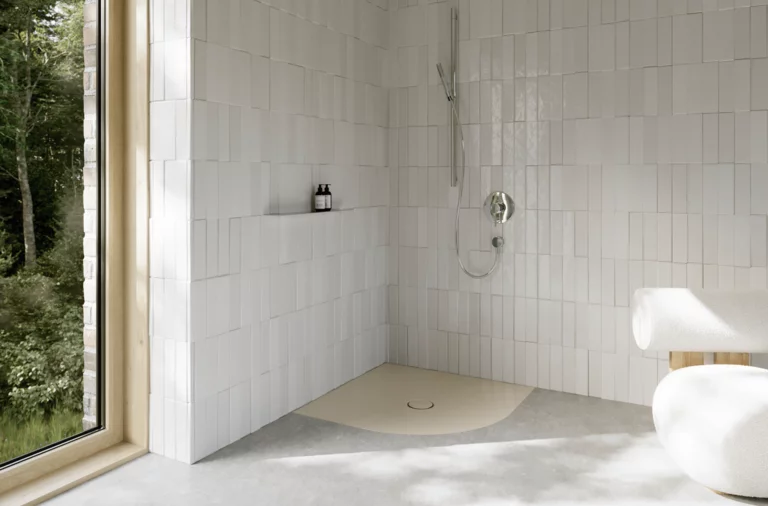

The BetteFloor Corner flush-to-floor shower area with the pore-free surface provides uncompromising hygiene in the bathroom.
The space-saving round design of the exterior and low installation height make it the preferred solution for small bathrooms, old buildings and renovations. Their colour selection includes numerous glossy and matt colours.
INFORMATION
BRAND
Bette
PRODUCT TYPE
Shower trays
COLLECTION
BetteFloor
PRODUCTION
Made in Germany
SHAPE
Quadrant
DESIGN
Showerfloors
INSTALLATION TYPE
- Flush to floor
- Above the floor
- Corner shower
RIM HEIGHT
30 mm
CORNER RADIUS
5 mm
INSTRUCTIONS FOR USE
We recommend to combine the shower area with the BetteLevel installation feet, installation height: 85 - 225 mm or the Foot-System, installation height: 80 - 200 mm.
QUALITY
Sustainable quality
USE
Washroom
ITEM NO.
- 1000 mm : 5451
- 900 mm : 5421
PLASTIC FREE
Yes
ENVIRONMENT
Indoor
WEIGHT
- 900 mm : 23.4 kg
- 1000 mm : 28.1 kg
DOWNLOADS
↓ Tender text
↓ Care instructions
↓ Performance declaration
↓ Brand certificates
↓ Dimensional data sheet
↓ Assembly instruction
RECYCLABLE
100%
WARRANTY
30 Years
MATERIAL
Glazed Titanium - Steel
SCOPE OF DELIVERY
Including noise-reducing pads.
TECHNICAL DATA

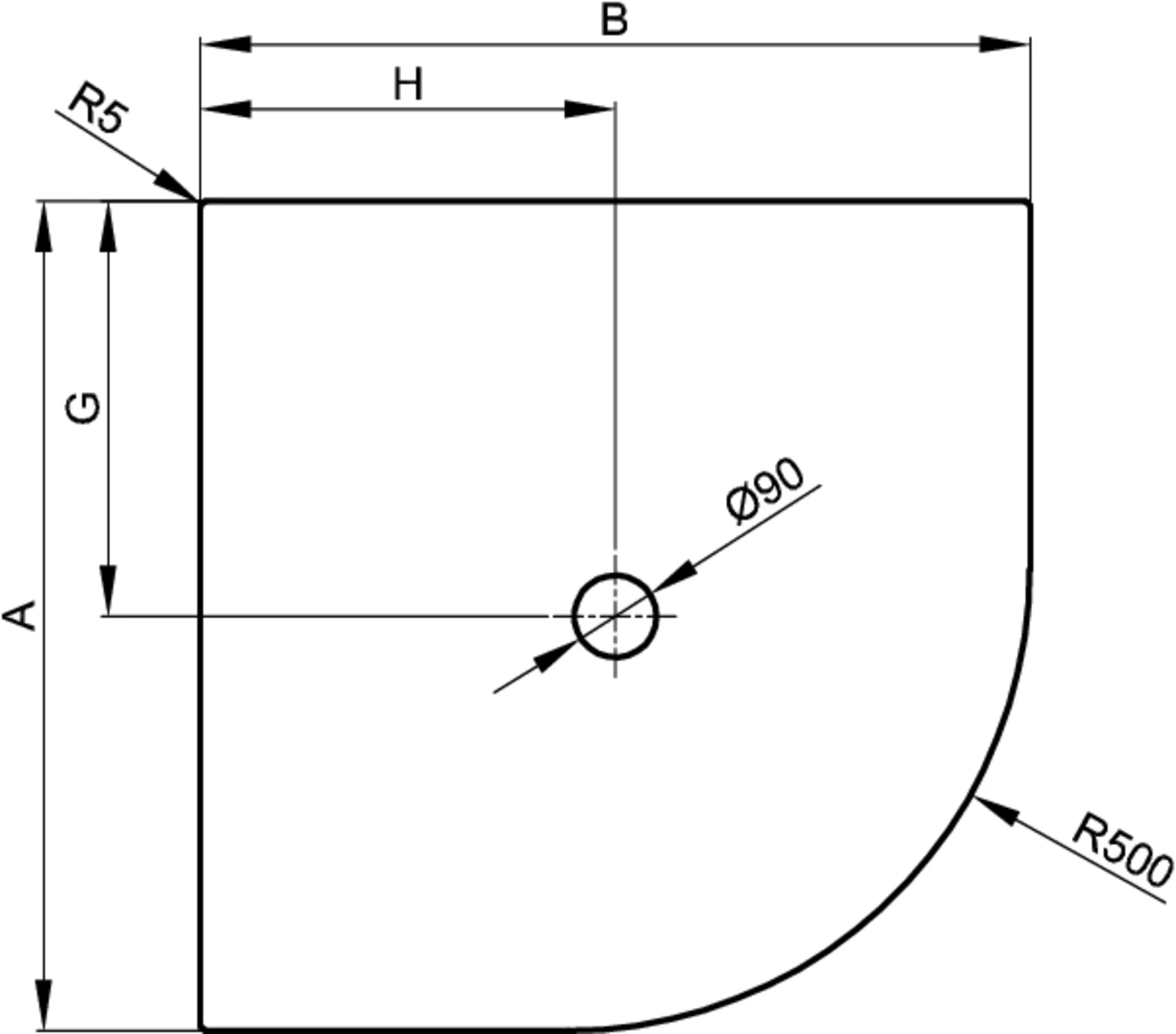

TECHNICAL DRAWING
DIMENSIONS IN DETAIL
| SELECTED DIMENSION | A | B | F | G | H |
|---|---|---|---|---|---|
| 900 x 900 mm | 900 | 900 | 1066 | 450 | 450 |
| 1000 x 1000 mm | 1000 | 1000 | 1207 | 500 | 500 |
COLORS
GLOSSY COLOURS
- White, glossy, 000 - Starwhite, glossy, 287 - Pergamon, glossy, 001 - Manhattan, glossy, 002 - Manhattan, glossy, 003 - Black, glossy, 056 - Midnight, glossy, 790 - Salvia, glossy, 307 - Curry, glossy, 040 -Azalee, glossy, 130 -Elfenbein, glossy, 014 -Soft cream, glossy, 020 -Natura, glossy, 038 -Caramel, glossy, 046 -Kaschmir, glossy, 090 -Carneol, glossy, 096 -Ruby red, glossy, 057 -Bali Brown, glossy, 065 -Pearl, glossy, 053 -Reflet Grau, glossy, 044 -Ägäis, glossy, 009 -Capri, glossy, 015 -Key West, glossy, 031 -Bermuda Blue, glossy, 023 -Calypso, glossy, 011 -Kaspischgrün, glossy, 112 -Evergreen, glossy, 115 -Moss Green glossy, 016
MATT COLOURS
-Snow, matt, 440 -Edelweiß, matt, 004 -Cream, matt, 441 -Beige, matt, 422 -Jasmin, matt, 006 -Flax, matt, 423 -Sand, matt, 424 -Silver, matt, 410 -Dust, matt, 413 -Flanell, matt, 008 -Quartz, matt, 412 -Stone, matt, 416 -Cashmere, matt, 415 -Hazel, matt, 417 -Greige, matt, 425 -Graphite, matt, 404 -Slate, matt, 402 -Smoke, matt, 403 -Anthracite, matt, 401 -Ebony, matt, 035 -Raven, matt, 400 -Blue Satin, matt, 418 -Magnolia, matt, 077 -Chantoung, matt, 646 -Anemone 77, matt, 086 -Ebano, matt, 434 -Taupe, matt, 438 -Cacao, matt, 439 -Graphit, matt, 074 -Chinchilla, matt, 029 -Montblanc 756, matt, 140 -Crocus, matt, 043 -Flint, matt, 414
