QUARTZ SINGLE CENTRAL GLAZED FRAMELESS GLASS PARTITIONING
QUARTZ SINGLE CENTRAL GLAZED FRAMELESS GLASS PARTITIONING
At 100mm wide, this single glazed frameless partitioning system allows the continuation of the interior aesthetic when paired with our double glazed Quartz as they both utilize the same width profile.
This is the perfect choice when a mix of single and double glazed partitioning is required seamlessly blending the two together.
INFORMATION
BRAND
Apton
COLLECTION
Quartz
PRODUCT TYPE
Frameless Glass Partitioning
DIMENSIONS
- Track Width 100mm
- Track Height 27mm
- Height up to 4200mm
JOINT
Dry Joint
THICKNESS
10mm – 12.8mm
PROFILES & DOOR FRAME
Aluminium
DEFLECTION HEAD
+/-12.5mm / +/-25mm
PRODUCTION
Made in United Kingdom
ACOUSTICS
Up to 41dB (Rw)
CORNERS
Dry Joint (90, 135 & T)
IRONMONGERY
A wide range of ironmongery can be supplied with Quartz.
BRITISH STANDARDS
- Sound Rating BS EN ISO 717
- Sound Measurement BS EN ISO 140
- Structural Stability BS5234, BS6180, BS6399
MATERIAL
Glass & Aluminium
GLASS THICKNESS
10mm – 19mm
STRUCTURE
- BS5234
- BS6180
- BS6399
DOWNLOAD
↓ Data Sheet
GLASS TYPE
Toughened – Laminated
DOOR OPTIONS
- QuartzGlide
- Timber Door
- Glass Door
- Stile Door
- GDS Door
- MK2 Door
COMPATIBLE WITH OPTIONS
- Graphics
- Switch Glass
- Manifestations
FINISHES
- Polyester Powder Coat
- Special Anodised Finish
- Satin Anodised Aluminium
DOWNLOAD
↓ Data Sheet
GLASS TYPE
Toughened – Laminated

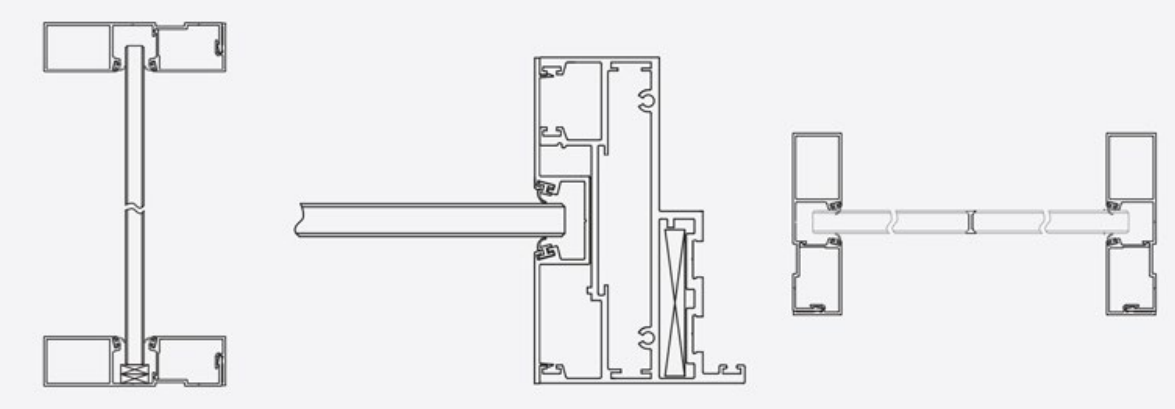

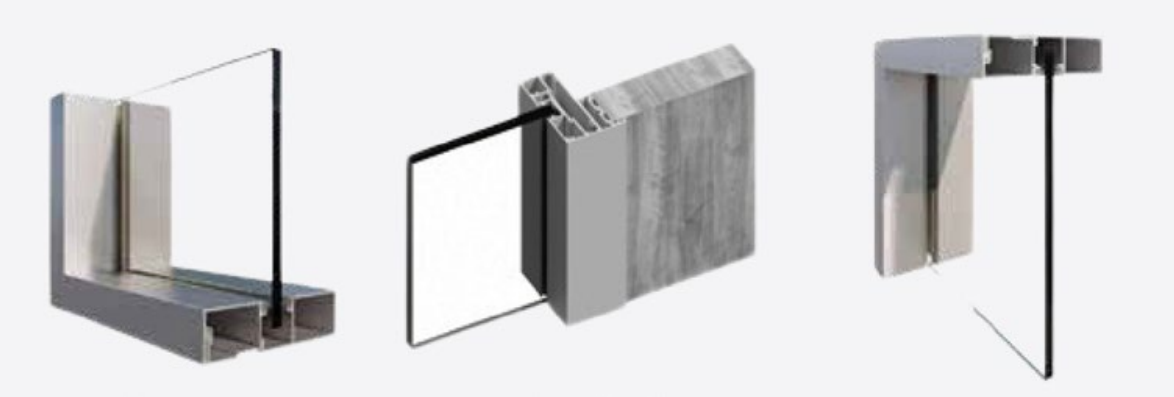

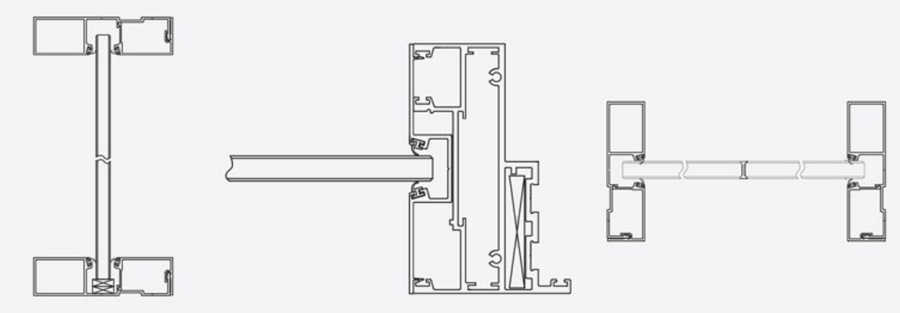

TECHNICAL DRAWINGS
