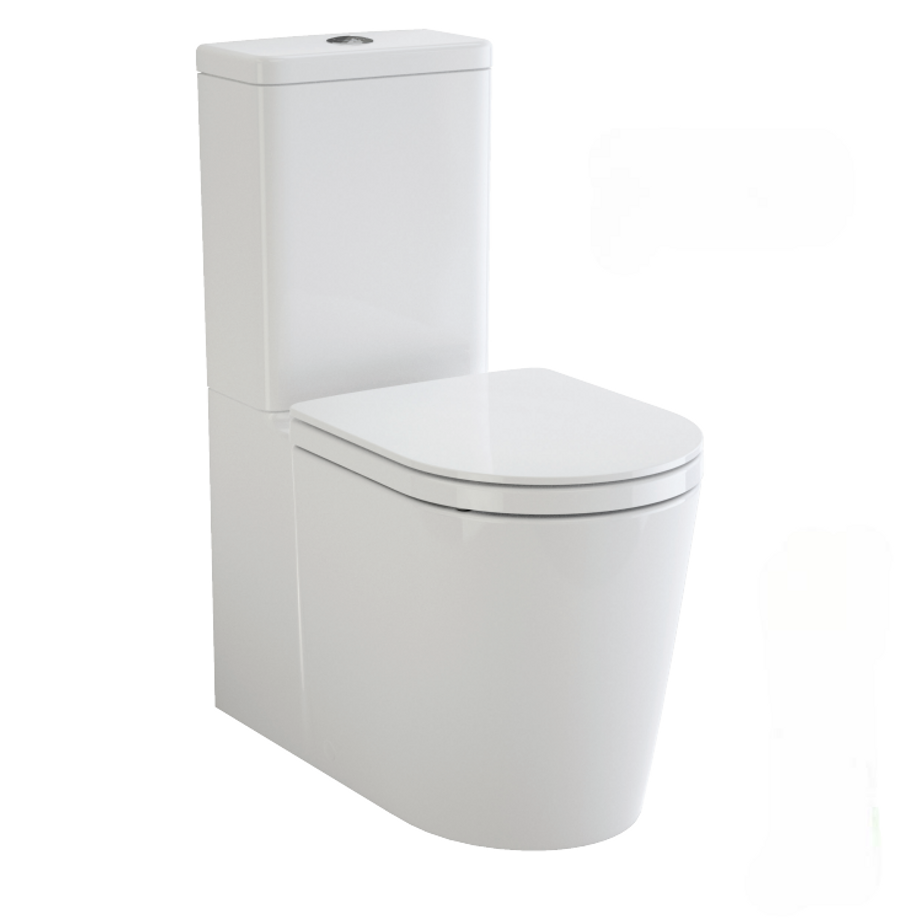

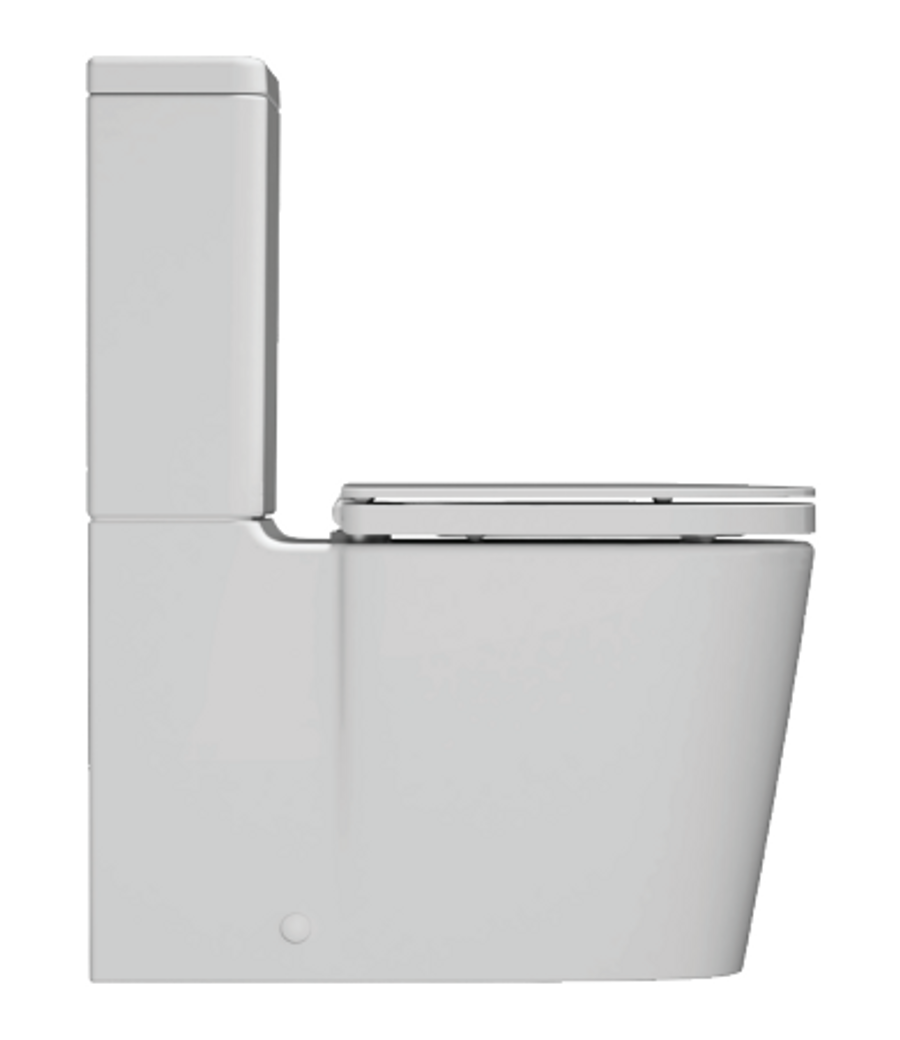

Caroma Liano Cleanflush® Wall Faced Close Coupled Back Entry Toilet Suite
LIANO CLEANFLUSH® WALL FACED CLOSE COUPLED BACK ENTRY TOILET SUITE
LIANO CLEANFLUSH® WALL FACED CLOSE COUPLED BACK ENTRY TOILET SUITE
Liano toilet suites offer the ideal combination of contemporary style and seamless functionality, making them the perfect addition to any bathroom.
Boasting sharp, symmetrical lines and dependability, the Liano toilets are available in both Wall Faced and Concealed variants.
INFORMATION
CLEANFLUSH®
Liano CleanFlush® Wall Faced Close Coupled Back Entry Toilet Suite
BRAND
Caroma
PRODUCT TYPE
Toilet Suites
STAR
WELS 4 star rated, 4.5/3L (3.5L avg/flush)
FEATURES
Universal trap pan for S or P trap installations
COLLECTION
Liano
ITEM CODE
766200W
PAN HEIGHT
395 mm
PAN PROJECTION SIZE
657 mm
COLOUR
White

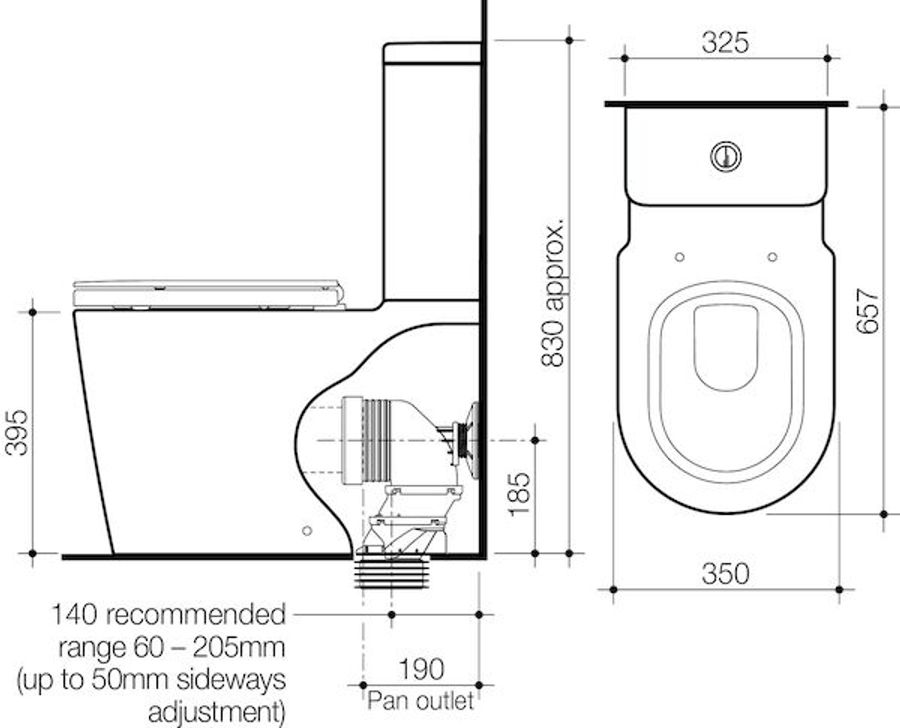

TECHNICAL DRAWING
FLEXIBILITY
Caroma Uni–Orbital® Connector provides flexibility with aligning the waste outlet
PAN
Liano Cleanflush™ 4.5 litre full flush washdown rimless pan with a fully glazed trap
APPLICATION
Match with other bathroom products in Liano and Liano II ranges
ITEM MATERIAL
Vitreous China
TRAP TYPE
Universal
TRAP TYPE
Universal
INLET TYPE
Back Entry
CLEANFLUSH
Yes
WELS WITH FLOW RATE FLUSH VOLUME 1
WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
INSTALLATION
The installation of the toilet suite shall be in accordance with the normal minimum drainline grade requirements in AS/NZS 3500.2.
CONNECTOR
Supplied with patented Uni–Orbital® Connector that extends to any position up to a 25mm radium
INCLUDES
Includes Liano quick release seat
CISTERN
Back entry cistern
MOUNTING
Wall Faced Suites
INDEPENDENT LIVING COMPLIANT
No
CERTIFICATES
SEATS
The Liano soft close quick release toilet seat with GermGard® Antibacterial Protection; a
unique technology which kills harmful bacteria, is provided as standard with the Liano suite.
A quality solid section compression moulded toilet seat, fitted with buffers and metal hinges
AS1428.1 ACCESSIBLE
No
AS1428.1 AMBULANT
No
FIXING
The cistern is fixed directly to the pan with a robust concealed base fixing system without the need for wall fixing.
CISTERNS
Liano Cleanflush™ cistern – has a free fitting lid and is suitable for domestic and light
commercial applications. Available as internal overflow. Standard back entry only.
Cistern inlet stop valve and inlet flex tube connection is concealed within the cistern and is included. Vandal Resistant Conversion Kit – A simple to install conversion kit is available for the standard mechanism to lock the lid onto the cistern, recommended for use in heavy duty commercial areas. Code No.750109.
Important: Working pressure minimum 30kPa to maximum 1000kPa flow pressure. Rain water tank compliant. Accurate wall setout for B.S.P. 1/2" Nipple water inlet connection is essential.
