Pilosio P300 Extremely Versatile Steel Panel Formwork
P300 EXTREMELY VERSATILE STEEL PANEL FORMWORK
P300 EXTREMELY VERSATILE STEEL PANEL FORMWORK

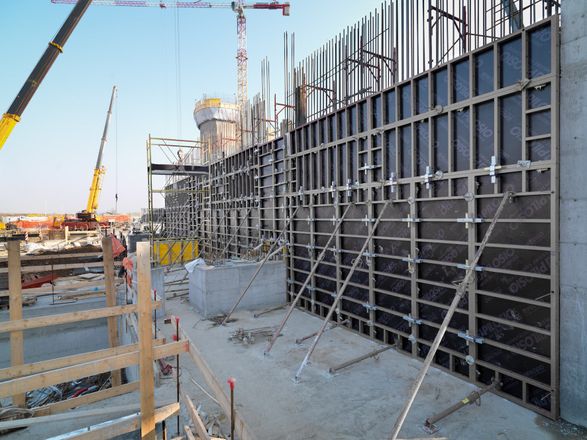

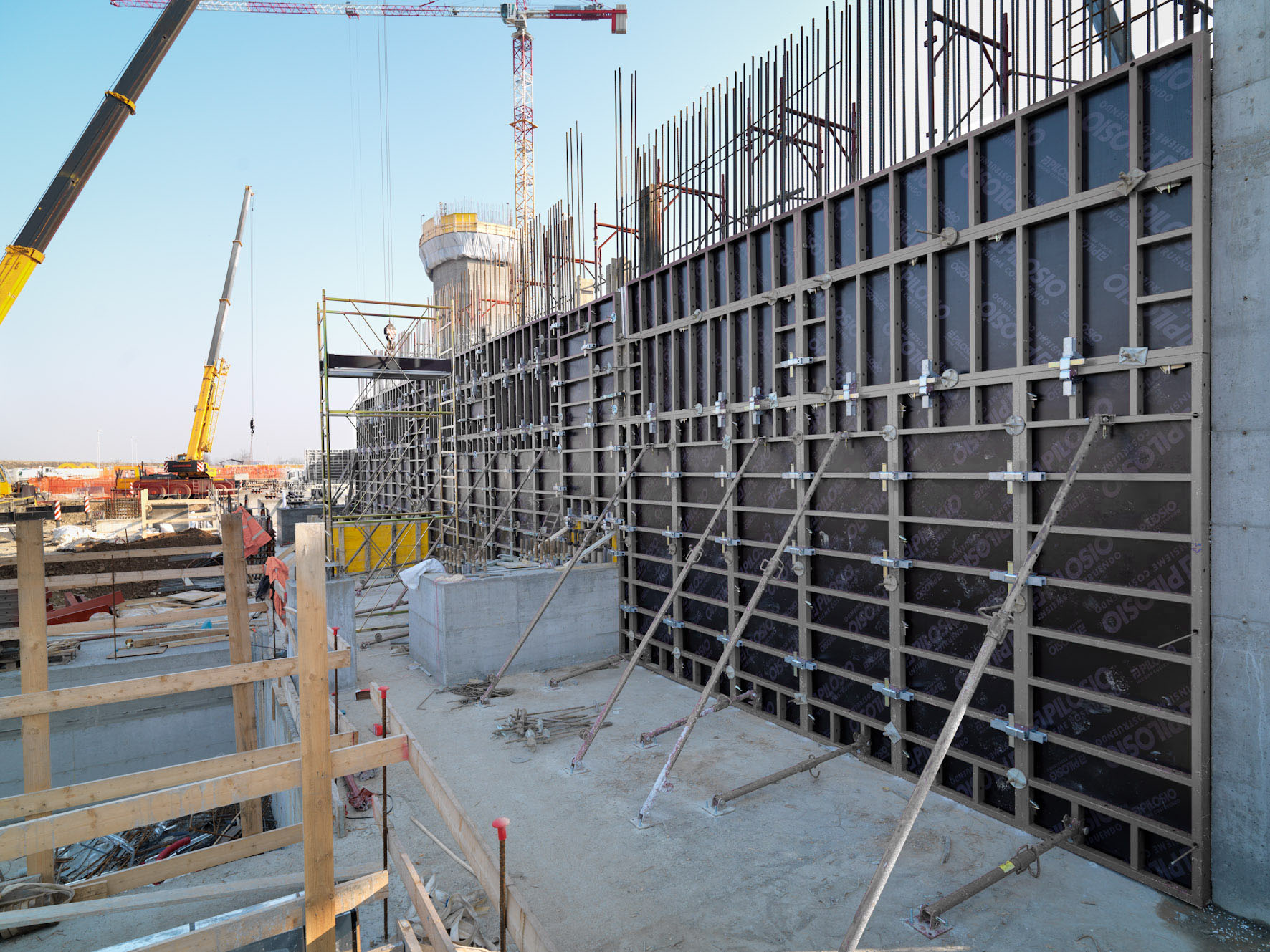

P300 is an extremely versatile steel panel formwork for crane assisted forming.
INFORMATION
BRAND
Pilosio
PRODUCTION
Made in Italy
FRAME HEIGHT
100 mm
FRAME FINISHING
Hot-dip Galvanized
MAXIMUM POUR PRESSURE
60 kN/m2 (80 kN/m2 for columns)
COLLECTION
P300
PRODUCT TYPE
Formwork
USE
Construction
ENVIRONMENT
Outdoor
RODS
3 Tie-rods Per 3 M Height
CHARACTERSTICKS
It offers a highly efficient solution for all sizes of projects as well as switching to gang forming with no additional hardware.
CLAMPS
2 clamps per 3 m height for connecting and aligning
ADVANTAGES

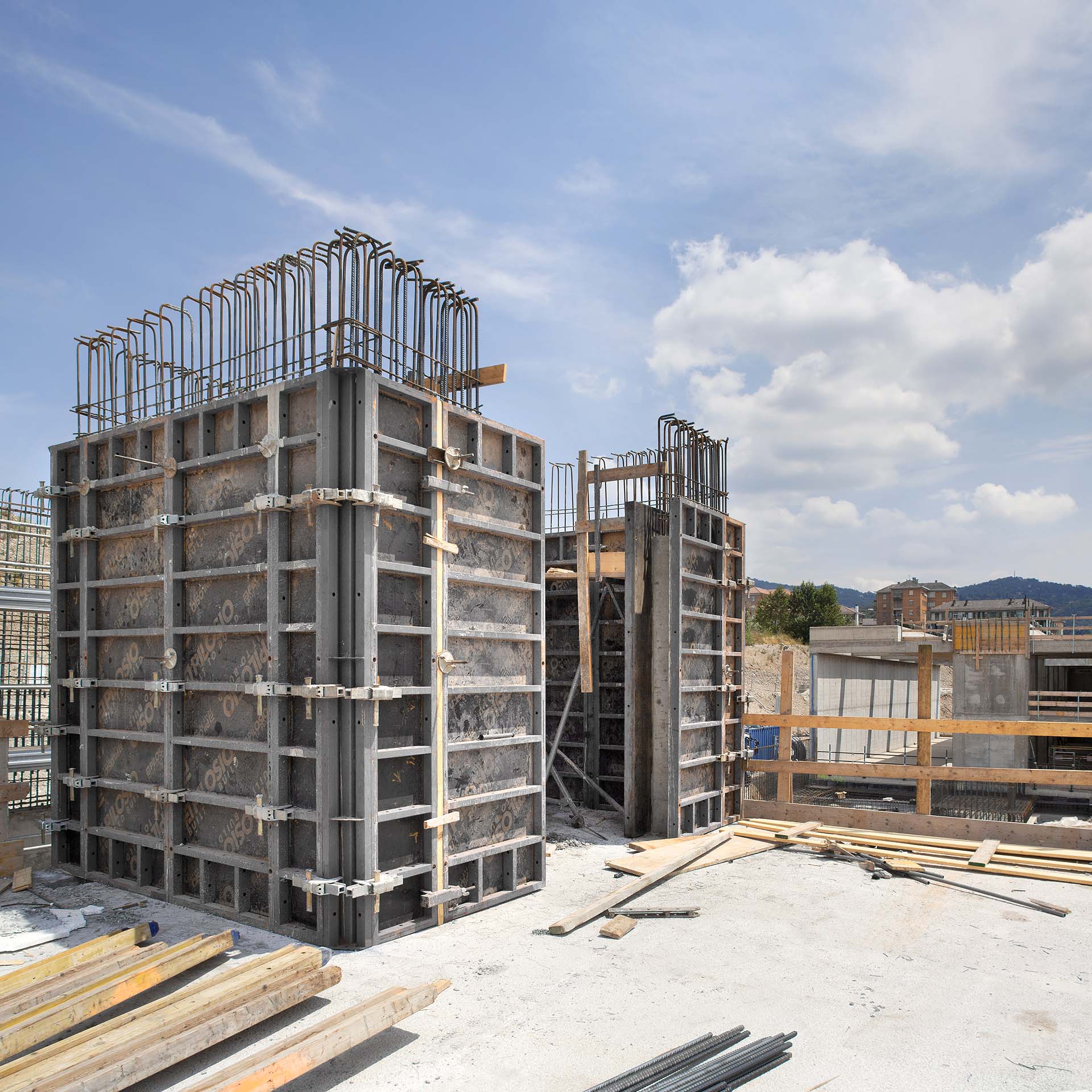

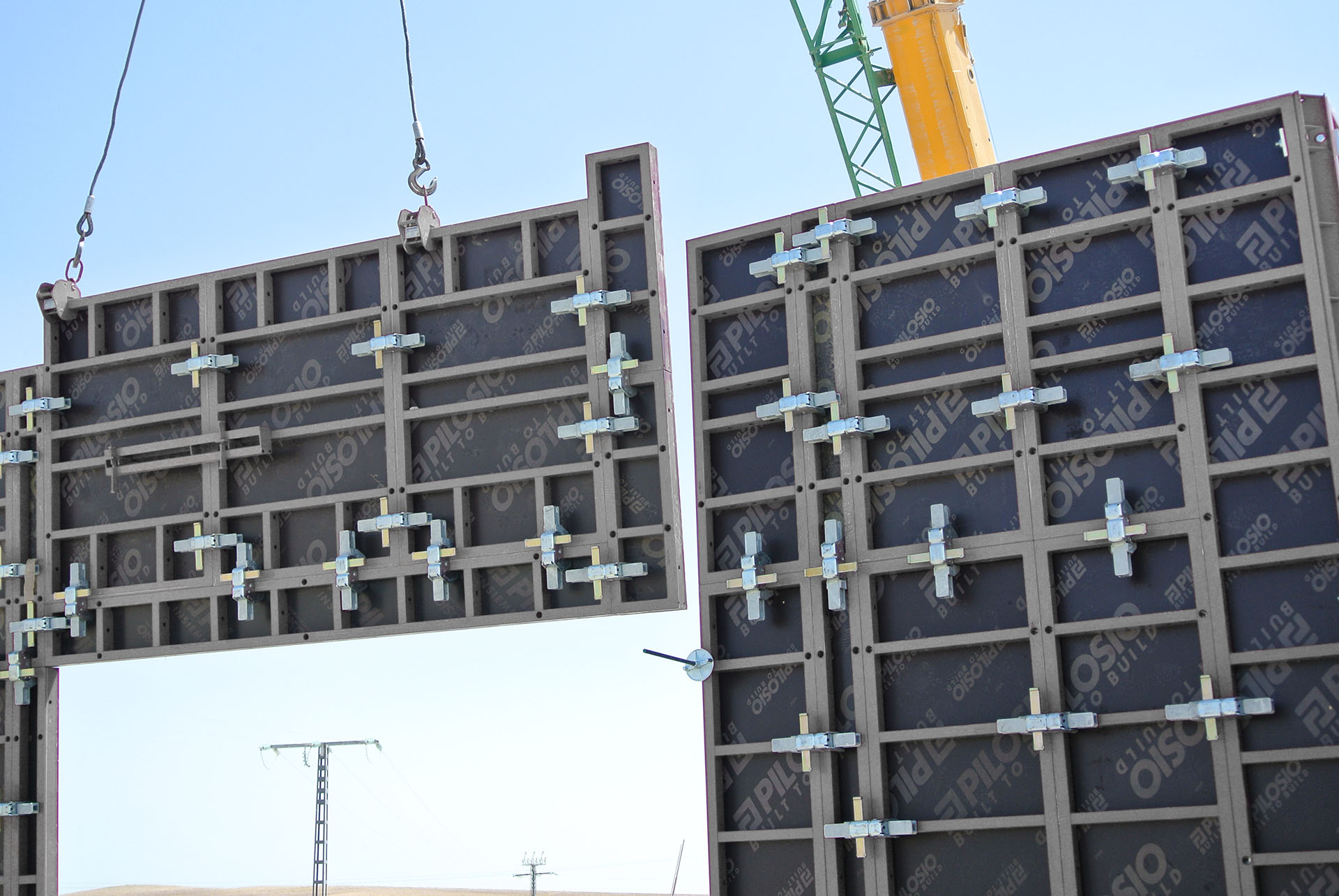

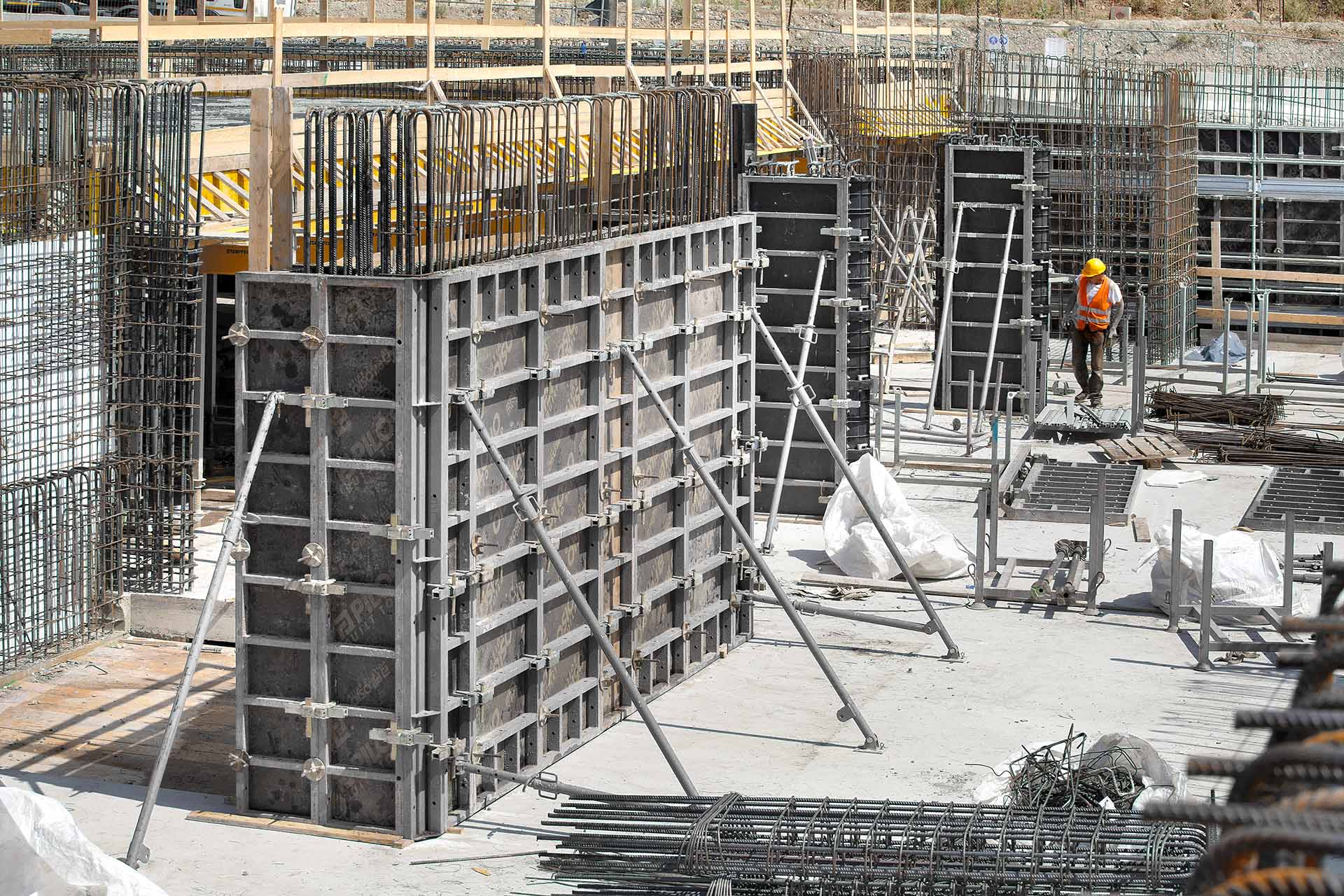

-Entire pre-assembled units can be lifted into place by crane -A clever grid of panel widths means less use of wood fillers -P300 shaft corners facilitate simple and rapid forming as well as stripping of shafts -P300 universal panels are ideal for forming cross-sections of columns in 5cm increments, so there is no need for an additional column formwork system at the site -Longer service life due to the robust, galvanized steel frame profile.
APPLICATIONS
APPLICATIONS
-Bridge Construction -Industrial Construction -Skyscrapers -Residential Construction
-Renovation & Reconstruction
