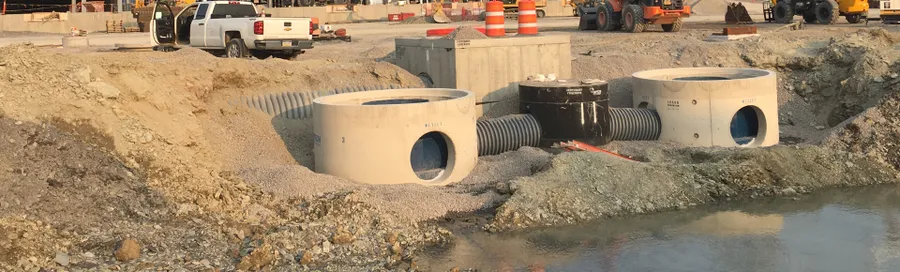

The Saturn Separator™ is Contech’s newest innovation in stormwater treatment, combining high-flow sediment capture with a compact footprint and easy, unobstructed access for maintenance. It is NJDEP Certified for 50% TSS removal.
The Saturn Separator™ is Contech’s newest innovation in stormwater treatment, combining high-flow sediment capture with a compact footprint and easy, unobstructed access for maintenance.
What makes the Saturn Separator unique is its series of seven flow rings, which dissipate energy, prolong the flow path and enhance sediment settling. The system is designed to handle
high flow rates without scouring previously captured pollutants and includes an internal bypass for peak-flow storm events. The result is a system that treats high flow rates in a small footprint, providing an efficient and economical solution for a wide range of sites.
INFORMATION
LOADING
The Saturn Separator is NJDEP Certified for 50% TSS removal and has an industry-leading hydraulic loading rate of 69 gpm/sf.
SATURN SEPARATOR CERTIFICATIONS
NJDEP Certified for 50% TSS removal
BRAND
Contech
PRODUCT TYPE
Separator
BENEFIT
- Fast, easy maintenance
- Design and installation flexibility
- Superior TSS removal, reduced system size and costs
- Eliminates the need for a separate bypass structure
- Eliminates the need for separate junction structure
- Eliminates the need for a separate grate inlet structure
SATURN SEPARATOR MAINTENANCE
- The Saturn Separator provides unobstructed access to stored pollutants, making it easy to maintain.
- Maintaining a Saturn Separator is a simple process that can be easily accomplished using a vacuum truck, with no requirement to enter the unit
- Contech has created a network of Certified Maintenance Providers to provide maintenance on stormwater BMP’s.
INTERNAL

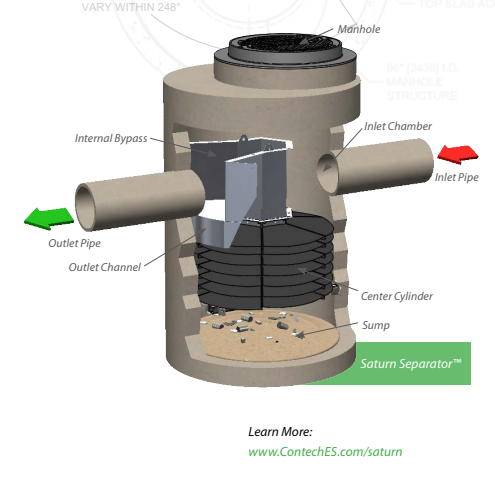

Internal bypass
RINGS
Unique flow rings
ACCESS
Clear access to sump and stored pollutants
FEATURES
Accepts multiple inlet pipes*
INLET AREA
Inlet area accepts a wide range of inlet pipe angles*
GRATE
Grate inlet option
TECHNICAL DATA
| MANHOLE SIZE (FT) | TOTAL SUMP DEPTH | NJDEP 50% TSS MAX. TREATMENT FLOWRATE (CFS) |
|---|---|---|
| 4 | 4.55 | 1.93 |
| 5 | 6.15 | 3.02 |
| 6 | 6.15 | 4.35 |
| 8 | 8.15 | 7.73 |
| 10 | 10.05 | 12.07 |
NJDEP CERTIFIED FOR 50% TSS REMOVAL

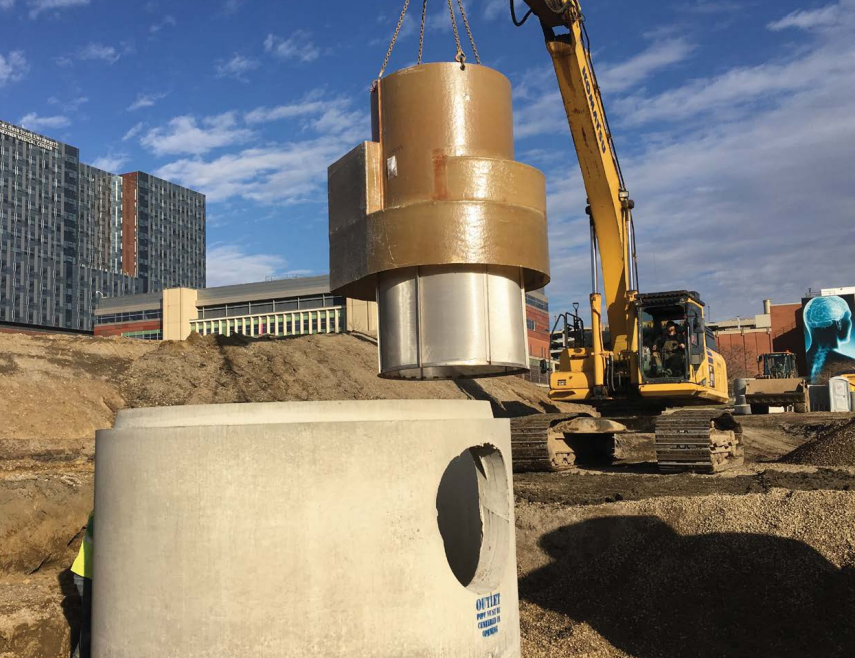

The Saturn Separator™ is Contech’s newest innovation in stormwater treatment, combining high-flow sediment capture with a compact footprint and easy, unobstructed access for maintenance. What makes the Saturn Separator unique is its series of seven flow rings, which dissipate energy, prolong the flow path, and enhance sediment settling.
The system is designed to handle high flow rates without scouring previously captured pollutants and includes an internal bypass for peak-flow storm events.
The result is a system that treats high flow rates in a small footprint, providing an efficient and economical solution for a wide range of sites.
APPLICATIONS

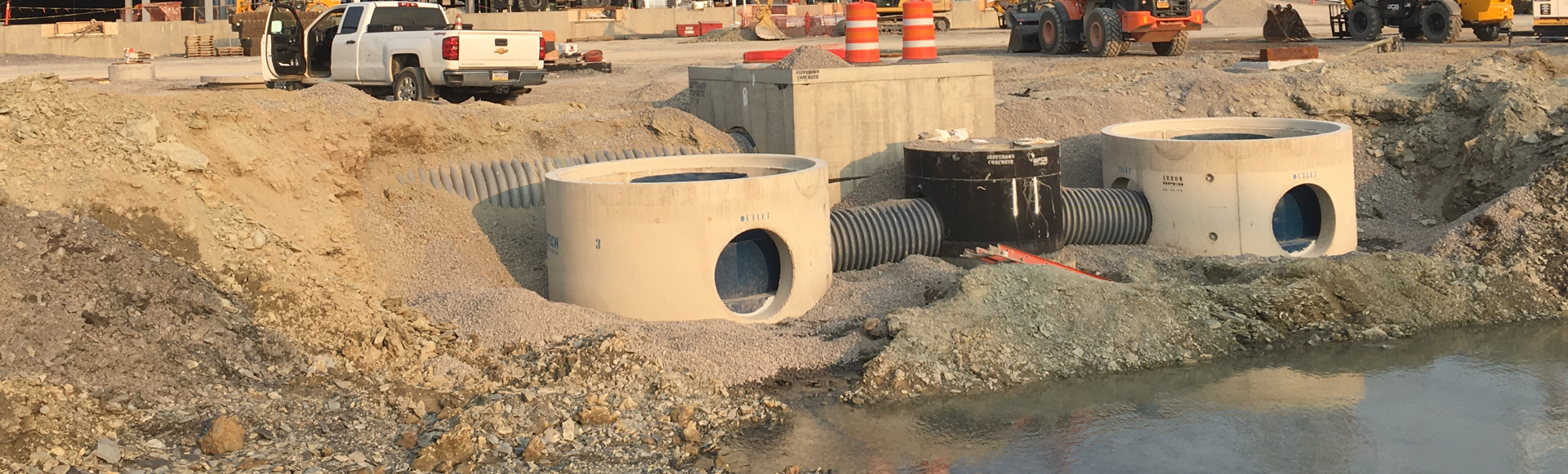

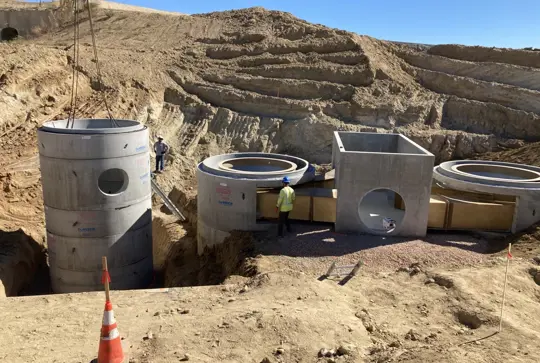

HYDRODYNAMIC SEPARATION FOR WATER QUALITY
Our hydrodynamic separators are reliable, easy to install, and offer high-performance, proven stormwater pollutant removal. The systems are widely accepted for effective solids removal and can be designed to achieve your site treatment goals - including TMDL requirements for TSS and trash.

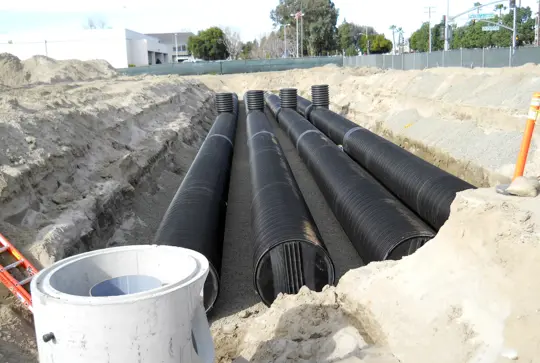

PRETREATMENT FOR RAINWATER HARVESTING
Our hydrodynamic separation products are ideal solutions for preatreatment to rainwater harvesting. Not only do they improve the overall water quality, they also provide protect the pumps and controls from being overburdened with material that could clog and damage the mechanical system.

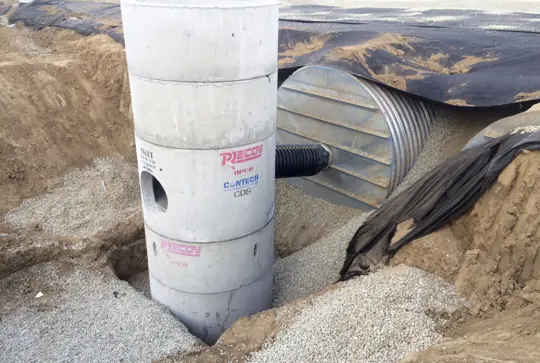

PRETREATMENT TO STORAGE
Our hydrodynamic separators are frequently installed upstream of detention and infiltration systems as pretreatment devices. By capturing the majority of sediment, hydrocarbons and trash and debris upstream of the storage system, maintenance becomes much easier as material is congregated into a smaller device with clear access for cleanout.
Additionally, by utilizing pretreatment upstream of infiltration systems, sediment that would have clogged the stone voids in the storage envelope surrounding the storage chamber can be captured before entering the storage system thus extending the longevity of the entire system.
FEATURES
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution
selection process.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
