SMARTIA M78 A UNITIZED CURTAIN WALL SYSTEM
SMARTIA M78 A UNITIZED CURTAIN WALL SYSTEM

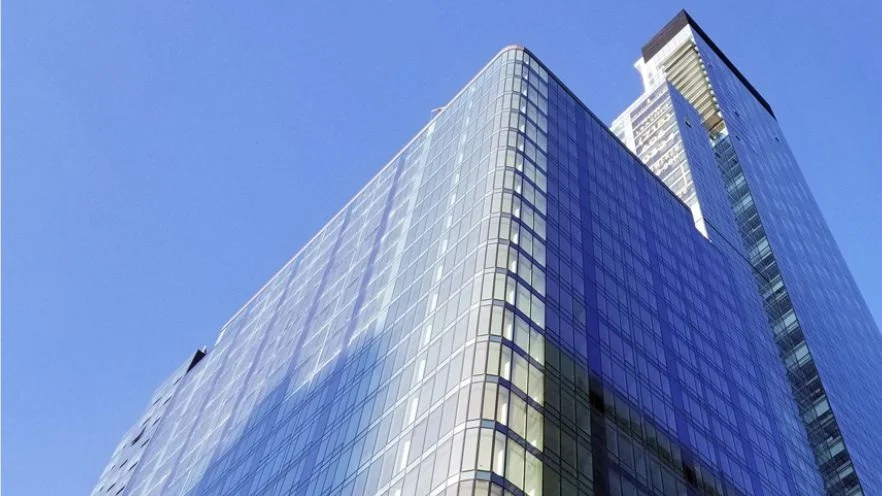

Smartia m78 is a cost efficient unitized curtain wall, which combines minimal aestethics with structural robustness. Its structural silicone glazing construction offers maximum transparency at the external surface of the façade.
Modular units,including glazing panes, are prefabricated in workshop conditions and this results in a fast and economic installation with minimum manpower and tooling requirements..
This construction mode, renders Μ78 an ideal system for high rise buildings,where meeting demanding deadlines is a prerequisite
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Wall System
ADVANTAGES
- Increased comfort level
- Increased security level
- Minimum after sales service
- Enhancement of natural light
- Ease of use with electric motion.
- Certified performances in terms of air, water tightness and wind pressure.
COST EFFICIENT
Cost efficient product compare to competition
COLLECTION
Smartia
AESTHETICS
Structural
TYPE OF INSTALLATION
Unitized
MAXIMUM DIMENSIONS
1.5x3.5m
WATER TIGHTNESS
RE1200
AIR PERMEABILITY
AE750
WIND LOAD RESISTANCE
- Design Load ± 2 KN/m²
- Safety Load ±3KN/m²
TRANSOMS MAX INERTIA
485 cm
MULLION MAX INERTIA
643 cm
CUSTOM MADE
Custom made solutions adjusted to every building specification.
MAXIMUM GLAZING THICKNESS
From 24mm up to 46mm
EXTERIOR VISIBLE WIDTH
78 mm
TYPE OF HOLDING GLAZING
Structural silicone
MULLION/TRANSOM DEPTH
160 mm
THERMAL TRANSMITTANCE UF
From 2,1 up to 2,4 W/m²K
NATURAL PHENOMENA
Increased static robustness, even in extreme natural phenomena
TOPOLOGIES & SECTIONS

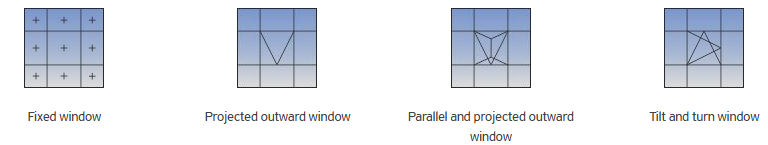

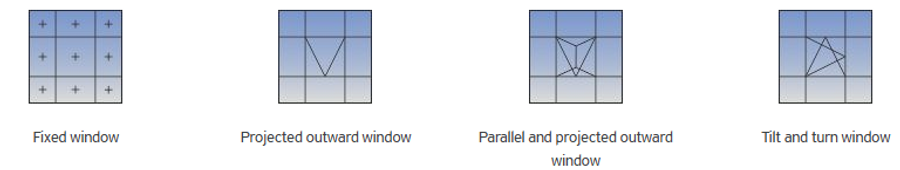

TYPOLOGIES
SECTIONS
