Serge Ferrari Tenseo Advanced S2 Series
TENSEO ADVANCED S2 SERIES
TENSEO ADVANCED S2 SERIES
Advanced 902 S2, Advanced 1002 S2, Advanced 1202 S2, Advanced 1302 S2, Advanced 1502 S2, Advanced 1002 S2 HTL
INFORMATION
BRAND
Sergeferrari
PRODUCT TYPE
Tenseo
SURFACE TREATMENT (TOP/BACK)
S2 architectural varnish / PVDF
YARN
- Low wick treatment for anticapillarity
- Yarn High tenacity Polyester 1670/2200 Dtex
THICKNESS
1.14 mm (1.140 microns)
ROLL LENGTH
200 lm (218.72 yds)
HEAT TRANSFER COEFFICIENT (VERTICAL/HORIZONTAL) CALCULATED
U=5.6 / 6.4 W/sqm/°C
VISIBLE LIGHT TRANSMITTANCE (TV) NFP 38511
7%
WIDTH
180 cm (70.9 in)
WEIGHT
1.500 g/m² (44.2 oz/sq. yd)
ADHESION
15 daN/5 cm (34 lbs/2 in)
RESIDUAL ELONGATION
<0.5% / <0.5%
MAIN APPLICATIONS
- Sport hall roofs
- Covered outdoors
- Shading structures
MANAGEMENT SYSTEMS
- Quality : ISO 9001
- Energy : ISO 50001
- Environment : ISO 14001
SOLAR FACTOR (G) EN 410
8%
SOLAR TRANSMITTANCE (TS)
4%
LONGEVITY, STABILITY, AND LOW MAINTENANCE
- Long service life with simplified maintenance.
- Wide range of mechanical strengths (902 to 1502 g/m²).
- Précontraint® technology: excellent dimensional stability.
- HTL version available for enhanced daylight transmission.
- Controlled translucency (VISU service) depending on the version.
- Optimized solar management (improved reflectance and solar factor).
VISIBLE LIGHT TRANSMITTANCE (TV) EN 410
3%
VISIBLE LIGHT REFLEXION (RV) EN 410
89%
HIGH-DURABILITY PVC MEMBRANES FOR TENSILE STRUCTURES
-Mechanical resistance & dimensional stability -Easy to clean -Durability -Performance
COMPATIBILITY AND RANGE GUARANTEES
- Related products: Tenseo Edition, Tenseo Exclusive, Tenseo Xtrem
- Certifications: ISO 9001, ISO 14001, ISO 50001, EPD, fire rating B-s2,d0
- Additional benefits: warranty up to 15 years, solutions suitable for permanent projects.
SOLAR REFLEXION (RS) EN 410
81%
UV TRANSMITTANCE EN 410
0%
MAIN ADVANTAGES
- Long lasting and low maintenance
- Controled color per translucency (VISU service)
- High dimensional stability due to Précontraint® technology

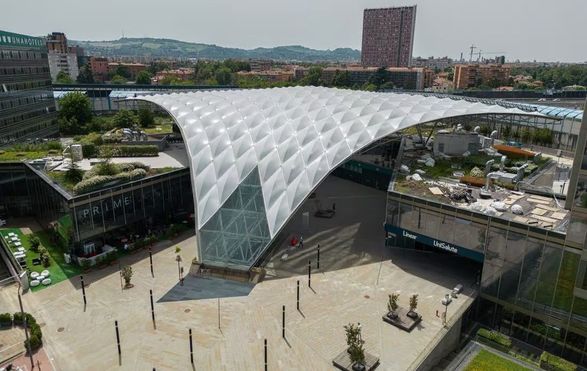

A RELIABLE SOLUTION FOR EXTERIOR ROOFING
Tenseo Advanced is the ideal choice for shade structures, lightweight roofing, covered walkways, and solar protection systems, offering an excellent balance of technical performance, durability, and aesthetics.
HIGH-DURABILITY PVC MEMBRANES FOR TENSILE STRUCTURES
The Tenseo Advanced range includes PVC Précontraint® architectural membranes designed for tensile structures requiring long service life, ease of maintenance, and high dimensional stability. They are ideal for durable exterior roofing and shading systems.
SOLAR REFLECTANCE INDEX (SRI) ASTM E1980-01 (APPROACH II)
>95%
ACOUSTIC WEAKENING INDEX ISO 140-3 & ISO 717-1
16 dBA
COLORS
- White
- Highly translucent white
