Alumil Minimal Sliding Non-insulated System Smartia M12500 Phos
MINIMAL SLIDING NON-INSULATED SYSTEM SMARTIA M12500 PHOS
MINIMAL SLIDING NON-INSULATED SYSTEM SMARTIA M12500 PHOS

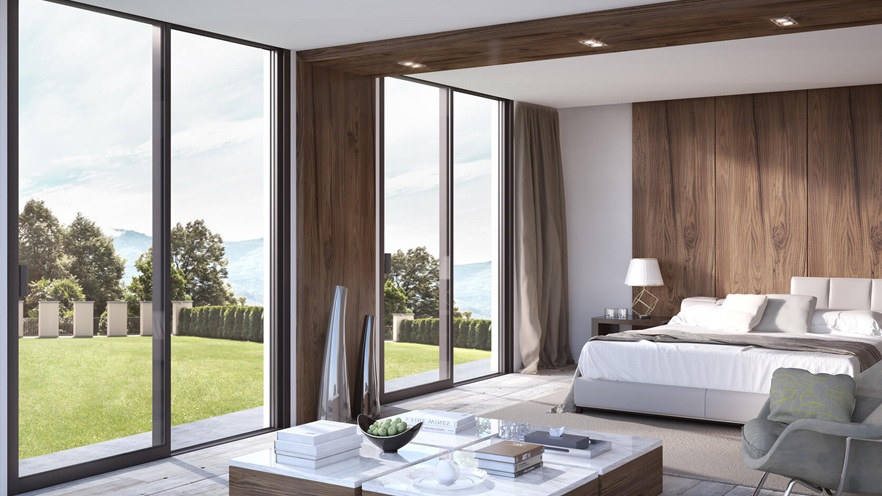

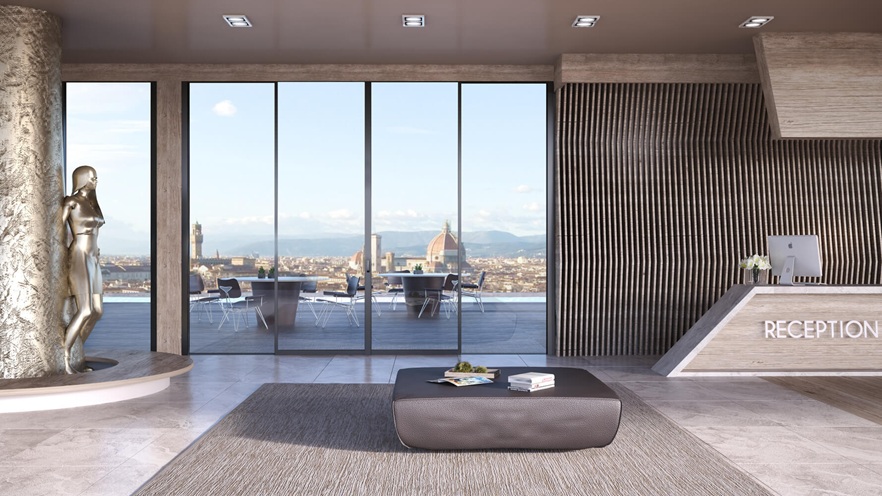

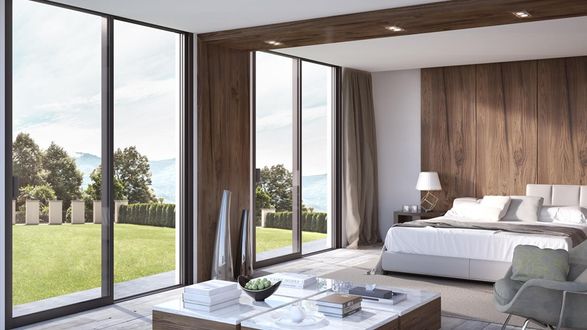

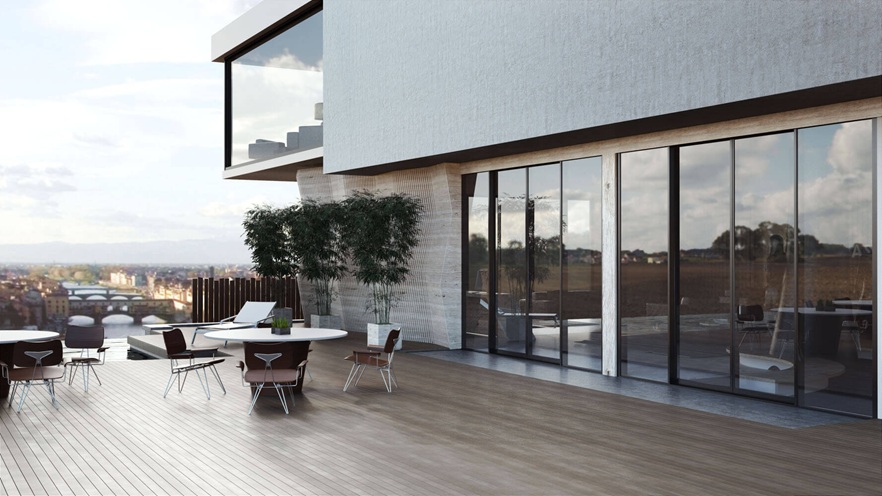

Discover the innovative smartia m12500 phos, alumil's minimal sliding system designed to maximise the infusion of natural light. Its unique design seamlessly aligns with the latest architectural trends, making it a stylish addition to any space.
INFORMATION
BRAND
Alumil
GLAZING TYPE
- Single
- Double
PRODUCT TYPE
Sliding System
MAXIMUM GLAZING THICKNESS
Up to 32 mm
COLLECTION
Smartia
PRODUCTION
Made in Greece
MINIMUM THRESHOLD HEIGHT
Optional with conceal sash
SEALING METHOD
Continuous perimetrical tri fin in two levels brush

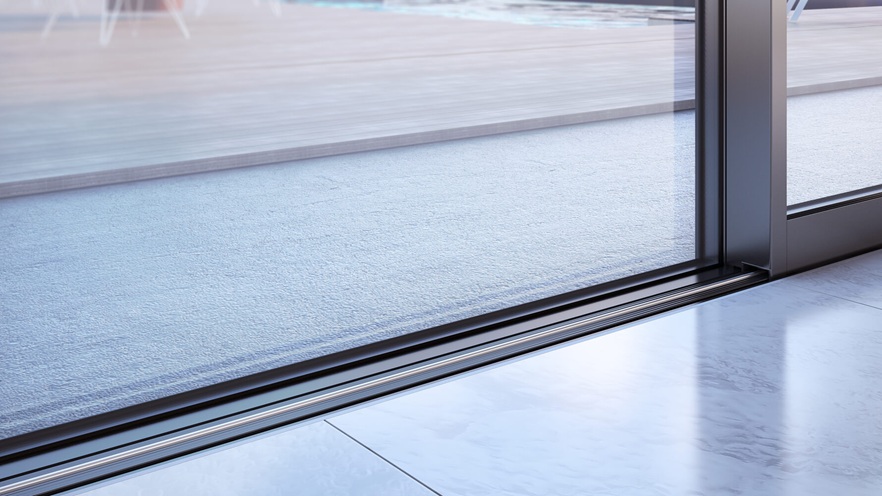

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed Sash
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
72 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
32 mm

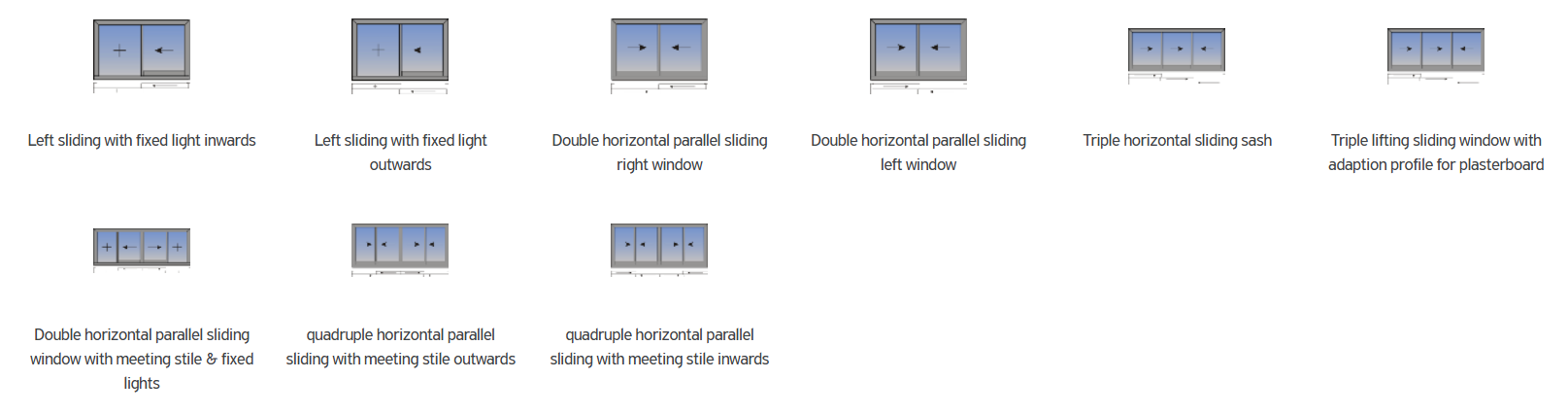

TYPES OF TYPOLOGY
- Combinations with fixed lights
- Horizontal Sliding, Meeting Stile
- Combinations with fly-screen and shutter
SASH WEIGHT
Up to 250 Kg
WIND LOAD RESISTANCE
C2/B2
WATER TIGHTNESS
Class 6A
AIR PERMEABILITY
Class 4

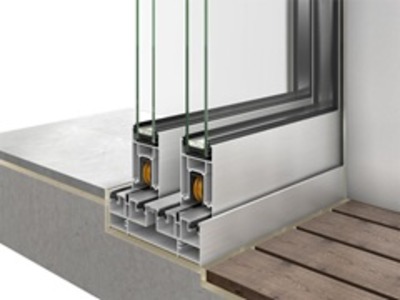

SECTIONS
ADVANTAGES
- User-friendly and functional, making your daily interactions effortless.
- Modern design that adds a touch of refined elegance to your home.
- Excellent value for money, combining affordability and high performance.
- Enhanced natural lighting thanks to product design and expansive window frames.
- High quality and certified performance, ensuring long-lasting durability and reliability.
- High level of security that allows you to rest easy knowing your home is well-protected.
- Increased static loads and functionality to remain steadfast even during severe weather conditions.
- High level of sound insulation, creating a serene and tranquil living environment shielded from unwanted noise.
DETAIL
CERTIFICATES
TYPOLOGIES
