LAMILUX FLAT ROOF ACCESS HATCH SERVICE FE
LAMILUX FLAT ROOF ACCESS HATCH SERVICE FE
Maintenance and service meet convenience
For the effortless access to technical roofs
INFORMATION
QUALITY
High-quality design for maximum daylight Ingress
TOP SECTION
Top section in traffic white inside and out, optionally anthracite on the outside
PRODUCT TYPE
Roof Hatches
BRAND
Lamilux
INCLINATION
5° inclination for reliable water drainage and reduced soiling
GENEROUS DIMENSIONS
- 90 × 250 cm
- 90 × 300 cm
ADJUSTABLE
5° inclination for reliable water drainage and reduced soiling
PRODUCTION
Made in Germany
SEALING SYSTEM
Peripheral double sealing system
POWER FAILURES
Opening via two electric drives or battery pack – also during power failures
COLLECTION
Access Hatch Service FE
DOWNLOADS
↓ DWG drawing
↓ Assembly instruction
APPLICATION

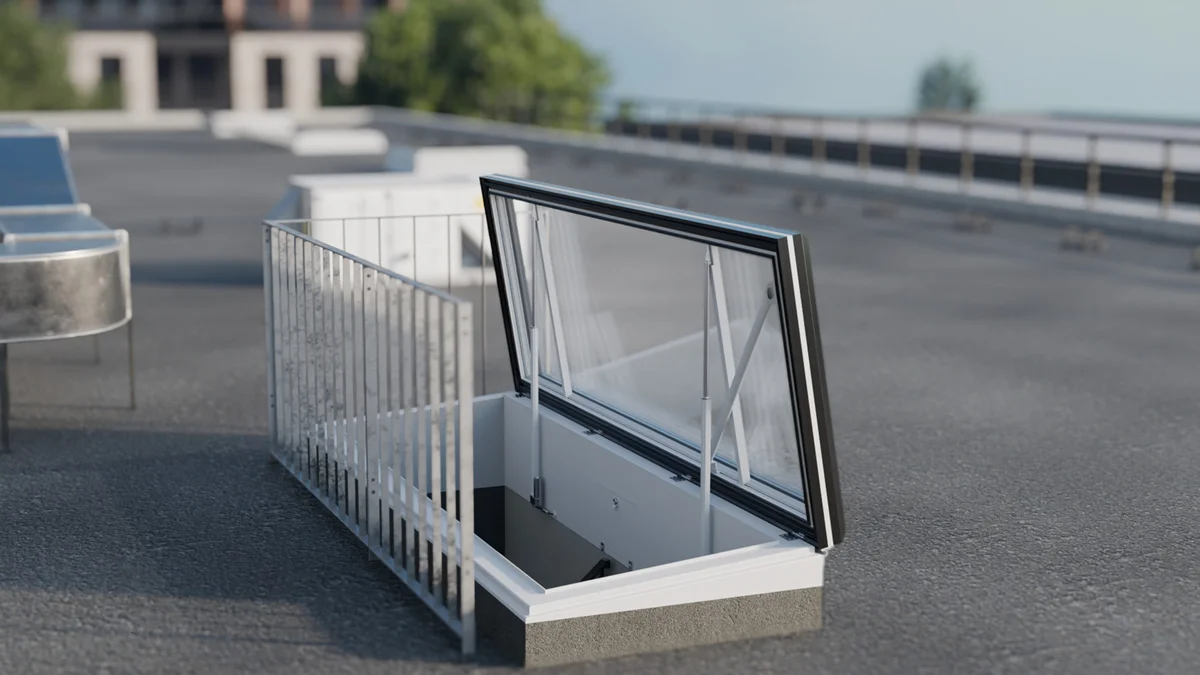

- Secure access to technically used flat Roofs
- Various glazing options for every application
- Flexible use on industrial, residential and public Buildings

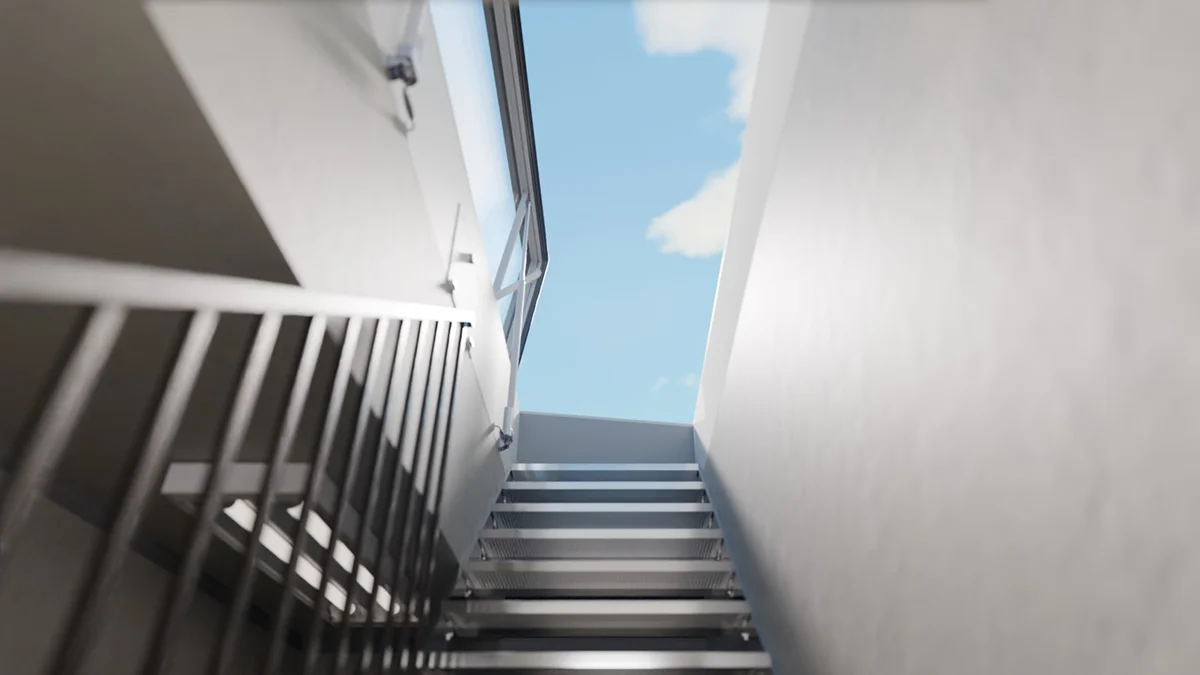

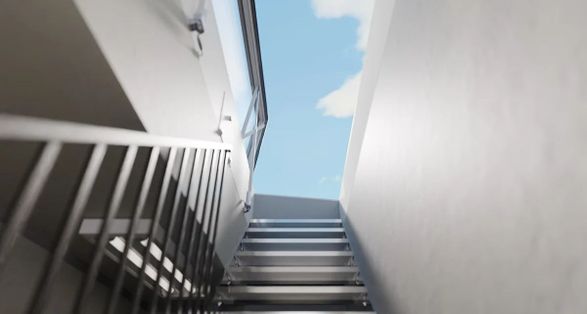

- Spacious roof access in combination with an on-site straight staircase
- Roof access hatch for maintenance on roofs with green roofing, photovoltaic systems and ventilation technology
SAFETY
- Driving rain tightness in accordance with DIN EN 1027 Class E
- Complies with the Machinery Directive in accordance with CE
- Resistance to wind load in accordance with DIN EN 12211 Class C5
- Fall-through safety in the closed position in accordance with DIN 18008-6
- Air permeability in accordance with DIN EN 1026 Class 4
- Complies with DIN EN 12978 “Doors and gates – Safety devices for power-operated doors and gates”
GLAZING TYPES
| GLAZING | UG-VALUE | SOUND INSULATION | LIGHT TRANSMITTANCE | ENERGY PERMEABILITY |
|---|---|---|---|---|
| Heat insulation glazing W110 | 0,6 W/(m²K) | 39 dB | 72% | 51% |
| Heat insulation glazing with matt film W303 | 0,6 W/(m²K) | 39 dB | 49% | 50% |
| Solar control glazing S117 (60/30) | 0,6 W/(m²K) | 39 dB | 55% | 30% |
| Solar control glazing with matt film S118 (60/30) | 0,6 W/(m²K) | 39 dB | 37% | 29% |
| Solar control glazing S121 (50/25) | 0,6 W/(m²K) | 39 dB | 45% | 25% |
| Solar control glazing with matt film S122 (50/25) | 0,6 W/(m²K) | 39 dB | 31% | 24% |
| Solar control glazing S125 (70/37) | 0,6 W/(m²K) | 39 dB | 62% | 34% |
| Solar control glazing with matt film S126 (70/37) | 0,6 W/(m²K) | 39 dB | 42% | 33% |
DETAIL
SUN PROTECTION

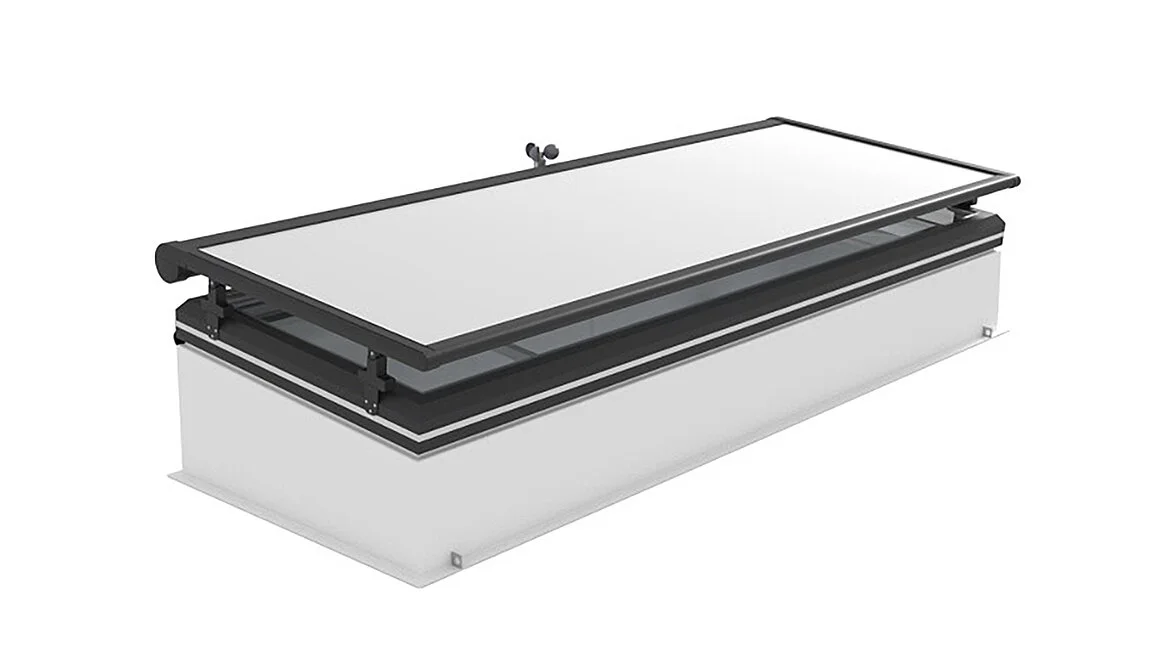

Natural daylight and solar heat can be used as valuable energy sources for buildings, helping to reduce both heating and artificial lighting costs. However, this energy must be carefully controlled. Adjustable shading systems make this possible. The external shading system for the LAMILUX Flat Roof Access Hatch Service FE is designed precisely for this purpose.
UPSTAND

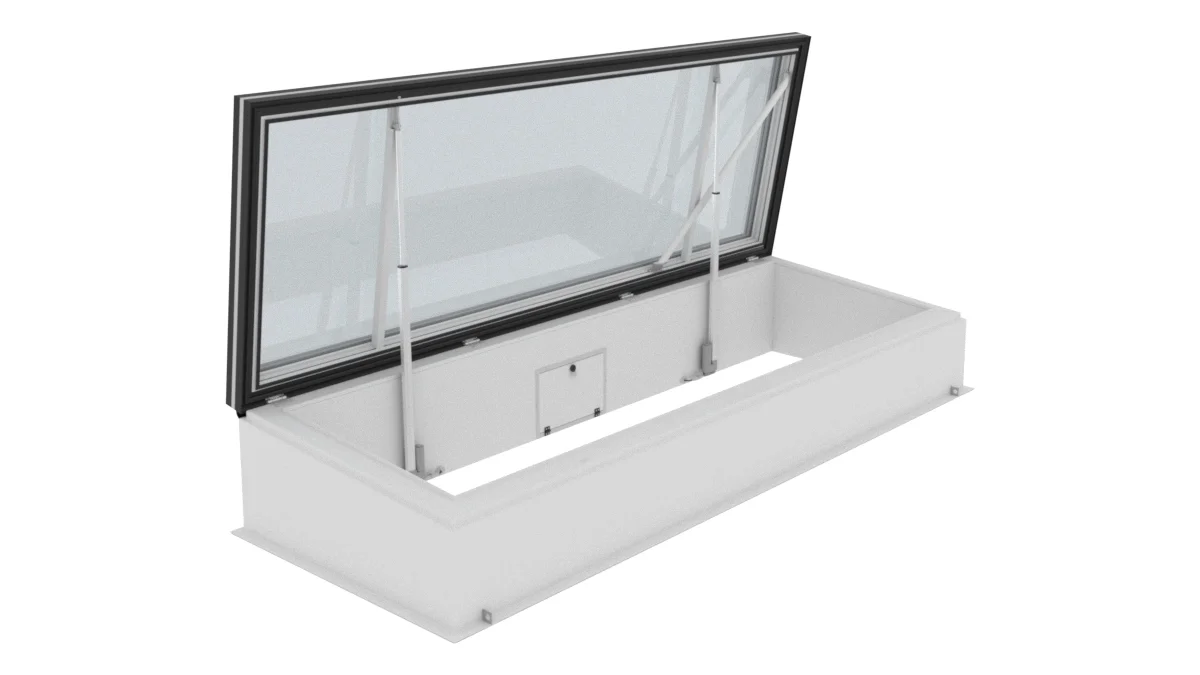

The thermally insulated upstand element forms the base of the construction and ensures an optimal thermal connection to the building structure. It is available in order sizes of 90 × 250 cm and 90 × 300 cm.
The interior surface consists of coated sheet steel in RAL 9016 (traffic white), while the exterior is made of GRP in a colour similar to RAL 9016. The upstand element is inclined by 5°, supporting effective water drainage and self-cleaning of the surface. Its height is approximately 40.5 cm on the eaves side and around 48 cm on the opposite ridge side.
OPENING DRIVES
The leaf is opened continuously and smoothly by electrically driven actuators positioned on each narrow side. The drives are controlled via a key switch with a dead man's function to ensure safe operation. Due to the maximum opening angle of approximately 80°, a projected opening width of about 799 mm is achieved.
In normal operation, the Flat Roof Access Hatch is supplied with 230 V mains voltage, which also automatically charges the integrated batteries. In the event of a power failure, the system automatically switches to battery operation. The battery capacity is sufficient for approximately 20 opening cycles of the leaf.
