Caroma Contura® II Cleanflush® Invisi Series II® Wall Faced Suite - Clay
CAROMA CONTURA® II CLEANFLUSH® INVISI SERIES II® WALL FACED SUITE - CLAY
CAROMA CONTURA® II CLEANFLUSH® INVISI SERIES II® WALL FACED SUITE - CLAY
Embrace natural luxury with the Caroma Contura® Collection - sculptural design with an organic simplicity to create a sense of subtle indulgence for your Bathroom.
INFORMATION
BRAND
Caroma
PRODUCT TYPE
Toilet Suites
EASY HEIGHT DESIGN
A raised seat height is easier to use for persons with restricted movement
COLLECTION
Blanc 1700
INLET TYPE
Concealed Cistern
ITEM CODE
- Matte Clay : 848901CL
- White : 848901W
- Matte White : 848901MW
RANGE
Contura II

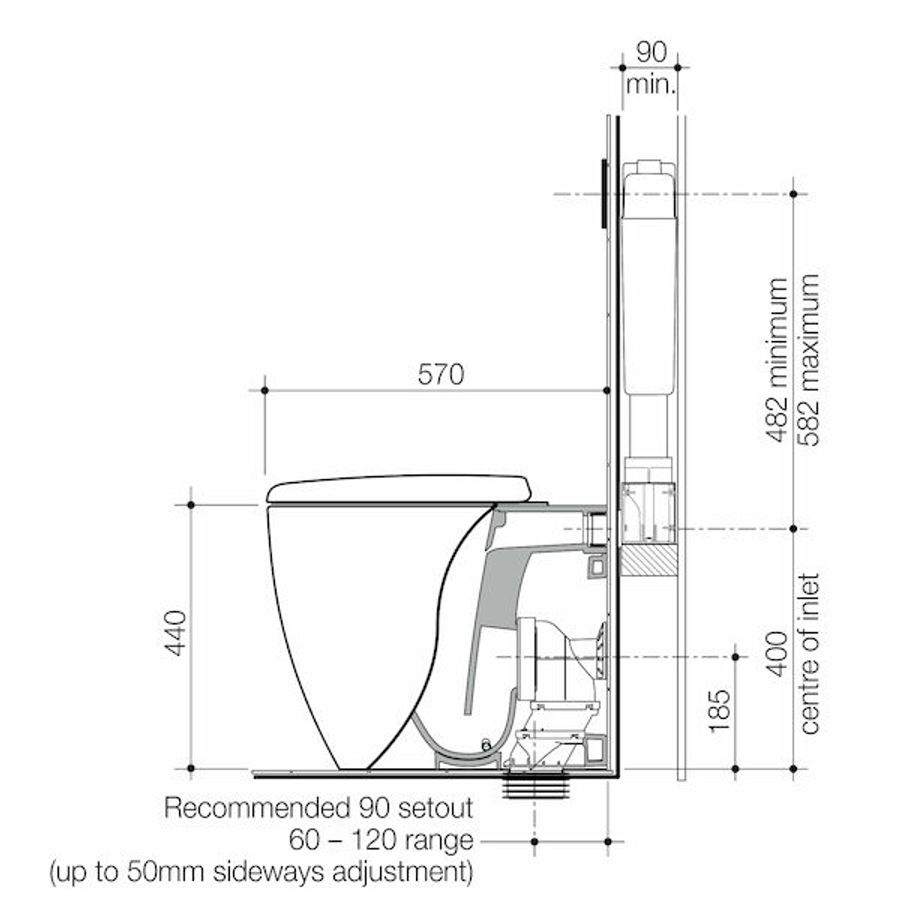

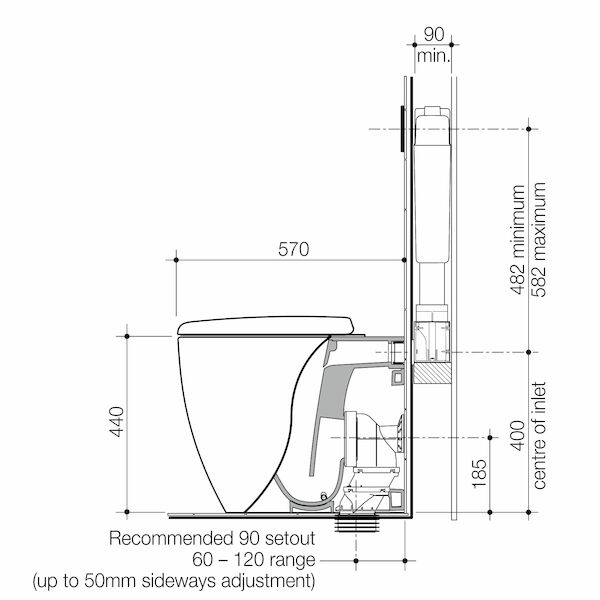

PAN HEIGHT
440 mm
PAN PROJECTION SIZE
570 mm
PATENTED
Supplied with patented UniOrbital® connector
WELS WITH FLOW RATE FLUSH VOLUME 1
WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
ITEM MATERIAL
Vitreous China
TRAP TYPE
Universal
FIXING
The pan can be fixed to the floor by either bedding into mortar or using the supplied D82 Concealed Fixing Bracket.
SEATS
The Contura II soft close quick release thermoset toilet seat with GermGard® Antibacterial Protection is provided as standard with seat caps in Stainless Steel. Optional seat caps are available in Brushed Bronze (BBZ). Seat available in three (3) colour options: White (W), Matte White (MW) and Clay (CL). Code No.300085.
INCLUDED
Rough in and fit out kits included
BRACKET
D82 fixing bracket included
AS1428.1 ACCESSIBLE
No
BUTTONS AND TOILET SEAT
Invisi Series II® flush buttons and toilet seat hinge caps colours match Caroma Contura® II tapware
AS1428.1 AMBULANT
No
INDEPENDENT LIVING COMPLIANT
No
SUITABLE
Invisi Series II® concealed cistern is suitable for induct, in ceiling, inwall or undercounter installations (For undercounter installation use fixed flushpipe, code: 237222)
APPLICATION
Complete the look with the matching Caroma Contura® II Bathroom Collection
TRAP
Universal trap (UniTrap) for S or P trap installations
DESIGN
Drop zone and bowl design minimises cleaning
PROTECTION
GermGard® protection is a unique antimicrobial formula which kills harmful bacteria, this technology not only helps prevent the spread of nasty germs making cleaning even easier.
CLEANING
Includes soft close toilet seat with quick release function for easy cleaning
CERTIFICATES
PAN
Contura II Cleanflush™ wall faced back inlet 4.5 litre full flush rimless pan
INLET
Fully glazed 50mm back inlet for concealed cistern.
TECHNOLOGY
Caroma CleanFlush® rimless technology is a patented Australian design that provides a whole bowl clean with no splashback
INSTALLATION
The installation of the toilet suite shall be in accordance with the normal minimum drainline grade requirements in AS/NZS 3500.2.
CISTERNS AND FLUSHVALVES
Invisi II Cistern – suitable for inwall, under counter, induct and inceiling applications. The Contura II Round Push Buttons and Access Plate (supplied separately) are available in 5 finishes: Chrome (C), Black (B), Brushed Brass (BB), Brushed Bronze (BBZ) and Brushed Nickel (BN). Code No.848810.
