Pilosio Slabform 2.0 The Ideal Extra-light Horizontal Formwork System
SLABFORM 2.0 THE IDEAL EXTRA-LIGHT HORIZONTAL FORMWORK SYSTEM
SLABFORM 2.0 THE IDEAL EXTRA-LIGHT HORIZONTAL FORMWORK SYSTEM
The ideal extra-light horizontal formwork system, quickly assembled at any worksite.
INFORMATION
BRAND
Pilosio
PRODUCTION
Made in Italy
COMPONENTS
Lightweight aluminum components (max panel weight 15.5 kg)
ROBUSTNESS

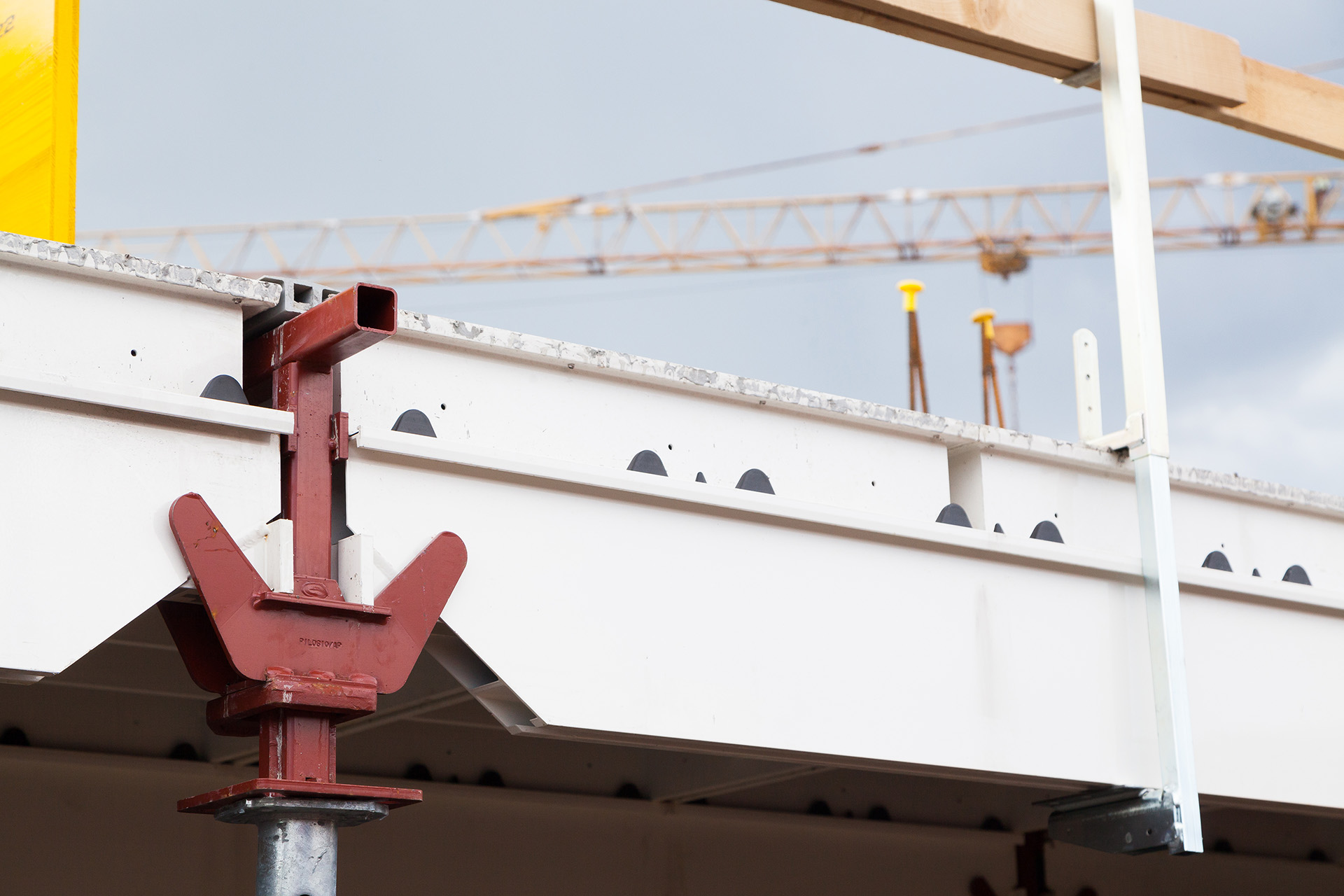

Quick Drophead and fixed heads are galvanized for extra robustness
PRODUCTIVITY
High productivity up to 500 m2 per day
COLLECTION
Slabform
PRODUCT TYPE
Formwork System
USE
Construction
ENVIRONMENT
Outdoor
THICKNESS
Up to 75 cm thickness slab class 7 (prEN 15113-1:2004)
CHARACTERSTICKS

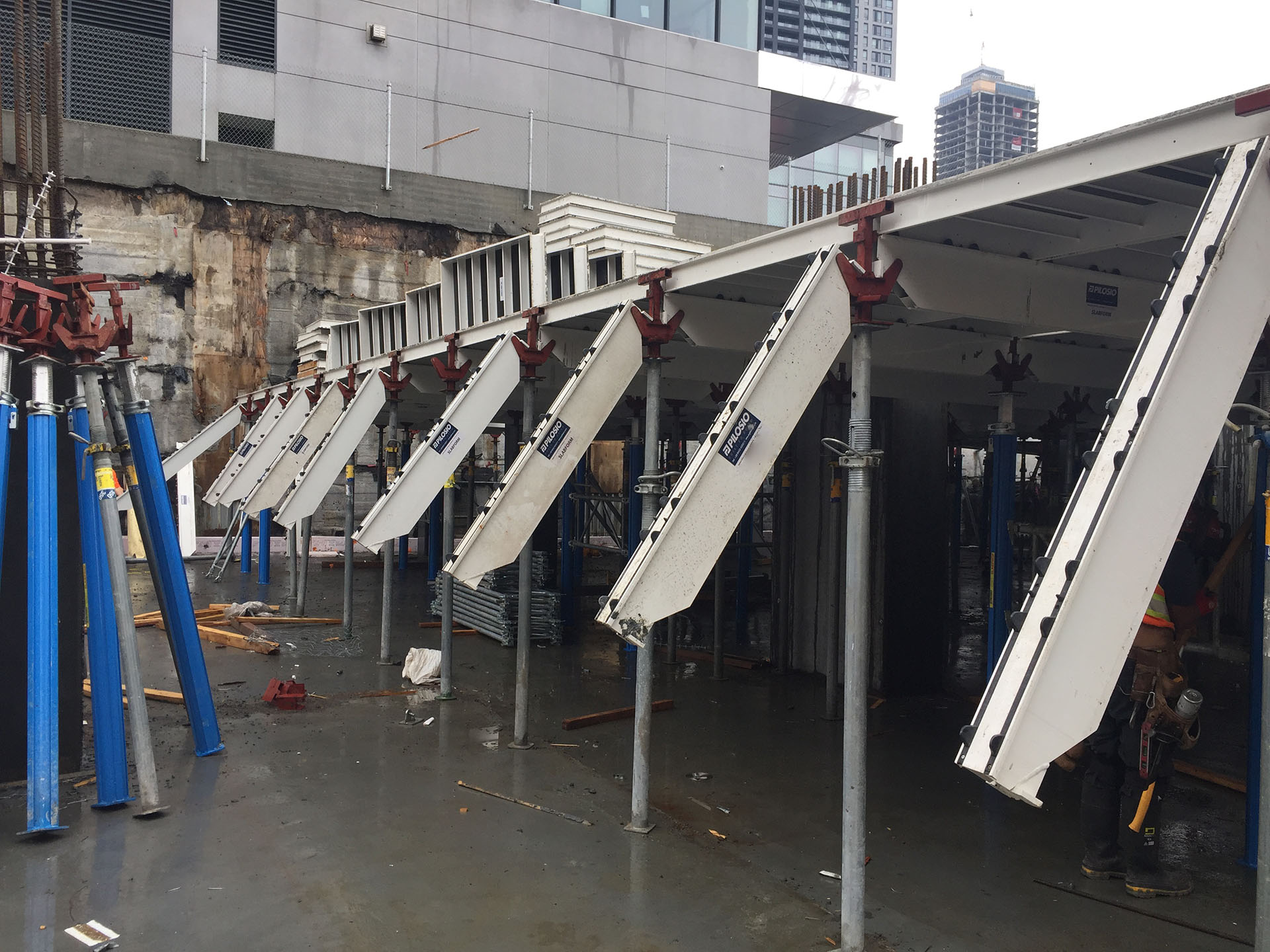

-A simple and intuitive assembly sequence enables fast and safe forming operations. -The lightweight system components accelerate the forming time. Early striking with the Quick Drophead reduces on-site equipment and provides a fast deployment to the next level.
ORIENTATION
Horizontal
CONFIGURATION
88 prop per m2 (configuration 3 x 1.5 m)
POSSIBILITY
Possibility to use steel props or aluminum props
ADVANTAGES
-Allows for early striking -Accessories enable compensations around columns -Offers simple and reliable safety components for slab edges -Slabform Quick Drophead allows the rapid reuse of panels and beams for next working phase -Heads can be fixed to props in a safe, easy and quick way, without bolts
SOLUTION
Efficient solution for compensation around columns
MATERIAL
Aluminum & Steel
DOWNLOAD
↓ Pilosio Slabform 2.0 Catalogue
APPLICATIONS
- Skyscrappers
- Industrial Construction
- Residential Construction
