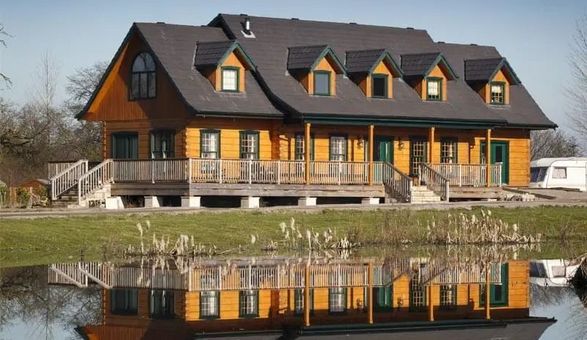

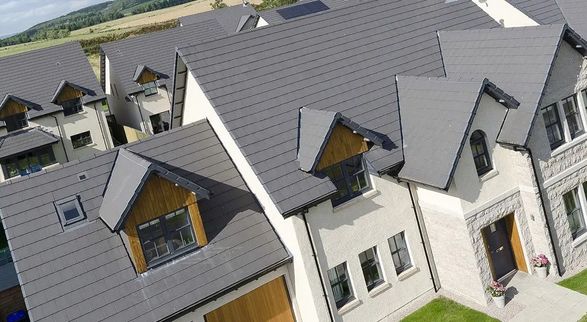

Marley Edgemere & Edgemere 2.0 Interlocking Concrete Slate
EDGEMERE & EDGEMERE 2.0 INTERLOCKING CONCRETE SLATE
EDGEMERE & EDGEMERE 2.0 INTERLOCKING CONCRETE SLATE
Concrete interlocking tile with a thin leading edge offers the appearance of natural slate, at a fraction of the cost with an exceptional covering capacity of 9.7 tiles per m²
Edgemere remains one of the UK's most popular concrete roof tiles and is now joined by Edgemere 2.0 – the UK's first roof tile to utilise carbon-capture cement technology, delivering evidence-backed carbon reductions without compromising on performance, appearance or installation familiarity.
INFORMATION
BRAND
Marley
PRODUCT TYPE
Concrete Slate
FIXING CLIPS
Eaves, verge and tile clips, SoloFix
MINIMUM PITCH
- 17.5° Headlap (100mm)
- 22.5° Headlap (75mm)
ADVANTAGES OF USING MARLEY’S EDGEMERE CONCRETE ROOF TILES
With its leading edge of only 18mm, the Edgemere has been precision-engineered to be 40% thinner than standard concrete interlocking tiles. Its large format coupled with a broken-bond laying technique make it ideal for quick and easy installation, saving you time and money, and it is versatile enough to be used on pitches as low as 17.5°.
The Edgemere slate has been designed to integrate seamlessly with Marley’s dry fix and ventilation systems into a full holistic roof system, ensuring complete protection from the elements and full compliance with BS 5534. The product is BES 6001 accredited and can achieve extra credits under BREEAM and HQM. As a roof covering, these tiles have a very low carbon footprint and environmental impact and can score an A+ rating in the BRE Green Guide.
UNDERLAY
- Vapour Permeable (MA33150)
- Non Vapour Permeable (MA33145)
WEIGHT OF TILING
- 75mm Gauge — 44kg/m2 (0.43 kN/m2)
- 100mm gauge — 47.5kg/m2 (0.47 kN/m2)
COLLECTION
Edgemere
PRODUCTION
Made in United Kingdom
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
UNDERCLOAK – MORTAR BEDDED
Fibre Cement Undercloak — 38mm - 50mm Overhang — With Verge Clips (MA30263)
RECOMMENDED BATTEN SIZE
- 38mm x 25mm for rafters not exceeding 450mm centres
- 50mm x 25mm for rafters not exceeding 600mm centres
TILE THICKNESS
18 mm (nominal)
COVER WIDTH
298 mm (nominal)
FIXING
Due to several factors Including, but not limited to, location and building design, a bespoke Roof Fixing Specification must be obtained. All perimeter tiles must be twice fixed in accordance with BS 5534.
AUTHORITY
BS EN 490
HANGING LENGTH
395 mm (nominal)
MINIMUM HEADLAP (MAX GAUGE)
- 75mm (345mm)
- 100mm (320mm)
BATTENS REQUIRED
- 75 mm gauge (2.9 lin.m/m2 )
- 100 mm gauge (3.1 lin.m/m2)
FINISH
Smooth
QUANTITY PER PALLET
Edgemere Tiles — 240
COVERING CAPACITY (NET)
- 75 mm Headlap (9.7 tiles/m2)
- 100 mm Headlap (10.5 tiles/m2)
CAPACITY
9.7 tiles per m²
GUARANTEE
15 year
NAILS
45mm x 3.35mm (MA30398) If in a coastal location stainless steel nails may be required.
CLIPS
- Eaves Clip (MA30297)
- Edgemere Solofix (MA30441)
- Batten End Clips (MA30214)
- Secret Cut Tile Clip (MA43607)
- Verge Clips & Nails (MA30263)
COLORS

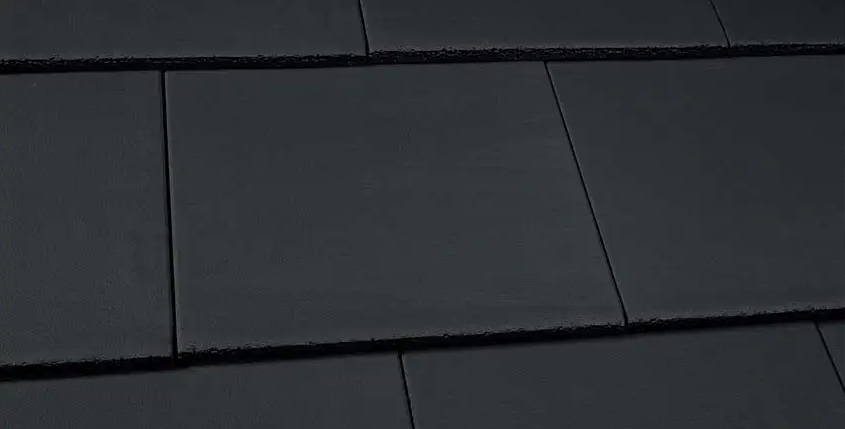

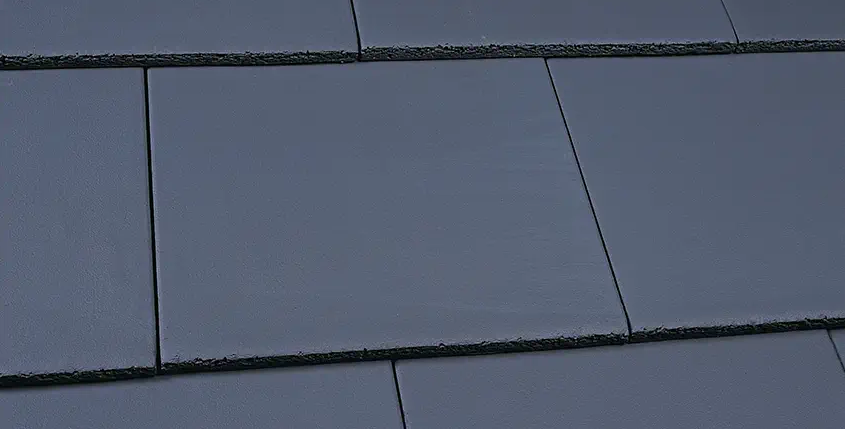

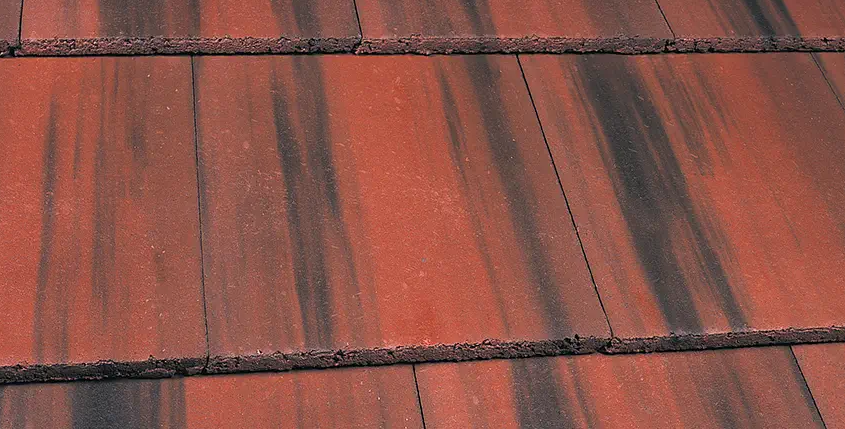

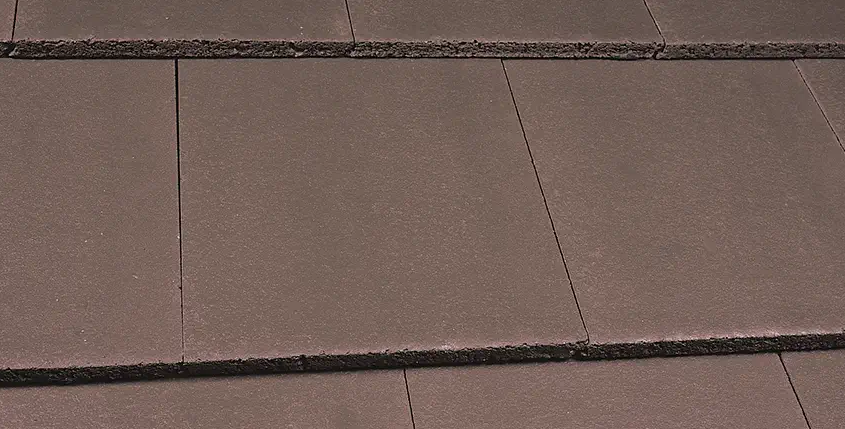

-Old English Dark Red -Smooth Grey -Anthracite -Smooth Brown
VENTILATION
- Flexible Pipe (MA39091)
- Universal Tile Vent (MA3670)
- Ridge Vent Terminal (MA19800)
- Universal HlpFast System (MA53400)
- Gas Vent Ridge Terminal (MA25600)
- Edgemere Concrete Tile Vents (MA25900)
- Gas Vent Ridge — For Condensing Boiler Only
- Segmental (MA25400) Modern (MA25500)
- 25mm Eaves/Low Level Ventilation (MA46351) Warm Roof
- 10mm Eaves/Low Level Ventilation (MA46350) Cold Roof
MATERIAL
Concrete
AVAILABLE COLORS
4
TILE DESIGN
Edgemere concrete interlocking tiles
