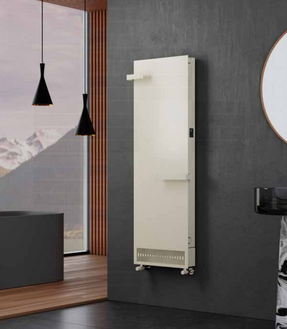

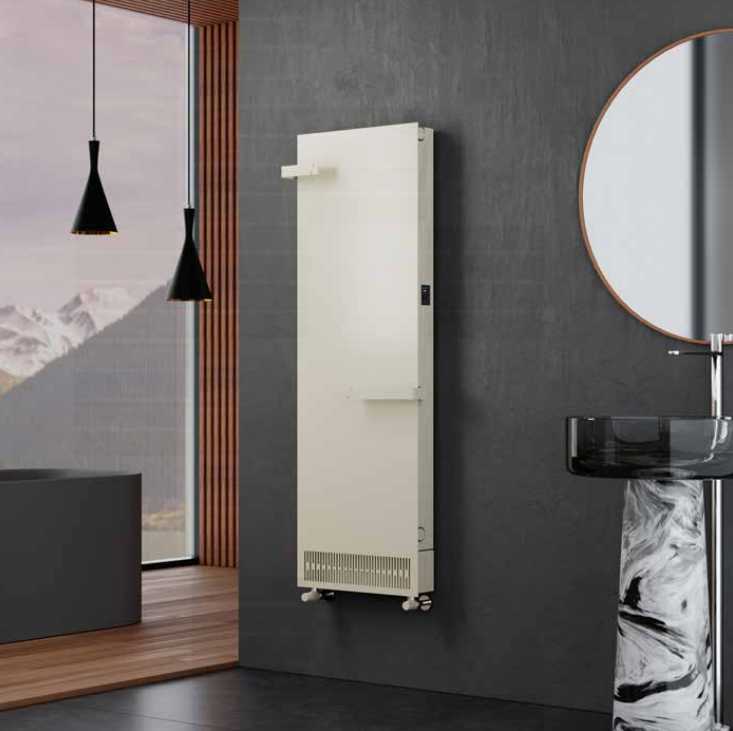

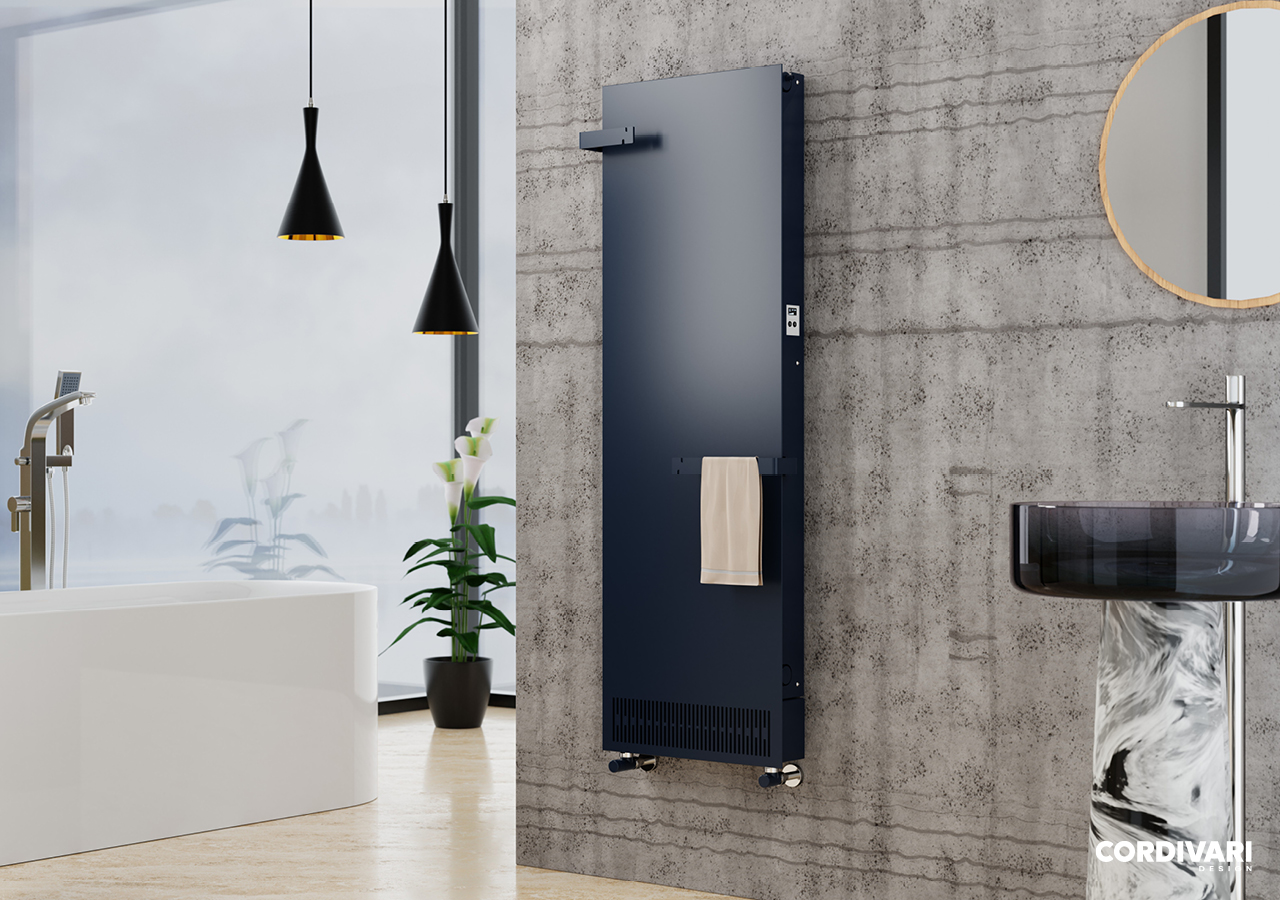

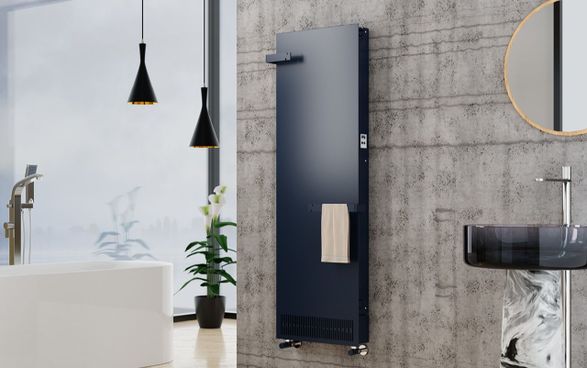

Cordivari Frame Pro Baden Radiator

Frame pro baden is the new high-performance radiator of cordivari design, designed for the heating systems with heat pump or low temperature.

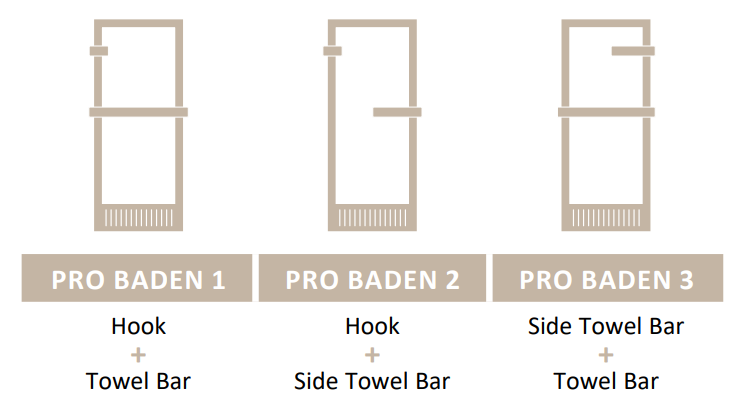

The radiator uses a ventilation system with brushless DC inverter motor that guarantees comfort and high performances. Standard supplied with towel bars in 3 different configurations.

PACKAGING

The radiator is protected by recyclable carton box.

PAINTING PROCESS

Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).

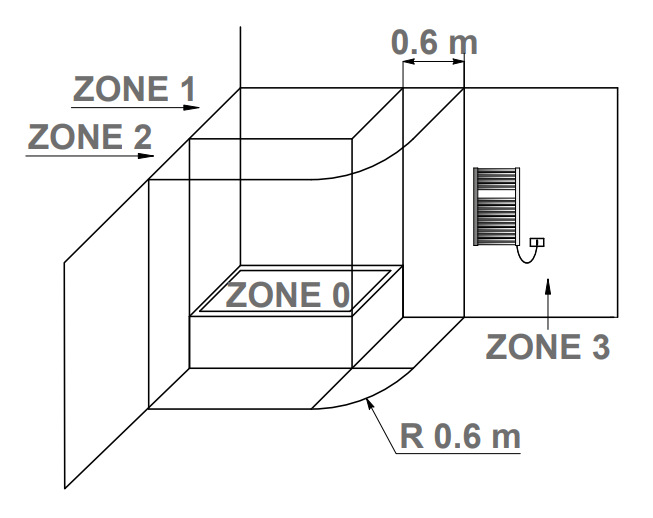

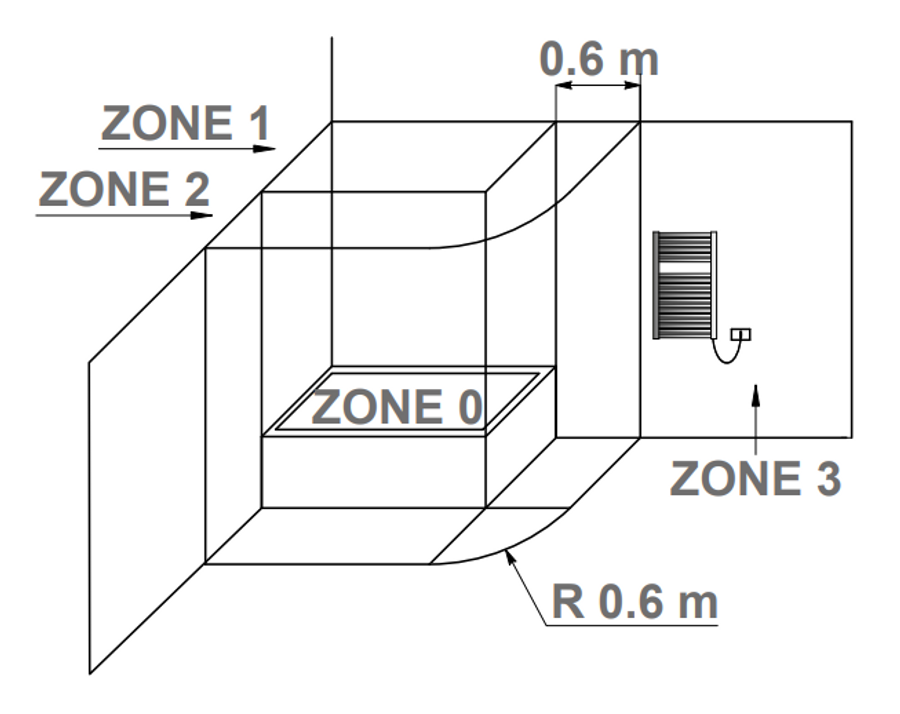

POSITIONING OF ELECTRIC DEVICES IN THE BATHROOM

- The national rules on installing electrical equipment in the bathroom must be scrupulously respected. The electric radiators must be always installed outside zone 1 and 2.
- In particular the electric switch and control elements must be mandatorily located in zone 3, in order that no electrical control center is accessible to anyone using the shower or bath.

SMART CONTROL OPERATING MODE

- Manual : The user can select up to 4 fan speeds via the function buttons, independent of the flow temperature values. From the display you can always see the current operating status of the radiator.
- Auto : the fan speed is adjusted automatically according to the flow temperature value read by the probe positioned on the radiator. The algorithm will choose whether to switch off, modulate or push the fan to maximum speed. The display always shows the current operating status of the decorative radiator.
