Marley Anglia Interlocking Roof Tile
Anglia Interlocking Roof Tile
ANGLIA INTERLOCKING ROOF TILE
Bullnose leading edge design with the characteristic profile of traditional clay pantiles 25° minimum pitch available for smooth finish tiles; granular finish tiles have a higher minimum pitch requirement
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
COVERING CAPACITY(NET)
- 15.7 tiles /m² at 75 mm headlap
- 17.1 tiles /m² at 100 mm headlap
BATTENS REQUIRED
- 3.2 lin.m/m² at 75 mm headlap
- 3.5 lin.m/m² at 100 mm headlap
MAXIMUM PITCH
- 30° Smooth (75 mm headlap)
- 30° Granular (75 mm headlap)
- 25° Smooth (100 mm headlap)
MINIMUM PITCH
90°
MAXIMUM GAUGE
312 mm
HANGING LENGTH
370 mm (nominal)
FIXING CLIPS

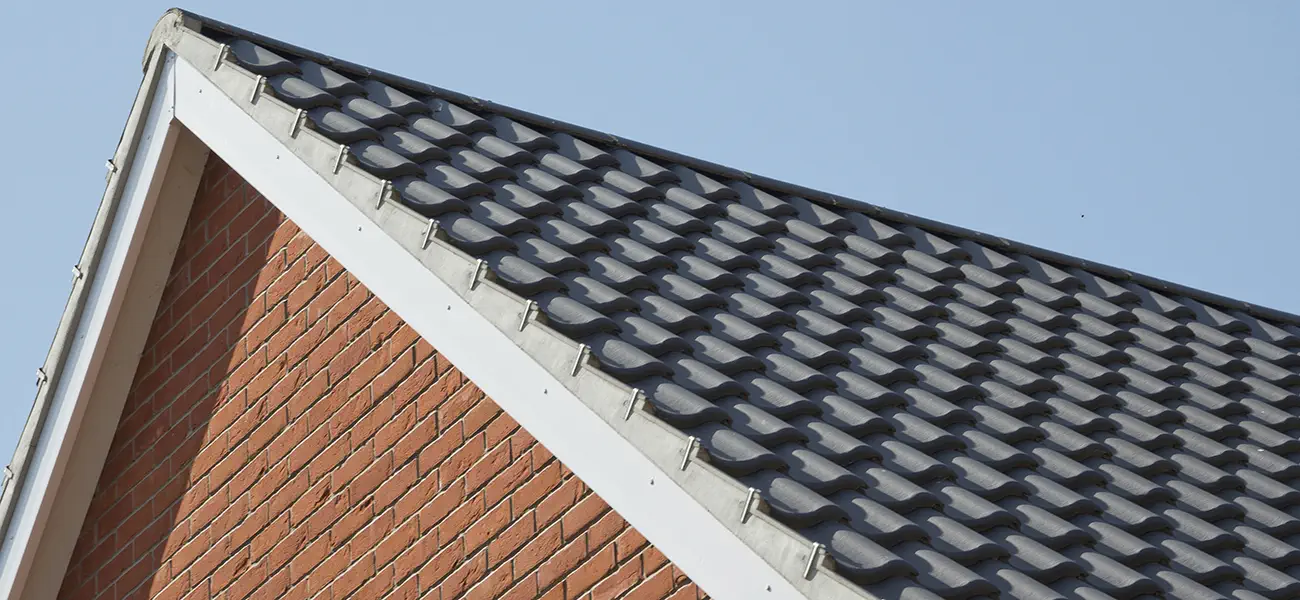

Eaves, Verges and Tile Clips
EDGE DESIGN

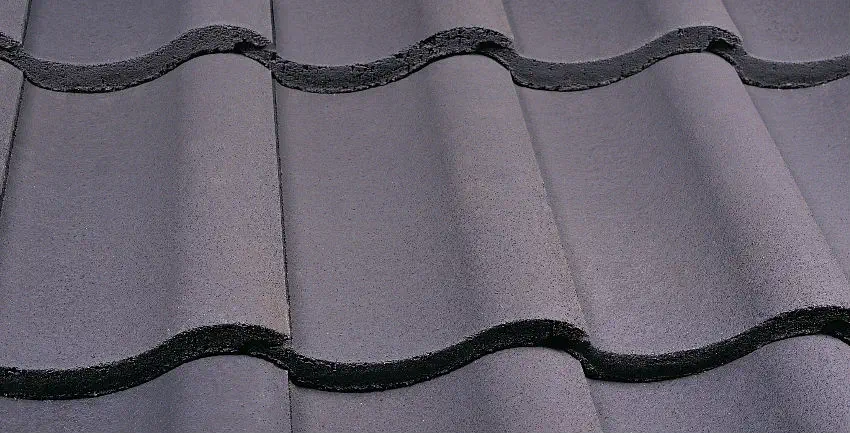

A single-lap interlocking concrete tile with the classic clay pantiles profile and bullnosed leading edge design.
ARIETIES OF DEVELOPMENT

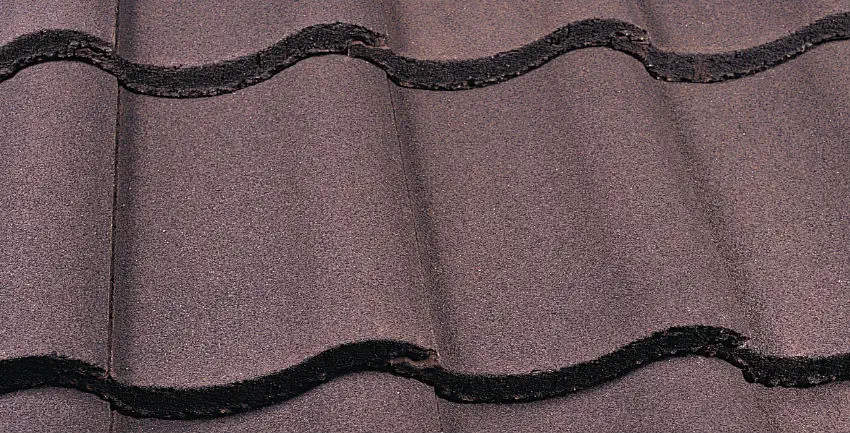

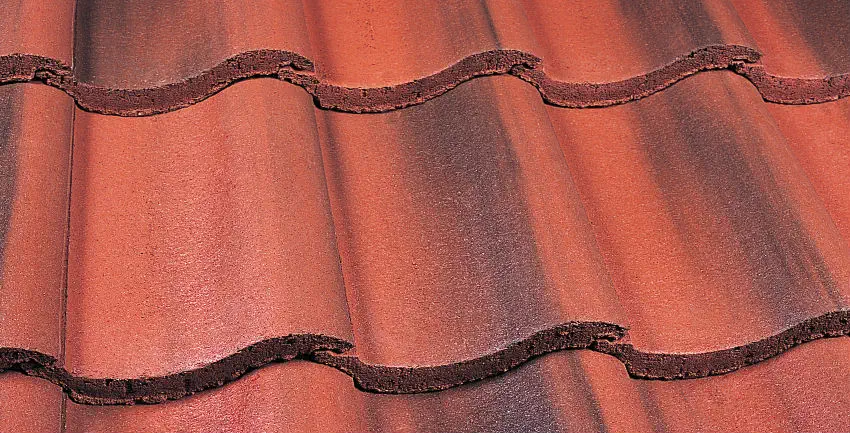

A popular profile complemented by 3 traditional colours, for a selection suitable to all varieties of development.
FEATURE
Smooth
SIZE OF TILE
387 mm x 229 mm
MINIMUM HEADLAP
75 mm (pitch and surface dependent)
COMPATIBILITY, FUNCTIONALITY AND BEAUTIFUL AESTHETICS FOR THE PERFECT FINISH ACROSS EVERY ROOF STYLE
Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
TILE NAILS
38 mm x 3.35 mm
NOTE
Nominal weight of roof tile fittings
WEIGHT OF TILING
- 47kg/m² (0.46 Kn/m²) at 75mm headlap
- 51kg/m² (0.50 Kn/m²) at 100mm headlap
COVER WIDTH
204 mm (nominal)
DOWNLOAD
↓ Brucode
BATTEN SIZE RECOMMENDED
- 38 x 25mm for rafters/supports not exceeding 450mm centres
- 50 x 25mm for rafters/supports not exceeding 600mm centres
COLORS
DETAIL
Experiencing the vast variety of textures and colours that our roof tiles provide up close can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.
GUIDE TO SPECIFICATION
All of our concrete interlocking tiles can achieve an 'A+' rating (which has the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
QUALITY MARK (HQM)
Accreditation to the BES 6001 framework standard for Responsible Sourcing means that projects using our concrete interlocking tiles and slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).
TECHNICAL DETAIL
