Isolgomma Sylpro 3 Insulation Accessories
SYLPRO 3 INSULATION ACCESSORIES
SYLPRO 3 INSULATION ACCESSORIES

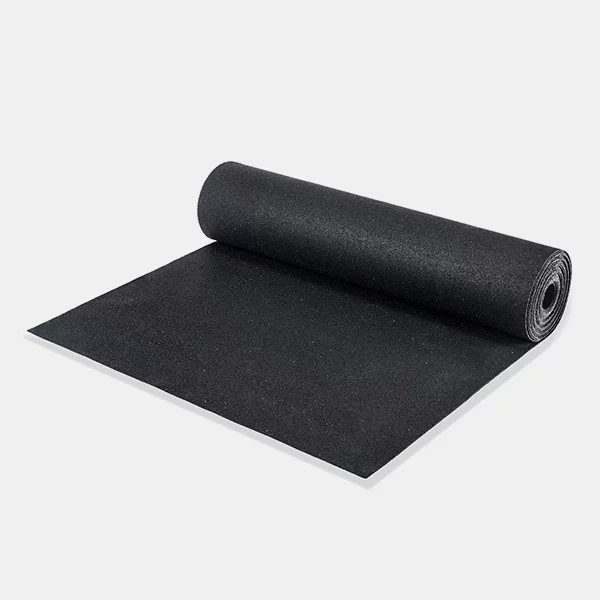

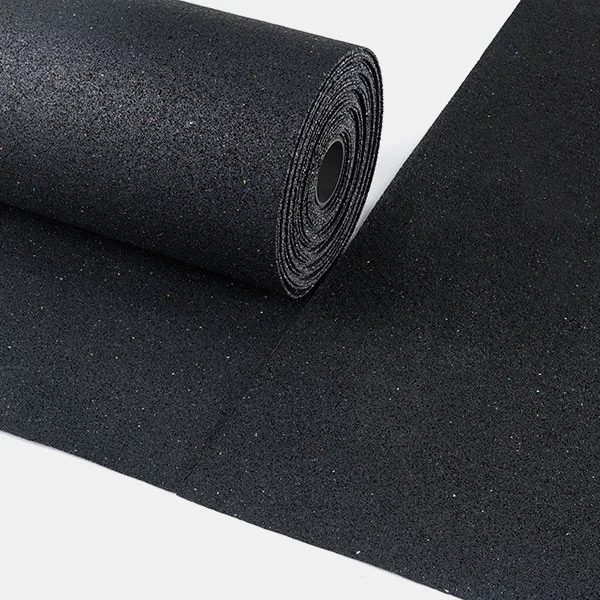

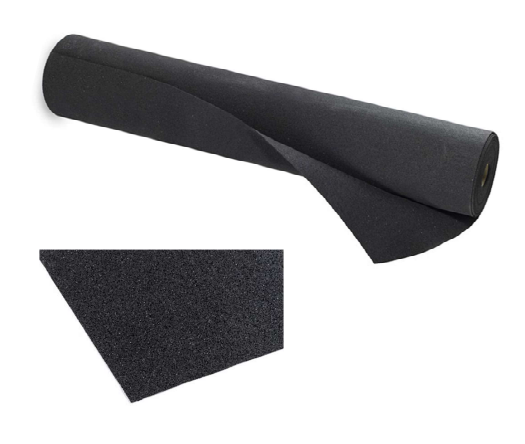

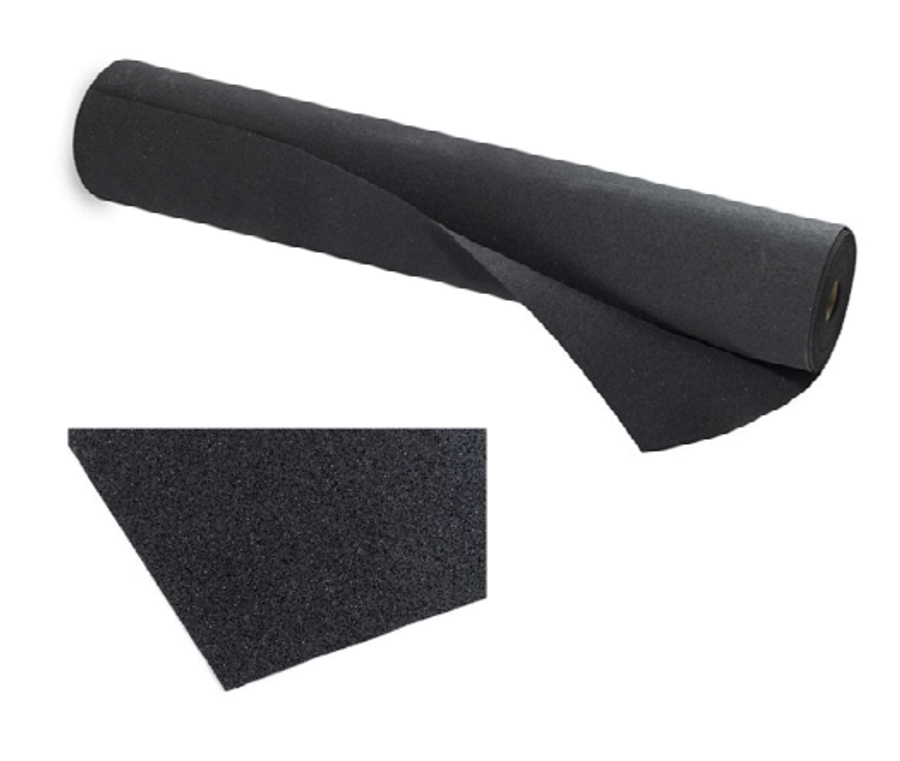

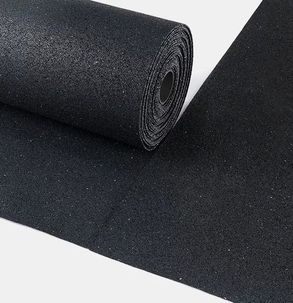

Underlay impact noise acoustic insulation for reduced thickness floors, consisting of rolls composed of ELTs rubber granules 3 mm thickness
INFORMATION
BRAND
Isolgomma
COLLECTION
Sylpro 3
PRODUCT TYPE
Insulation Accessories
SUPERFICIAL WEIGHT
2.19 kg/m²
DYNAMIC STIFFNESS S'
77 dB
DIMENSIONS
- Roll Length : 20 m
- Roll Width : 1.25 m
IMPACT SOUND LEVEL ATTENUATION ΔLW
19 dB
INSTALLATION
Dry
PRODUCTION
Made in Italy
THICKNESS
3 mm
APPLICATION
Underlay
APPLICATION'S FIELDS
- Wooden underlay
- Modular roof systems
UNDER APPLICATION
- Cls Floor
- Clt Floor
- Timber Joists Floor
USE
Floor
TYPE
Underlay
FLEXIBILITY
It allows dry or glued laying depending on the application
MATERIAL
Recycled rubber fibres and granules from End-of-Life Tyres (ELTs)
LAYING COSTS REDUCTION
The dimensional stability allows a fast and precise laying. The surface finish allows an excellent adhesion without waste of glue
INSULATION PERFORMANCE
High sound insulation performance in reduced thickness
CERTIFIED ACOUSTIC IMPROVEMENT
Designed to be used with different types of floor and structures
DENSITY
730 kg/m³
REACTION TO FIRE
E
MANUFACTURING PROCESS
Fibres and rubber granules are selected and compacted using polyurethane adhesive in a hot process.
DETAIL
INSTALLATION TEST
Acoustic performances of the intervention can be tested on site by a competent technician
ACOUSTIC CERTIFICATE
Product acoustic certificates are available and allow to comply with the limits imposed by law
ACOUSTIC REPORT
Our technical staff is able to give you the proper support in all the project phases, supporting you in the identification of materials
LAYING ASSISTANCE
Thanks to our extensive commercial technicians network, we are at your disposal for the coordination of the first laying phases on site
INSTALLATION INSTRUCTIONS FOR SYLPRO

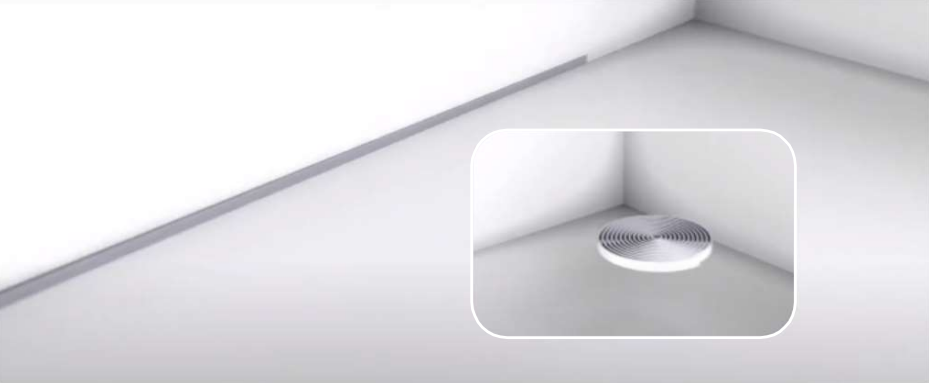

ROOM PERIMETER
Apply the Profyle Flat 5 all along the room perimeter.

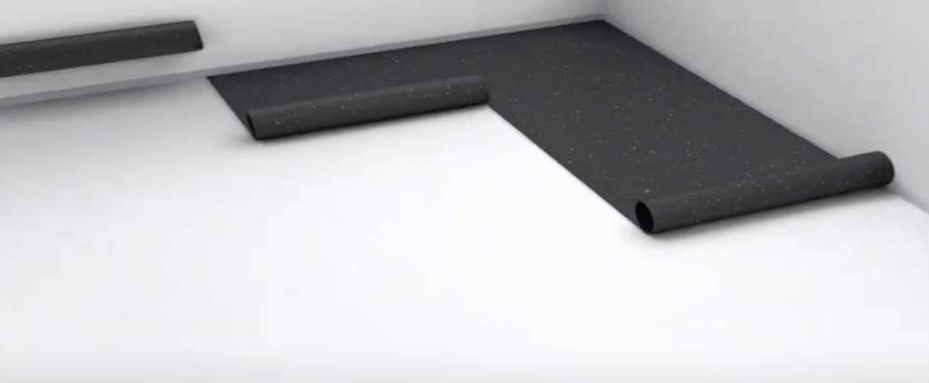

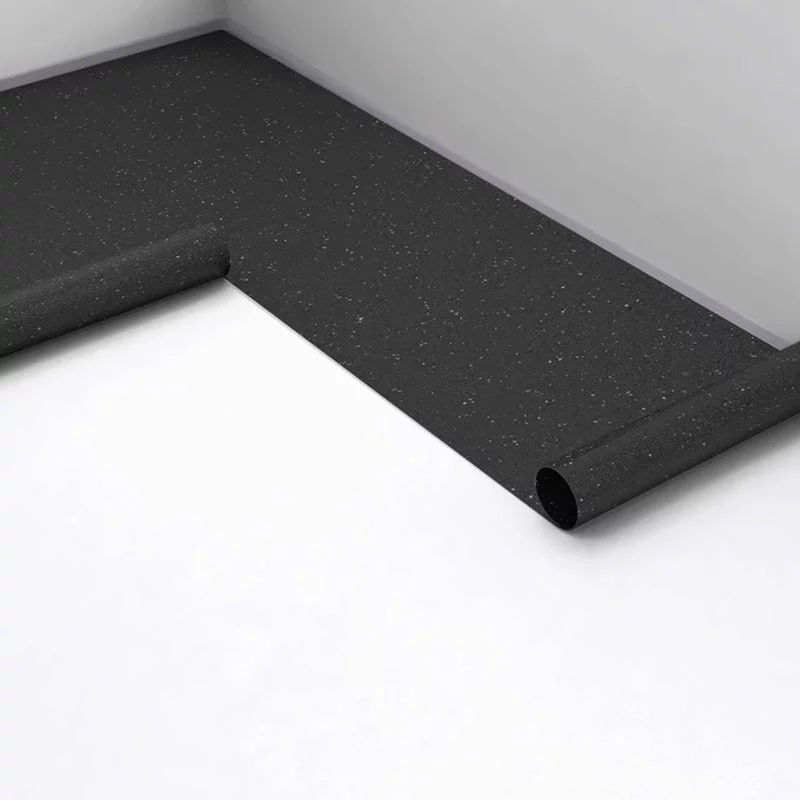

DRY APPLICATION
Lay down the sylpro and seal the roll jointing borders with the adhesive stik tape
BOARDS
Apply the parquet boards.

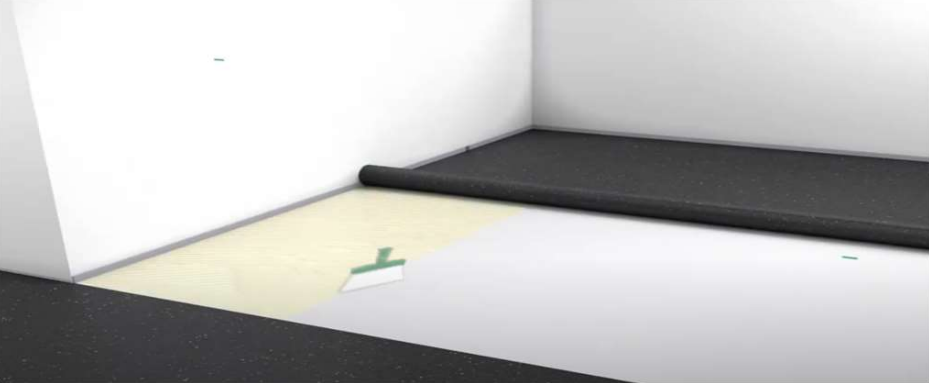

GLUE APPLICATION
Apply the mat glue, then lay down the sylpro rolls

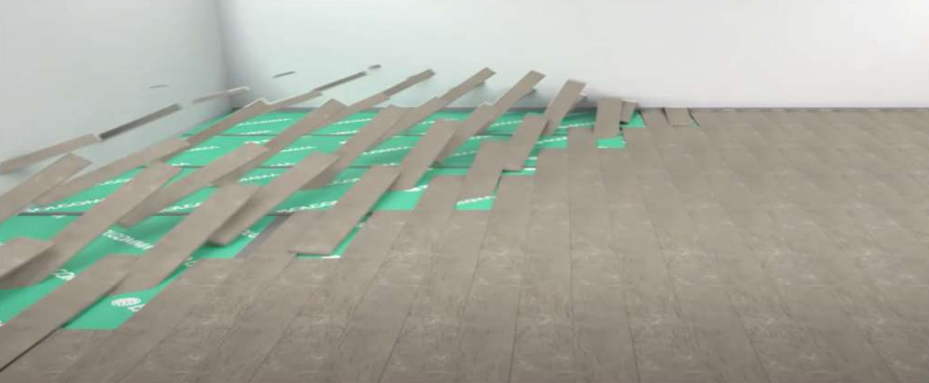

SYLPRO MAT
Glue the parquet boards over the Sylpro mat with the indicated glue.

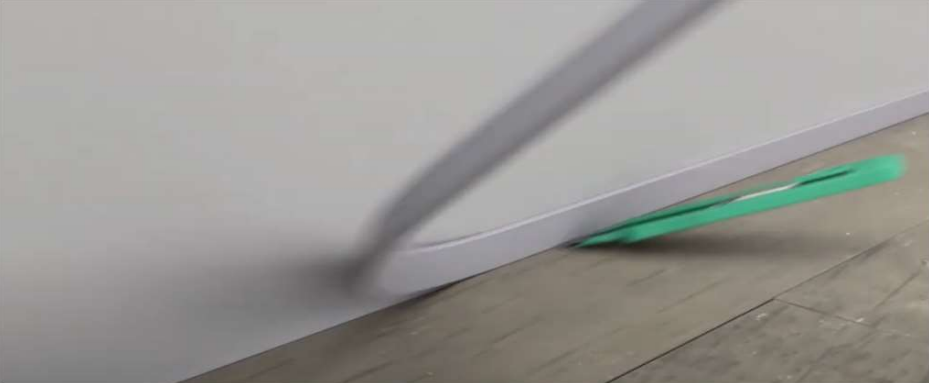

EDGING
Cut the exceeding part of the edging strips
