RIVEN EDGEMERE INTERLOCKING CONCRETE SLATE ROOF-TILES
RIVEN EDGEMERE INTERLOCKING CONCRETE SLATE ROOF-TILES

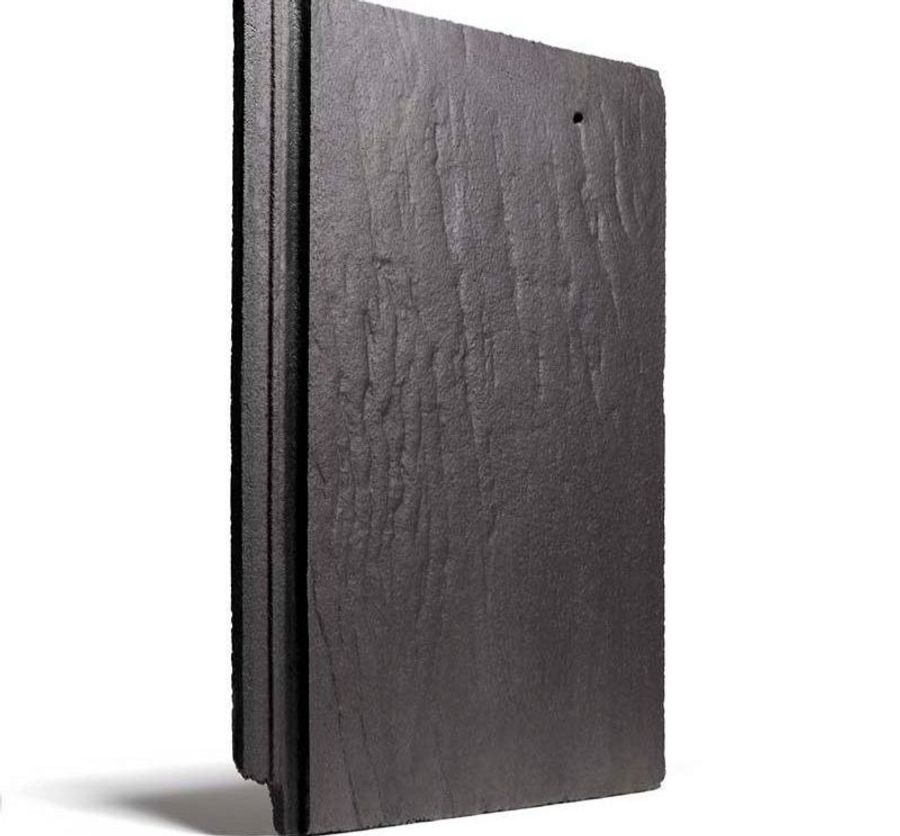

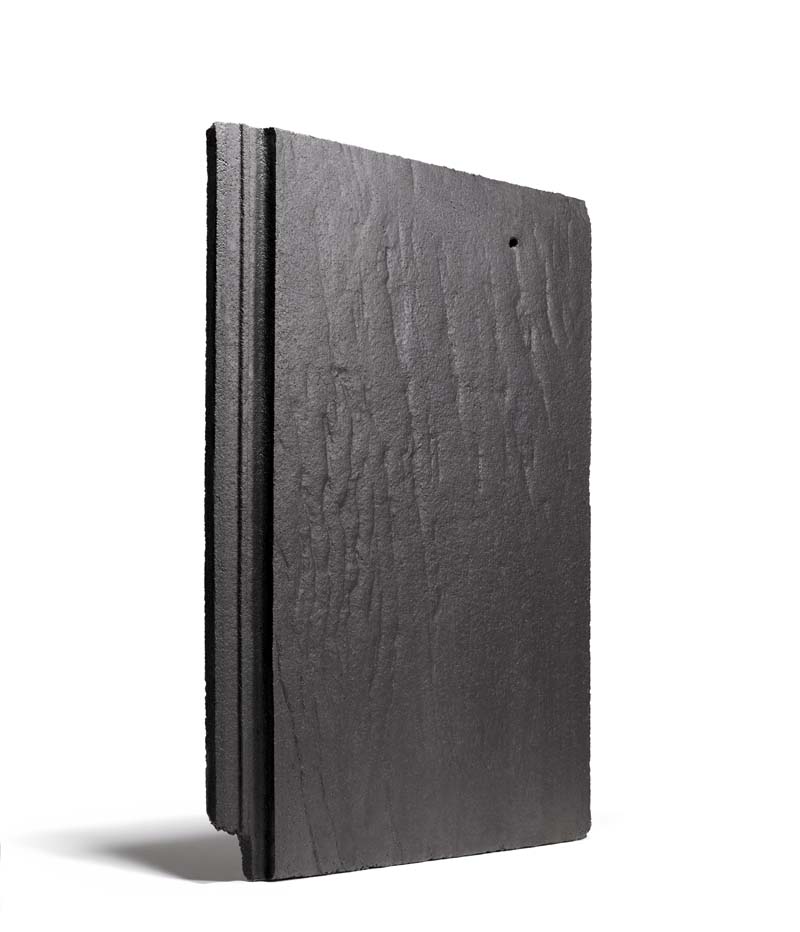

Riven Edgemere has a randomised texture applied to the surface to ensure an attractive and variegated appearance, and a finish which closely resembles natural slate.
INFORMATION
BRAND
Marley
PRODUCT TYPE
Roof Tile
COLLECTION
Riven Edgemere
MATERIAL
Concrete
FIXING CLIPS
- Eaves
- Verge
- Tile clips
- SoloFix
COVER WIDTH
298mm (nominal)
HANGING LENGTH
395mm (nominal)
MINIMUM PITCH
- 22.5° Smooth (75mm headlap)
- 17.5° Smooth (100mm headlap)
BATTENS REQUIRED
- 2.9 lin.m/m² at 75mm headlap
- 3.1 lin.m/m² at 100mm headlap
DIMENSIONS
- Height : 420 mm
- Width : 330 mm
MINIMUM HEADLAP
- 75mm (22.5° and above)
- 100mm (below 22.5°)
BATTEN SIZE RECOMMENDED
- 38 x 25mm for rafters/supports not exceeding 450mm centres
- 50 x 25mm for rafters/supports not exceeding 600mm centres
TEXTURE

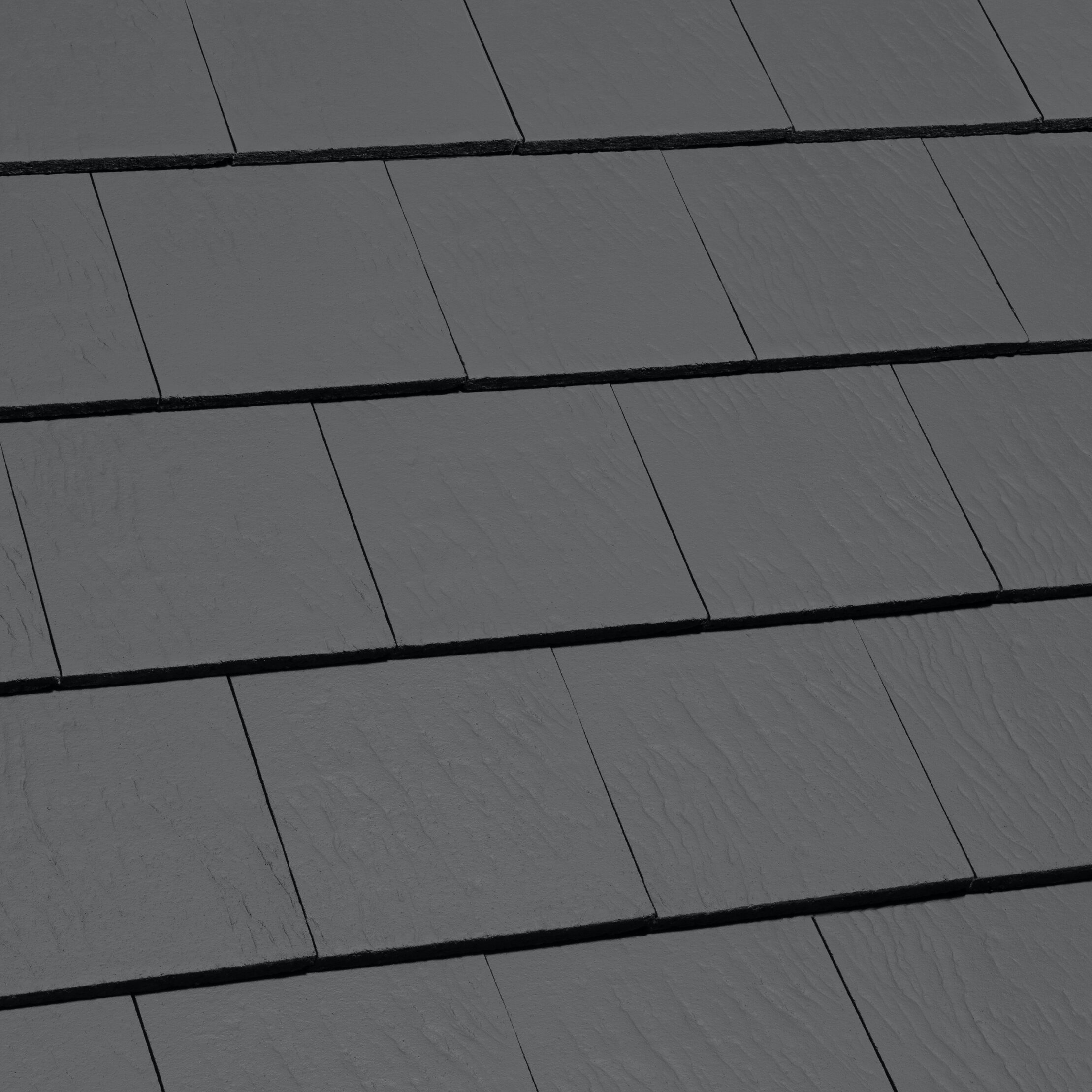

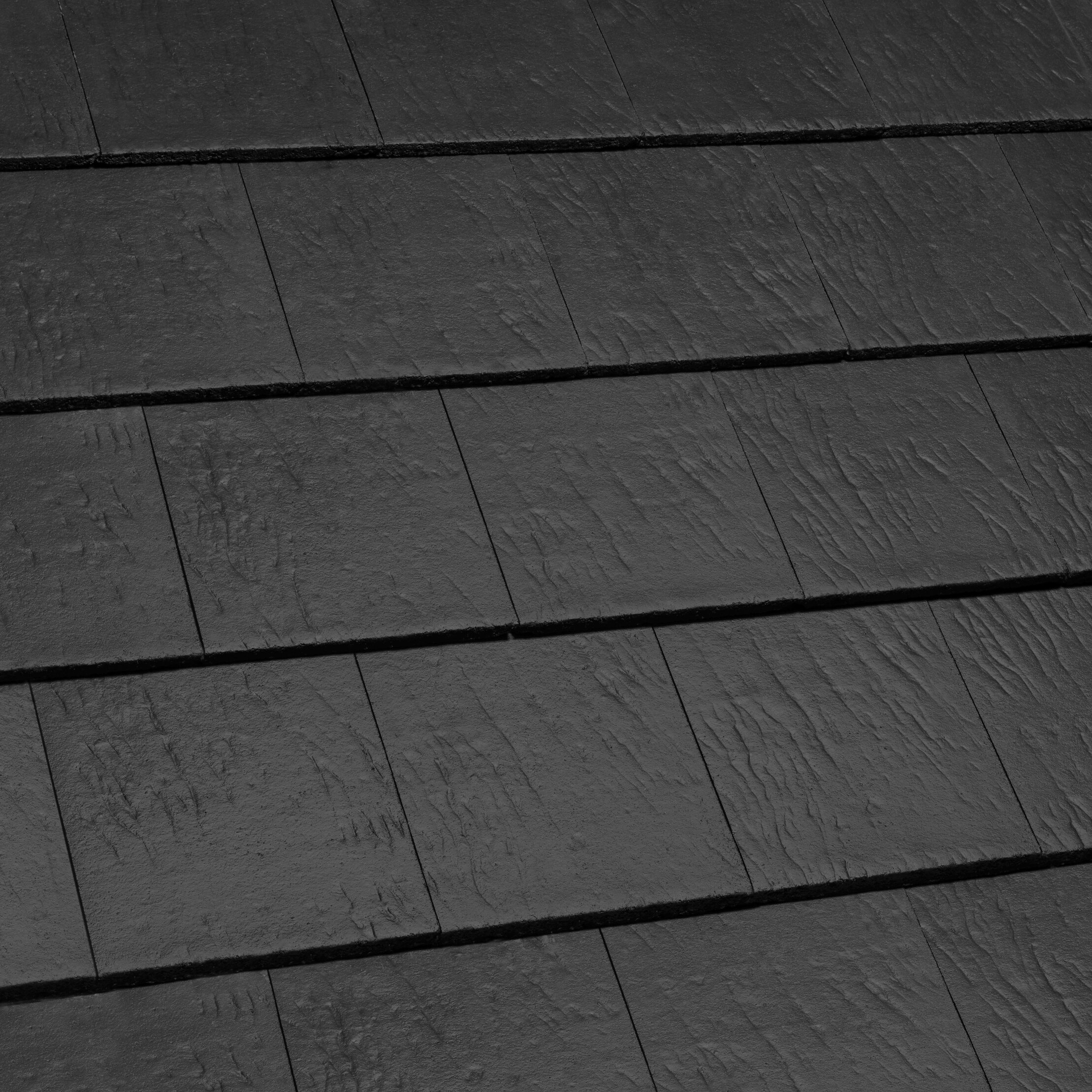

A randomised texture on the surface of each tile ensures an attractive variegated appearance with depth and tone, providing a finish that resembles natural slate.
AUTHORITY
BS EN 490
MAXIMUM GAUGE
345mm
COVERING CAPACITY
- 9.7 slates/m² at 75mm headlap
- 10.5 slates/m² at 100mm headlap
WEIGHT OF TILING
- 44kg/m² (0.43kN/m²) at 75mm headlap
- 47.5kg/m² (0.47kN/m²) at 100mm headlap
AVAILABLE COLORS
Now available in 2 stunning colours and with a riven surface to closely resemble natural slate.
Experiencing the vast variety of textures and colours that our roof tiles provide up close, can guide you in the decision making process when selecting roof coverings. Our efficient sample service can help you in the process.
*Samples shown above are for colour only, Riven Edgemere has a randomised textures on the surface.
DETAIL

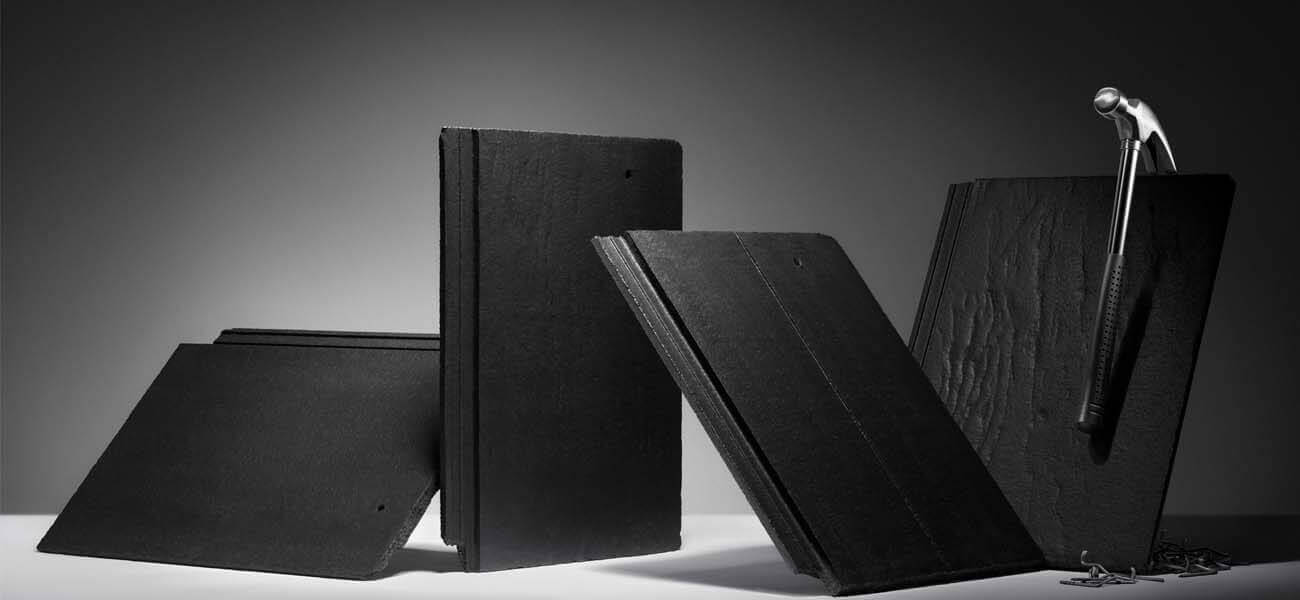

Riven Edgemere is a single-lap solution that allows quick and easy installation and is compatible with our full range of ventilation and dry fix systems.

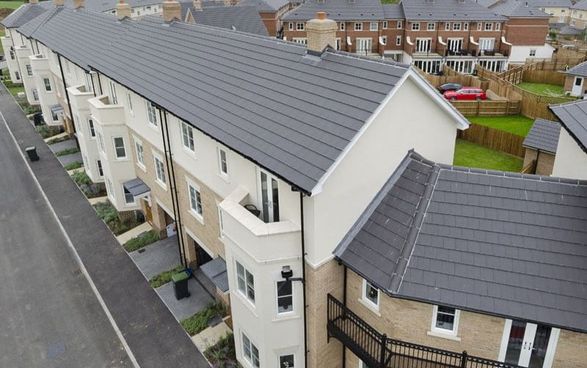

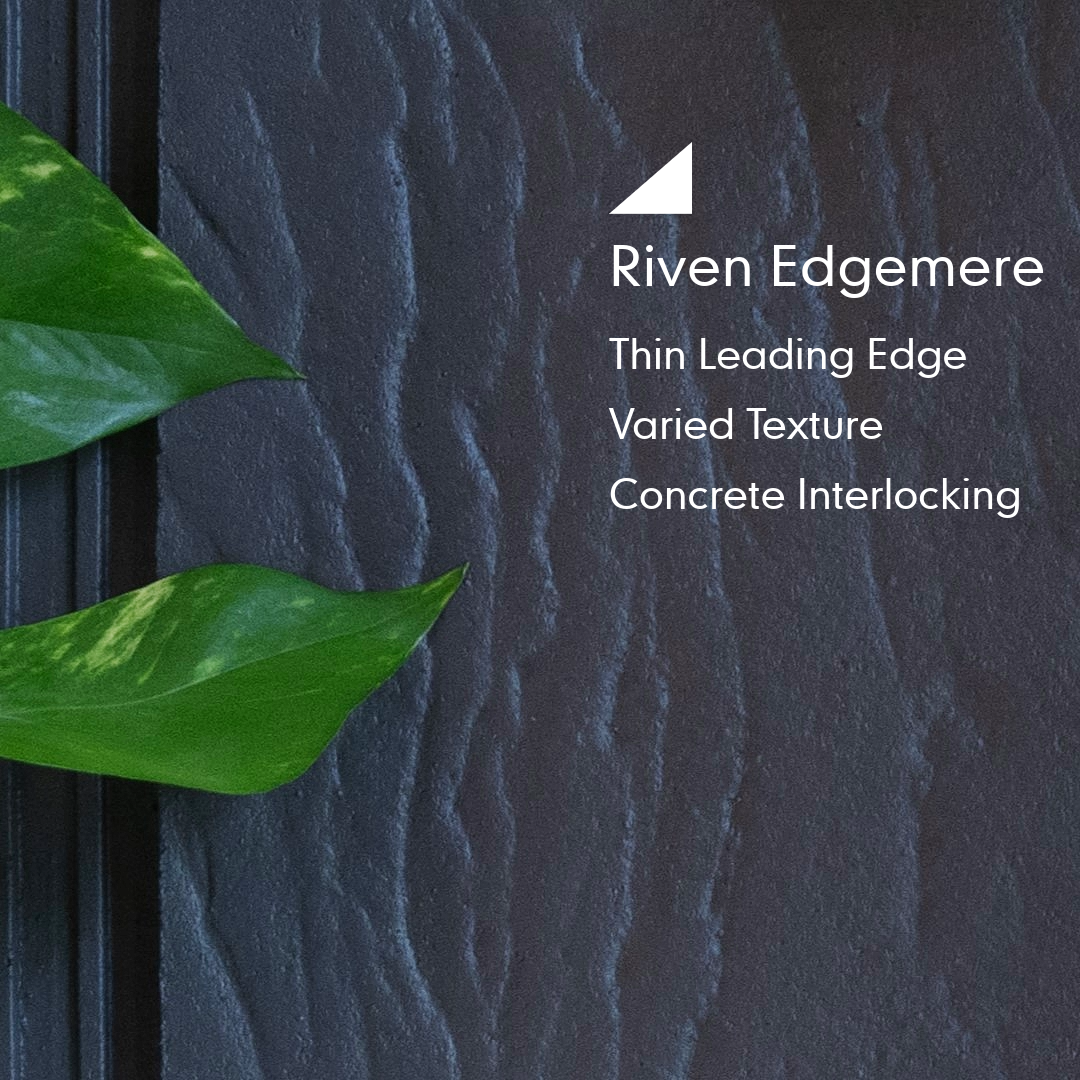

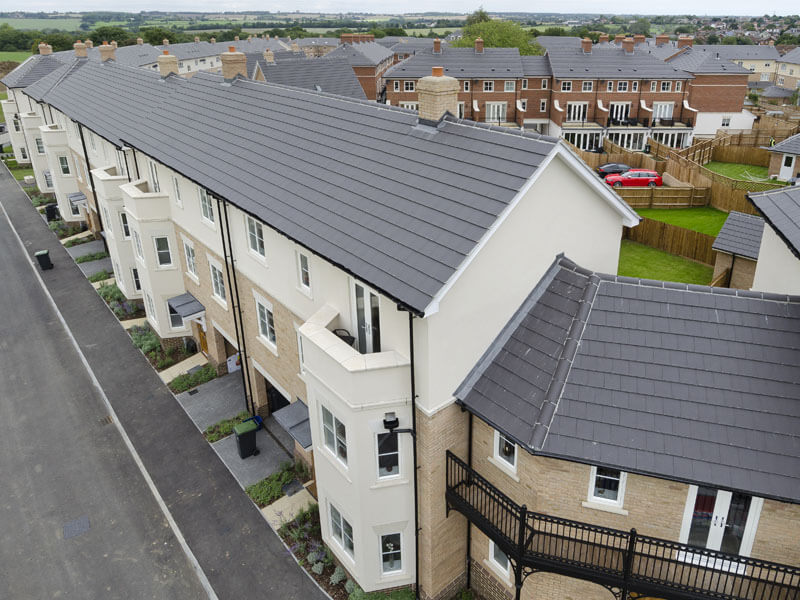

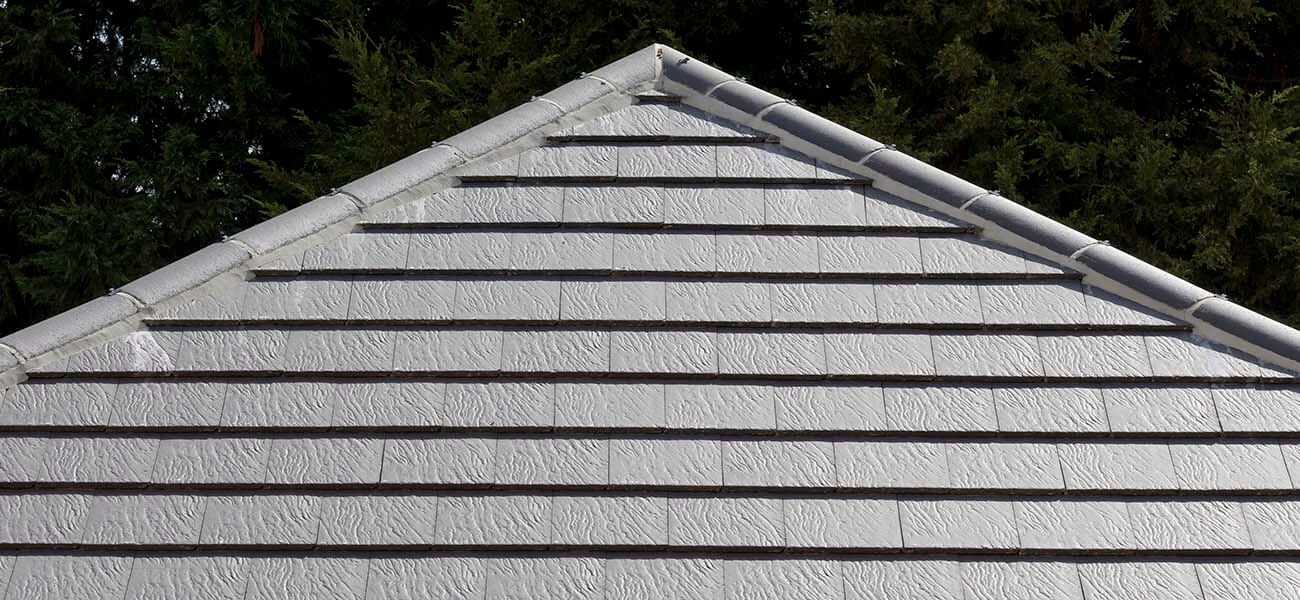

The clean, sleek appearance of these slate-like tiles offers enormous kerb appeal. These tiles are only 18mm thick and are laid with a special broken-bond laying technique, unlike standard interlocking tiles and great performance at pitches as low as 17.5°.
Accreditation to the BES 6001 framework standard for 'Responsible Sourcing' means that projects using our concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).
