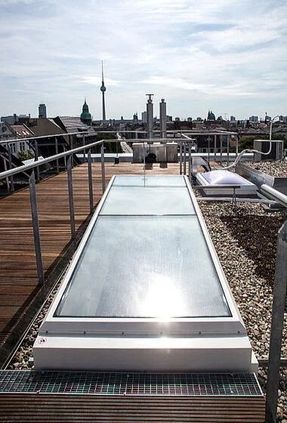

Lamilux Flat Roof Access Hatch Comfort Solo Roof Hatches
FLAT ROOF ACCESS HATCH COMFORT SOLO ROOF HATCHES
FLAT ROOF ACCESS HATCH COMFORT SOLO ROOF HATCHES
Comfort in exclusive design
INFORMATION
OPENING DRIVE
- Closing edge protection via sensor
- Infinitely variable ventilation with push-button function
BRAND
Lamilux
PRODUCT TYPE
Roof Hatches
PRODUCTION
Made in Germany
WEATHERPROOF
2 pieces 24 V linear drives weatherproof with central unit
PROTECTION CLASS
Protection class IP 65, 1A Current consumption per motor
DESIGN & COMFORT
- Infinitely variable ventilation position of the leaf
- Variety of colours according to RAL card (edging profiles)
- Winner of the German Design Award 2017 in the Category Special Mention
- leaf system, motor opener and upstand are completely pre-assembled at the factory
INCIDENCE

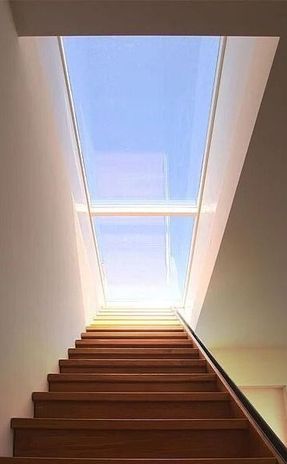

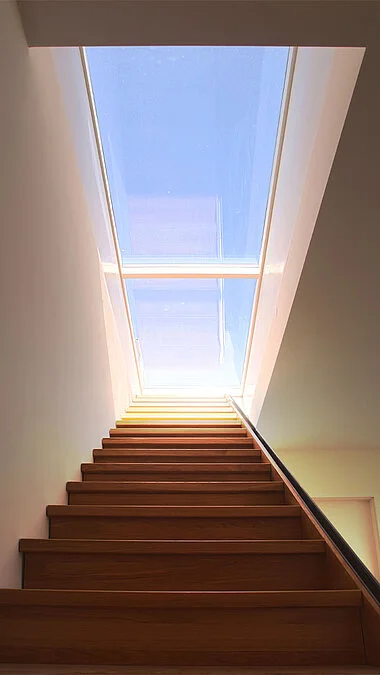

Generous daylight incidence
ACCESS

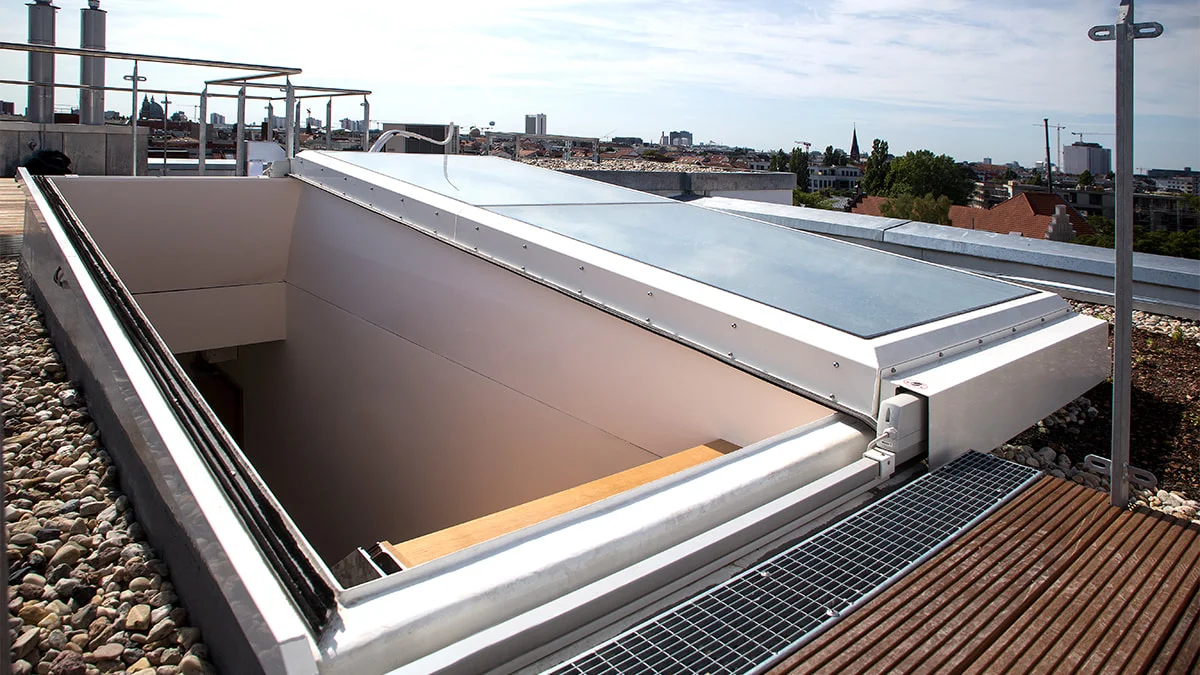

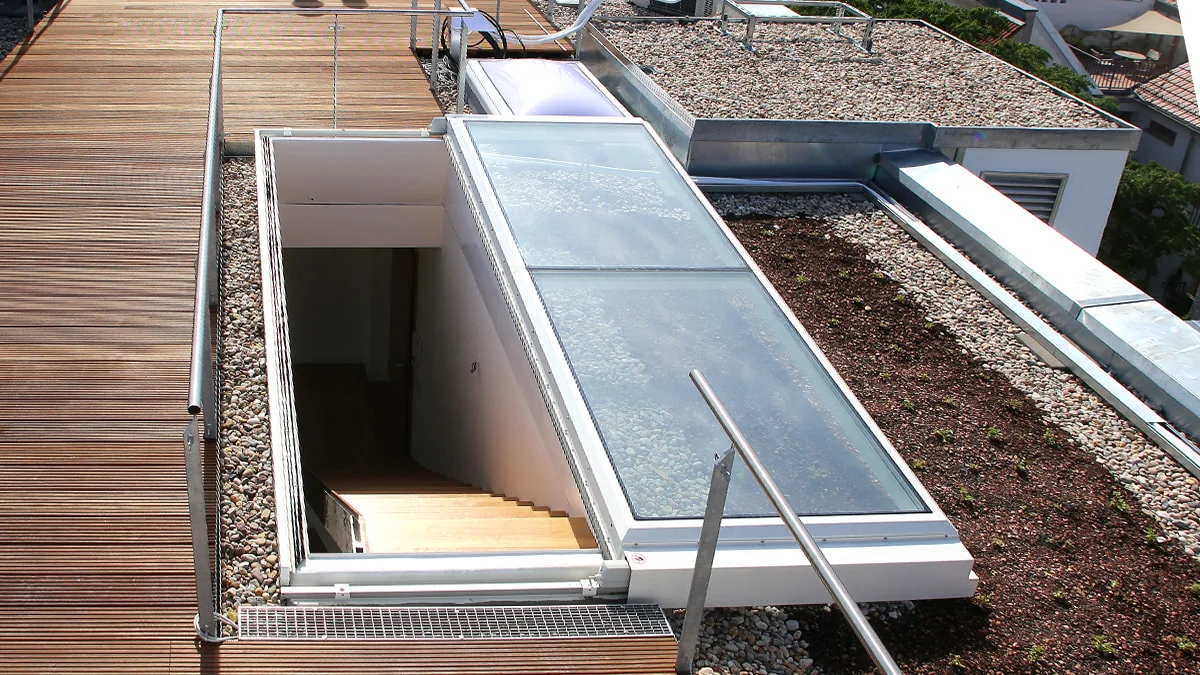

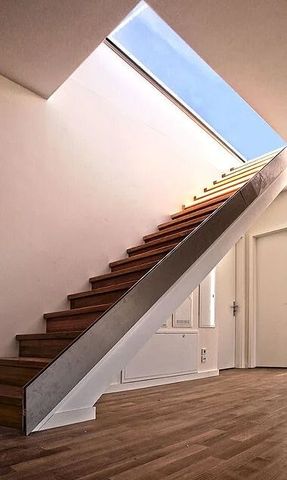

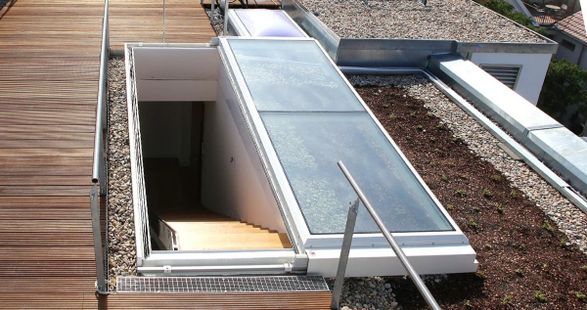

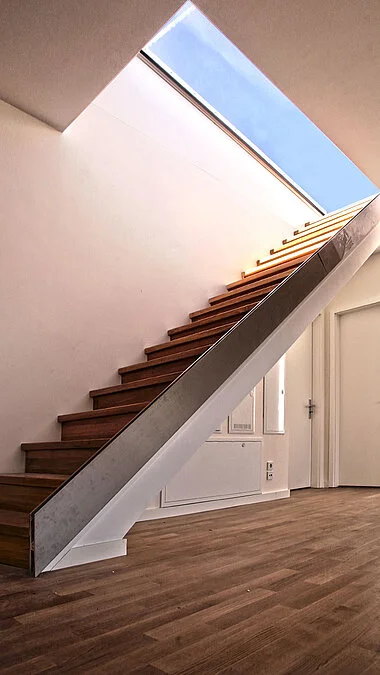

Convenient access to the roof terrace via stairs (on-site)
SELF-CLEANING
Self-cleaning due to 6° inclined upstand
LAMILUX US-CERTIFICATE
CLEAR OPTICS
No interfering edges and no visible drive units in the interior
SOUNDPROOFING
39 dB
AS A STANDARD
Outer pane TSG, inner pane LSG
SAFETY
- Fall-through proof according to DIN 18008-6
- Closing and opening from outside possible via optional key switch (min. IP54)
- Complies with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
- Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5
DESIGNATION
W110
UG-VALUE
0,6 W/(m²K)
TRANSLUCENCY
72 %
TOTAL ENERGY TRANSMISSION
51 %
DOWNLOADS
OPENING SIDE
Opening side DIN left or DIN right selectable when ordering
EMERGENCY STOP
Emergency stop function during closing process monitored by light barrier
DETAIL
ENERGY EFFICIENCY

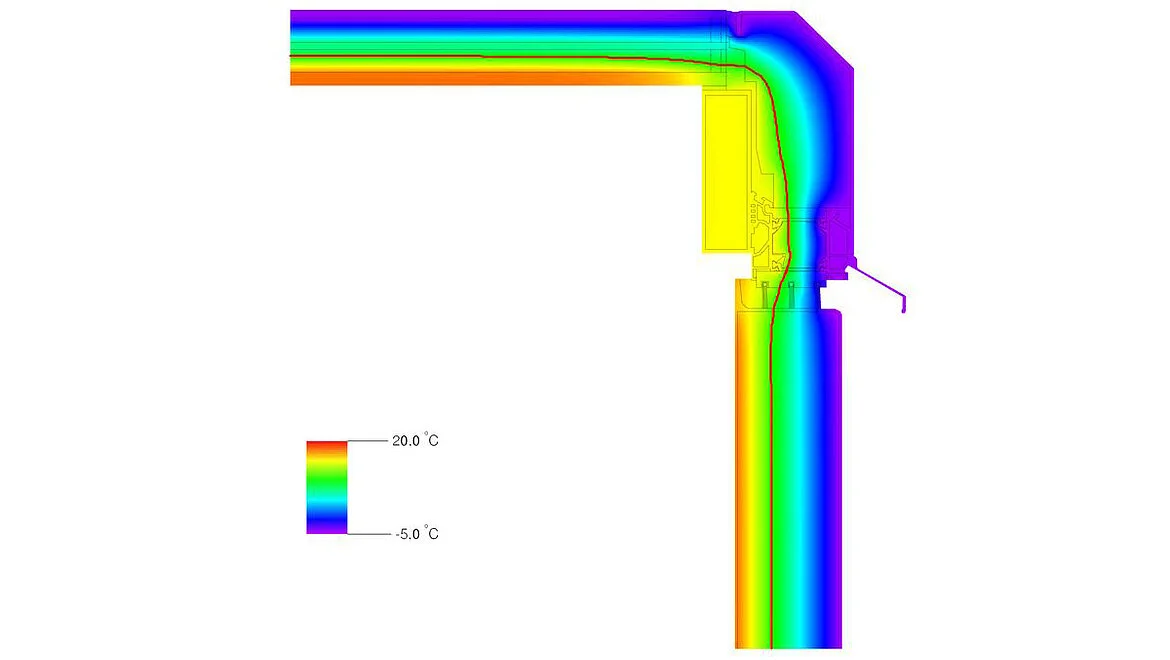

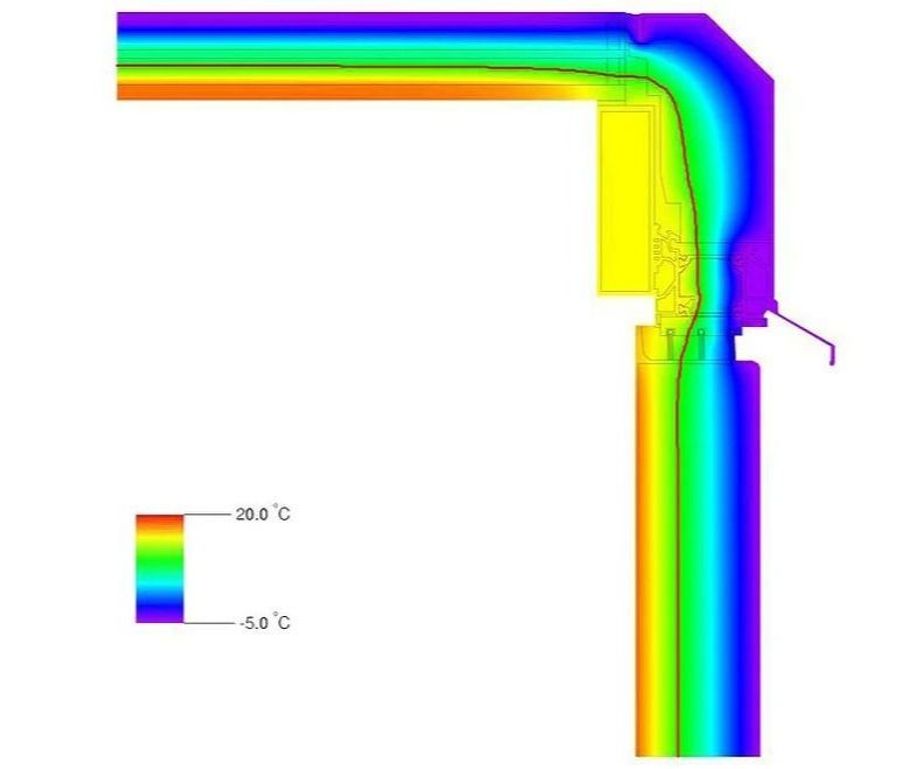

Our LAMILUX Flat Roof Access Hatch Comfort Solo features optimum isothermal curves and thus a minimised condensation risk. The Flat Roof Access Hatch also has high thermal insulation in the joint area.
- Minimized risk of condensation
- Completely thermally insulated upstand
- Complete construction without thermal bridges
- As a standard 3-pane insulating glass with Ug-value 0.6 W/m²K
- Can be equipped with the highest quality functional glass (on request)
UPSTAND - STABILITY AND THERMAL INSULATION
The seamlessly manufactured upstand (top roof edge dimensions 120 x 350 cm) forms the base for the construction. It provides the ideal thermal connection to the building structure.
The LAMILUX upstands made of glass-fibre reinforced plastic are CFC-free, completely pigmented white and thermally insulated with rigid polyurethane foam. They have a weatherproof seal and are not considered to be burning drips and comply with DIN 18234 without additional measures.
LAMILUX upstands have a closed box cross-section - this makes them very stable and torsion-resistant.
The continuous insulation, at least 55 mm thick, ensures an excellent heat transfer coefficient of 0.6 W/m²K. The upstand is 35 cm high on the eaves side and rises by 6° to 68 cm on the ridge side. This supports the self-cleaning of the element.
