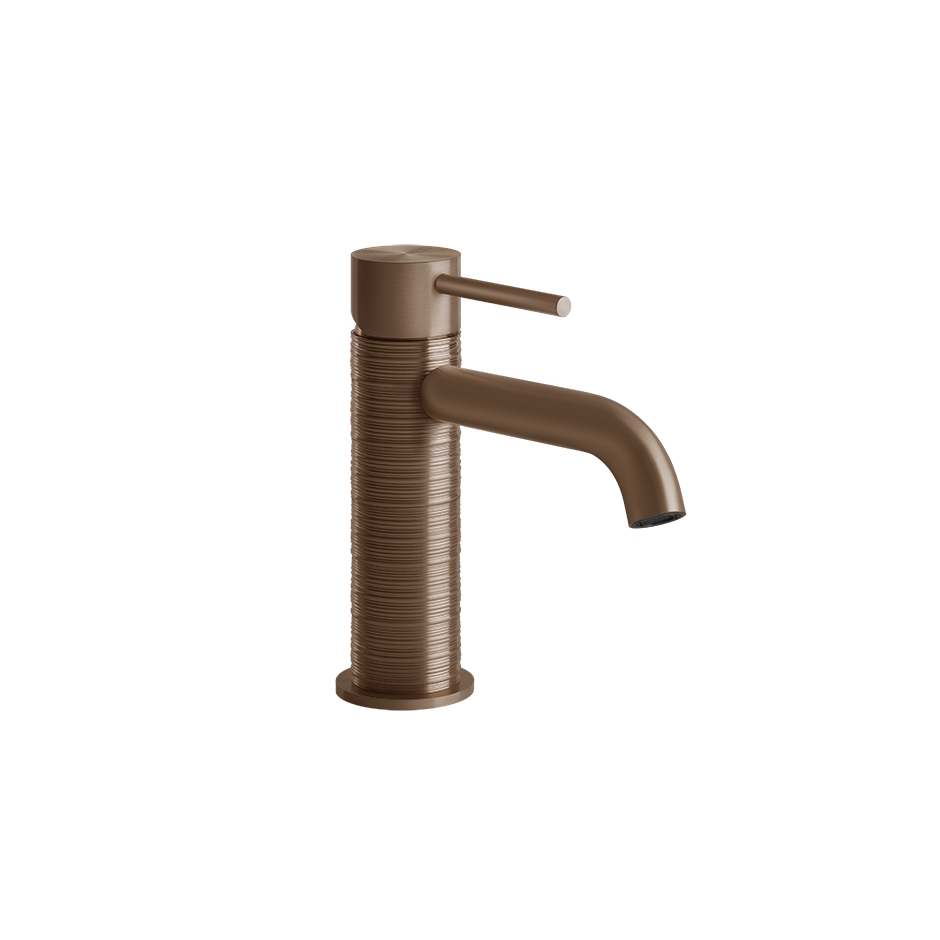

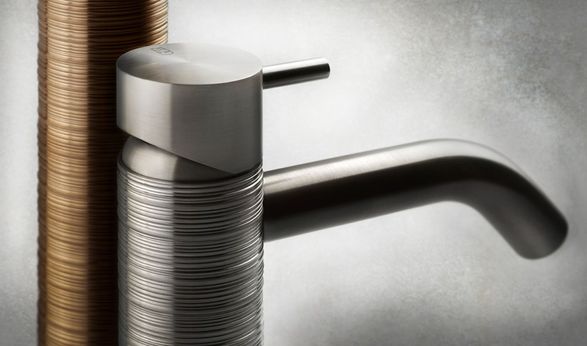

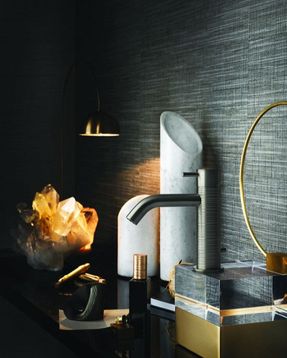

Gessi Gessi316 Trame 54302 Basin Mixer

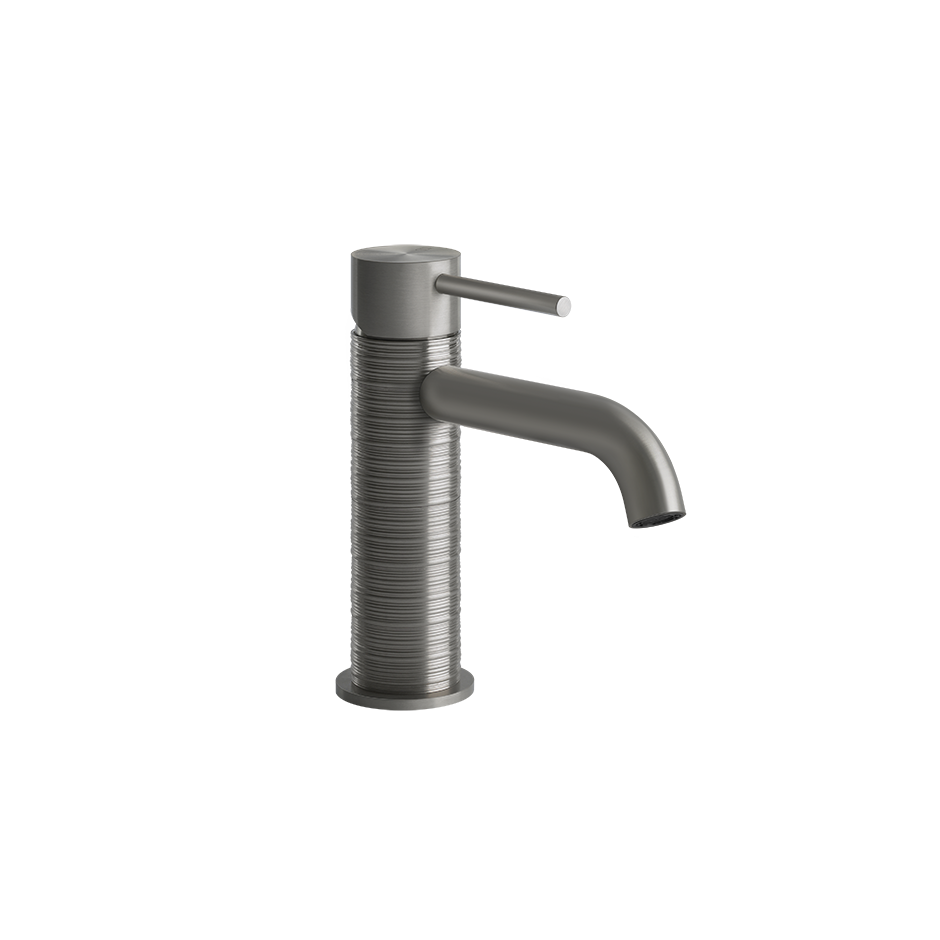

GESSI316 TRAME 54302 BASIN MIXER
GESSI316 TRAME 54302 BASIN MIXER
Basin mixer, flexible connections, without waste
INFORMATION
ACCESSORIES AND FITTINGS
For additional matching bathroom accessories and fittings available, see official Gessi price list.
BRAND
Gessi
PRODUCT TYPE
Basin mixer
DRIVE
Single lever
CERTIFICATIONS
- The main components in contact with drinking water comply with ACS requirements, UBA list, KTW BWGL
- Water tightness resistance and long term functionality in accordance with EN-817 Production managed by a certified Quality System compliant with ISO 9001:2015 For additionals approved contact Gessi S.P.A
CONNECTION HOSES
Flexible supply hoses included
WATER POINT PRESENCE
Yes
INDICATIONS FOR CLEANING
Clean only with a new microfiber cloth and soapy water and dry with a dry cloth. Detergents, solvents, alcohol, abrasive sponges, wire, wool, alcohol, etc., should not be used as these could irreparably damage product surfaces compromising its aesthetics and brilliance.
DIMENSION
- Height : 159 mm
- Depth : 157 mm
- Width : 50 mm
WATER POINT LENGTH
122 mm
WATER POINT HEIGHT
76 mm
CARTRIDGE SIZE
25 mm
TECHNICAL PRESCRIPTION

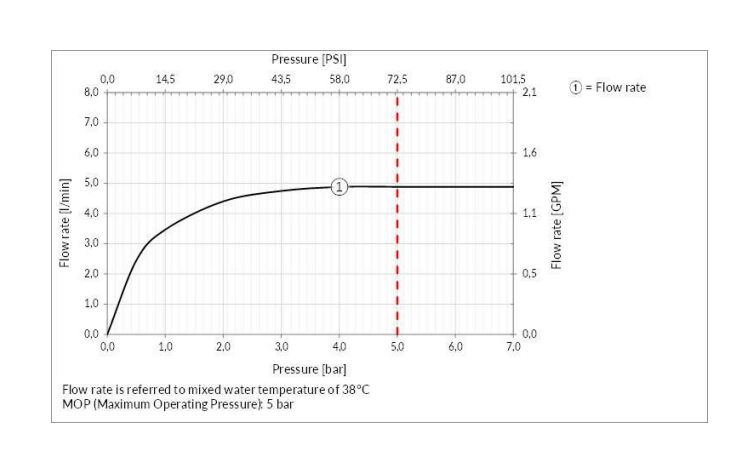

- Working pressure for an optimal installation: 3 bar.
- Test watertight and cleaning of the pipes before installing the tap.
- In order to guarantee a long duration of the product and its total functionality install filter.
- Working maximum pressure value 5 bar - in case of higher pressure, to use a pressure reducer.
- In any case please refer to the instruction manual and warranty provided with the product.
- Supply the product with mains water with a maximum temperature of 70 °C and for short periods of use.
CUSTOMIZABLE PRODUCT
No
CARTRIDGE TYPE
Mixer cartridge
SWIVEL SPOUT PRESENCE
No
TECHNICAL DROWING
ELECTRONICS
No
WATER SUPPLY CONNECTIONS
G3/8"
WATER MIXING TYPE
Mechanical mixing
PRESENCE OF WATER SUPPLY CONNECTIONS
Sì
DOWNLOADS
↓ 2D Model - DWG
↓ Installation Instruction
↓ Technical Sheet
↓ Spare Parts
↓ Technical Drawing mm - PDF
FINISHES CHARACTERISTICS
- Chrome : Gessi products have a Chromium Plating finish. This is a high-quality coating composed of a first layer of nickel, a second layer of chromium, a very shiny appearance, high resistance to corrosion and abrasion.
- Laquered : Gessi products have an industrial lacquer finish. This coating is obtained by means of a special industrial process that involves spraying the lacquer onto the product with a subsequent firing process at a high temperature. The lacquer used is of the highest quality and ensures maximum resistance and durability. The different lacquer types depend on the product type.
- Stainless steel : Gessi products have a solid Stainless Steel finish. This is a very high-quality finish, with a very high resistance to corrosion and abrasion. The finish is obtained by means of a special brushing process, which gives the product a very elegant and modern appearance. The finish is also very easy to clean and maintain.
- Pvd colors : Gessi products have a PVD finish. This coating is obtained through the PVD (Physical Vapour Deposition) process, which is a state-of-the-art coating process that is highly resistant to abrasion and corrosion. The process is carried out in a vacuum chamber, where the material to be deposited is heated and vaporized, and then condensed onto the product to be coated. The result is a thin, uniform, and highly resistant film.
